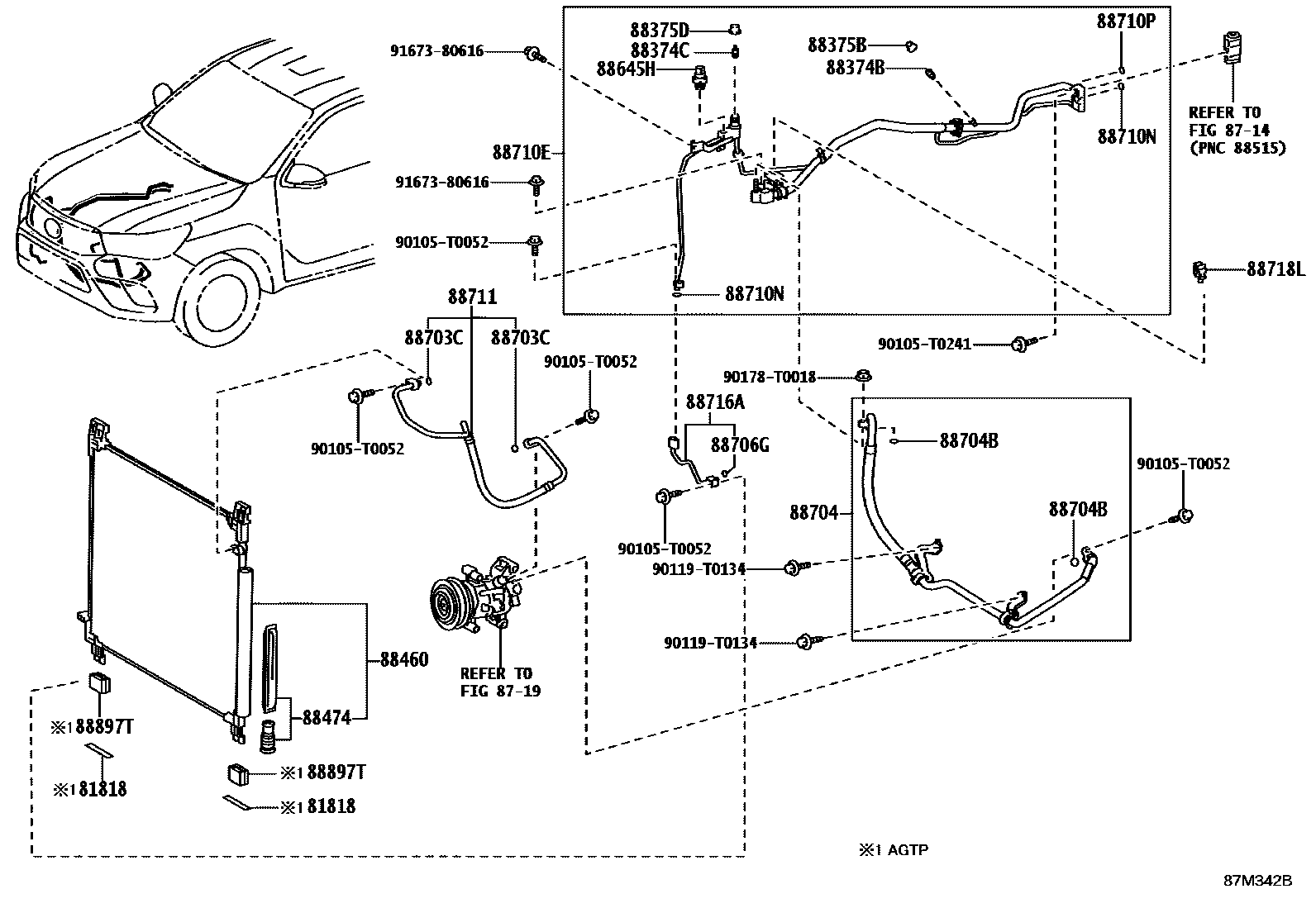

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1W/O(SUB-COOL ACCELERATOR) 0004 1EURO 6C,EURO 6D 0005 1DEALER OPTION 0007 1DEALER OPTION 0010 1DEALER OPTION 0011 1DEALER OPTION 0012 1DEALER OPTION 0013 1MAKER OPTION 0014 1DEALER OPTION 0015 1 0016 1W(SUB-COOL ACCELERATOR) 0017 1W/O(SUB-COOL ACCELERATOR) 0019 1 0020 1MAKER OPTION

81818PACKING

main87417-0K070iGUN126..AGTP..6FC..H..LA;GUN125,135,TGN126..AGTP..MTM..(L,S)..LA202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main87417-0K070iGUN126..AGTP..6FC..H..LA;GUN125,135,TGN126..AGTP..MTM..(L,S)..LA202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main87417-0K070iGGN125,GUN125,126,13#,TGN126,136..AGTP202311-202410

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-02010iGUN125,135..AGTP..6F..LA;GUN126..AGTP..6FC..H..LA202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88374-02010iGUN125,135..AGTP..6F..LA;GUN126..AGTP..6FC..H..LA202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88374-02010iGUN125,126,13#..AGTP202311-202410

main88374-02020iGUN125..RHD..L..SA202402-202410

FRONT AIR CONDITIONER-MANUAL

main88374-02020iGUN122,125,135,TGN126..LHD..SAP..L202402-202409

FRONT AIR CONDITIONER-COOLER LESS

main88374-02020iGUN125,126..GHA,KEN202402-202412

main88374-30010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407

FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

main88374-30010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88374-30010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88374-30010iGUN126..IND202308-202410

88374CVALVE, SERVICE, NO.2

main88374-02010iGUN126..AGTP..6FC..H..LA;GUN125,135,TGN126..AGTP..MTM..(L,S)..LA202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88374-02010iGUN126..AGTP..6FC..H..LA;GUN125,135,TGN126..AGTP..MTM..(L,S)..LA202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88374-02010iGGN125,GUN125,126,13#,TGN126,136..AGTP202311-202410

main88374-02020iGUN122,125,135,TGN126..LHD..SAP..L202402-202409

FRONT AIR CONDITIONER-COOLER LESS

main88374-02020iGUN125..RHD..L..SA202402-202410

FRONT AIR CONDITIONER-MANUAL

main88374-02020iGUN125,126..GHA,KEN202402-202412

main88374-30010iTGN126..AGTP..S202311-202410

CENTRAL AND SOUTH AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88374-30010iTGN126..AGTP..S202311-202410

ECUADOR SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88374-30010iTGN126..AGTP..S202311-202410

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88374-30010iTGN121..GEN;TGN121..5F..S;GUN122,125..MTM..L..GCC;GUN125,135..THP..6F..LA;GUN126..THP..6FC..H..DCRL..LA;TGN126..THP..5F..(L,S)..(GCC,LA)202308-202407

FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

main88374-30010iGUN125,126..CAMP,MAP,MMRP202308-202409

main88374-30010iTGN121..GEN;TGN121..5F..S;GUN122,125..MTM..L..GCC;GUN125,135..THP..6F..LA;GUN126..THP..6FC..H..DCRL..LA;TGN126..THP..5F..(L,S)..(GCC,LA)202308-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

88375BCAP, SERVICE VALVE, NO.1

main88375-02130iGUN125,135..AGTP..6F..LA;GUN126..AGTP..6FC..H..LA202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88375-02130iGUN125,135..AGTP..6F..LA;GUN126..AGTP..6FC..H..LA202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88375-02130iGUN125,126,13#..AGTP202311-202410

main88375-02140iGUN125..RHD..L..SA202402-202410

FRONT AIR CONDITIONER-MANUAL

main88375-02140iGUN122,125,135,TGN126..LHD..SAP..L202402-202409

FRONT AIR CONDITIONER-COOLER LESS

main88375-02140iGUN125,126..GHA,KEN202402-202412

main88375-02150iLAN125202402-202410

main88375-30290iTGN126..AGTP..S;GUN122,125..MTM..L..GCC202308-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88375-30290iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88375-30290iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407

FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

main88375-30290iGUN125,126..CAMP,MAP,MMRP202308-202410

88375DCAP, SERVICE VALVE, NO.2

main88375-02120iTGN126..AGTP..(L,S)202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88375-02120iTGN126..AGTP..(L,S)202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88375-02120iGGN125,TGN126,136..AGTP202311-202410

main88375-02140iLAN125202402-202410

main88375-02150iGUN125,126..GHA,KEN202402-202412

main88375-02150iGUN125..SAP..(H,S);GUN125..LHD..SAP..L;GGN125,GUN122,126,13#,TGN121,126,136..SAP..(DCRL,HTWC)202402-202410

FRONT AIR CONDITIONER-MANUAL

main88375-02150iGUN122,125,135,TGN126..LHD..SAP..L202402-202409

FRONT AIR CONDITIONER-COOLER LESS

main88375-30280iTGN126..AGTP..L202311-202410

ECUADOR SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88375-30280iTGN126..AGTP..L202311-202410

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88375-30280iTGN126..AGTP..S202311-202410

CENTRAL AND SOUTH AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88375-30280iTGN121..5F..H;GGN125,GUN125,126,TGN126..H..(DCRL,HTWC)..GCC202308-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88375-30280iTGN121..GEN;TGN121..5F..S;GUN125,135..6F..LA;GUN122,125..MTM..L..GCC;GUN126..6FC..H..DCRL..LA;TGN126..THP..5F..(L,S)..(GCC,LA)202308-202407

FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

main88375-30280iGUN125,126..CAMP,MAP,MMRP202308-202410

88460CONDENSER ASSY, COOLER

main88460-0K350iTGN121..5F..H;GGN125,GUN125,126,TGN126..H..(DCRL,HTWC)..GCC202308-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88460-0K350iTGN121..5F..H;GGN125,GUN125,126,TGN126..H..(DCRL,HTWC)..GCC202308-202407

FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

main88460-0K350iGUN126..CAMP,MMRP202308-202409

main88460-0K390iGUN126..AGTP..6FC..H..LA;GUN125,135,TGN126..AGTP..MTM..(L,S)..LA202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88460-0K390iGUN126..AGTP..6FC..H..LA;GUN125,135,TGN126..AGTP..MTM..(L,S)..LA202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88460-0K390iGGN125,GUN125,126,13#,TGN126,136..AGTP202311-202410

main88460-0K430iGUN122,125,135,TGN126..LHD..SAP..L202402-202409

FRONT AIR CONDITIONER-COOLER LESS

main88460-0K430iGUN125..SAP..(H,S);GUN125..LHD..SAP..L;GGN125,GUN122,126,13#,TGN121,126,136..SAP202402-202410

FRONT AIR CONDITIONER-MANUAL

main88460-0K430iGUN125,126..GHA,KEN202402-202412

main88460-0K460iLAN125202402-202410

main88460-0K550iGUN125,126..MA202309-202408

main88460-0K780iGUN126..PKN202412

main88460-0K800iGUN126..TWN202308-202407

EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)

88474DRYER, COOLER

main88474-0K020iGUN126..AGTP..6FC..H..LA;GUN125,135,TGN126..AGTP..MTM..(L,S)..LA202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88474-0K020iGUN126..AGTP..6FC..H..LA;GUN125,135,TGN126..AGTP..MTM..(L,S)..LA202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88474-0K020iGGN125,GUN125,126,13#,TGN126,136..AGTP202311-202410

main88474-0K030iGUN125..SAP..(H,S);GUN125..LHD..SAP..L;GGN125,GUN122,126,13#,LAN125,TGN121,126,136..SAP202402-202410

FRONT AIR CONDITIONER-MANUAL

main88474-0K030iGUN125,126..GHA,KEN202402-202412

main88474-0K030iGUN122,125,135,TGN126..LHD..SAP..L202402-202409

FRONT AIR CONDITIONER-COOLER LESS

main88474-12010iGUN126..TWN202308-202407

EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)

main88474-12010iGUN125,126..MA202308-202408

main88474-12020iTGN121..5F..H;GGN125,GUN125,126,TGN126..H..(DCRL,HTWC)..GCC202308-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88474-12020iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)..(ARL,GCC,GEN,IDN,LA,PH,SA,TH,VN)202308-202407

FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

main88474-12020iGUN126..CAMP,MMRP202308-202409

main88474-12020iTGN126..AGTP..S202311-202410

CENTRAL AND SOUTH AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88474-12020iTGN126..AGTP..S202311-202410

ECUADOR SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88474-12020iTGN126..AGTP..S202311-202410

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

88645HSWITCH, PRESSURE NO.1

main88645-0K030iGUN126..AGTP..6FC..H..LA;GUN125,135,TGN126..AGTP..MTM..(L,S)..LA202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88645-0K030iTGN121..GEN;TGN121..5F..S;GUN125,135..6F..LA;GUN122,125..MTM..L..GCC;GUN126..6FC..H..DCRL..LA;TGN126..5F..(L,S)..(GCC,LA)202308-202407

FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

main88645-0K030iTGN121..GEN;TGN121..5F..S;GUN125,135..6F..LA;GUN122,125..MTM..L..GCC;GUN126..6FC..H..DCRL..LA;TGN126..5F..(L,S)..(GCC,LA)202308-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88645-0K030iGUN125,126..CAMP,MAP,MMRP202308-202412

main88645-0K030iGUN122,125,135,TGN126..LHD..SAP..L202402-202409

FRONT AIR CONDITIONER-COOLER LESS

main88645-0K030iGUN125..RHD..L..SA202402-202410

FRONT AIR CONDITIONER-MANUAL

main88645-0K050iGUN125..IDN202308-202407

88703CRING, O(FOR DISCHARGE HOSE)

main90068-14022iLAN125202402-202410

ID=10.8,OD=15.6

main90068-14044iGUN126..TWN;GUN126..MHV..(ARL,GCC,LA)202308-202407

ID=10.2,OD=15.0,EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)

main90068-14044iGUN125..RHD..L..GEN;GUN126..RHD..6F..H..GEN202308-202407

ID=10.2,OD=15.0

main90099-14120iTGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)..(ARL,GCC,GEN,IDN,LA,PH,SA,TH,VN)202308-202407

ID=10.8,OD=15.6,FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main90099-14120iTGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)..(ARL,GCC,GEN,IDN,LA,PH,SA,TH,VN)202308-202407

ID=10.8,OD=15.6,FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

main90099-14120iTGN121..GEN;TGN121..5F..S;GUN125,135..6F..LA;GUN122,125..MTM..L..GCC;GUN126..6FC..H..DCRL..LA;TGN126..5F..(L,S)..(GCC,LA)202308-202410

ID=10.8,OD=15.6

main90099-14120iTGN126..AGTP..S202311-202407

ID=10.8,OD=15.6,FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

88704HOSE SUB-ASSY, SUCTION

main88704-0K550iGUN126..PKN202412

main88704-0K780iGUN126..IND202310-202409

main88704-0KB10iGGN125..GCC202308-202407

FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

main88704-0KC30iTGN126..AGTP..(L,S)202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88704-0KC30iTGN126..AGTP..(L,S)202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88704-0KC30iTGN126,136..AGTP202311-202410

main88704-0KC50iGGN125..LA202311-202410

main88704-0KD10iGUN125,135..AGTP..6F..LA;GUN126..AGTP..6FC..H..LA202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88704-0KD10iGUN125,135..AGTP..6F..LA;GUN126..AGTP..6FC..H..LA202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88704-0KD10iGUN125,126,13#..AGTP202311-202410

main88704-0KD30iTGN121,126,136..SAP202402-202410

main88704-0KD30iTGN126..SAP..L202402-202409

FRONT AIR CONDITIONER-COOLER LESS

main88704-0KD50iGGN125..SA202402-202410

main88704-0KD90iGUN122,125,135..LHD..SAP..L202402-202409

FRONT AIR CONDITIONER-COOLER LESS

main88704-0KD90iGUN125..SAP..(H,S);GUN125..LHD..SAP..L;GUN122,126,13#..DCRL..SA202402-202410

FRONT AIR CONDITIONER-MANUAL

main88704-0KD90iGUN125,126..GHA,KEN202402-202412

main88704-0KE10iLAN125202402-202410

main88704-0KE90iGUN125,126..MA202309-202408

main88704-0KF50iGUN125..LHD..GEN;GUN125..6FC..L..GEN202308-202407

ASIA COLD COUNTRY SPEC

main88704-0KG10iTGN121..5F..H;TGN126..H..GCC202308-202407

FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

main88704-0KG10iTGN121..5F..H;TGN126..H..GCC202308-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88704-0KG20iGUN122,125..MTM..L..GCC;GUN125,135..THP..6F..LA;GUN126..THP..6FC..H..DCRL..LA202308-202407

FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

main88704-0KG20iGUN125,126..H..DCRL..GCC202308-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88704-0KG20iGUN126..CAMP,MMRP202308-202408

main88704-0KG40iGUN126..MHV..(ARL,GCC,LA)202311-202407

main88704-0KG60iGUN126,136..MHV..SA202402-202410

88704BRING, O(FOR SUCTION HOSE)

main90068-14024iGUN125..SAP..(H,S);GUN125..LHD..SAP..L;GGN125,GUN122,126,13#,LAN125,TGN121,126,136..SAP..(DCRL,DEFI,HTWC)202402-202412

ID=13.4,OD=18.2

main90068-14024iGUN122,125,135,TGN126..LHD..SAP..L202402-202409

ID=13.4,OD=18.2,FRONT AIR CONDITIONER-COOLER LESS

main90068-14024iGUN125..SAP..(H,S);GUN125..LHD..SAP..L;GGN125,GUN122,126,13#,LAN125,TGN121,126,136..SAP..(DCRL,DEFI,HTWC)202402-202410

ID=13.4,OD=18.2,FRONT AIR CONDITIONER-MANUAL

main90068-14043iGUN126..MHV..(ARL,GCC,LA)202311-202407

ID=13.4,OD=18.2

main90099-14121iTGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407

ID=13.4,OD=18.2,FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

main90099-14121iTGN121..GEN;TGN121..5F..S;GUN125,135..6F..LA;GUN122,125..MTM..L..GCC;GUN126..6FC..H..DCRL..LA;TGN126..5F..(L,S)..(GCC,LA)202308-202410

ID=13.4,OD=18.2

main90099-14121iTGN121..GEN;TGN121..5F..S;GUN125,135..6F..LA;GUN122,125..MTM..L..GCC;GUN126..6FC..H..DCRL..LA;TGN126..5F..(L,S)..(GCC,LA)202308-202407

ID=13.4,OD=18.2,FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main90099-14121iTGN126..AGTP..S202311-202407

ID=13.4,OD=18.2,FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

88706GRING, O(FOR LIQUID TUBE)

main90068-14023iGUN125..RHD..L..SA202402-202412

ID=6.7,OD=10.3

main90068-14023iGUN122,125,135,TGN126..LHD..SAP..L202402-202409

ID=6.7,OD=10.3,FRONT AIR CONDITIONER-COOLER LESS

main90068-14023iGUN125..SAP..(H,S);GUN125..LHD..SAP..L;GGN125,GUN122,126,13#,LAN125,TGN121,126,136..SAP202402-202410

ID=6.7,OD=10.3,FRONT AIR CONDITIONER-MANUAL

main90068-14042iGUN126..TWN202308-202407

ID=6.7,OD=10.3,EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)

main90068-14042iGUN125..RHD..L..GEN;GUN126..RHD..6F..H..GEN202308-202407

ID=6.7,OD=10.3

main90099-14119iTGN121..GEN;TGN121..5F..S;GUN125,135..6F..LA;GUN122,125..MTM..L..GCC;GUN126..6FC..H..DCRL..LA;TGN126..5F..(L,S)..(GCC,LA)202308-202410

ID=6.7,OD=10.3

main90099-14119iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)..(ARL,GCC,GEN,IDN,LA,PH,SA,TH,VN)202308-202407

ID=6.7,OD=10.3,FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main90099-14119iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)..(ARL,GCC,GEN,IDN,LA,PH,SA,TH,VN)202308-202407

ID=6.7,OD=10.3,FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

main90099-14119iGUN126..AGTP..6FC..H..LA;GUN125,135,TGN126..AGTP..MTM..(L,S)..LA202311-202407

ID=6.7,OD=10.3,FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-0KB40iGUN126..IND202310-202409

main88710-0KD20iGUN126..PKN202412

main88710-0KE50iGGN125,TGN12#,136..THP..(ARL,GCC,GEN,LA)202308-202407

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88710-0KE50iGGN125,TGN12#,136..THP..(ARL,GCC,GEN,LA)202308-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88710-0KE50iGGN125,TGN12#,136..THP..(ARL,GCC,GEN,LA)202308-202407

FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

main88710-0KE50iGGN125,TGN12#,136..THP..(ARL,GCC,GEN,LA)202308-202407

FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL)

main88710-0KE70iGUN126..6FC..TH202308-202407

FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

main88710-0KE70iGUN126..THP..6F;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN);GUN120,121,122,125,13#..THP..(ARL,GCC,GEN,LA,PH,SA,TH,VN)202308-202407

FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL)

main88710-0KE70iGUN126..6FC..TH202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT

main88710-0KE70iGUN126..6FC..TH202308-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88710-0KE70iGUN126..6FC..TH202308-202407

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88710-0KE70iGUN126..CAMP,MMRP202308-202408

main88710-0KF10iTGN126..AGTP..(L,S)202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88710-0KF10iTGN126..AGTP..(L,S)202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88710-0KF10iGGN125,TGN126,136..AGTP202311-202410

main88710-0KF30iGUN125,135..AGTP..6F..LA;GUN126..AGTP..6FC..H..LA202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88710-0KF30iGUN125,135..AGTP..6F..LA;GUN126..AGTP..6FC..H..LA202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88710-0KF30iGUN125,126,13#..AGTP202311-202410

main88710-0KF60iGGN125,LAN125,TGN121,126,136..SAP202402-202410

main88710-0KF60iTGN126..SAP..L202402-202409

FRONT AIR CONDITIONER-COOLER LESS

main88710-0KF80iGUN125,126..GHA,KEN202402-202412

main88710-0KF80iGUN122,125,135..LHD..SAP..L202402-202409

FRONT AIR CONDITIONER-COOLER LESS

main88710-0KF80iGUN125..SAP..(H,S);GUN125..LHD..SAP..L;GUN122,126,13#..DCRL..SA202402-202410

FRONT AIR CONDITIONER-MANUAL

main88710-0KL30iGUN125,126..MA202309-202408

main88710-0KQ30iGUN135..H..TH;GUN126..6F..TH202308-202407

TOYOTA STOP & START SYSTEM-WITH

main88710-0KQ30iGUN125,135..(L,S)..TH202308-202407

TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO

main88710-0KR30iTGN121..5F..S;TGN126..5F..L..GCC202308-202407

FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL)

main88710-0KR30iTGN121..5F..H;GGN125,TGN126..H..GCC202308-202407

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88710-0KR40iGUN122,125..MTM..L..GCC;GUN125,135..THP..6F..LA;GUN126..THP..6FC..H..DCRL..LA202308-202407

FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL)

main88710-0KR40iGUN122,125..MTM..L..GCC;GUN125,135..THP..6F..LA;GUN126..THP..6FC..H..DCRL..LA202308-202407

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88710-0KS40iGUN125..IDN202308-202407

main88710-0KV20iGUN126..MHV..(ARL,LA)202311-202407

main88710-0KW90iGUN126,136..MHV..SA202402-202410

main88710-0KY40iGUN126..MHV..GCC202311-202407

88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90068-14023iGUN125..SAP..(H,S);GUN125..LHD..SAP..L;GGN125,GUN122,126,13#,LAN125,TGN121,126,136..SAP..(DCRL,DEFI,HTWC)202402-202412

ID=6.7,OD=10.3

main90068-14023iGUN125..RHD..L..SA202402-202410

ID=6.7,OD=10.3,FRONT AIR CONDITIONER-MANUAL

main90068-14023iGUN122,125,135,TGN126..LHD..SAP..L202402-202409

ID=6.7,OD=10.3,FRONT AIR CONDITIONER-COOLER LESS

main90068-14042iGUN126..MHV..GCC202311-202407

ID=6.7,OD=10.3

main90099-14119iGUN126..6FC..TH202308-202407

ID=6.7,OD=10.3,TOYOTA STOP & START SYSTEM-WITHOUT

main90099-14119iGUN125,135..THP..6F..LA;GUN126..THP..6FC..H..DCRL..LA202308-202407

ID=6.7,OD=10.3,FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main90099-14119iGUN125,135..THP..6F..LA;GUN126..THP..6FC..H..DCRL..LA202308-202407

ID=6.7,OD=10.3,FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL)

main90099-14119iGUN125,135..THP..6F..LA;GUN126..THP..6FC..H..DCRL..LA202308-202410

ID=6.7,OD=10.3

main90099-14119iGUN125,135..THP..6F..LA;GUN126..THP..6FC..H..DCRL..LA202308-202407

ID=6.7,OD=10.3,FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main90099-14119iGUN125,135..THP..6F..LA;GUN126..THP..6FC..H..DCRL..LA202308-202407

ID=6.7,OD=10.3,FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

main90099-14120iGUN125,126..H..DCRL..GCC202308-202407

ID=10.8,OD=15.6,FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL)

88710PRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90068-14024iGUN125..SAP..(H,S);GUN125..LHD..SAP..L;GUN122,126,13#..DCRL..SA202402-202412

ID=13.4,OD=18.2

main90068-14024iGUN125..SAP..(H,S);GUN125..LHD..SAP..L;GUN122,126,13#..DCRL..SA202402-202410

ID=13.4,OD=18.2,FRONT AIR CONDITIONER-MANUAL

main90068-14024iGUN122,125,135..LHD..SAP..L202402-202409

ID=13.4,OD=18.2,FRONT AIR CONDITIONER-COOLER LESS

main90068-14043iGUN126..MHV..(ARL,GCC,LA)202311-202407

ID=13.4,OD=18.2

main90099-14119iGUN125,135..(L,S)..TH202308-202407

ID=6.7,OD=10.3,TOYOTA STOP & START SYSTEM-WITH

main90099-14119iGUN125,135..(L,S)..TH202308-202407

ID=6.7,OD=10.3,TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO

main90099-14119iGUN126..6FC..TH202308-202407

ID=6.7,OD=10.3

main90099-14121iGUN125,135..6F..LA;GUN122,125..MTM..L..GCC;GUN126..6FC..H..DCRL..LA202308-202407

ID=13.4,OD=18.2,FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main90099-14121iGUN125,135..6F..LA;GUN122,125..MTM..L..GCC;GUN126..6FC..H..DCRL..LA202308-202407

ID=13.4,OD=18.2,FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

main90099-14121iGUN122,125..MTM..L..GCC;GUN125,135..AGTP..6F..LA;GUN126..AGTP..6FC..H..LA202308-202410

ID=13.4,OD=18.2

main90099-14121iGUN122,125..MTM..L..GCC;GUN125,135..AGTP..6F..LA;GUN126..AGTP..6FC..H..LA202308-202407

ID=13.4,OD=18.2,TOYOTA STOP & START SYSTEM-WITHOUT

main90099-14121iGUN122,125..MTM..L..GCC;GUN125,135..AGTP..6F..LA;GUN126..AGTP..6FC..H..LA202308-202407

ID=13.4,OD=18.2,FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-0K830iLAN125202402-202410

main88711-0KA20iGUN125..RHD..L..GEN;GUN126..RHD..6F..H..GEN202308-202407

EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)

main88711-0KA80iGUN126..MHV..(ARL,LA)202311-202407

main88711-0KA90iGUN126..MHV..GCC202311-202407

main88711-0KB20iGUN126,136..MHV..SA202402-202410

main88711-0KB50iGUN12#,13#..THP..DCRL..(ARL,GEN,IDN,LA,PH,SA,TH,VN)202308-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88711-0KB50iGUN126..CAMP,MMRP202308-202408

main88711-0KB60iGUN125,126..H..DCRL..GCC202308-202407

FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

main88711-0KB60iGUN122,125..MTM..L..GCC202308-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88711-0KC00iGUN126..IND202310-202409

main88711-0KC10iGUN125,135..AGTP..6F..LA;GUN126..AGTP..6FC..H..LA202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88711-0KC10iGUN125,135..AGTP..6F..LA;GUN126..AGTP..6FC..H..LA202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88711-0KC10iGUN125,126,13#..AGTP202311-202410

main88711-0KC20iGUN125,126..GHA,KEN202402-202412

main88711-0KC20iGUN125..RHD..L..SA202402-202410

FRONT AIR CONDITIONER-MANUAL

main88711-0KC20iGUN122,125,135..LHD..SAP..L202402-202409

FRONT AIR CONDITIONER-COOLER LESS

main88711-0KC40iGUN125,126..MA202309-202408

main88711-0KC50iTGN121..GEN;TGN126..THP..(L,S)..LA202308-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88711-0KC60iTGN121..5F..H;TGN126..H..GCC202308-202407

FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

main88711-0KC60iTGN121..5F..S;TGN126..5F..L..GCC202308-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88711-0KC90iTGN126,136..AGTP202311-202410

main88711-0KC90iTGN126..AGTP..(L,S)202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88711-0KC90iTGN126..AGTP..(L,S)202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88711-0KD00iTGN121,126,136..SAP202402-202410

main88711-0KD00iTGN126..SAP..L202402-202409

FRONT AIR CONDITIONER-COOLER LESS

main88711-0KD60iGGN125..GCC202308-202407

FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

main88711-0KD90iGGN125..LA202311-202410

main88711-0KE00iGGN125..SA202402-202410

main88711-0KE20iGUN126..PKN202412

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-0KL40iGUN126..TWN202308-202407

EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)

main88716-0KQ80iTGN121..5F..H;GGN125,GUN125,126,TGN126..H..(DCRL,HTWC)..GCC202308-202407

FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

main88716-0KQ80iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)..(ARL,GCC,GEN,IDN,LA,PH,SA,TH,VN)202308-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88716-0KQ80iGUN126..CAMP,MMRP202308-202408

main88716-0KR00iGUN126..IND202310-202409

main88716-0KR10iGUN126..AGTP..6FC..H..LA;GUN125,135,TGN126..AGTP..MTM..(L,S)..LA202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88716-0KR10iGUN126..AGTP..6FC..H..LA;GUN125,135,TGN126..AGTP..MTM..(L,S)..LA202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88716-0KR10iGGN125,GUN125,126,13#,TGN126,136..AGTP202311-202410

main88716-0KR20iGUN125..RHD..L..SA202402-202410

FRONT AIR CONDITIONER-MANUAL

main88716-0KR20iGUN122,125,135,TGN126..LHD..SAP..L202402-202409

FRONT AIR CONDITIONER-COOLER LESS

main88716-0KR20iGUN125,126..GHA,KEN202402-202412

main88716-0KR30iGUN125,126..MA202309-202408

main88716-0KR40iGUN126..PKN202412

88718LCLAMP, PIPING

main88718-0KB80iGUN126..IND202310-202409

main88718-0KF20iGGN125,TGN12#,136..THP..(ARL,GCC,GEN,LA)202308-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88718-0KF20iGUN126..THP..6F;GUN120,121,122,125,13#..THP;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT

main88718-0KF20iGUN126..THP..6F;GUN120,121,122,125,13#..THP;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407

FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)

main88718-0KF20iGUN126..CAMP,MMRP202308-202408

main88718-0KG90iGUN126..PKN202412

main88718-0KW80iTGN126..SAP..L202402-202409

FRONT AIR CONDITIONER-COOLER LESS

main88718-0KW80iGUN125,126..GHA,KEN202402-202412

main88718-0KW80iGUN125..SAP..(H,S);GUN125..LHD..SAP..L;GUN122,126,13#..DCRL..SA202402-202410

FRONT AIR CONDITIONER-MANUAL

main88718-0KW90iGUN125,126..MA202309-202408

main88718-0KX00iGUN125,135..AGTP..6F..LA;GUN126..AGTP..6FC..H..LA202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88718-0KX00iGUN125,135..AGTP..6F..LA;GUN126..AGTP..6FC..H..LA202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88718-0KX00iGUN125,126,13#..AGTP202311-202410

88897TGROMMET, COOLER

main87128-0K270iGUN126..AGTP..6FC..H..LA;GUN125,135,TGN126..AGTP..MTM..(L,S)..LA202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main87128-0K270iGUN126..AGTP..6FC..H..LA;GUN125,135,TGN126..AGTP..MTM..(L,S)..LA202311-202407

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main87128-0K270iGGN125,GUN125,126,13#,TGN126,136..AGTP202311-202410

90105T0052

main90105-T0052

90105T0241

main90105-T0241

90119T0134

main90119-T0134

90178T0018

main90178-T0018

9167380616

main91673-80616

26 parts on this diagram · 14 diagrams in section
