TELEPHONE & MAYDAY

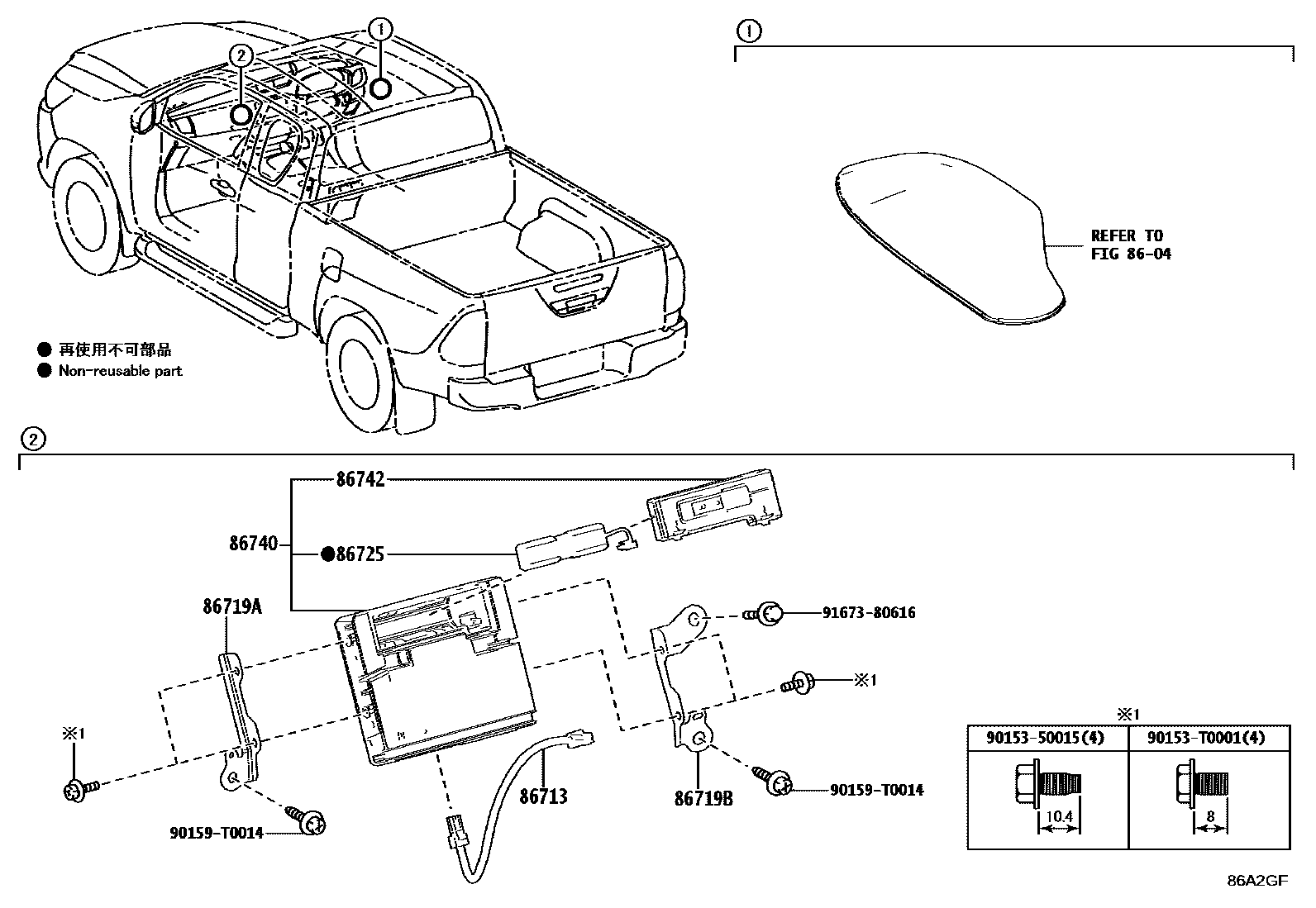

Parts diagram

8604

86713WIRE, TELEPHONE COMPUTER

main86713-71010i202308-202407

DATA COMMUNICATION MODULE-WITH(AU-DCM)

86719BRACKET, TELEPHONE

main86719-0K090i202308-202407

DATA COMMUNICATION MODULE-WITH(TRANSLOG)

86719ABRACKET, TELEPHONE NO.1

main86719-0K100i202308-202407

DATA COMMUNICATION MODULE-WITH(AU-DCM)

86719BBRACKET, TELEPHONE NO.2

main86719-0K120i202308-202407

DATA COMMUNICATION MODULE-WITH(AU-DCM)

86725BATTERY, MOBILEPHONE

main86725-78010i202308-202407

DATA COMMUNICATION MODULE-WITH(AU-DCM)

main86725-0K010i202308-202407

DATA COMMUNICATION MODULE-WITH(TRANSLOG)

main86725-48010supersedes 86725-78010i202402-202407

DATA COMMUNICATION MODULE

86740TRANSCEIVER ASSY, TELEPHONE

main86741-0K080i202308-202407

DATA COMMUNICATION MODULE-WITH(AU-DCM)

main86740-71030supersedes 86740-0K250i202402-202407

DATA COMMUNICATION MODULE

main86741-0K140i202308-202407

DATA COMMUNICATION MODULE-WITH(TRANSLOG)

main86741-71020i202310-202409

DATA COMMUNICATION MODULE-WITH(G-DCM)

86742COVER, TRANSCEIVER

main86742-0D020i202308-202402

DATA COMMUNICATION MODULE-WITHOUT

main86742-26010i202402-202407

DATA COMMUNICATION MODULE-WITHOUT

9015350015

main90153-50015

90153T0001

main90153-T0001

90159T0014

main90159-T0014

9167380616

main91673-80616

12 parts on this diagram · 2 diagrams in section
