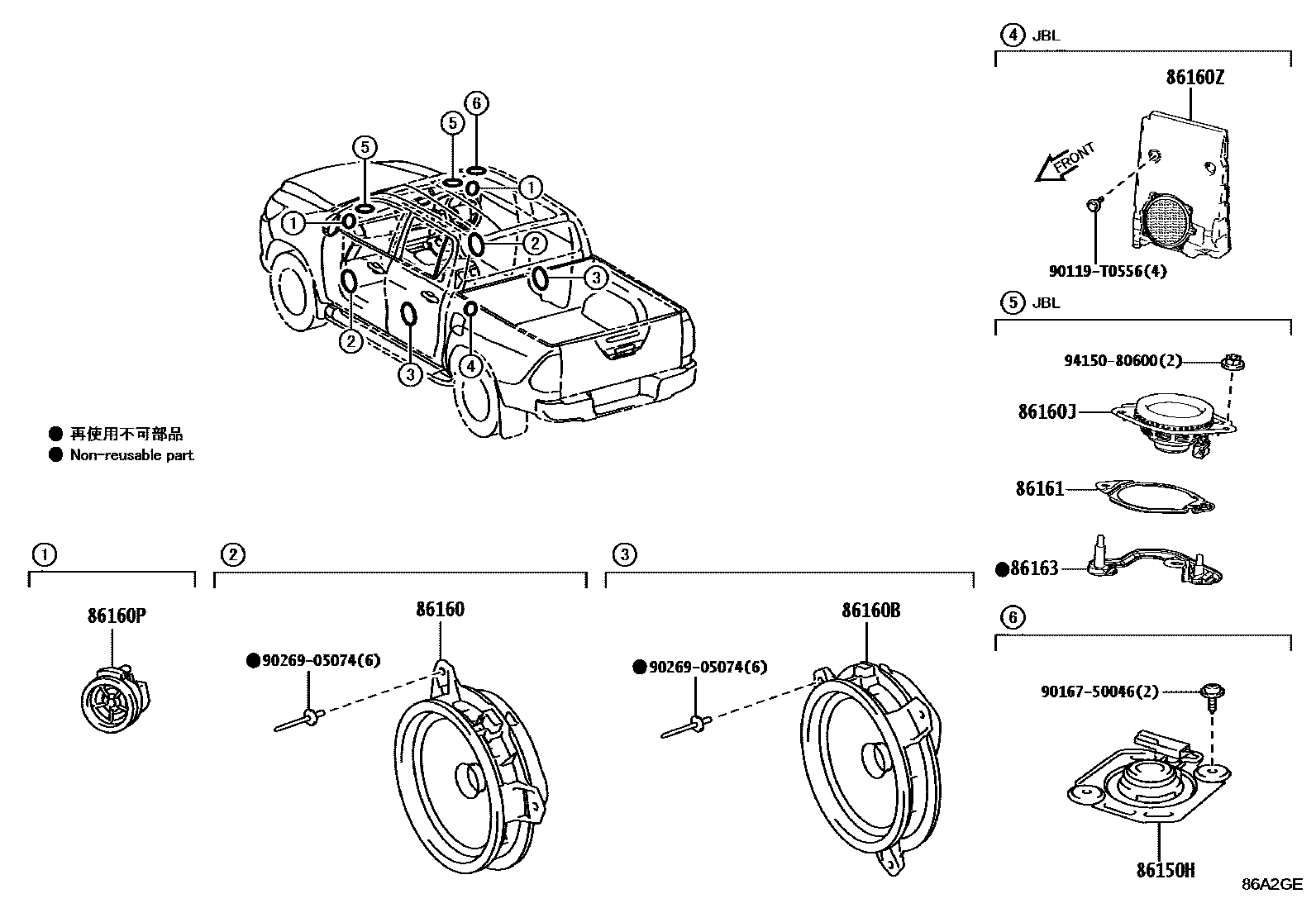

SPEAKER

86150HSPEAKER ASSY, W/BRACKET

main86150-0K390iTGN126..(H,S)..GEN202308-202407

DATA COMMUNICATION MODULE-WITHOUT

86160SPEAKER ASSY, FRONT NO.1

main86160-0K500iGUN125..THP..SA¥6,300202308-202412

main86160-0K520iGUN125,126..MA202309-202408

86160BSPEAKER ASSY, REAR

main86160-0K500iGUN126..CAMP¥6,300202308-202412

main86160-0K500iGUN126..THP..DCRL;GUN125..THP..L..LA;GUN125..RHD..L..GEN;GUN126..MHV..(ARL,GCC,LA);GUN135..THP..(GEN,LA,PH,TH,VN);GUN122,TGN121,126,136..THP..L..(GEN,LA);GGN125,GUN¥6,300202308-202407

SPEAKER-4SPEAKER

main86160-0K520iGUN125,126..MA202309-202408

86160JSPEAKER ASSY, FRONT NO.3

86160PSPEAKER ASSY, FRONT NO.2

main86150-0K160iGUN126..IND202310-202409

main86150-0K260iTGN121..5F..S;GUN135..S..(PH,VN);GUN122,125..LHD..S..GEN;GUN125,126..RHD..H..DCRL..GEN;GUN126,TGN126..H..(HTWC,MHV)..GCC;GUN125,126,TGN121..THP..H..(DCRL,HTWC)..(GC¥6,300202308-202410

SPEAKER-6SPEAKER

main86150-0K260iGUN126..GHA,KEN¥6,300202308-202412

main86150-0K340iGUN125,126..MA202309-202408

86160ZSPEAKER ASSY, REAR NO.3

86161BRACKET, SPEAKER, FRONT NO.1

main86161-KK020

main86161-KK030

main86161-KK040

86163BRACKET, SPEAKER, NO.2

main86163-KK010

main86163-KK020

main86163-KK030

main86163-KK040

90119T0556

main90119-T0556

9016750046

main90167-50046¥80

9026905074

main90269-05074¥70

9415080600

main94150-80600¥60

12 parts on this diagram · 1 diagram in section
