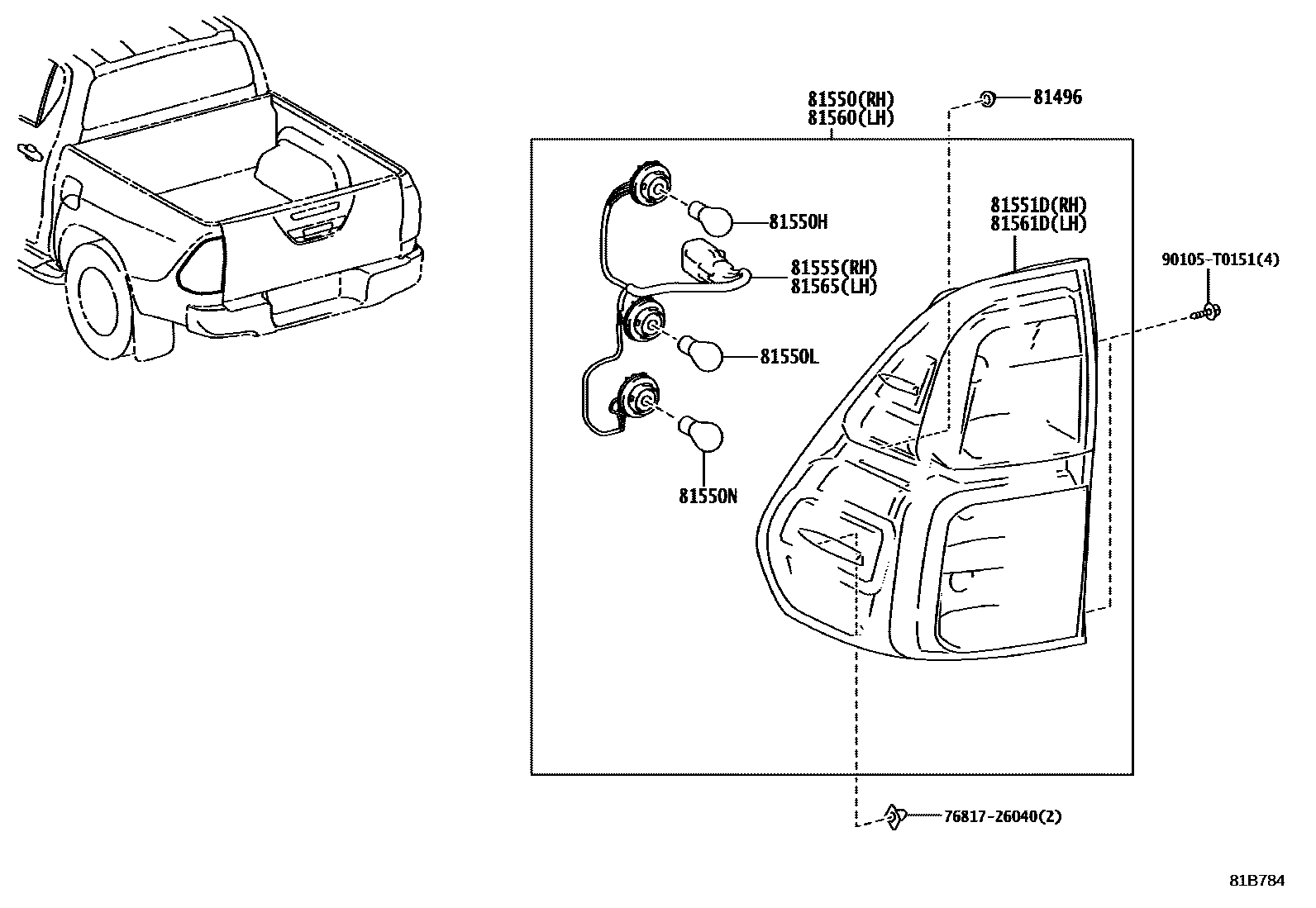

REAR COMBINATION LAMP

0001 1REAR TAIL & STOP LAMP = BULB 0002 1REAR TAIL & STOP LAMP = LED T0006 1REAR TAIL & STOP LAMP = LED T0007 1

81496GUIDE, REAR COMBINATION LAMP

main81496-0D040×2iGUN125,126..CAMP,MAP202308-202408

(L)

main81496-52020×2iGUN126..IND,MMR202308-202409

(J)

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0K261supersedes 81550-0K690iGUN126..RHD..S..GEN;GUN126..THP..(L,S)..LA;TGN126..THP..(L,S)..(GCC,GEN,LA);GUN125,135..THP..(L,S)..(GCC,GEN,IDN,LA,PH,SA,VN);GUN120,121,122,TGN120,121,136..(GCC,GE202308-202407

HEADLAMP-4-BULB HALOGEN MULTI

main81550-0K271supersedes 81550-0K261iGUN126..S..IND202309-202409

main81550-0K281iGUN125..GHA,KEN202402-202412

main81550-0K300iGUN126,136..H..BZAG202311-202410

VALEO

main81550-0K360iGUN122,125,126..IV3202308-202407

main81550-0K660iGUN125,126,13#,TGN121..(L,S)..ARL..CBU202308-202407

main81550-0K690iGUN126..S..MHV..CBU;GUN125,TGN126..LHD..S..GEN;GUN125,13#..S..(ARL,IDN,VN)202308-202407

HEADLAMP-LED

main81550-0K700supersedes 81550-0K690iGUN126..H..IND202309-202409

main81550-0K730iGUN126..GHA,KEN202402-202412

81550HBULB, TAIL & STOP LAMP

main90981-13094iGUN126,136..H..BZAG202311-202410

12V 21/5W,PNC 81560 = KOITO

main90981-13096iGUN126,136..H..BZAG202311-202410

12V 21/5W,HEADLAMP-4-BULB HALOGEN MULTI,PNC 81560 = VALEO

main90981-TD004×2iGUN122,125,126..IV3202308-202407

12V 21/5W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15020iGUN126,136..H..BZAG202311-202410

12V 21W,AMBER,PNC 81560 = VALEO

main90981-15028iGUN126,136..H..BZAG202311-202410

12V 21W,AMBER,PNC 81560 = KOITO

main90981-TD003×2iGUN122,125,126..IV3202308-202407

12V 21W

81550NBULB, BACK UP LAMP

main90981-13093×2iGUN126..THP..(L,S)..LA;GUN122,TGN121..THP..CBU;GUN126..RHD..THP..S..CBU;GUN125,135..THP..(L,S)..(ARL,GCC,GEN,IDN,LA,PH,SA,VN)..CBU;GUN120,121,136,TGN120,126,136..TH202308-202407

12V 21W,ASIA COLD COUNTRY SPEC&HEADLAMP-4-BULB HALOGEN MULTI

main90981-13095iGUN126,136..H..BZAG202311-202410

12V 21W,PNC 81560 = VALEO

main90981-TD003×2iGUN122,125,126..IV3202308-202407

12V 21W

81551LENS, REAR COMBINATION LAMP, RH

main81551-0K360iGUN122,125,126..IV3202308-202407

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0K261supersedes 81551-0K690iGUN126..RHD..S..GEN;GUN126..THP..(L,S)..LA;TGN126..THP..(L,S)..(GCC,GEN,LA);GUN125,135..THP..(L,S)..(GCC,GEN,IDN,LA,PH,SA,VN);GUN120,121,122,TGN120,121,136..(GCC,GE202308-202407

HEADLAMP-4-BULB HALOGEN MULTI

main81551-0K271supersedes 81551-0K261iGUN125..S..MA202309-202408

main81551-0K281iGUN126..S..SA;GUN122,125,135,LAN125,TGN121,126,136..SAP202402-202410

main81551-0K300iGUN126,136..H..BZAG202311-202410

VALEO

main81551-0K460iGGN125,GUN126,136,TGN126..AGTP..H202311-202410

HEADLAMP-LED

main81551-0K660iGUN125,126,13#,TGN121..(L,S)..ARL..CBU202308-202407

main81551-0K690iGUN126..MMR202308-202409

main81551-0K700supersedes 81551-0K690iGUN126..H..IND202309-202409

main81551-0K730iGUN126..GHA,KEN202402-202412

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0K260supersedes 81555-0K430iTGN126..H..GEN202308-202407

HEADLAMP-4-BULB HALOGEN MULTI

main81555-0K270supersedes 81555-0K260iGUN125..S..MA202309-202408

main81555-0K281iGUN125..GHA,KEN202402-202412

main81555-0K300iGUN126,136..H..BZAG202311-202410

VALEO

main81555-0K430iGUN126..S..MHV..CBU;GUN125,TGN126..LHD..S..GEN;GUN125,13#..S..(ARL,IDN,VN)202308-202407

HEADLAMP-LED

main81555-0K440supersedes 81555-0K430iGUN125,126..H..MA202309-202408

main81555-0K480iGUN125,135..RHD..S..SA202402-202410

HEADLAMP-LED(MLM)

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0K261iTGN126..H..GEN202308-202407

AZERBAIJAN SPEC

main81560-0K271iGUN126,136..H..BZAG202311-202410

KOITO

main81560-0K281iGUN125..KEN202402-202412

main81560-0K291iGUN125..LHD..SAP..6F..S202402-202410

ALGERIA SPEC (EURO 3 REGULATION)

main81560-0K300iGUN125,126,135,TGN126,136..AGTP..(L,S)..LA202311-202410

VALEO

main81560-0K310iGUN126,136..H..BZAG202311-202410

VALEO

main81560-0K400iGUN122,125,126..IV3202308-202407

main81560-0K570iGUN125,126,13#,TGN121..(L,S)..ARL..CBU202308-202407

main81560-0K690iGUN125,126..(CAMP,MAP)..H202308-202408

main81560-0K700iGUN125,TGN126..LHD..S..GEN202308-202407

HEADLAMP-LED(MLM)

main81560-0K730iGUN125,135..RHD..S..SA202402-202410

HEADLAMP-LED(MLM)

main81560-0K740iGUN126..GHA202404-202412

81561LENS, REAR COMBINATION LAMP, LH

main81561-0K400iGUN122,125,126..IV3202308-202407

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0K261iGUN126..LHD..S..GEN;GUN125,126..THP..H..DCRL..GEN202308-202407

AZERBAIJAN SPEC

main81561-0K271iTGN126..L..GCC;GUN125..(L,S)..GCC;GUN125..LHD..S..GEN;TGN126..S..(GCC,GEN);GUN122,TGN120,121..GCC..CBU202308-202407

MOROCCO SPEC

main81561-0K281iGUN125..LHD..SAP..L202402-202410

EXPORT FROM SA

main81561-0K291iTGN126..SAP..L202402-202410

ALGERIA SPEC (EURO 3 REGULATION)

main81561-0K300iGUN125,126,135,TGN126,136..AGTP..(L,S)..LA202311-202410

VALEO

main81561-0K310supersedes 81561-0K470iGUN126,136..H..BZAG202311-202410

VALEO

main81561-0K460iGGN125,GUN126,136,TGN126..AGTP..H..LA202311-202410

HEADLAMP-LED

main81561-0K570iGUN125,126,13#,TGN121..(L,S)..ARL..CBU202308-202407

main81561-0K690iGUN125,135..S..TH;GUN126..LHD..S..GEN;GUN135..(H,L)..(GEN,PH,TH);GUN126,TGN126..THP..H..(HTWC,MHV)..(ARL,LA)..CBU;GUN125,126,136..THP..H..DCRL..(ARL,GEN,IDN,LA,PH,T202308-202407

HEADLAMP-LED

main81561-0K700iGUN125,TGN126..LHD..S..GEN202308-202407

HEADLAMP-LED(MLM)

main81561-0K730iGUN125,135..RHD..S..SA202402-202410

HEADLAMP-LED(MLM)

main81561-0K740iGUN126..GHA202404-202412

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0K260iGUN126..(L,S)..PKN202308

main81555-0K270iTGN126..L..GCC;GUN125..(L,S)..GCC;GUN125..LHD..S..GEN;TGN126..S..(GCC,GEN);GUN122,TGN120,121..GCC..CBU202308-202407

MOROCCO SPEC

main81555-0K281iGUN125..KEN202402-202412

main81555-0K291iTGN126..SAP..L202402-202410

ALGERIA SPEC (EURO 3 REGULATION)

main81555-0K300iGUN125,126,135,TGN126,136..AGTP..(L,S)..LA202311-202410

VALEO

main81555-0K430iGUN125,126..(CAMP,MAP)..H202308-202408

main81555-0K440iGUN125,TGN126..LHD..S..GEN202308-202407

HEADLAMP-LED(MLM)

main81555-0K480iGUN126..KEN202402-202412

main81555-0K500iGUN126..GHA202404-202412

main81565-0K310iGUN126,136..H..BZAG202311-202410

VALEO

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040

90105T0151

main90105-T0151

14 parts on this diagram · 4 diagrams in section
