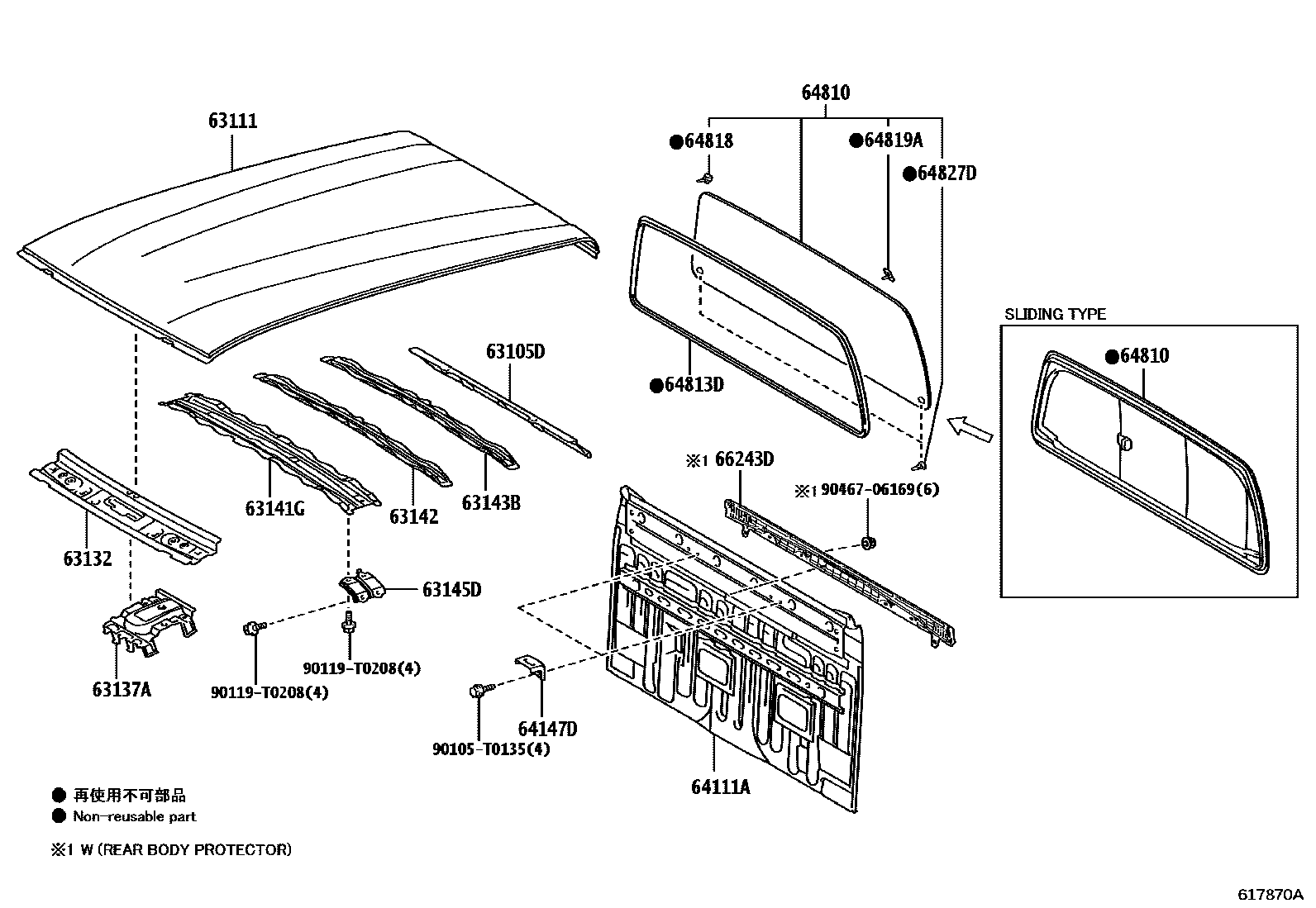

ROOF PANEL & BACK PANEL
63105DFRAME SUB-ASSY, BACK WINDOW, UPPER
main63135-KK050iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
63111PANEL, ROOF
GR SPORT WIDE TREAD&AUDIO-*DA(8INCH) & *BT
63132PANEL, WINDSHIELD HEADER, INNER
63137ABRACKET, DOME LAMP, NO.1
63141GREINFORCEMENT, ROOF PANEL, NO.1
63142REINFORCEMENT, ROOF PANEL, NO.2
63143BREINFORCEMENT, ROOF PANEL, NO.3
63145DBRACKET, ROOF REINFORCEMENT
64111APANEL, BACK
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)&REAR HEADREST-WITH(RH/LH/CENTER)
main64101-KK020iTGN126..L..GEN;TGN126..SAP..S;GUN122,TGN12#..GCC;GUN125..RHD..(H,S)..GEN;GUN125..LHD..SAP..6F..S;GUN125..LHD..6FC..(GCC,SA);GUN125..6F..(H,S)..(GCC,IDN);GUN125,135.202308-202410
REAR HEADREST-WITH(RH/LH)
EXPORT FROM SA&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main64101-KK090iGUN125..6F..H..GCC;TGN126..(H,L)..GCC;GUN125..RHD..(H,S)..GEN;GUN125..6F..L..(GCC,GEN);GUN122,TGN121..5F..S..GCC..CBU;GUN122,126..RHD..(5F,6FC)..DCRL..GEN;GGN125,GU202308-202411
REAR HEADREST-WITH(RH/LH/CENTER)
64147DPLATE, BACK PANEL CORNER, UPPER
64810WINDOW ASSY, BACK
REAR WINDOW DEFOGGER-WITHOUT
BACK GLASS-FIX TYPE(PRIVACY)
REAR WINDOW DEFOGGER-WITH
REAR WINDOW DEFOGGER-WITHOUT
BACK GLASS-SLIDING TYPE(GREEN)&REAR WINDOW DEFOGGER-WITHOUT
BACK GLASS-SLIDING TYPE(GREEN,*HSEA)
BACK GLASS-SLIDING TYPE(PRIVACY)&REAR WINDOW DEFOGGER-WITHOUT
64813DDAM, BACK WINDOW GLASS ADHESIVE
64818SPACER, BACK WINDOW GLASS
64819ASPACER, BACK WINDOW GLASS, NO.2
BACK GLASS-FIX TYPE(GREEN)
64827DCLIP, BACK WINDOW GLASS
main64827-0K110×2iGUN126..MHV..(ARL,LA);TGN126..THP..(GEN,LA);GUN12#,13#,TGN121,136..THP..(DCRL,HTWC)..(ARL,GEN,IDN,LA,PH,SA,TH,TWN,VN)202308-202407
66243DPROTECTOR, REAR BODY, NO.1
90105T0135
main90105-T0135
90119T0208
main90119-T0208
9046706169
main90467-06169
19 parts on this diagram · 1 diagram in section
