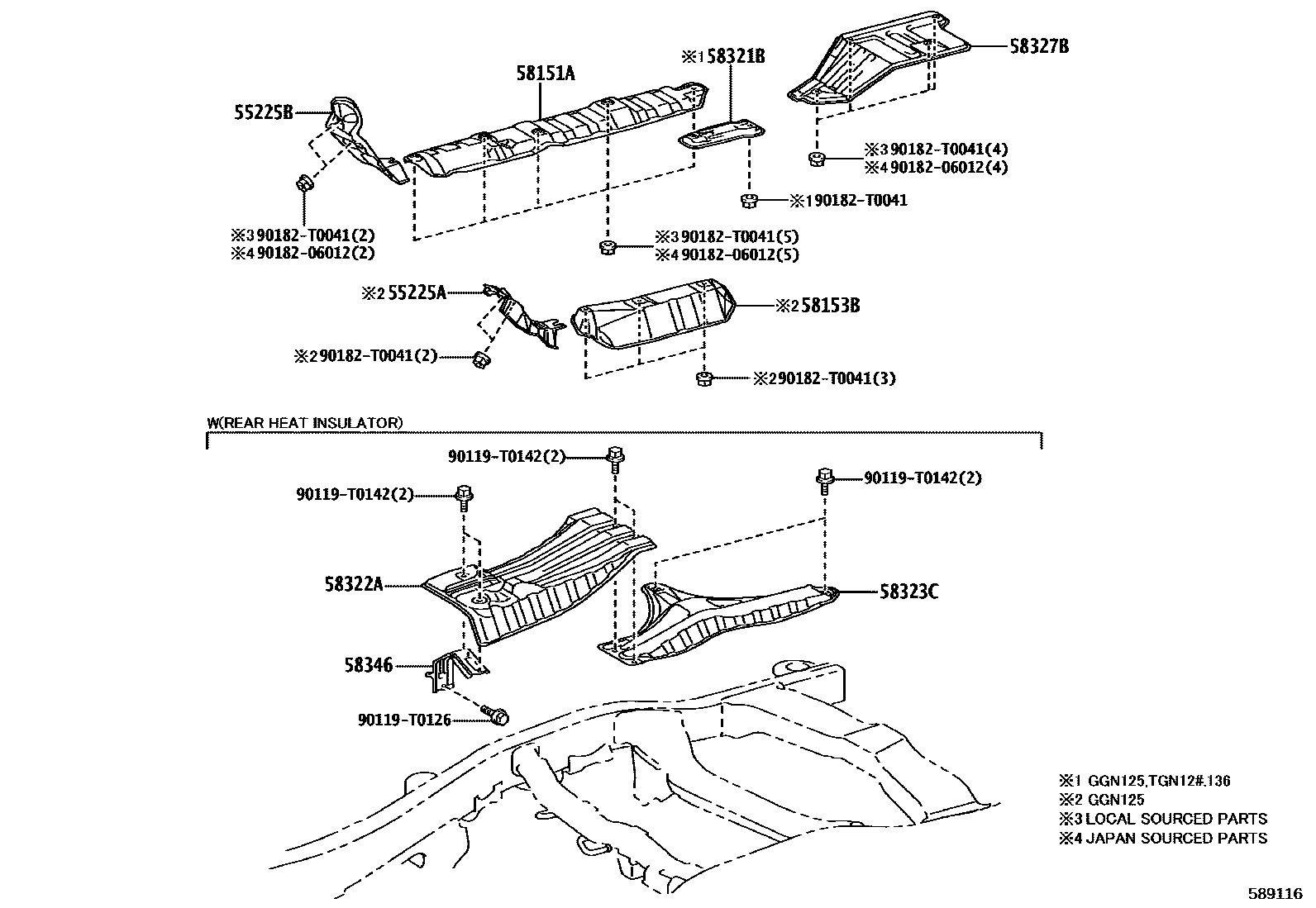

FLOOR INSULATOR

55225AINSULATOR, DASH PANEL HEAT, NO.1

main55225-0K021iGGN125..LA,SA202308-202410

55225BINSULATOR, DASH PANEL HEAT

main55225-KK011iGUN126..PKN202308

58151AINSULATOR, FLOOR HEAT, NO.1

main58151-KK011iGGN125,GUN125,126,13#,TGN126,136..AGTP202311-202410

main58151-KK020iGUN126..PKN202308

58153BINSULATOR, FLOOR HEAT, NO.3

main58153-0K011iGGN125..LA,SA202308-202410

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-0K011iGGN125,TGN12#,136..THP..(ARL,GCC,GEN,LA)202308-202407

58322AINSULATOR, REAR FLOOR HEAT, REAR

main58322-KK011iGUN125..RHD..6F..L..GEN202308-202407

GCC SPEC EURO4 2018MY

58323CINSULATOR, REAR FLOOR HEAT, NO.3

main58323-KK011iGUN125..RHD..6F..L..GEN202308-202407

GCC SPEC EURO4 2018MY

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0K011iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407

58346BRACKET, REAR FLOOR HEAT INSULATOR

main58332-KK010iGUN125..RHD..6F..L..GEN202308-202407

GCC SPEC EURO4 2018MY

90119T0126

main90119-T0126

90119T0142

main90119-T0142

9018206012

main90182-06012

90182T0041

main90182-T0041

13 parts on this diagram · 1 diagram in section
