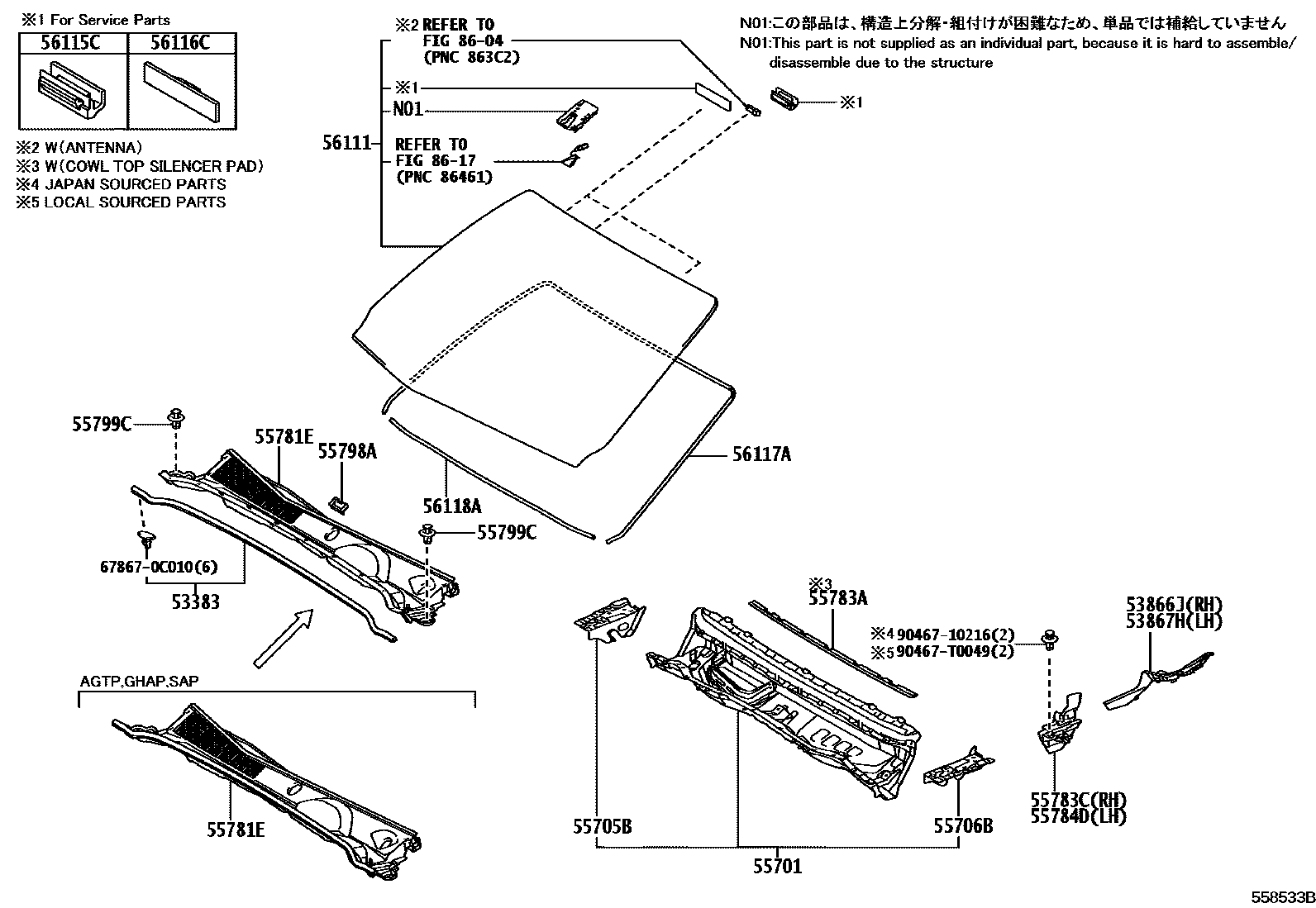

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
main53867-0K050iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
55701PANEL SUB-ASSY, COWL
main55700-KK030iGUN126..MHV..LA;TGN126..(H,L)..GCC;GUN126,TGN136..THP..L;TGN126..THP..S..(GCC,LA);GGN125,GUN122,125,126,TGN120,121..GCC202308-202407
MEXICO SPEC
WINDSHIELD DEICER-WITH
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
ASIA COLD COUNTRY SPEC
main55708-0K200iTGN126..THP..(GCC,LA);GGN125,GUN122,125,126,13#,TGN120,121,136..LHD..THP202308-202407
ASIA COLD COUNTRY SPEC&WINDSHIELD DEICER-WITH
ASIA COLD COUNTRY SPEC
55783APAD, COWL TOP SILENCER
55783CBRACKET, COWL TOP VENTILATOR LOUVER, RH
main55783-0K100iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
55784DBRACKET, COWL TOP VENTILATOR LOUVER, LH
55798ASUPPORT, COWL WATER EXTRACT SEAL
main55798-0K010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
55799CCLIP, COWL TOP VENTILATOR LOUVER
main90467-07215×2iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
(J)
(L)
56111GLASS, WINDSHIELD
REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL
main56101-0K361iGUN122..(L,S)..GCC;TGN126..(H,L)..GCC;GUN126,TGN136..THP..L;TGN126..THP..S..(GCC,LA);GGN125,GUN125,TGN120,121..GCC202308-202407
MEXICO SPEC&ACTIVE SAFETY PACKAGE-WITHOUT
main56101-0K410supersedes 56101-0KG40iGUN126..AGTP..(L,S);GGN125,GUN125,135,TGN126,136..AGTP202311-202410
ACTIVE SAFETY PACKAGE-WITHOUT
ACTIVE SAFETY PACKAGE-WITHOUT
BACK GLASS-SLIDING TYPE(GREEN,*HSEA)
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
main56101-0KL60supersedes 56101-0K342iGUN125,13#..THP..LA;GUN126..THP..(H,S)..DCRL..(LA,TWN)202308-202407
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
WINDSHIELD DEICER-WITH
WINDSHIELD DEICER-WITH
ACTIVE SAFETY PACKAGE-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
main56101-0K830iGUN126..6F..L..BZAG;GUN126..6FC..(L,S)..BZAG;GUN125,126..AGTP..6F..S..LA;GGN125,GUN135,TGN136..AGTP..(H,S)..LA202311-202410
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
AUDIO-AVN(8INCH) & *BT & DAB
ACTIVE SAFETY PACKAGE-WITH&AUDIO-*DA(8INCH) & *BT
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
ACTIVE SAFETY PACKAGE-WITH
EXPORT FROM SA&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
ACTIVE SAFETY PACKAGE-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
ACTIVE SAFETY PACKAGE-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
56115CSTOPPER, WINDSHIELD GLASS
ASIA COLD COUNTRY SPEC&WINDSHIELD DEICER-WITH
56116CSTOPPER, WINDSHIELD GLASS, NO.2
WINDSHIELD DEICER-WITH
56117ADAM, WINDOW GLASS ADHESIVE
L=2620,ACTIVE SAFETY PACKAGE-WITHOUT
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
L=1248,UAE SPEC&BACK GLASS-SLIDING TYPE(GREEN,*HSEA)&AUDIO-*DA(8INCH) & *BT & DAB
8604
8617
678670C010CLIP, DOOR WEATHERSTRIP
main67867-0C010
9046710216
main90467-10216
90467T0049
main90467-T0049
22 parts on this diagram · 2 diagrams in section
