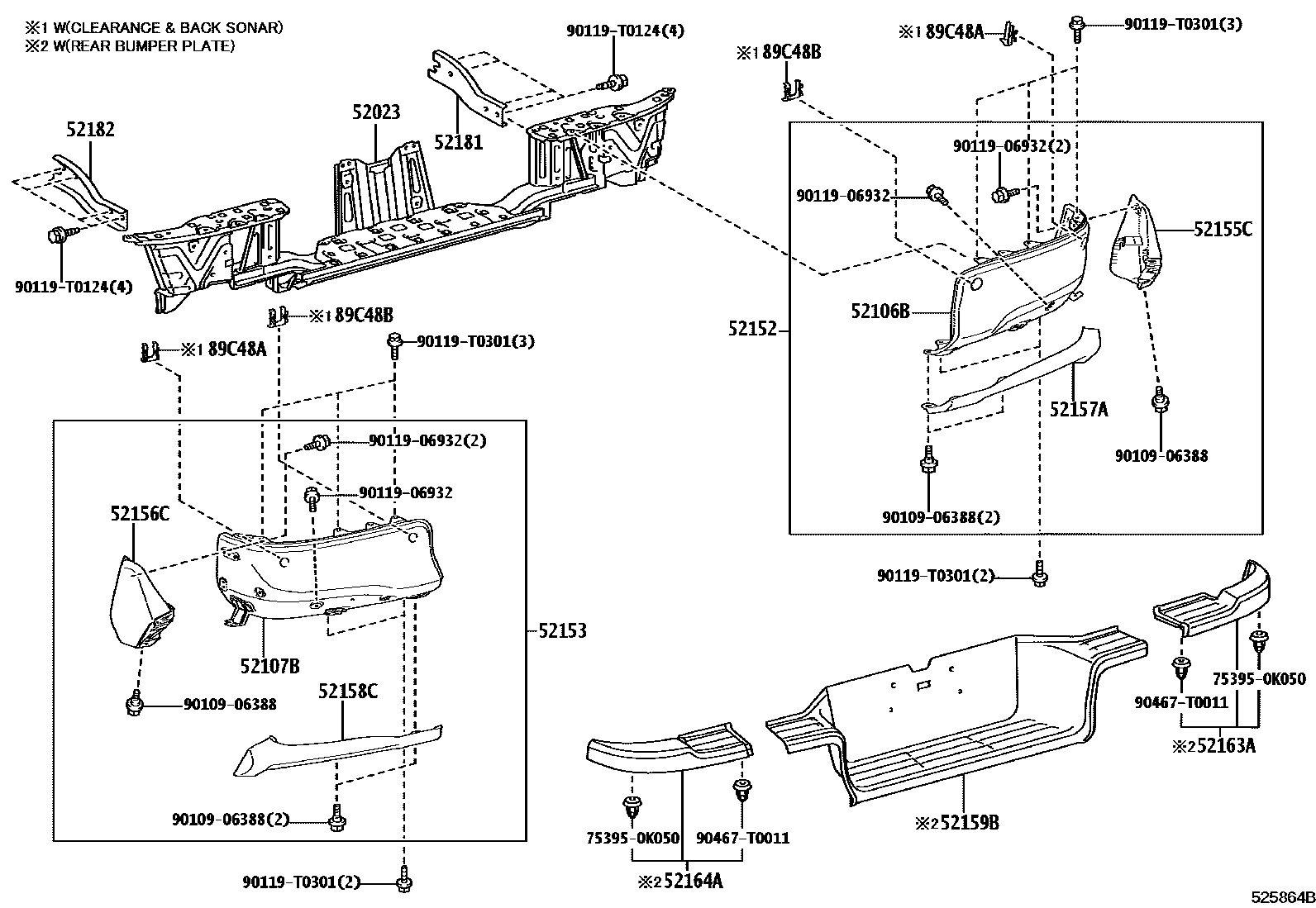

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
REAR BUMPER-STEP TYPE(PLATED)
MOROCCO SPEC
EXPORT FROM SA&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH
GR SPORT WIDE TREAD&REAR BUMPER-WITH(*RUPD(PAINTED(FOR GR-SPORT)))
52106BBUMPER SUB-ASSY, REAR RH
GR SPORT WIDE TREAD&REAR BUMPER-WITH(*RUPD(PAINTED(FOR GR-SPORT)))
52107BBUMPER SUB-ASSY, REAR LH
GR SPORT WIDE TREAD&REAR BUMPER-WITH(*RUPD(PAINTED(FOR GR-SPORT)))
52152BAR, REAR BUMPER, RH
main52151-0K040iGGN125..GCC;GUN125..RHD..H..GEN;GUN126..6FC..H..ARL..CBU;GUN126..THP..H..DCRL..(GEN,LA)202308-202407
NO PAINT REQ.
main52151-0K050iGUN126..MHV..GCC;GUN125..RHD..H..GEN;GUN126..6FC..H..ARL..CBU;GGN125,GUN125..6FC..H..GCC;GUN126..THP..H..DCRL..(GEN,LA)202308-202407
PLATED,CLEARANCE & BACK SONAR-WITHOUT&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY))
PLATED
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT
PLATED,REAR BUMPER-STEP TYPE(PLATED)
PLATED
NO PAINT REQ.
PLATED,CAMBODIA SPEC&REAR BUMPER-STEP TYPE(PLATED)&CLEARANCE & BACK SONAR-WITH
PLATED
PLATED,CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.
NO PAINT REQ.,GR SPORT WIDE TREAD&REAR BUMPER-WITH(*RUPD(PAINTED(FOR GR-SPORT)))
NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITHOUT
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,EXPORT FROM SA&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,MLM Z-PLUS PACKAGE&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,ASIA COLD COUNTRY SPEC&MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,MOROCCO SPEC&MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(BLACK MOULDING)
NO PAINT REQ.,GR SPORT WIDE TREAD&REAR BUMPER-STEP TYPE(PAINTED)
NO PAINT REQ.,GR SPORT WIDE TREAD&REAR BUMPER-STEP TYPE(PAINTED)
NO PAINT REQ.,MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 STEEL
NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))
NO PAINT REQ.,MLM Z-PLUS PACKAGE&CLEARANCE & BACK SONAR-WITH
52153BAR, REAR BUMPER, LH
main52152-0K040iGGN125..GCC;GUN125..RHD..H..GEN;GUN126..6FC..H..ARL..CBU;GUN126..THP..H..DCRL..(GEN,LA)202308-202407
NO PAINT REQ.
main52152-0K050iGUN126..MHV..GCC;GUN125..RHD..H..GEN;GUN126..6FC..H..ARL..CBU;GGN125,GUN125..6FC..H..GCC;GUN126..THP..H..DCRL..(GEN,LA)202308-202407
PLATED,CLEARANCE & BACK SONAR-WITHOUT&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY))
PLATED
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT
PLATED,REAR BUMPER-STEP TYPE(PLATED)
PLATED
NO PAINT REQ.
PLATED
PLATED,CAMBODIA SPEC&REAR BUMPER-STEP TYPE(PLATED)&CLEARANCE & BACK SONAR-WITH
PLATED,CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.
NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITHOUT
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,EXPORT FROM SA&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,MLM Z-PLUS PACKAGE&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(GR SPORT) & WITH(WIDE FENDER)
NO PAINT REQ.,MLM Z-PLUS PACKAGE
NO PAINT REQ.,GR SPORT WIDE TREAD&REAR BUMPER-STEP TYPE(PAINTED)
NO PAINT REQ.,GR SPORT WIDE TREAD&REAR BUMPER-STEP TYPE(PAINTED)
NO PAINT REQ.,MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-265/65R17 STEEL
NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACKSONAR-WITHOUT
NO PAINT REQ.,MLM Z-PLUS PACKAGE&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,GR SPORT WIDE TREAD&REAR BUMPER-WITH(*RUPD(PAINTED(FOR GR-SPORT)))
52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH
GR SPORT WIDE TREAD&REAR BUMPER-WITH(*RUPD(PAINTED(FOR GR-SPORT)))
52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH
GR SPORT WIDE TREAD&REAR BUMPER-WITH(*RUPD(PAINTED(FOR GR-SPORT)))
52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH
GR SPORT WIDE TREAD&REAR BUMPER-WITH(*RUPD(PAINTED(FOR GR-SPORT)))
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
GR SPORT WIDE TREAD&REAR BUMPER-WITH(*RUPD(PAINTED(FOR GR-SPORT)))
52159BPLATE, REAR BUMPER
REAR BUMPER-STEP TYPE(PAINTED)
REAR BUMPER-STEP TYPE(PAINTED)
52163APLATE, REAR BUMPER, RH
REAR BUMPER-STEP TYPE(PAINTED)
REAR BUMPER-STEP TYPE(PAINTED)
52164APLATE, REAR BUMPER, LH
REAR BUMPER-STEP TYPE(PAINTED)
REAR BUMPER-STEP TYPE(PAINTED)
52181ARM, REAR BUMPER, RH
REAR BUMPER-STEP TYPE(PAINTED)
REAR BUMPER-STEP TYPE(PAINTED)
52182ARM, REAR BUMPER, LH
REAR BUMPER-STEP TYPE(PAINTED)
REAR BUMPER-STEP TYPE(PAINTED)
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT
MLM ADVENTURE PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT
main89348-71020iTGN136..LA;GUN126..S..SA;GUN126..6FC..S..BZAG;GUN125,135..(AGTP,SAP)..6FC..(LA,SA)202308-202410
CLEARANCE & BACK SONAR-WITH
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT
CLEARANCE & BACK SONAR-WITH
MLM ADVENTURE PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT
753950K050CLIP, BACK DOOR MOULDING, NO.1
main75395-0K050
9010906388
main90109-06388
9011906932
main90119-06932
90119T0124
main90119-T0124
90119T0301
main90119-T0301
90467T0011
main90467-T0011
22 parts on this diagram · 1 diagram in section
