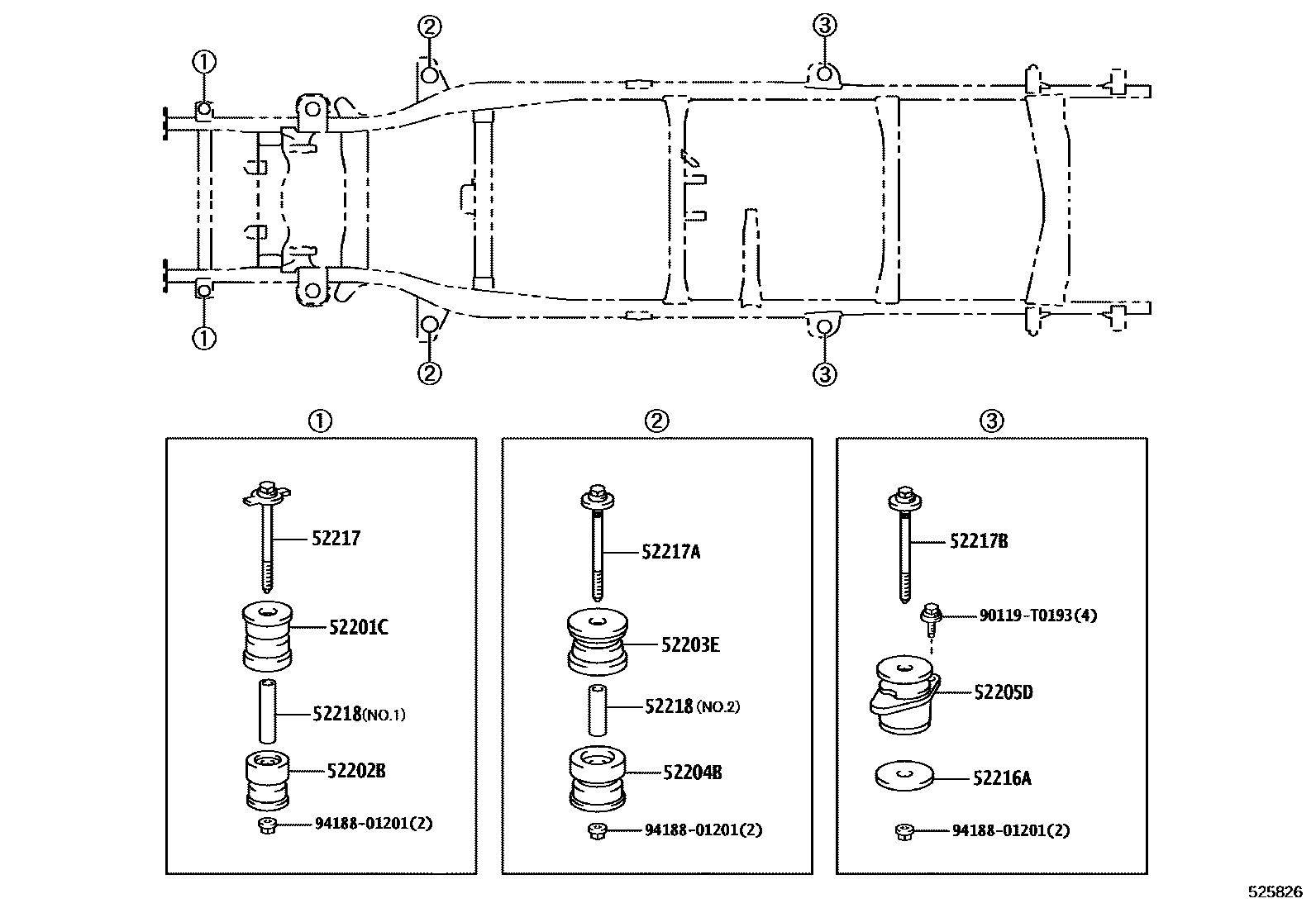

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-0K070iGUN126..IND202310-202409

main52201-0K100iGUN126..PKN;GUN126..MHV..GEN202308-202412

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-0K070iGUN126..IND202310-202409

main52202-0K100iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-0K120iGUN122,TGN121..SA202308-202410

main52203-0K150iGUN126..IND,MMR202308-202412

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-0K120iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-0K161iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

RH

main52206-0K101iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..AGTP,SAP202308-202412

LH

52216ASTOPPER, CAB MOUNTING CUSHION

main52216-0K010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

main52216-KK030iGUN126..(AGTP,SAP)..6FC..H..DCRL202308-202410

GR SPORT WIDE TREAD

52217BOLT, BODY MOUNTING

main52217-0K010iGUN125,126..CAMP,MAP202308-202412

52217ABOLT, BODY MOUNTING

main52217-0K020iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

52217BBOLT, BODY MOUNTING

main52217-0K020iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..AGTP,SAP202308-202412

52218HOLDER, BODY MOUNT BOLT SPACER, NO.1

main52218-0K010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

NO.1

main52219-0K010iGUN125,126..GHA,KEN202308-202412

NO.2

90119T0193

main90119-T0193

9418801201

main94188-01201

12 parts on this diagram · 1 diagram in section
