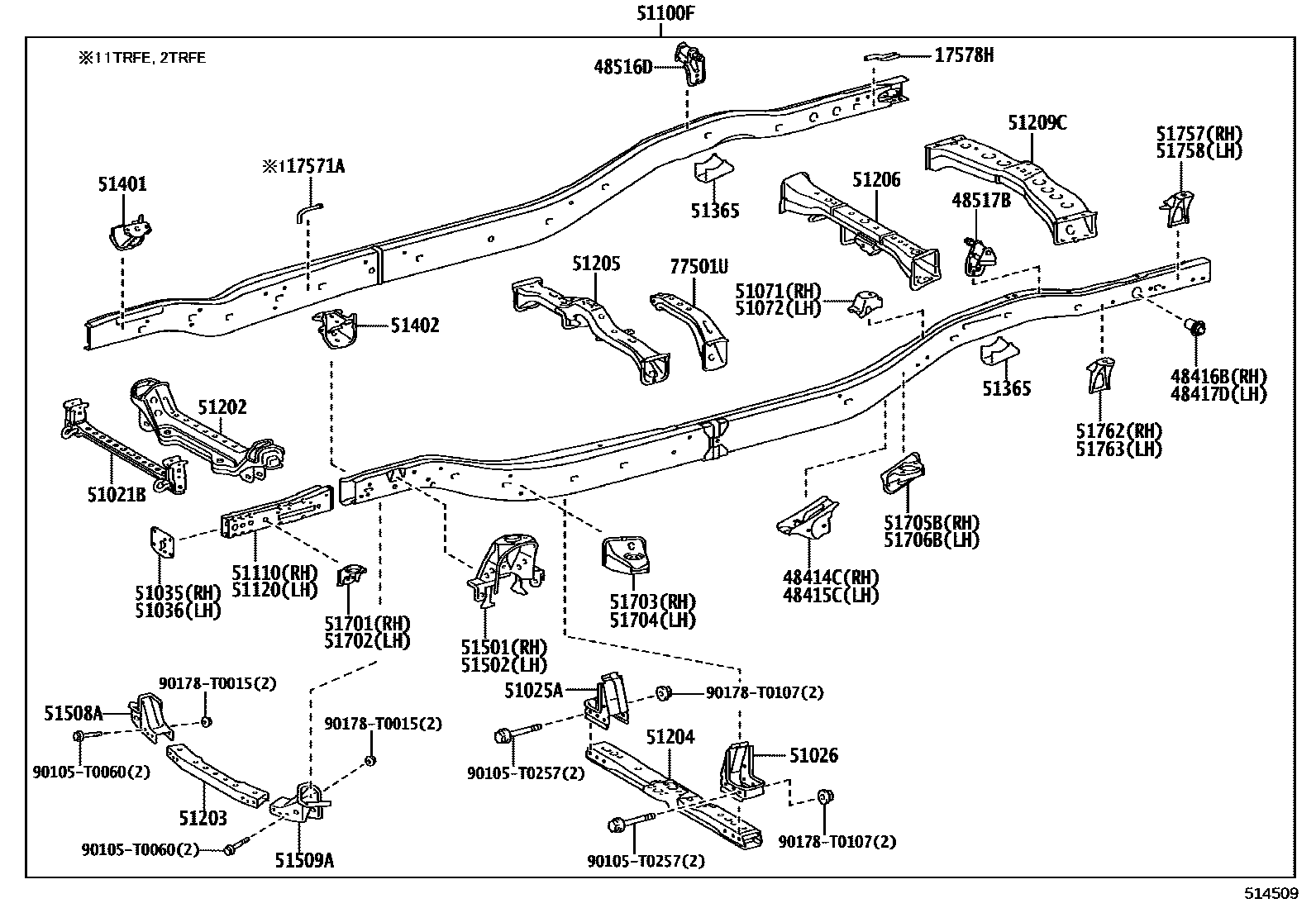

FRAME

0001 1 0002 1 0003 1PROPELLER SHAFT GUARD 0004 1PROPELLER SHAFT GUARD

17571ABRACKET, EXHAUST PIPE SUPPORT, NO.9

main17571-0L010i1TRFE,2TRFE..TGN12#,136..THP..(ARL,GCC,GEN,LA)202308-202410

17578HBRACKET, EXHAUST PIPE SUPPORT, NO.10

main17505-0L020i2TRFE..TGN126..THP..(GCC,GEN,LA);1GDFTV..GUN126..MHV..(ARL,GCC,LA);1G#,2GDFTV,1TRFE,2TRFE..GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

48414CBRACKET, SPRING, NO.3 RH

main48404-KK030iGUN122,TGN121..SA202308-202410

main48404-KK040iGUN125,126..CAMP,MAP202308-202412

48415CBRACKET, SPRING, NO.3 LH

main48407-KK030iGUN122,TGN121..SA202308-202410

main48407-KK040iGUN126..IND,MMR202308-202412

48416BBRACKET, SPRING, NO.4 RH

main48405-KK010iGUN126..IND,MMR202308-202412

48417DBRACKET, SPRING, NO.4 LH

main48405-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

48516DBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH

main48505-KK010iGUN125,126..CAMP,MAP202308-202412

48517BBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH

main48506-KK010iGUN126..IND,MMR202308-202412

51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY

main51021-KK010iGUN126..PKN202308-202412

main51021-KK020iGGN125,GUN125,126,13#,TGN126,136..AGTP202311-202410

main51021-KK030iGUN120,121,122,TGN121..GEN,PH,TH202308-202407

51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH

main51025-KK010iGUN126..PKN202308-202412

51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH

main51026-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

51071BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH

main51071-KK010iGUN126..PKN202308-202412

51072BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH

main51072-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

51100FFRAME SUB-ASSY

main51001-KK244iTGN121..6FC202308-202407

main51001-KK254iTGN120,121..5F..(ARL,GCC)202308-202407

main51001-KK284iGUN122..GCC202308-202407

main51001-KK355iTGN126..THP..(GCC,LA)202308-202407

main51001-KK365iGGN125..GCC202308-202407

main51001-KK372iGUN125,126..GHA,KEN202402-202412

sub51001-KKJ90

main51001-KK382iLAN125202402-202410

main51001-KK455iTGN136..GEN202308-202407

main51001-KK472iGUN13#..6F..SA202402-202410

sub51001-KKK10

main51001-KK486iGUN13#..THP..6FC202308-202407

main51001-KK682iTGN126..SAP202402-202410

sub51001-KKJ80

main51001-KK692iGGN125..SA202402-202410

main51001-KK732iTGN136..SA202402-202410

main51001-KK744iGUN13#..THP..6F202308-202407

main51001-KK752iGUN13#..6FC..SA202402-202410

main51001-KK781iTGN121..SA202402-202410

main51001-KK791iGUN122..SA202402-202410

main51001-KKA34iTGN126..AGTP202311-202410

main51001-KKA44iGUN125,126..AGTP202311-202410

main51001-KKA84iTGN136..AGTP202311-202410

main51001-KKA94iGUN13#..AGTP..6F202311-202410

main51001-KKB04iGUN13#..6FC..BZAG202311-202410

main51001-KKC04iGGN125..LA202311-202410

main51001-KKC33iGUN121,122..6F202308-202407

main51001-KKJ61iTGN121..GEN202308-202407

main51001-KKJ71iGUN120,121,122..(5F,6FC)..(GEN,PH,TH)202308-202407

main51001-KKJ82iTGN126..GEN202308-202407

main51001-KKL00iGUN126..PKN202308-202409

51110EXTENSION ASSY, SIDE RAIL, RH

main5103A-KK010iGUN126..PKN202308-202412

main5103A-KK020iGUN120,121,122,TGN120,121..THP202308-202410

51120EXTENSION ASSY, SIDE RAIL, LH

main5103B-KK010iGUN125,126..CAMP,MAP202308-202412

main5103B-KK020iGUN120,121,122,TGN120,121..THP202308-202410

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-KK010iGUN122,TGN121..SA202308-202410

main51201-KK020iGGN125,GUN125,126,13#,TGN126,136..AGTP202311-202410

sub51201-KK050

main51201-KK050iGUN125,126..GHA,KEN202308-202412

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-0K010iGUN122,TGN121..SA202308-202410

main51202-KK010iGUN125,126..CAMP,MAP202308-202412

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-KK010iGUN122,13#..(5F,6FC)..SA202402-202410

sub51203-KK100

main51203-KK020iTGN121,136..SA202402-202410

sub51203-KK110

sub51203-KK230

main51203-KK030iGUN13#..6F..SA202308-202410

main51203-KK040iGUN125,126..GHA,KEN202402-202412

sub51203-KK250

main51203-KK050iGGN125,LAN125,TGN126..SAP202402-202410

sub51203-KK260

main51203-KK130iTGN136..AGTP202311-202410

sub51203-KK230

main51203-KK140iGUN13#..AGTP..6F202311-202410

main51203-KK150iGUN125,126..AGTP202311-202410

main51203-KK190iGUN13#..6FC..BZAG202311-202410

sub51203-KK210

main51203-KK200iGGN125,TGN126..AGTP202311-202410

main51203-KK210iTGN121..6FC;GUN120,121,122,13#..THP..(5F,6FC)202308-202407

main51203-KK230iTGN120,121,136..THP..5F202308-202407

main51203-KK250iGUN125,126..CAMP,MAP202308-202409

main51203-KK260iGGN125,TGN126..THP..(GCC,GEN,LA)202308-202407

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-KK030iGUN126..IND,MMR202308-202412

main51204-KK040iGUN120,121,122,TGN120,121..THP202308-202410

main51204-KK050iGUN13#,TGN136..THP202308-202410

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-KK040iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..AGTP,SAP202308-202412

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

51365STOPPER, REAR BUMPER

main57081-KK010iGUN120,121,122,TGN120,121..THP202308-202410

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-KK010iLAN125202402-202410

main51401-KK020iTGN12#,136..THP..(ARL,GCC,GEN,LA)202308-202410

main51401-KK030iGGN125..LA,SA202308-202410

main51401-KK040iGUN126..IND,MMR202308-202412

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-KK010iLAN125202402-202410

main51402-KK020iTGN121,126,136..AGTP,SAP202308-202410

main51402-KK030iGGN125..LA,SA202308-202410

main51402-KK040iGUN125,126..CAMP,MAP202308-202412

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-KK010iGUN122,TGN121..SA202308-202410

main51501-KK020iGUN126..PKN202308-202412

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-KK010iGUN120,121,122,TGN120,121..THP202308-202410

main51502-KK020iGUN126..IND,MMR202308-202412

51508ABRACKET SUB-ASSY, LOWER ARM, RH

main51508-KK020iGUN120,121,122,TGN120,121..THP202308-202410

51509ABRACKET SUB-ASSY, LOWER ARM, LH

main51509-KK020iGUN120,121,122,TGN120,121..THP202308-202410

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51701-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-KK010iGUN126..PKN202308-202412

51705BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH

main51705-KK020iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

51706BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH

main51706-KK020iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

51757BRACKET, BODY SUPPORT, NO.4 RH

main51077-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

51758BRACKET, BODY SUPPORT, NO.4 LH

main51078-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

51762BRACKET, BODY SUPPORT, NO.5 RH

main51075-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

51763BRACKET, BODY SUPPORT, NO.5 LH

main51076-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

77501UBRACKET SUB-ASSY, FUEL TANK

main77501-0K020iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

90105T0060

main90105-T0060

90105T0257

main90105-T0257

90178T0015

main90178-T0015

90178T0107

main90178-T0107

46 parts on this diagram · 4 diagrams in section
