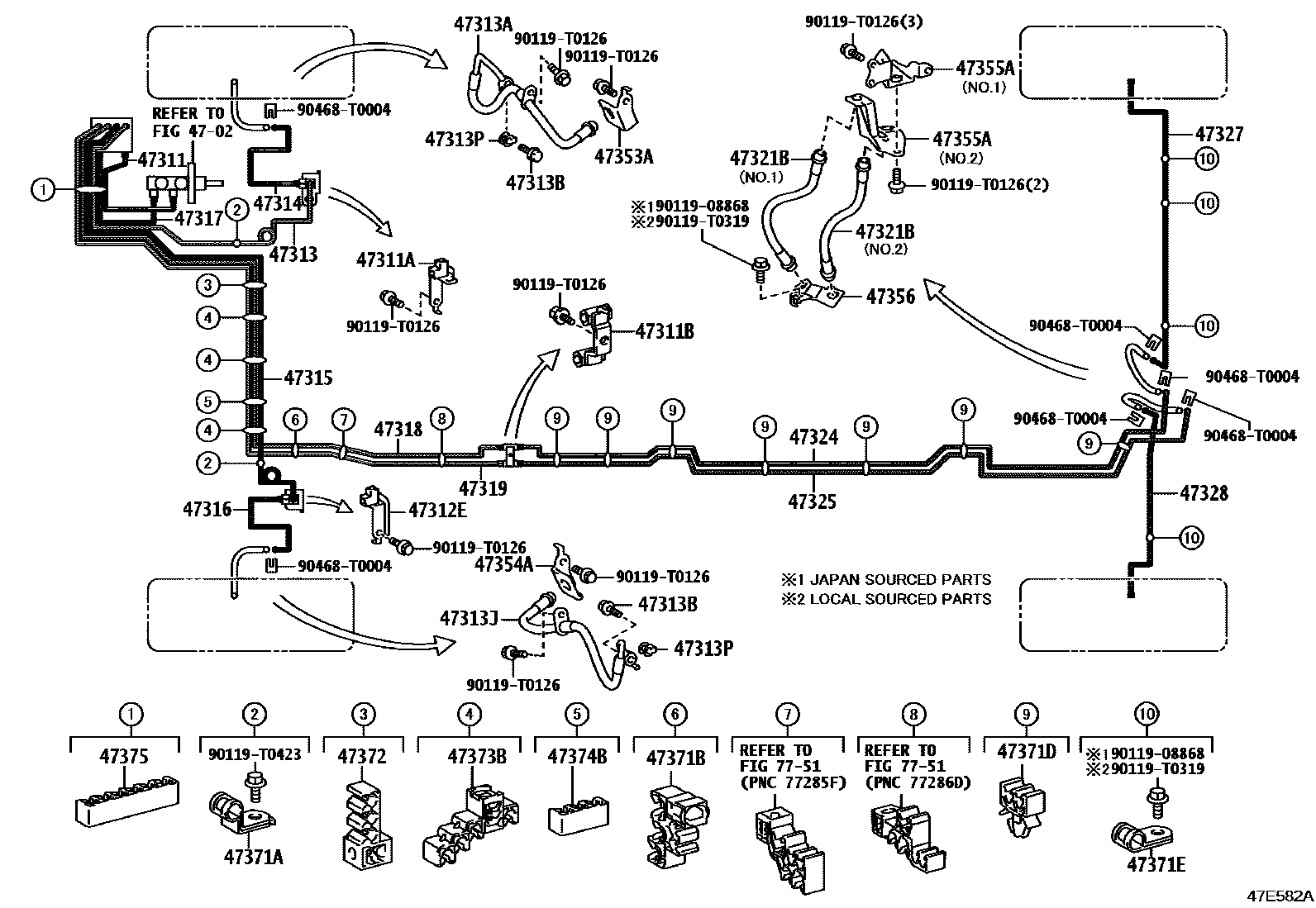

BRAKE TUBE & CLAMP
4702
47311TUBE, FRONT BRAKE, NO.1
VSC-WITH(*HSAC & *TSC)
VSC-WITHOUT
47311AWAY(FOR FRONT BRAKE TUBE)
main90412-T0009iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN125,126,13#,TGN136..THP..(DCRL,HTWC)202308-202407
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
main90412-T0007iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)..(ARL,GCC,GEN,IDN,LA,PH,SA,TH,VN)202308-202407
47312EWAY, NO.2(FOR FRONT BRAKE TUBE)
main90412-T0010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN125,126,13#,TGN136..THP..(DCRL,HTWC)202308-202407
47313TUBE, FRONT BRAKE, NO.3
VSC-WITHOUT
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
GR SPORT WIDE TREAD
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
GR SPORT WIDE TREAD
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
47315TUBE, FRONT BRAKE, NO.5
main47315-KK030supersedes 47315-KK010iGUN126..MHV..ARL;GUN135..(H,S)..TH;GUN125..(H,S)..IDN;GUN122,13#,TGN121..RHD..(ARL,GEN);GUN125,126..RHD..DCRL..(ARL,GEN,TH)202308-202407
VSC-WITH(*HSAC & *TSC)
VSC-WITHOUT
47316TUBE, FRONT BRAKE, NO.6
47317TUBE, FRONT BRAKE, NO.7
VSC-WITHOUT
main47321-KK020supersedes 47321-KK010iGUN126..MHV..ARL;GUN135..(H,S)..TH;GUN125..(H,S)..IDN;GUN122,13#,TGN121..RHD..(ARL,GEN);GUN125,126..RHD..DCRL..(ARL,GEN,TH)202308-202407
VSC-WITH(*HSAC & *TSC)
VSC-WITHOUT
47318TUBE, FRONT BRAKE, NO.8
VSC-WITH(*HSAC & *TSC)
VSC-WITHOUT
VSC-WITH(*HSAC & *TSC)
VSC-WITHOUT
47319TUBE, FRONT BRAKE, NO.9
main47323-KK080iTGN126..THP..L..(GCC,LA);TGN126..THP..(H,S)..(GCC,GEN,LA);GUN126,135..LHD..THP..(GCC,GEN,LA,PH,VN);GGN125,GUN122,125,136,TGN120,121..LHD..THP..(GCC,GEN,LA,SA,VN)202308-202407
VSC-WITH(*HSAC & *TSC)
VSC-WITHOUT
main47323-KK180iGUN126..MHV..ARL;GUN135..(H,S)..TH;GUN125..(H,S)..IDN;GUN122,13#,TGN121..RHD..(ARL,GEN);GUN125,126..RHD..DCRL..(ARL,GEN,TH)202308-202407
VSC-WITH(*HSAC & *TSC)
VSC-WITHOUT
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
47324TUBE, REAR BRAKE, NO.4
BHUTAN SPEC
main47324-KK060iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN125,126,13#,TGN136..THP..(DCRL,HTWC)..(ARL,GCC,GEN,IDN,LA,PH,SA,TH,VN)202308-202407
47325TUBE, REAR BRAKE, NO.5
47327TUBE, REAR BRAKE, NO.7
SAUDI ARABIA SPEC
SAUDI ARABIA SPEC
DIFFERENTIAL LOCK-WITH
GR SPORT WIDE TREAD
47328TUBE, REAR BRAKE, NO.8
GR SPORT WIDE TREAD
47353ABRACKET, FLEXIBLE HOSE, FRONT RH NO.2
GR SPORT WIDE TREAD
47354ABRACKET, FLEXIBLE HOSE, FRONT LH NO.2
GR SPORT WIDE TREAD
47355ABRACKET, FLEXIBLE HOSE, NO.5
main47355-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN125,126,13#,TGN136..THP..(DCRL,HTWC)202308-202407
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
47356BRACKET, FLEXIBLE HOSE, NO.6
47371ACLAMP, BRAKE TUBE, NO.1
47371BCLAMP, BRAKE TUBE, NO.6
47371DCLAMP, BRAKE TUBE, NO.8
BHUTAN SPEC
47371ECLAMP, BRAKE TUBE, NO.9
main90461-T0001×4iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
GR SPORT WIDE TREAD
47372CLAMP, BRAKE TUBE, NO.2
VSC-WITH(*HSAC & *TSC)
VSC-WITHOUT
47373BCLAMP, BRAKE TUBE, NO.3
47374BCLAMP, BRAKE TUBE, NO.4
main90949-T1032iTGN126..THP..(GCC,GEN,LA);GGN125,GUN122,125,126,13#,TGN120,121,136..LHD..THP202308-202407
47375CLAMP, BRAKE TUBE, NO.5
main90949-T1028supersedes 90949-T1029iGUN126..MHV..ARL;GUN135..(H,S)..TH;GUN125..(H,S)..IDN;GUN122,13#,TGN121..RHD..(ARL,GEN);GUN125,126..RHD..DCRL..(ARL,GEN,TH)202308-202407
VSC-WITH(*HSAC & *TSC)
7751
9011908868
main90119-08868
90119T0126
main90119-T0126
90119T0319
main90119-T0319
90119T0423
main90119-T0423
90468T0004
main90468-T0004
39 parts on this diagram · 14 diagrams in section
