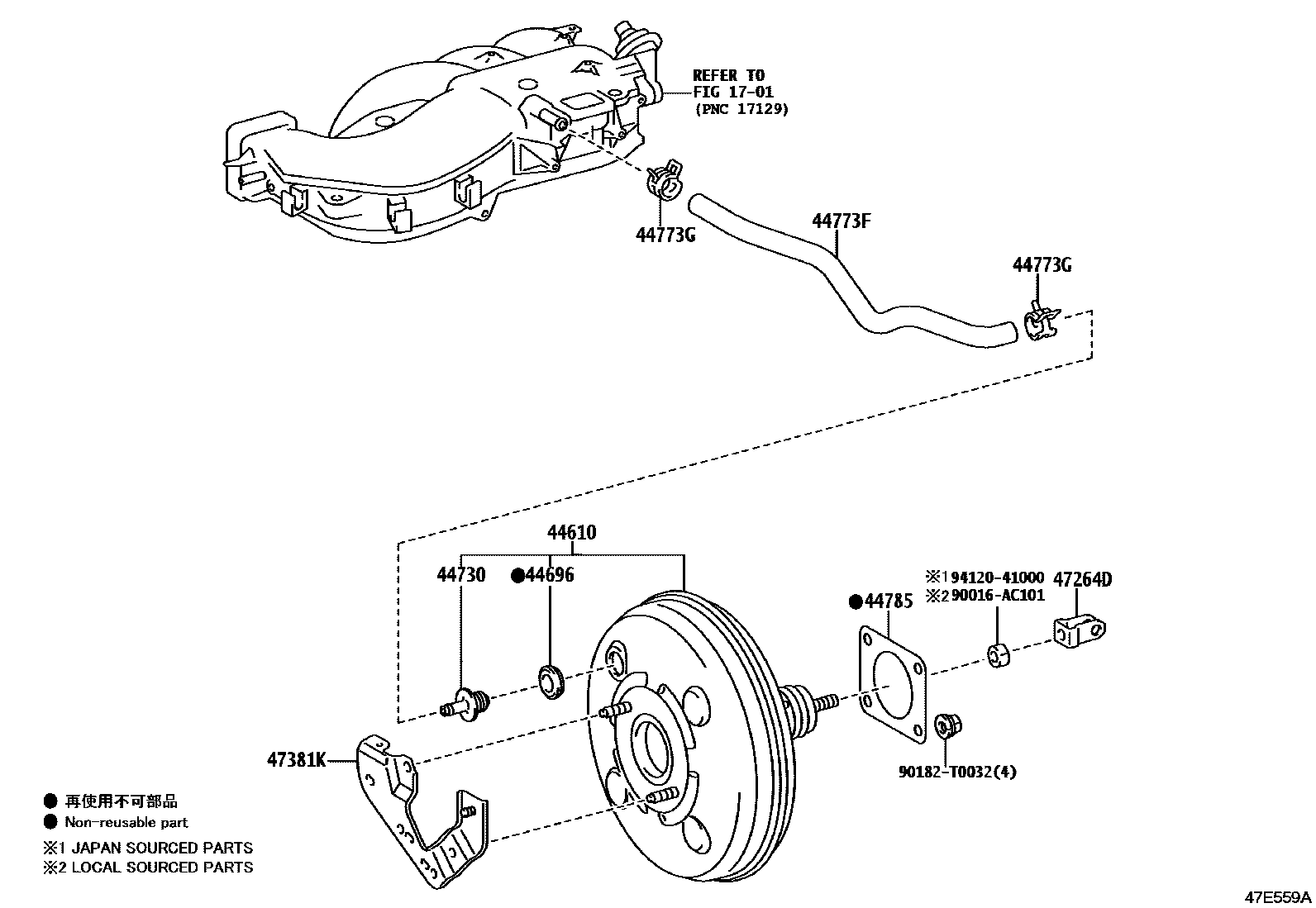

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1701

44610BOOSTER ASSY, BRAKE

main44610-0K550iGUN126..IND202310-202409

main44610-0K560iTGN121..SA;TGN126,136..SAP..S202308-202410

main44610-0K570iGGN125..SA202402-202410

main44610-0K580iGUN126..RHD..THP..6F;GUN120,121,122,125,13#..RHD..THP;GUN126..RHD..6FC..DCRL..(ARL,GEN)202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT

main44610-0K600iGUN125,126..GHA202308-202412

main44610-0K650iTGN126,136..SAP..L202402-202410

VSC-WITHOUT

main44610-0K880iGUN135..(H,S)..TH;GUN125,126..6F..TH202308-202407

TOYOTA STOP & START SYSTEM-WITH

main44610-0K890iGUN126..LHD..MHV202311-202407

main44610-71010iTGN126,136..AGTP202311-202410

main44610-71020iGGN125..LA202311-202410

main44610-71030iGUN125,126,13#..AGTP202311-202410

main44610-0KA30iGUN126..6FC..DCRL..(GCC,PH)202308-202407

GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)

main44610-0KA40iGUN126..RHD..6FC..H..DCRL..SA202308-202410

GR SPORT WIDE TREAD

main44610-0KA50iGUN126..6FC..TH202401-202407

GR SPORT WIDE TREAD

main44610-0KA60iGUN126..6FC..DCRL..GCC202308-202407

GR SPORT WIDE TREAD&TOYOTA STOP & START SYSTEM-WITH

main44610-0KB00supersedes 44610-0K810iGGN125..GCC202308-202407

GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)

main44610-71050iGUN126..AGTP..6FC..H202311-202410

GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)

44696GROMMET, CHECK VALVE

main90016-AT003iGUN126..PKN202308

main90480-24439×2iTGN126,136..AGTP202311-202410

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60070×2iTGN12#,136..THP..(ARL,GCC,GEN,LA)202308-202407

44773FHOSE, UNION TO CHECK VALVE

main44773-0K020iLAN125202402-202410

main44773-KK020iGGN125..GCC202308-202407

main44773-KK030iGUN126..IND,MMR202308-202409

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90466-T0019×2iGGN125..GCC202308-202407

NO.1:REFER ILLUST.

main90467-16014iGUN125,126..GHA,KEN202308-202412

NO.2:REFER ILLUST.

44785GASKET, BRAKE BOOSTER

main44785-17010iGUN126..IND,MMR202308-202409

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-04010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407

main47264-0K080iGUN126..IND202310-202409

main47264-26030iGGN125,GUN125,126,13#,TGN126,136..AGTP202311-202410

47381KBRACKET, BRAKE BOOSTER TUBE CLAMP

main47381-0K060iGUN126..IND202310-202409

main47381-0K071iGUN125,126..GHA,KEN202308-202412

90016AC101

main90016-AC101

90182T0032

main90182-T0032

9412041000

main94120-41000

12 parts on this diagram · 7 diagrams in section
