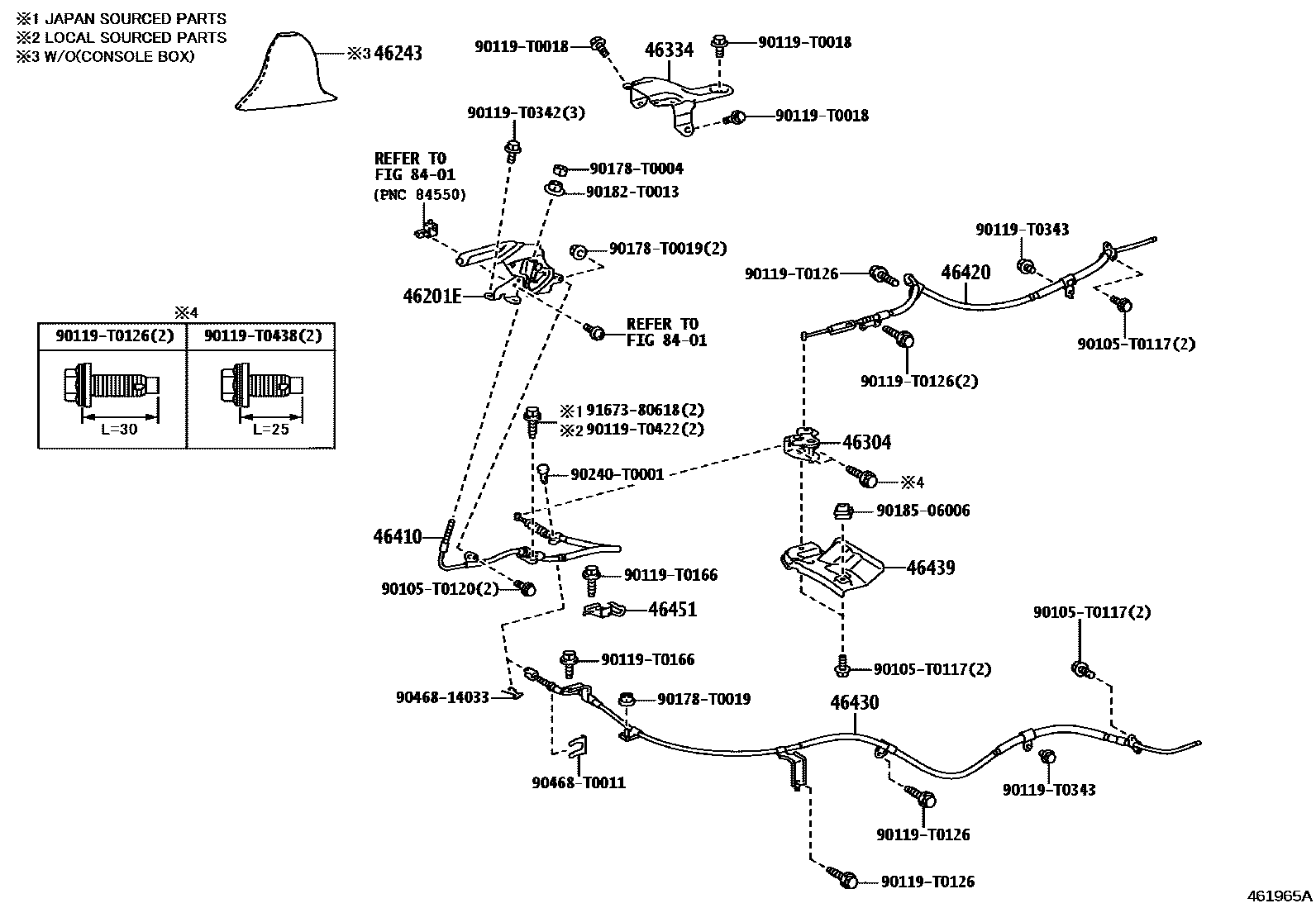

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1W(PARKING BRAKE SHOE)

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0K140-C0iGUN126..H..IND202310-202409

BLACK,TRIM2#

main46201-0K150-C0iGUN126..S..IND202310-202409

BLACK,TRIM2#,TYPE A:REFER ILLUST.

main46201-0K190-C0iGGN125,GUN125,126,13#,TGN126,136..AGTP..(H,S)202311-202410

BLACK,TRIM2#

main46201-0K210-C0iGGN125,GUN125,126,136..H..SA202402-202410

SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#

main46201-0K210-C0iGUN126..GHA,KEN202402-202412

BLACK,TRIM2#

main46201-0K230-C0iGUN126..(H,S)..PKN202308-202409

BLACK,TRIM2#

main46201-0K250-C0iGGN125,GUN122,125,126,TGN12#..GCC202308-202407

BLACK,TRIM2#,3#

main46201-0K250-C0iGUN126..RHD..THP..S;GUN122,136..S..(ARL,GEN);GUN125,135,TGN126..THP..L..LA;GUN135,TGN126..(L,S)..(ARL,GEN,VN);GUN125..THP..(L,S)..(ARL,GEN,IDN,PH,SA,VN);GUN120,122,202308-202408

BLACK,TRIM2#

main46201-0K250-C0iGUN126..S..IND202310-202409

BLACK,TRIM2#,TYPE B:REFER ILLUST.

main46201-0K260-C0iGUN125,126,135,TGN126,136..AGTP..L202311-202410

BLACK,TRIM2#

main46201-0K280-C0iGUN125..GHA,KEN202402-202412

BLACK,TRIM2#

46243COVER, PARKING BRAKE LEVER

main46243-0K020-C0iTGN121..5F..S;GUN125..6F..L..GCC;GUN122,TGN120,126..5F..(L,S)..GCC..CBU202308-202407

BLACK,TRIM2#

main46243-0K020-C0iTGN121..5F..S;GUN125..6F..L..GCC;GUN122,TGN120,126..5F..(L,S)..GCC..CBU202308-202407

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#,3#

main46243-0K020-C0iTGN121..5F..S;GUN125..6F..L..GCC;GUN122,TGN120,126..5F..(L,S)..GCC..CBU202308-202407

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

main46243-0K020-C0iGUN122..RHD..GEN;GUN125..THP..L..SA202308-202407

BLACK,TRIM2#,3#

main46243-0K030-C0iGUN125..KEN202402-202412

FRONT SEAT-BENCH TYPE(FOR TWO PERSONS),BLACK,TRIM2#

main46243-0K030-C0iGUN125,135,LAN125,TGN121,126,136..SAP..L202402-202412

BLACK,TRIM2#

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-0K050iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202410

main46304-0K090iGUN125,126..GHA,KEN202402-202412

46334PROTECTOR, INTERMEDIATE LEVER

main46334-0K010iGUN126..IND202309-202409

main46334-KK010iGUN126..MMR202308-202412

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0K070iGUN126..IND202310-202409

main46410-0K120iGUN125,126..CAMP,MAP202308-202412

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0K160iGUN122,TGN121..SA202308-202410

main46420-0K210iGUN126..PKN202308-202410

main46420-0K220iGUN125,126..GHA,KEN202402-202412

main46420-0K280iGGN125..GCC202308-202410

main46420-0K290iGUN125..LHD..GEN;GUN125..6FC..L..GEN202308-202407

ASIA COLD COUNTRY SPEC

main46420-0K300iGGN125..SA202402-202410

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0K120iGUN125..LHD..GEN;GUN125..6FC..L..GEN202308-202407

ASIA COLD COUNTRY SPEC

main46430-0K160iGUN120,121,122,TGN120,121..THP202308-202410

main46430-0K210iGUN125,126..CAMP,MAP202308-202410

main46430-0K220iGGN125,GUN125,126,13#,LAN125,TGN126,136..SAP202402-202412

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-0K060iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

46451BRACKET, CABLE SUPPORT

main46451-0K040iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

8401

90105T0117

main90105-T0117

90105T0120

main90105-T0120

90119T0018

main90119-T0018

90119T0126

main90119-T0126

90119T0166

main90119-T0166

90119T0342

main90119-T0342

90119T0343

main90119-T0343

90119T0422

main90119-T0422

90119T0438

main90119-T0438

90178T0004

main90178-T0004

90178T0019

main90178-T0019

90182T0013

main90182-T0013

9018506006

main90185-06006

90240T0001

main90240-T0001

9046814033

main90468-14033

90468T0011

main90468-T0011

9167380618

main91673-80618

27 parts on this diagram · 3 diagrams in section
