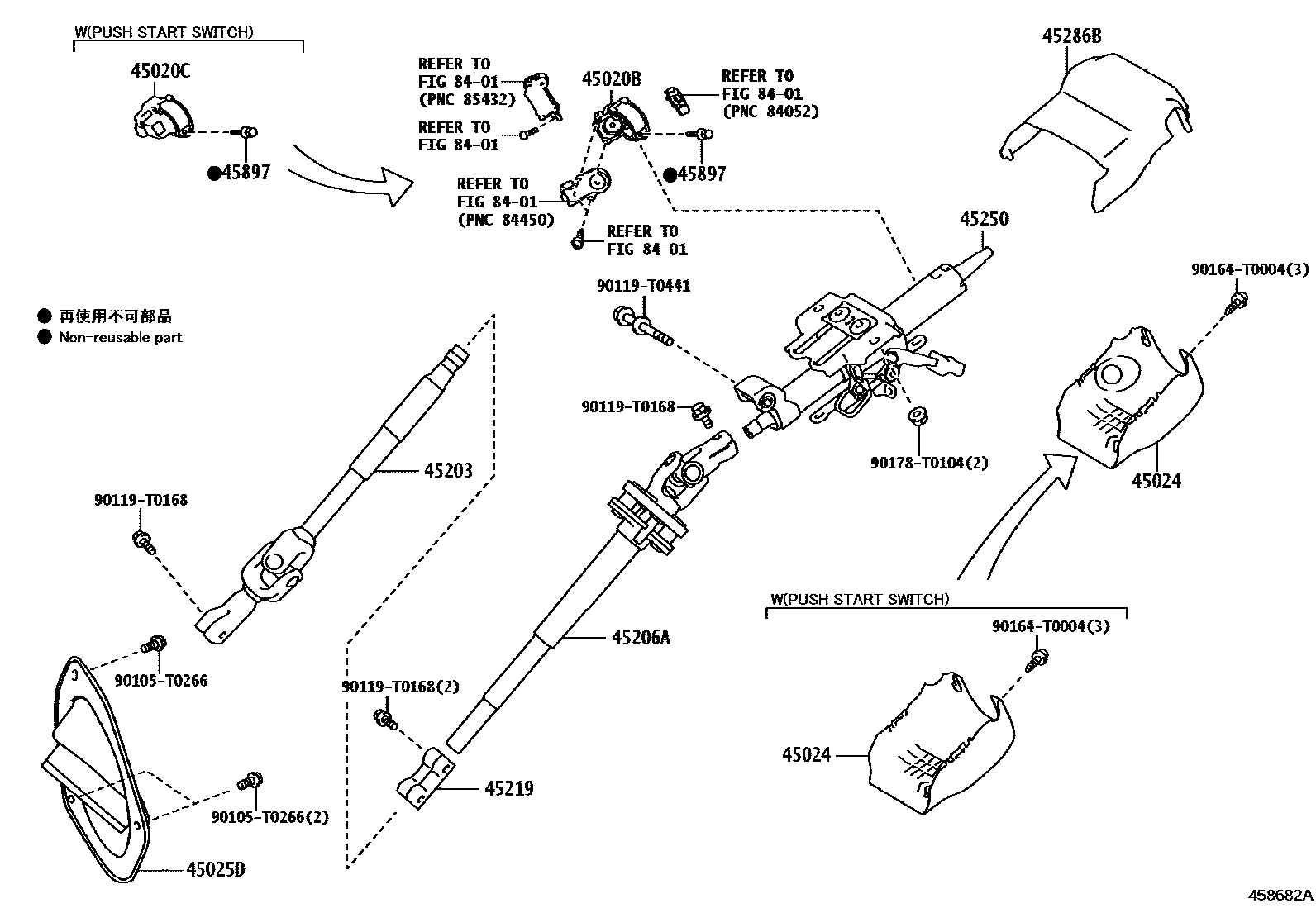

STEERING COLUMN & SHAFT
45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
KEY PLATE-SMART KEY(2)
KEY PLATE-SMART KEY(2) & SUB KEY(2)
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)
WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main45280-0K120iGUN126..6FC..(L,S)..BZAG;GUN125,135,TGN126..(AGTP,SAP)..6FC;GUN126,136..(AGTP,SAP)..6FC..DCRL..(LA,SA)202308-202412
main45280-0K180iTGN126..5F..H..GCC;GUN125,126,135..THP..6F..(L,S);GUN125,126..THP..6F..H..(GCC,LA);TGN126..THP..5F..(L,S)..(GCC,GEN,LA);GUN121,122,136,TGN120,121,136..THP..MTM202308-202407
WIRELESS DOOR LOCK-WITH
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
WIRELESS DOOR LOCK-WITH(*SES)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
45024COVER SUB-ASSY, STEERING COLUMN, LOWER
BLACK,TRIM2#,3#
sub45024-0K011
main45024-0K010-C0iTGN126..H..GEN;GUN125,126,136..THP..H..DCRL..(IDN,LA);GUN12#,13#,TGN121,126,136..(MAP,THP)..(L,S)..(DCRL,HTWC)..(ARL,GEN,IDN,LA,MA,PH,TH,VN)202308-202403
WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
sub45024-0K011
BLACK,TRIM2#
BLACK,TRIM2#,3#
WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
BLACK,TRIM2#
sub45024-0K031
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM2#
sub45024-0K031
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX),BLACK,TRIM2#
sub45024-0K031
WIRELESS DOOR LOCK-WITH(*SES),BLACK,TRIM2#
sub45024-0K031
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK),BLACK,TRIM2#
sub45024-0K031
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK),BLACK,TRIM2#,3#
sub45024-0K031
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),BLACK,TRIM2#
sub45024-0K031
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),BLACK,TRIM2#,3#
sub45024-0K031
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&KEY PLATE-SMART KEY(2),BLACK,TRIM2#
sub45024-0K031
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&KEY PLATE-SMART KEY(2) &SUB KEY(2),BLACK,TRIM2#
sub45024-0K031
BLACK,TRIM2#
BLACK,TRIM2#,3#
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM2#
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK),BLACK,TRIM2#
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK),BLACK,TRIM2#,3#
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),BLACK,TRIM2#
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),BLACK,TRIM2#,3#
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&KEY PLATE-SMART KEY(2),BLACK,TRIM2#
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&KEY PLATE-SMART KEY(2) &SUB KEY(2),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
main45024-0K060-C0iGUN125,126,135,TGN126,136..AGTP..(L,S);GUN126,136,TGN126..AGTP..(6F,6FC)..H..LA202311-202410
WIRELESS DOOR LOCK-WITH(PANIC BUTTON),BLACK,TRIM2#
BLACK,TRIM2#
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM2#
BLACK,TRIM2#
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM2#
BLACK,TRIM2#
EXPORT FROM SA&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM2#
main45287-0K050-C0iGUN136..THP..LA;GUN120,121,122,13#,TGN121,136..THP..(L,S)..(ARL,GEN,LA,PH,TH,VN)202404-202407
BLACK,TRIM2#
main45287-0K050-C0iGUN136..THP..LA;GUN120,121,122,13#,TGN121,136..THP..(L,S)..(ARL,GEN,LA,PH,TH,VN)202404-202407
BLACK,TRIM2#,3#
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),BLACK,TRIM2#,3#
BLACK,TRIM2#
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM2#
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX),BLACK,TRIM2#
WIRELESS DOOR LOCK-WITH(*SES),BLACK,TRIM2#
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK),BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM2#
BLACK,TRIM2#
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
main45025-KK020iTGN126..THP..5F..(GCC,GEN,LA);GUN122,125,126,13#,TGN120,121,136..LHD..THP..MTM202308-202412
45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2
45206AYOKE SUB-ASSY, STEERING SLIDING W/COUPLING
45219YOKE, STEERING SLIDING
45250COLUMN ASSY, STEERING
main45250-0K060iGUN122..RHD..GEN;GUN126..DCRL..GCC;GUN122,125,135,TGN12#..GCC,VN;GUN125,TGN126..MTM..L..(GEN,IDN)202308-202407
STEERING COLUMN-WITH(TILT)
main45250-0K070iTGN126..THP..L..LA;GUN126..THP..H..DCRL..LA;TGN126..THP..S..(GEN,LA);GUN125..6F..S..(GEN,IDN);GUN122,136..LHD..THP..(GEN,LA);GUN122,125..THP..MTM..(ARL,LA,PH,SA,TH)202308-202407
STEERING COLUMN-WITH(TILT & TELESCOPIC,WITHOUT(*SES))
main45250-0K070iTGN126..THP..L..LA;GUN126..THP..H..DCRL..LA;TGN126..THP..S..(GEN,LA);GUN125..6F..S..(GEN,IDN);GUN122,136..LHD..THP..(GEN,LA);GUN122,125..THP..MTM..(ARL,LA,PH,SA,TH)202308-202408
WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH(*SES)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)
main45250-0K110iGGN125,GUN126..THP..(HTWC,MHV)..(ARL,GCC,LA);GUN126,13#..THP..6FC..H..DCRL..(ARL,GEN,PH,TH,TWN,VN)202308-202407
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
main45250-0K110iGGN125,GUN126..THP..(HTWC,MHV)..(ARL,GCC,LA);GUN126,13#..THP..6FC..H..DCRL..(ARL,GEN,PH,TH,TWN,VN)202308-202407
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&KEY PLATE-SMART KEY(2)
main45250-0K110iGGN125,GUN126..THP..(HTWC,MHV)..(ARL,GCC,LA);GUN126,13#..THP..6FC..H..DCRL..(ARL,GEN,PH,TH,TWN,VN)202308-202407
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&KEY PLATE-SMART KEY(2) &SUB KEY(2)
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
45897BOLT, STEERING LOCK SET
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
KEY PLATE-SMART KEY(2) & SUB KEY(2)
KEY PLATE-SMART KEY(2)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)
8401
90105T0266
main90105-T0266
90119T0168
main90119-T0168
90119T0441
main90119-T0441
90164T0004
main90164-T0004
90178T0104
main90178-T0104
16 parts on this diagram · 1 diagram in section
