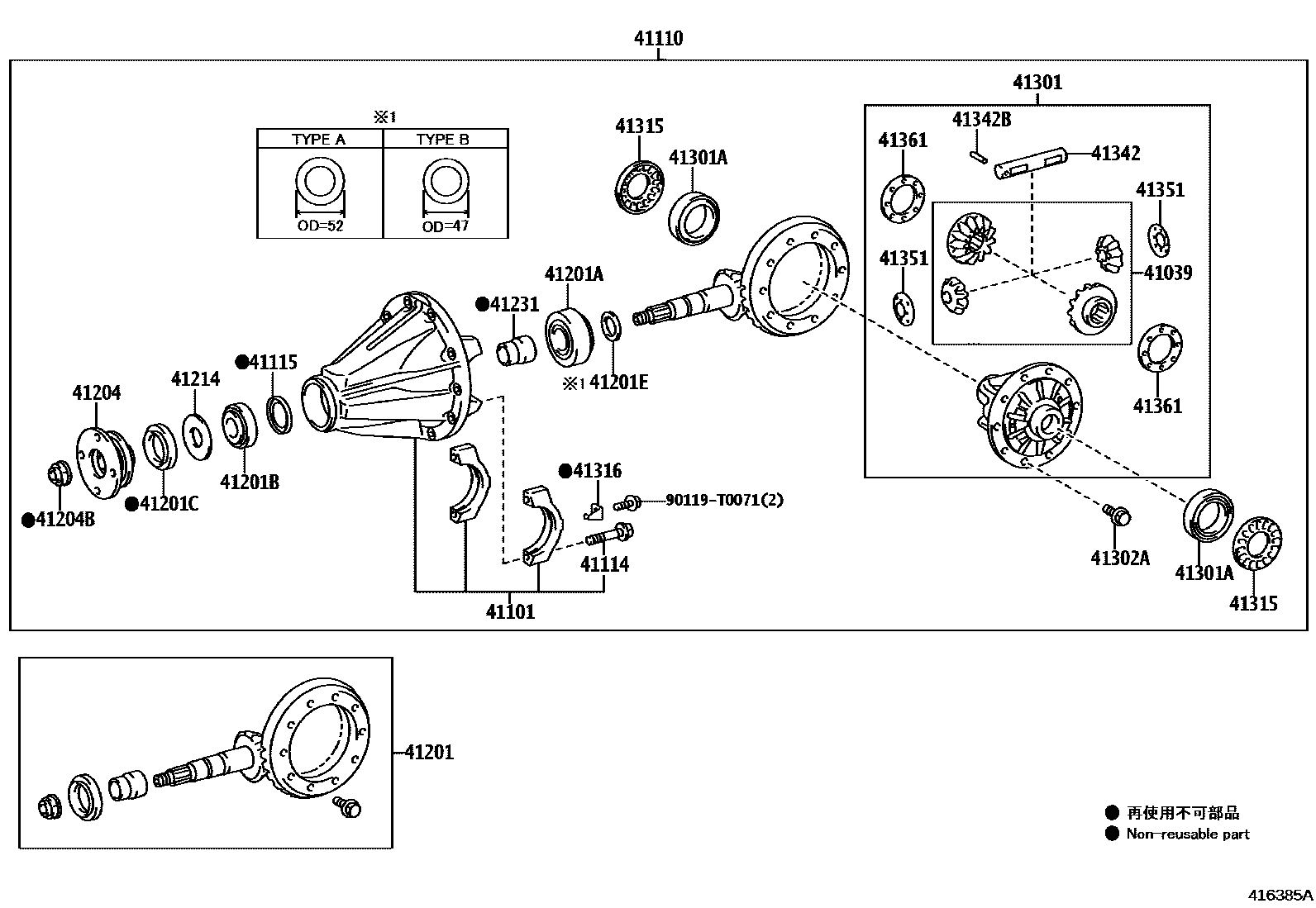

REAR AXLE HOUSING & DIFFERENTIAL

0001 1W/O(DIFFERENTIAL LOCK) 0002 1SAUDI ARABIA SPEC 0003 1W/O(DIFFERENTIAL LOCK) 0004 1W/O(DIFFERENTIAL LOCK) 0005 1W(DIFFERENTIAL LOCK) 0006 1W(DIFFERENTIAL LOCK) 0007 1W(DIFFERENTIAL LOCK) 0008 1 0009 1 0010 1W/O(DIFFERENTIAL LOCK) 0011 1W(DIFFERENTIAL LOCK)

41039GEAR KIT, DIFFERENTIAL, REAR

main41039-0K010iGUN135..L..SA;GUN126..AGTP..S;GUN125..6F..BZAG;TGN126,136..AGTP..LA;GGN125,GUN125..H..SA;GUN126..(AGTP,SAP)..(H,L);GUN125,135..AGTP..6F..S..LA;GUN136..(AGTP,SAP)..(202308-202410

DIFFERENTIAL LOCK-WITH

main41039-0K010iGUN125,126..GHA,KEN202308-202412

main41039-71011iLAN125202308-202410

main41039-71011iTGN120;GUN122..PH202308-202407

SAUDI ARABIA SPEC

main41039-71070iGUN125..6F..S..GEN;GUN125..6F..H..GCC;GUN126,TGN126..H..GCC;GUN126..RHD..6F..H..GEN;GGN125,GUN125,136..6FC..(H,S)..(ARL,GCC)202308-202407

DIFFERENTIAL LOCK-WITHOUT

main41039-71070iTGN126..L..GEN;GUN135..THP..L..LA;TGN126..(L,S)..GCC;GUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN125,126..THP..L..(ARL,GCC,GEN,LA);GUN120,121,122,TGN121,136..ARL,GCC202308-202407

SAUDI ARABIA SPEC

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-0K011iTGN120;GUN122..PH202308-202407

SAUDI ARABIA SPEC

main41101-0K011iLAN125202308-202410

main41101-0K070iGUN125..6F..S..GEN;GUN125..6F..H..GCC;GUN126,TGN126..H..GCC;GUN126..RHD..6F..H..GEN;GGN125,GUN125,136..6FC..(H,S)..(ARL,GCC)202308-202407

DIFFERENTIAL LOCK-WITHOUT

main41101-0K070iTGN126..L..GEN;GUN135..THP..L..LA;TGN126..(L,S)..GCC;GUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN125,126..THP..L..(ARL,GCC,GEN,LA);GUN120,121,122,TGN121,136..ARL,GCC202308-202407

SAUDI ARABIA SPEC

main41101-0K080iGUN126..IND,MMR202308-202409

main41101-0K080iTGN126..H..GCC;GUN125..6F..H..GCC;TGN126..THP..L..LA;GUN125..THP..6FC..(H,S);GUN126..MHV..(ARL,GCC,LA);GUN125..THP..L..(IDN,PH,SA);GUN135,TGN126..THP..(H,S)..(GEN,L202308-202407

DIFFERENTIAL LOCK-WITH

main41101-0K110iGUN125..AGTP..S202311-202410

DIFFERENTIAL LOCK-WITHOUT

main41101-0K120iGUN125,135..AGTP..L..LA;GUN125..LHD..SAP..6F..(L,S);GGN125,LAN125..LHD..(LA,SA);GUN125,126,135,TGN136..RHD..(L,S)..SA202311-202410

DIFFERENTIAL LOCK-WITH

main41101-0K120iGUN125,126..GHA,KEN202311-202412

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-0K570iGUN125..6F..S..GCC;GUN120,122..GCC,GEN,TH;GUN121,135..6F..(PH,TH,VN);GUN125,126,135..THP..6F..L..(ARL,GCC,GEN,LA)202308-202407

*FGR=43:12=3.583

main41110-0K570iGUN125..6F..S..GCC;GUN120,122..GCC,GEN,TH;GUN121,135..6F..(PH,TH,VN);GUN125,126,135..THP..6F..L..(ARL,GCC,GEN,LA)202308-202407

*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT

main41110-0K580iGUN121..6FC202308-202407

*FGR=43:11=3.909

main41110-0K580iGUN121..6FC202308-202407

*FGR=43:11=3.909,DIFFERENTIAL LOCK-WITHOUT

main41110-0K590iTGN121..THP;GUN125..THP..6FC..L;GUN135..6FC..(ARL,PH,TH,VN)202308-202407

*FGR=41:10=4.100

main41110-0K590iTGN121..THP;GUN125..THP..6FC..L;GUN135..6FC..(ARL,PH,TH,VN)202308-202407

*FGR=41:10=4.100,SAUDI ARABIA SPEC

main41110-0K590iTGN121..THP;GUN125..THP..6FC..L;GUN135..6FC..(ARL,PH,TH,VN)202308-202407

*FGR=41:10=4.100,DIFFERENTIAL LOCK-WITHOUT

main41110-0K610iTGN126..H..GCC202308-202407

*FGR=41:9=4.555,DIFFERENTIAL LOCK-WITHOUT

main41110-0K610iTGN126,136..L..GEN;TGN126..(L,S)..GCC202308-202407

*FGR=41:9=4.555

main41110-0K620iGUN125..6F..MA202308-202409

*FGR=43:12=3.583

main41110-0K620iGUN125,126,135..THP..6F..L..(GCC,GEN,LA)202308-202407

*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITH

main41110-0K630iGUN126..6FC..(IND,MMR)202308-202409

*FGR=43:11=3.909

main41110-0K640iGUN125..6FC..MA202308-202408

*FGR=41:10=4.100

main41110-0K660iTGN126..5F..L..(GCC,GEN)202308-202407

*FGR=41:9=4.555,DIFFERENTIAL LOCK-WITH

main41110-0K660iTGN126..H..GCC;TGN126..THP..L..LA;TGN126..THP..(H,S)..(GEN,LA)202308-202407

*FGR=41:9=4.555

main41110-0K671iGUN13#..6F..BZAG;GUN125,135..AGTP..L..LA202311-202410

*FGR=43:12=3.583

main41110-0K671iGUN13#..6F..BZAG;GUN125,135..AGTP..L..LA202311-202410

*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT

main41110-0K681iGGN125,GUN136..AGTP..6FC202311-202410

*FGR=43:11=3.909

main41110-0K711iTGN136..BZAG202311-202410

*FGR=41:9=4.555

main41110-0K721iGUN125..6F..BZAG;GUN126..AGTP..6F;GUN125,13#..AGTP..6F..(H,S)..LA202311-202410

*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITH

main41110-0K721iGUN125..6F..BZAG;GUN126..AGTP..6F;GUN125,13#..AGTP..6F..(H,S)..LA202311-202410

*FGR=43:12=3.583

main41110-0K731iGUN126..AGTP..6FC202311-202410

*FGR=43:11=3.909,DIFFERENTIAL LOCK-WITH

main41110-0K731iGUN126..AGTP..6FC202311-202410

*FGR=43:11=3.909

main41110-0K761iTGN126,136..AGTP..LA202311-202410

*FGR=41:9=4.555

main41110-0K771iGUN135..6F..S..SA;GUN122,125,126..SAP..MTM..(L,S)202402-202410

*FGR=43:12=3.583

main41110-0K781iGUN126..6FC..S..SA202402-202410

*FGR=43:11=3.909

main41110-0K791iGUN125..RHD..6FC..SA;GUN135,TGN121..(5F,6FC)..SA202402-202410

*FGR=41:10=4.100

main41110-0K801iTGN126..SAP..L202402-202410

*FGR=43:10=4.300

main41110-0K811iTGN126..SAP..L202402-202410

*FGR=41:9=4.555,TIRE & DISC WHEEL-225/70R17C STEEL

main41110-0K811iTGN136..SA;TGN126..SAP..S202402-202410

*FGR=41:9=4.555

main41110-0K821iGUN135..L..SA;GUN125,126,136..6F..H..SA202402-202410

*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITH

main41110-0K821iGUN135..L..SA;GUN125,126,136..6F..H..SA202402-202412

*FGR=43:12=3.583

main41110-0K831iGGN125,GUN126,136..6FC..H..SA202402-202412

*FGR=43:11=3.909

main41110-0K831iGUN126..6FC..S..SA202402-202410

*FGR=43:11=3.909,DIFFERENTIAL LOCK-WITH

main41110-0K841iGUN125..LHD..6FC..SA202402-202410

*FGR=41:10=4.100

main41110-0K841iGUN125,135..RHD..6FC..SA202402-202410

*FGR=41:10=4.100,DIFFERENTIAL LOCK-WITH

main41110-0K881iGUN125..AGTP..6FC..LA202311-202410

*FGR=41:10=4.100

main41110-0K881iGUN135..6FC..BZAG202311-202410

*FGR=41:10=4.100,DIFFERENTIAL LOCK-WITHOUT

main41110-0K891iGUN125..AGTP..6FC202311-202410

*FGR=41:10=4.100

main41110-0KB30iGUN122..PH202308-202407

*FGR=43:12=3.583

main41110-0KB60iLAN125202402-202410

*FGR=43:10=4.300

main41110-0KB70iTGN120202308-202407

*FGR=41:9=4.555

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-F0001iGUN125,126..GHA,KEN202311-202412

TYPE A:REFER ILLUST.

main90105-T0081iTGN120;GUN122..PH202308-202407

SAUDI ARABIA SPEC

main90105-T0081iLAN125202308-202410

main90109-F0001iGGN125,GUN122,125,126,13#,TGN121,126,136..AGTP,SAP202311-202412

TYPE B:REFER ILLUST.

main90109-T0030iGUN125,126,135..THP..DCRL;GUN126..MHV..(ARL,GCC,LA);GGN125,GUN120,121,122,136,TGN121,126,136..THP..(ARL,GCC,GEN,LA,TH)202308-202407

SAUDI ARABIA SPEC

main90109-T0030iGUN125,126..CAMP,MAP202308-202409

41115RING, DIFFERENTIAL OIL STORAGE

main41115-0K010iTGN120;GUN122..PH202308-202407

SAUDI ARABIA SPEC

main41115-0K010iLAN125202308-202410

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-09B60iGUN120,122..GCC,GEN,TH;GUN121,125,126,13#..(INDP,MAP,THP)..6F202308-202402

*FGR=43:12=3.583

main41201-09B70iGUN126..THP..6FC..S;GUN126..6FC..H..DCRL..GEN;GGN125,GUN121,136..THP..6FC;GUN126..(INDP,MAP,MMRP,THP)..6FC..H..(ARL,GCC,IND,LA,MA,MMR,PH,TH,TWN,VN)202308-202402

*FGR=43:11=3.909

main41201-09B80iGUN125,135,TGN121..(MAP,THP)..(5F,6FC)202308-202402

*FGR=41:10=4.100

main41201-09B80iGUN125,135,TGN121..(MAP,THP)..(5F,6FC)202308-202402

*FGR=41:10=4.100,SAUDI ARABIA SPEC

main41201-09C10iTGN126,136..THP202308-202402

*FGR=41:9=4.555

main41201-09C30iLAN125202402-202410

*FGR=43:10=4.300

main41201-09C40iTGN120202308-202407

*FGR=41:9=4.555

main41201-09C50iGUN122..PH202308-202407

*FGR=43:12=3.583

main41201-09E42iGUN122,125,126,13#..(AGTP,SAP)..MTM202311-202412

*FGR=43:12=3.583

main41201-09E82iTGN126..AGTP;TGN126..SAP..S;TGN136..AGTP,SAP202311-202410

*FGR=41:9=4.555

main41201-09F51iGGN125,GUN126,136..AGTP..6FC202311-202410

*FGR=43:11=3.909

main41201-09F71iGGN125,GUN126,136..6FC..SA202402-202412

*FGR=43:11=3.909

main41201-09F81iGUN125,135,TGN121..(5F,6FC)..SA202402-202410

*FGR=41:10=4.100

main41201-09F91iLAN125202402-202410

*FGR=43:10=4.300

main41201-09F91iLAN125202402-202410

*FGR=43:10=4.300,DIFFERENTIAL LOCK-WITH

main41201-09G01iGUN125,135..AGTP..6FC202311-202410

main41201-09G10iGUN126..6F..IND202402-202409

*FGR=43:12=3.583

main41201-09G20iGUN126..CAMP,MAP202402-202409

*FGR=43:11=3.909

main41201-09G30iGUN125,135,TGN121..THP..(5F,6FC)202402-202408

*FGR=41:10=4.100

main41201-09G30iGUN125,135,TGN121..THP..(5F,6FC)202402-202407

*FGR=41:10=4.100,SAUDI ARABIA SPEC

main41201-09G40iTGN126,136..THP..(GCC,GEN,LA)202402-202407

*FGR=41:9=4.555

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-S0016iGUN125,126..GHA,KEN202311-202412

main90366-T0065iGUN126..AGTP..(H,S);GUN126..AGTP..6F..L;GGN125,GUN125,13#,TGN126,136..AGTP202308-202410

main90366-T0065iGUN125,126,135..THP..DCRL;GUN126..MHV..(ARL,GCC,LA);GGN125,GUN120,121,122,136,TGN121,126,136..THP..(ARL,GCC,GEN,LA,TH)202308-202407

SAUDI ARABIA SPEC

main90366-T0080iTGN120;GUN122..PH202308-202407

SAUDI ARABIA SPEC

main90366-T0080iLAN125202308-202410

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-S0013iGUN125,126..GHA,KEN202311-202412

main90366-T0062iGUN126..AGTP..(H,S);GUN126..AGTP..6F..L;GGN125,GUN125,13#,TGN126,136..AGTP202308-202410

main90366-T0062iGUN125,126,135..THP..DCRL;GUN126..MHV..(ARL,GCC,LA);GGN125,GUN120,121,122,136,TGN121,126,136..THP..(ARL,GCC,GEN,LA,TH)202308-202407

SAUDI ARABIA SPEC

main90366-T0083iTGN121..5F..(H,S)202308-202407

SAUDI ARABIA SPEC

main90366-T0083iLAN125202308-202410

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-53001iGUN125,126..GHA,KEN202311-202412

main90311-T0065iGUN125,126..CAMP,MAP202308-202409

main90311-T0065iTGN121..5F..(H,S)202308-202407

SAUDI ARABIA SPEC

main90311-T0068iTGN121..5F..(H,S)202308-202407

SAUDI ARABIA SPEC

main90311-T0068iLAN125202308-202410

41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)

main90201-35497iTGN121..5F..(H,S)202308-202407

OD=47,T=1.70,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35497iTGN120;GUN122..PH202308-202410

OD=47,T=1.70,TYPE B:REFER ILLUST.

main90201-35498iTGN120;GUN122..PH202308-202410

OD=47,T=1.73,TYPE B:REFER ILLUST.

main90201-35498iTGN121..5F..(H,S)202308-202407

OD=47,T=1.73,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35499iTGN121..5F..(H,S)202308-202410

OD=47,T=1.76,TYPE B:REFER ILLUST.

main90201-35499iTGN120;GUN122..PH202308-202407

OD=47,T=1.76,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35500iTGN121..5F..(H,S)202308-202407

OD=47,T=1.79,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35500iTGN120;GUN122..PH202308-202410

OD=47,T=1.79,TYPE B:REFER ILLUST.

main90201-35501iLAN125202308-202410

OD=47,T=1.82,TYPE B:REFER ILLUST.

main90201-35501iTGN120;GUN122..PH202308-202407

OD=47,T=1.82,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35502iLAN125202308-202410

OD=47,T=1.85,TYPE B:REFER ILLUST.

main90201-35502iTGN120;GUN122..PH202308-202407

OD=47,T=1.85,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35503iTGN121..5F..(H,S)202308-202410

OD=47,T=1.88,TYPE B:REFER ILLUST.

main90201-35503iTGN121..5F..(H,S)202308-202407

OD=47,T=1.88,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35504iTGN120;GUN122..PH202308-202407

OD=47,T=1.91,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35504iTGN121..5F..(H,S)202308-202410

OD=47,T=1.91,TYPE B:REFER ILLUST.

main90201-35505iTGN120;GUN122..PH202308-202407

OD=47,T=1.94,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35505iLAN125202308-202410

OD=47,T=1.94,TYPE B:REFER ILLUST.

main90201-35506iTGN121..5F..(H,S)202308-202407

OD=47,T=1.97,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35506iTGN120;GUN122..PH202308-202410

OD=47,T=1.97,TYPE B:REFER ILLUST.

main90201-35507iTGN120;GUN122..PH202308-202407

OD=47,T=2.00,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35507iTGN120;GUN122..PH202308-202410

OD=47,T=2.00,TYPE B:REFER ILLUST.

main90201-35508iTGN121..5F..(H,S)202308-202407

OD=47,T=2.03,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35508iTGN121..5F..(H,S)202308-202410

OD=47,T=2.03,TYPE B:REFER ILLUST.

main90201-35509iTGN120;GUN122..PH202308-202407

OD=47,T=2.06,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35509iTGN121..5F..(H,S)202308-202410

OD=47,T=2.06,TYPE B:REFER ILLUST.

main90201-35510iTGN121..5F..(H,S)202308-202410

OD=47,T=2.09,TYPE B:REFER ILLUST.

main90201-35510iTGN121..5F..(H,S)202308-202407

OD=47,T=2.09,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35511iTGN120;GUN122..PH202308-202410

OD=47,T=2.12,TYPE B:REFER ILLUST.

main90201-35511iTGN120;GUN122..PH202308-202407

OD=47,T=2.12,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35512iTGN120;GUN122..PH202308-202407

OD=47,T=2.15,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35512iTGN120;GUN122..PH202308-202410

OD=47,T=2.15,TYPE B:REFER ILLUST.

main90201-35513iTGN120;GUN122..PH202308-202407

OD=47,T=2.18,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35513iLAN125202308-202410

OD=47,T=2.18,TYPE B:REFER ILLUST.

main90201-35514iTGN121..5F..(H,S)202308-202410

OD=47,T=2.21,TYPE B:REFER ILLUST.

main90201-35514iTGN120;GUN122..PH202308-202407

OD=47,T=2.21,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35515iTGN121..5F..(H,S)202308-202407

OD=47,T=2.24,MARK 01,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35515iTGN120;GUN122..PH202308-202410

OD=47,T=2.24,MARK 01,TYPE B:REFER ILLUST.

main90201-35516iTGN121..5F..(H,S)202308-202407

OD=47,T=2.27,MARK 02,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35516iTGN121..5F..(H,S)202308-202410

OD=47,T=2.27,MARK 02,TYPE B:REFER ILLUST.

main90201-35517iLAN125202308-202410

OD=47,T=2.30,MARK 03,TYPE B:REFER ILLUST.

main90201-35517iTGN121..5F..(H,S)202308-202407

OD=47,T=2.30,MARK 03,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35518iTGN120;GUN122..PH202308-202407

OD=47,T=2.33,MARK 04,SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main90201-35518iTGN120;GUN122..PH202308-202410

OD=47,T=2.33,MARK 04,TYPE B:REFER ILLUST.

main90564-35109iTGN121..5F..(H,S)202308-202410

OD=52,T=1.70,TYPE A:REFER ILLUST.

main90564-35109iTGN121..5F..(H,S)202308-202407

OD=52,T=1.70,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35110iTGN121..5F..(H,S)202308-202410

OD=52,T=1.73,TYPE A:REFER ILLUST.

main90564-35110iTGN120;GUN122..PH202308-202407

OD=52,T=1.73,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35111iLAN125202308-202410

OD=52,T=1.76,TYPE A:REFER ILLUST.

main90564-35111iTGN121..5F..(H,S)202308-202407

OD=52,T=1.76,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35112iLAN125202308-202410

OD=52,T=1.79,TYPE A:REFER ILLUST.

main90564-35112iTGN121..5F..(H,S)202308-202407

OD=52,T=1.79,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35113iTGN120;GUN122..PH202308-202410

OD=52,T=1.82,TYPE A:REFER ILLUST.

main90564-35113iTGN121..5F..(H,S)202308-202407

OD=52,T=1.82,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35114iTGN120;GUN122..PH202308-202410

OD=52,T=1.85,TYPE A:REFER ILLUST.

main90564-35114iTGN120;GUN122..PH202308-202407

OD=52,T=1.85,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35115iTGN120;GUN122..PH202308-202407

OD=52,T=1.88,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35115iTGN120;GUN122..PH202308-202410

OD=52,T=1.88,TYPE A:REFER ILLUST.

main90564-35116iTGN120;GUN122..PH202308-202410

OD=52,T=1.91,TYPE A:REFER ILLUST.

main90564-35116iTGN120;GUN122..PH202308-202407

OD=52,T=1.91,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35117iLAN125202308-202410

OD=52,T=1.94,TYPE A:REFER ILLUST.

main90564-35117iTGN121..5F..(H,S)202308-202407

OD=52,T=1.94,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35118iTGN120;GUN122..PH202308-202410

OD=52,T=1.97,TYPE A:REFER ILLUST.

main90564-35118iTGN121..5F..(H,S)202308-202407

OD=52,T=1.97,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35119iTGN121..5F..(H,S)202308-202410

OD=52,T=2.00,TYPE A:REFER ILLUST.

main90564-35119iTGN121..5F..(H,S)202308-202407

OD=52,T=2.00,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35120iTGN120;GUN122..PH202308-202407

OD=52,T=2.03,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35120iTGN120;GUN122..PH202308-202410

OD=52,T=2.03,TYPE A:REFER ILLUST.

main90564-35121iTGN120;GUN122..PH202308-202410

OD=52,T=2.06,TYPE A:REFER ILLUST.

main90564-35121iTGN121..5F..(H,S)202308-202407

OD=52,T=2.06,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35123iTGN120;GUN122..PH202308-202407

OD=52,T=2.09,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35123iTGN120;GUN122..PH202308-202410

OD=52,T=2.09,TYPE A:REFER ILLUST.

main90564-35124iTGN121..5F..(H,S)202308-202410

OD=52,T=2.12,TYPE A:REFER ILLUST.

main90564-35124iTGN120;GUN122..PH202308-202407

OD=52,T=2.12,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35125iLAN125202308-202410

OD=52,T=2.15,TYPE A:REFER ILLUST.

main90564-35125iTGN120;GUN122..PH202308-202407

OD=52,T=2.15,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35126iTGN121..5F..(H,S)202308-202410

OD=52,T=2.18,TYPE A:REFER ILLUST.

main90564-35126iTGN120;GUN122..PH202308-202407

OD=52,T=2.18,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35127iTGN120;GUN122..PH202308-202407

OD=52,T=2.21,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35127iTGN121..5F..(H,S)202308-202410

OD=52,T=2.21,TYPE A:REFER ILLUST.

main90564-35128iTGN120;GUN122..PH202308-202407

OD=52,T=2.24,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35128iTGN121..5F..(H,S)202308-202410

OD=52,T=2.24,TYPE A:REFER ILLUST.

main90564-35129iLAN125202308-202410

OD=52,T=2.27,TYPE A:REFER ILLUST.

main90564-35129iTGN120;GUN122..PH202308-202407

OD=52,T=2.27,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35130iTGN121..5F..(H,S)202308-202410

OD=52,T=2.30,TYPE A:REFER ILLUST.

main90564-35130iTGN121..5F..(H,S)202308-202407

OD=52,T=2.30,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-35131iTGN121..5F..(H,S)202308-202410

OD=52,T=2.33,TYPE A:REFER ILLUST.

main90564-35131iTGN121..5F..(H,S)202308-202407

OD=52,T=2.33,SAUDI ARABIA SPEC,TYPE A:REFER ILLUST.

main90564-78001iGUN125,126,135..THP..DCRL;GUN126..MHV..(ARL,GCC,LA);GGN125,GUN120,121,122,136,TGN121,126,136..THP..(ARL,GCC,GEN,LA,TH)202308-202409

T=1.72

main90564-78001iTGN121..5F..(H,S)202308-202407

T=1.72,SAUDI ARABIA SPEC

main90564-78002iGUN126..PKN202308-202409

T=1.74

main90564-78003iGUN125,126,135..THP..DCRL;GUN126..MHV..(ARL,GCC,LA);GGN125,GUN120,121,122,136,TGN121,126,136..THP..(ARL,GCC,GEN,LA,TH)202308-202409

T=1.76

main90564-78004iGUN126..PKN202308-202409

T=1.78

main90564-78005iGUN126..IND,MMR202308-202409

T=1.80

main90564-78006iGUN126..PKN202308-202409

T=1.82

main90564-78007iGUN126..PKN202308-202409

T=1.84

main90564-78008iGUN125,126,135..THP..DCRL;GUN126..MHV..(ARL,GCC,LA);GGN125,GUN120,121,122,136,TGN121,126,136..THP..(ARL,GCC,GEN,LA,TH)202308-202409

T=1.86

main90564-78009iGUN125,126..CAMP,MAP202308-202409

T=1.88

main90564-78010iGUN126..IND,MMR202308-202409

T=1.90

main90564-78011iGUN126..IND,MMR202308-202409

T=1.92

main90564-78012iGUN125,126..CAMP,MAP202308-202409

T=1.94

main90564-78013iGUN125,126,135..THP..DCRL;GUN126..MHV..(ARL,GCC,LA);GGN125,GUN120,121,122,136,TGN121,126,136..THP..(ARL,GCC,GEN,LA,TH)202308-202409

T=1.96

main90564-78014iGUN126..IND,MMR202308-202409

T=1.98

main90564-78015iGUN125,126..CAMP,MAP202308-202409

T=2.00

main90564-78016iGUN125,126,135..THP..DCRL;GUN126..MHV..(ARL,GCC,LA);GGN125,GUN120,121,122,136,TGN121,126,136..THP..(ARL,GCC,GEN,LA,TH)202308-202409

T=2.02

main90564-78017iGUN125,126,135..THP..DCRL;GUN126..MHV..(ARL,GCC,LA);GGN125,GUN120,121,122,136,TGN121,126,136..THP..(ARL,GCC,GEN,LA,TH)202308-202409

T=2.04

main90564-78018iGUN125,126,135..THP..DCRL;GUN126..MHV..(ARL,GCC,LA);GGN125,GUN120,121,122,136,TGN121,126,136..THP..(ARL,GCC,GEN,LA,TH)202308-202409

T=2.06

main90564-78019iGUN125,126,135..THP..DCRL;GUN126..MHV..(ARL,GCC,LA);GGN125,GUN120,121,122,136,TGN121,126,136..THP..(ARL,GCC,GEN,LA,TH)202308-202409

T=2.08

main90564-78020iGUN126..PKN202308-202409

T=2.10

main90564-78021iGUN125,126..CAMP,MAP202308-202409

T=2.12

main90564-78022iGUN126..PKN202308-202409

T=2.14

main90564-78023iGUN126..IND,MMR202308-202409

T=2.16

main90564-78024iGUN126..IND,MMR202308-202409

T=2.18

main90564-S0001iGGN125,GUN122,125,126,13#,TGN121,126,136..AGTP,SAP202311-202412

T=1.025

main90564-S0002iGUN125,126..GHA,KEN202311-202412

T=1.050

main90564-S0003iGUN125,126..GHA,KEN202311-202412

T=1.075

main90564-S0004iGUN125,126..GHA,KEN202311-202412

T=1.100

main90564-S0005iGUN125,126..GHA,KEN202311-202412

T=1.125

main90564-S0006iGGN125,GUN122,125,126,13#,TGN121,126,136..AGTP,SAP202311-202412

T=1.150

main90564-S0007iGGN125,GUN122,125,126,13#,TGN121,126,136..AGTP,SAP202311-202412

T=1.175

main90564-S0008iGUN125,126..GHA,KEN202311-202412

T=1.200

main90564-S0009iGUN125,126..GHA,KEN202311-202412

T=1.225

main90564-S0010iGGN125,GUN122,125,126,13#,TGN121,126,136..AGTP,SAP202311-202412

T=1.250

main90564-S0011iGUN125,126..GHA,KEN202311-202412

T=1.275

main90564-S0012iGGN125,GUN122,125,126,13#,TGN121,126,136..AGTP,SAP202311-202412

T=1.300

main90564-S0013iGGN125,GUN122,125,126,13#,TGN121,126,136..AGTP,SAP202311-202412

T=1.325

main90564-S0014iGGN125,GUN122,125,126,13#,TGN121,126,136..AGTP,SAP202311-202412

T=1.350

main90564-S0015iGGN125,GUN122,125,126,13#,TGN121,126,136..AGTP,SAP202311-202412

T=1.375

main90564-S0016iGUN125,126..GHA,KEN202311-202412

T=1.400

main90564-S0017iGGN125,GUN122,125,126,13#,TGN121,126,136..AGTP,SAP202311-202412

T=1.425

main90564-S0018iGGN125,GUN122,125,126,13#,TGN121,126,136..AGTP,SAP202311-202412

T=1.450

main90564-S0019iGGN125,GUN122,125,126,13#,TGN121,126,136..AGTP,SAP202311-202412

T=1.475

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-0K100iTGN120;GUN122..PH202308-202407

SAUDI ARABIA SPEC

main41204-0K100iLAN125202308-202410

main41204-0K110iGUN125,126..CAMP,MAP202308-202409

main41204-0K110iGUN125,126,135..THP..DCRL;GUN126..MHV..(ARL,GCC,LA);GGN125,GUN120,121,122,136,TGN121,126,136..THP..(ARL,GCC,GEN,LA,TH)202308-202407

SAUDI ARABIA SPEC

main41204-0K131iGUN125,126..GHA,KEN202311-202412

41204BNUT (FOR REAR DRIVE PINION)

main90177-22003iTGN121..5F..(H,S)202308-202407

OD=39.5,SAUDI ARABIA SPEC

main90177-22003iTGN120;GUN122..PH202308-202410

OD=39.5

main90178-F0001iGUN125,126..GHA,KEN202311-202412

OD=43.5

main90179-22029iTGN121..5F..(H,S)202308-202407

OD=43,SAUDI ARABIA SPEC

main90179-22029iGUN125,126..CAMP,MAP202308-202409

OD=43

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-0K040iGUN125,126..CAMP,MAP202308-202409

main41214-0K040iGUN125,126,135..THP..DCRL;GUN126..MHV..(ARL,GCC,LA);GGN125,GUN120,121,122,136,TGN121,126,136..THP..(ARL,GCC,GEN,LA,TH)202308-202407

SAUDI ARABIA SPEC

main41214-0K050iGGN125,GUN122,125,126,13#,TGN121,126,136..AGTP,SAP202311-202412

main41214-26011iTGN121..5F..(H,S)202308-202407

SAUDI ARABIA SPEC

main41214-26011iLAN125202308-202410

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-0K030iGGN125,GUN122,125,126,13#,TGN121,126,136..AGTP,SAP202311-202412

main41231-24010iTGN120;GUN122..PH202308-202407

SAUDI ARABIA SPEC

main41231-24010iLAN125202308-202410

main41231-71010iGUN125,126..CAMP,MAP202308-202409

main41231-71010iGUN125,126,135..THP..DCRL;GUN126..MHV..(ARL,GCC,LA);GGN125,GUN120,121,122,136,TGN121,126,136..THP..(ARL,GCC,GEN,LA,TH)202308-202407

SAUDI ARABIA SPEC

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-0K100iGUN125..AGTP..S202311-202410

DIFFERENTIAL LOCK-WITHOUT

main41301-0K110iTGN121..5F..(H,S)202308-202407

SAUDI ARABIA SPEC

main41301-0K110iLAN125202308-202410

main41301-0K120iTGN126..L..GEN;GUN135..THP..L..LA;TGN126..(L,S)..GCC;GUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN125,126..THP..L..(ARL,GCC,GEN,LA);GUN120,121,122,TGN121,136..ARL,GCC202308-202407

DIFFERENTIAL LOCK-WITHOUT

main41301-0K120iTGN126..L..GEN;GUN135..THP..L..LA;TGN126..(L,S)..GCC;GUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN125,126..THP..L..(ARL,GCC,GEN,LA);GUN120,121,122,TGN121,136..ARL,GCC202308-202407

SAUDI ARABIA SPEC

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-S0019iGGN125,GUN122,125,126,13#,TGN121,126,136..SAP202311-202412

LH

main90366-S0022iGGN125,GUN125,126,13#,TGN126,136..AGTP202311-202412

RH

main90366-T0010iTGN121..5F..(H,S)202308-202407

SAUDI ARABIA SPEC

main90366-T0010iLAN125202308-202410

main90366-T0068iGUN125,126..CAMP,MAP202308-202410

LH

main90366-T0068iGUN125,126,135..THP..DCRL;GUN126..MHV..(ARL,GCC,LA);GGN125,GUN120,121,122,136,TGN121,126,136..THP..(ARL,GCC,GEN,LA,TH)202308-202407

SAUDI ARABIA SPEC,LH

main90366-T0071iGUN126..PKN202308-202410

RH

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-0K020iTGN126..5F..L..(GCC,GEN);GUN125,126,135..THP..6F..L..(GCC,GEN,LA)202308-202407

DIFFERENTIAL LOCK-WITH

main41302-0K020iGUN125,126..CAMP,MAP202308-202409

main41302-0K030iGUN125,135..AGTP..L..LA;GUN125..LHD..SAP..6F..(L,S);GGN125,LAN125..LHD..(LA,SA);GUN125,126,135,TGN136..RHD..(L,S)..SA202311-202410

DIFFERENTIAL LOCK-WITH

main41302-0K030iGUN125,126..GHA,KEN202311-202412

41302ABOLT(FOR REAR DIFFERENTIAL CASE)

main90105-F0003iGUN125,126..GHA,KEN202311-202412

main90105-T0268iGUN125,126..CAMP,MAP202308-202409

main90105-T0268iGUN125,126,135..THP..DCRL;GUN126..MHV..(ARL,GCC,LA);GGN125,GUN120,121,122,136,TGN121,126,136..THP..(ARL,GCC,GEN,LA,TH)202308-202407

SAUDI ARABIA SPEC

main90105-T0417iTGN121..5F..(H,S)202308-202407

SAUDI ARABIA SPEC

main90105-T0417iLAN125202308-202410

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-0K010iTGN121..5F..(H,S)202308-202410

(L)

main41315-0K010iTGN121..5F..(H,S)202308-202407

SAUDI ARABIA SPEC,(L)

main41315-35020iLAN125202308-202410

(J)

main41315-35020iTGN120;GUN122..PH202308-202407

SAUDI ARABIA SPEC,(J)

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-0K010iTGN120;GUN122..PH202308-202407

SAUDI ARABIA SPEC,(L)

main41316-0K010iTGN120;GUN122..PH202308-202410

(L)

main41316-35010iTGN120;GUN122..PH202308-202407

SAUDI ARABIA SPEC,(J)

main41316-35010iTGN121..5F..(H,S)202308-202410

(J)

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-0K060iLAN125202308-202410

main41342-0K060iTGN120;GUN122..PH202308-202407

SAUDI ARABIA SPEC

main41342-0K070iTGN126..L..GEN;GUN135..THP..L..LA;TGN126..(L,S)..GCC;GUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN125,126..THP..L..(ARL,GCC,GEN,LA);GUN120,121,122,TGN121,136..ARL,GCC202308-202407

SAUDI ARABIA SPEC

main41342-0K070iGUN125..6F..S..GEN;GUN125..6F..H..GCC;GUN126,TGN126..H..GCC;GUN126..RHD..6F..H..GEN;GGN125,GUN125,136..6FC..(H,S)..(ARL,GCC)202308-202407

DIFFERENTIAL LOCK-WITHOUT

main41342-0K080iGUN125,126..GHA,KEN202308-202412

main41342-0K080iTGN126..H..GCC;GUN125..6F..H..GCC;TGN126..THP..L..LA;GUN125..THP..6FC..(H,S);GUN126..MHV..(ARL,GCC,LA);GUN125..THP..L..(IDN,PH,SA);GUN135,TGN126..THP..(H,S)..(GEN,L202308-202410

DIFFERENTIAL LOCK-WITH

41342BPIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT)

main90250-T0006iGUN125..6F..S..GEN;GUN125..6F..H..GCC;GUN126,TGN126..H..GCC;GUN126..RHD..6F..H..GEN;GGN125,GUN125,136..6FC..(H,S)..(ARL,GCC)202308-202407

DIFFERENTIAL LOCK-WITHOUT

main90250-T0006iLAN125202308-202410

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-0K010iTGN120;GUN122..PH202308-202407

SAUDI ARABIA SPEC,(L)

main41351-0K010iTGN120;GUN122..PH202308-202410

(L)

main41351-0K040iTGN126..L..GEN;GUN135..THP..L..LA;TGN126..(L,S)..GCC;GUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN125,126..THP..L..(ARL,GCC,GEN,LA);GUN120,121,122,TGN121,136..ARL,GCC202308-202407

SAUDI ARABIA SPEC

main41351-0K040iTGN126..L..GEN;GUN135..THP..L..LA;TGN126..(L,S)..GCC;GUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN125,126..THP..L..(ARL,GCC,GEN,LA);GUN120,121,122,TGN121,136..ARL,GCC202308-202407

DIFFERENTIAL LOCK-WITHOUT

main41351-0K050iGUN125,126..CAMP,MAP202308-202409

main41351-0K050iTGN126..H..GCC;GUN125..6F..H..GCC;TGN126..THP..L..LA;GUN125..THP..6FC..(H,S);GUN126..MHV..(ARL,GCC,LA);GUN125..THP..L..(IDN,PH,SA);GUN135,TGN126..THP..(H,S)..(GEN,L202308-202407

DIFFERENTIAL LOCK-WITH

main41351-0K060iGGN125,GUN125,135..AGTP..(H,L)..LA202311-202410

DIFFERENTIAL LOCK-WITH

main41351-35030iLAN125202308-202410

(J)

main41351-35030iTGN120;GUN122..PH202308-202407

SAUDI ARABIA SPEC,(J)

main41351-60040iGUN135..L..SA;GUN125..LHD..6FC..SA;GGN125,GUN125,126,136..H..SA202402-202410

DIFFERENTIAL LOCK-WITH&TIRE & DISC WHEEL-265/65R17 STEEL

main41351-60040iGUN135..L..SA;GUN125..LHD..6FC..SA;GGN125,GUN125,126,136..H..SA202402-202410

DIFFERENTIAL LOCK-WITH&TIRE & DISC WHEEL-265/65R17 ALUMINUM

main41351-60040iGUN125,LAN125..LHD..SAP..MTM..(L,S);GUN125,126,135,TGN136..RHD..(L,S)..SA202402-202410

DIFFERENTIAL LOCK-WITH

main41351-60040iGUN125,126..GHA,KEN202402-202412

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-0K020iTGN121..5F..(H,S)202308-202407

T=1.55,SAUDI ARABIA SPEC

main41361-0K020iTGN120;GUN122..PH202308-202410

T=1.55

main41361-0K030iLAN125202308-202410

T=1.60

main41361-0K030iTGN120;GUN122..PH202308-202407

T=1.60,SAUDI ARABIA SPEC

main41361-0K040iTGN120;GUN122..PH202308-202410

T=1.65

main41361-0K040iTGN120;GUN122..PH202308-202407

T=1.65,SAUDI ARABIA SPEC

main41361-0K050iTGN121..5F..(H,S)202308-202407

T=1.70,SAUDI ARABIA SPEC

main41361-0K050iTGN121..5F..(H,S)202308-202410

T=1.70

main41361-0K060iTGN121..5F..(H,S)202308-202410

T=1.75

main41361-0K060iTGN120;GUN122..PH202308-202407

T=1.75,SAUDI ARABIA SPEC

main41361-0K070iTGN120;GUN122..PH202308-202410

T=1.80

main41361-0K070iTGN120;GUN122..PH202308-202407

T=1.80,SAUDI ARABIA SPEC

main41361-0K080iTGN121..5F..(H,S)202308-202410

T=1.85

main41361-0K080iTGN120;GUN122..PH202308-202407

T=1.85,SAUDI ARABIA SPEC

main41361-0K090iTGN120;GUN122..PH202308-202407

T=1.90,SAUDI ARABIA SPEC

main41361-0K090iTGN121..5F..(H,S)202308-202410

T=1.90

main41361-0K110iTGN121..5F..(H,S)202308-202407

T=1.45,SAUDI ARABIA SPEC

main41361-0K110iTGN126..L..GEN;GUN135..THP..L..LA;TGN126..(L,S)..GCC;GUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN125,126..THP..L..(ARL,GCC,GEN,LA);GUN120,121,122,TGN121,136..ARL,GCC202308-202407

T=1.45

main41361-0K110iTGN126..L..GEN;GUN135..THP..L..LA;TGN126..(L,S)..GCC;GUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN125,126..THP..L..(ARL,GCC,GEN,LA);GUN120,121,122,TGN121,136..ARL,GCC202308-202407

T=1.45,DIFFERENTIAL LOCK-WITHOUT

main41361-0K300iGUN125..6F..S..GEN;GUN125..6F..H..GCC;GUN126,TGN126..H..GCC;GUN126..RHD..6F..H..GEN;GGN125,GUN125,136..6FC..(H,S)..(ARL,GCC)202308-202407

T=1.50,DIFFERENTIAL LOCK-WITHOUT

main41361-0K300iGUN125..6F..S..GEN;GUN125..6F..H..GCC;GUN126,TGN126..H..GCC;GUN126..RHD..6F..H..GEN;GGN125,GUN125,136..6FC..(H,S)..(ARL,GCC)202308-202407

T=1.50

main41361-0K310iTGN126..L..GEN;GUN135..THP..L..LA;TGN126..(L,S)..GCC;GUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN125,126..THP..L..(ARL,GCC,GEN,LA);GUN120,121,122,TGN121,136..ARL,GCC202308-202407

T=1.55

main41361-0K310iTGN126..L..GEN;GUN135..THP..L..LA;TGN126..(L,S)..GCC;GUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN125,126..THP..L..(ARL,GCC,GEN,LA);GUN120,121,122,TGN121,136..ARL,GCC202308-202407

T=1.55,DIFFERENTIAL LOCK-WITHOUT

main41361-0K320iGUN125..6F..S..GEN;GUN125..6F..H..GCC;GUN126,TGN126..H..GCC;GUN126..RHD..6F..H..GEN;GGN125,GUN125,136..6FC..(H,S)..(ARL,GCC)202308-202407

T=1.60,DIFFERENTIAL LOCK-WITHOUT

main41361-0K320iGUN125..6F..S..GEN;GUN125..6F..H..GCC;GUN126,TGN126..H..GCC;GUN126..RHD..6F..H..GEN;GGN125,GUN125,136..6FC..(H,S)..(ARL,GCC)202308-202407

T=1.60

main41361-0K330iTGN126..L..GEN;GUN135..THP..L..LA;TGN126..(L,S)..GCC;GUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN125,126..THP..L..(ARL,GCC,GEN,LA);GUN120,121,122,TGN121,136..ARL,GCC202308-202407

T=1.65

main41361-0K330iTGN126..L..GEN;GUN135..THP..L..LA;TGN126..(L,S)..GCC;GUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN125,126..THP..L..(ARL,GCC,GEN,LA);GUN120,121,122,TGN121,136..ARL,GCC202308-202407

T=1.65,DIFFERENTIAL LOCK-WITHOUT

main41361-0K340iTGN126..L..GEN;GUN135..THP..L..LA;TGN126..(L,S)..GCC;GUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN125,126..THP..L..(ARL,GCC,GEN,LA);GUN120,121,122,TGN121,136..ARL,GCC202308-202407

T=1.70

main41361-0K340iTGN126..L..GEN;GUN135..THP..L..LA;TGN126..(L,S)..GCC;GUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN125,126..THP..L..(ARL,GCC,GEN,LA);GUN120,121,122,TGN121,136..ARL,GCC202308-202407

T=1.70,DIFFERENTIAL LOCK-WITHOUT

main41361-0K350iTGN126..L..GEN;GUN135..THP..L..LA;TGN126..(L,S)..GCC;GUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN125,126..THP..L..(ARL,GCC,GEN,LA);GUN120,121,122,TGN121,136..ARL,GCC202308-202407

T=1.75

main41361-0K350iTGN126..L..GEN;GUN135..THP..L..LA;TGN126..(L,S)..GCC;GUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN125,126..THP..L..(ARL,GCC,GEN,LA);GUN120,121,122,TGN121,136..ARL,GCC202308-202407

T=1.75,DIFFERENTIAL LOCK-WITHOUT

main41361-0K360iTGN126..L..GEN;GUN135..THP..L..LA;TGN126..(L,S)..GCC;GUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN125,126..THP..L..(ARL,GCC,GEN,LA);GUN120,121,122,TGN121,136..ARL,GCC202308-202407

T=1.80,DIFFERENTIAL LOCK-WITHOUT

main41361-0K360iGUN125..6F..S..GEN;GUN125..6F..H..GCC;GUN126,TGN126..H..GCC;GUN126..RHD..6F..H..GEN;GGN125,GUN125,136..6FC..(H,S)..(ARL,GCC)202308-202407

T=1.80

main41361-0K370iTGN126..L..GEN;GUN135..THP..L..LA;TGN126..(L,S)..GCC;GUN125..6F..S..GCC;GUN135..ARL,PH,TH,VN;GUN125,126..THP..L..(ARL,GCC,GEN,LA);GUN120,121,122,TGN121,136..ARL,GCC202308-202407

T=1.85

main41361-0K370iGUN125..6F..S..GEN;GUN125..6F..H..GCC;GUN126,TGN126..H..GCC;GUN126..RHD..6F..H..GEN;GGN125,GUN125,136..6FC..(H,S)..(ARL,GCC)202308-202407

T=1.85,DIFFERENTIAL LOCK-WITHOUT

main41361-0K380iTGN126..H..GCC;GUN125..6F..H..GCC;TGN126..THP..L..LA;GUN125..THP..6FC..(H,S);GUN126..MHV..(ARL,GCC,LA);GUN125..THP..L..(IDN,PH,SA);GUN135,TGN126..THP..(H,S)..(GEN,L202308-202409

T=1.1

main41361-0K380iTGN126..H..GCC;GUN125..6F..H..GCC;TGN126..THP..L..LA;GUN125..THP..6FC..(H,S);GUN126..MHV..(ARL,GCC,LA);GUN125..THP..L..(IDN,PH,SA);GUN135,TGN126..THP..(H,S)..(GEN,L202308-202407

T=1.1,DIFFERENTIAL LOCK-WITH

main41361-0K390iTGN126..H..GCC;GUN125..6F..H..GCC;TGN126..THP..L..LA;GUN125..THP..6FC..(H,S);GUN126..MHV..(ARL,GCC,LA);GUN125..THP..L..(IDN,PH,SA);GUN135,TGN126..THP..(H,S)..(GEN,L202308-202407

T=1.2,DIFFERENTIAL LOCK-WITH

main41361-0K390iGUN125,126..CAMP,MAP202308-202409

T=1.2

main41361-0K400iTGN126..H..GCC;GUN125..6F..H..GCC;TGN126..THP..L..LA;GUN125..THP..6FC..(H,S);GUN126..MHV..(ARL,GCC,LA);GUN125..THP..L..(IDN,PH,SA);GUN135,TGN126..THP..(H,S)..(GEN,L202308-202409

T=1.3

main41361-0K400iTGN126..5F..L..(GCC,GEN);GUN125,126,135..THP..6F..L..(GCC,GEN,LA)202308-202407

T=1.3,DIFFERENTIAL LOCK-WITH

main41361-0K410iTGN126..5F..L..(GCC,GEN);GUN125,126,135..THP..6F..L..(GCC,GEN,LA)202308-202409

T=1.4

main41361-0K410iTGN126..H..GCC;GUN125..6F..H..GCC;TGN126..THP..L..LA;GUN125..THP..6FC..(H,S);GUN126..MHV..(ARL,GCC,LA);GUN125..THP..L..(IDN,PH,SA);GUN135,TGN126..THP..(H,S)..(GEN,L202308-202407

T=1.4,DIFFERENTIAL LOCK-WITH

main41361-0K460iGUN135..L..SA;GUN126..AGTP..S;GUN125..6F..BZAG;TGN126,136..AGTP..LA;GGN125,GUN125..H..SA;GUN126..(AGTP,SAP)..(H,L);GUN125,135..AGTP..6F..S..LA;GUN136..(AGTP,SAP)..(202311-202412

T=1.1

main41361-0K460iGUN135..L..SA;GUN126..AGTP..S;GUN125..6F..BZAG;TGN126,136..AGTP..LA;GGN125,GUN125..H..SA;GUN126..(AGTP,SAP)..(H,L);GUN125,135..AGTP..6F..S..LA;GUN136..(AGTP,SAP)..(202311-202410

T=1.1,DIFFERENTIAL LOCK-WITH

main41361-0K470iGUN125,135..AGTP..L..LA;GUN125..LHD..SAP..6F..(L,S);GGN125,LAN125..LHD..(LA,SA);GUN125,126,135,TGN136..RHD..(L,S)..SA202311-202412

T=1.2

main41361-0K470iGUN135..L..SA;GUN126..AGTP..S;GUN125..6F..BZAG;TGN126,136..AGTP..LA;GGN125,GUN125..H..SA;GUN126..(AGTP,SAP)..(H,L);GUN125,135..AGTP..6F..S..LA;GUN136..(AGTP,SAP)..(202311-202410

T=1.2,DIFFERENTIAL LOCK-WITH

main41361-0K480iGUN125,126..GHA,KEN202311-202412

T=1.3

main41361-0K480iGUN125,135..AGTP..L..LA;GUN125..LHD..SAP..6F..(L,S);GGN125,LAN125..LHD..(LA,SA);GUN125,126,135,TGN136..RHD..(L,S)..SA202311-202410

T=1.3,DIFFERENTIAL LOCK-WITH

main41361-0K490iGUN125,126..GHA,KEN202311-202412

T=1.4

main41361-0K490iGUN135..L..SA;GUN126..AGTP..S;GUN125..6F..BZAG;TGN126,136..AGTP..LA;GGN125,GUN125..H..SA;GUN126..(AGTP,SAP)..(H,L);GUN125,135..AGTP..6F..S..LA;GUN136..(AGTP,SAP)..(202311-202410

T=1.4,DIFFERENTIAL LOCK-WITH

90119T0071

main90119-T0071

25 parts on this diagram · 11 diagrams in section
