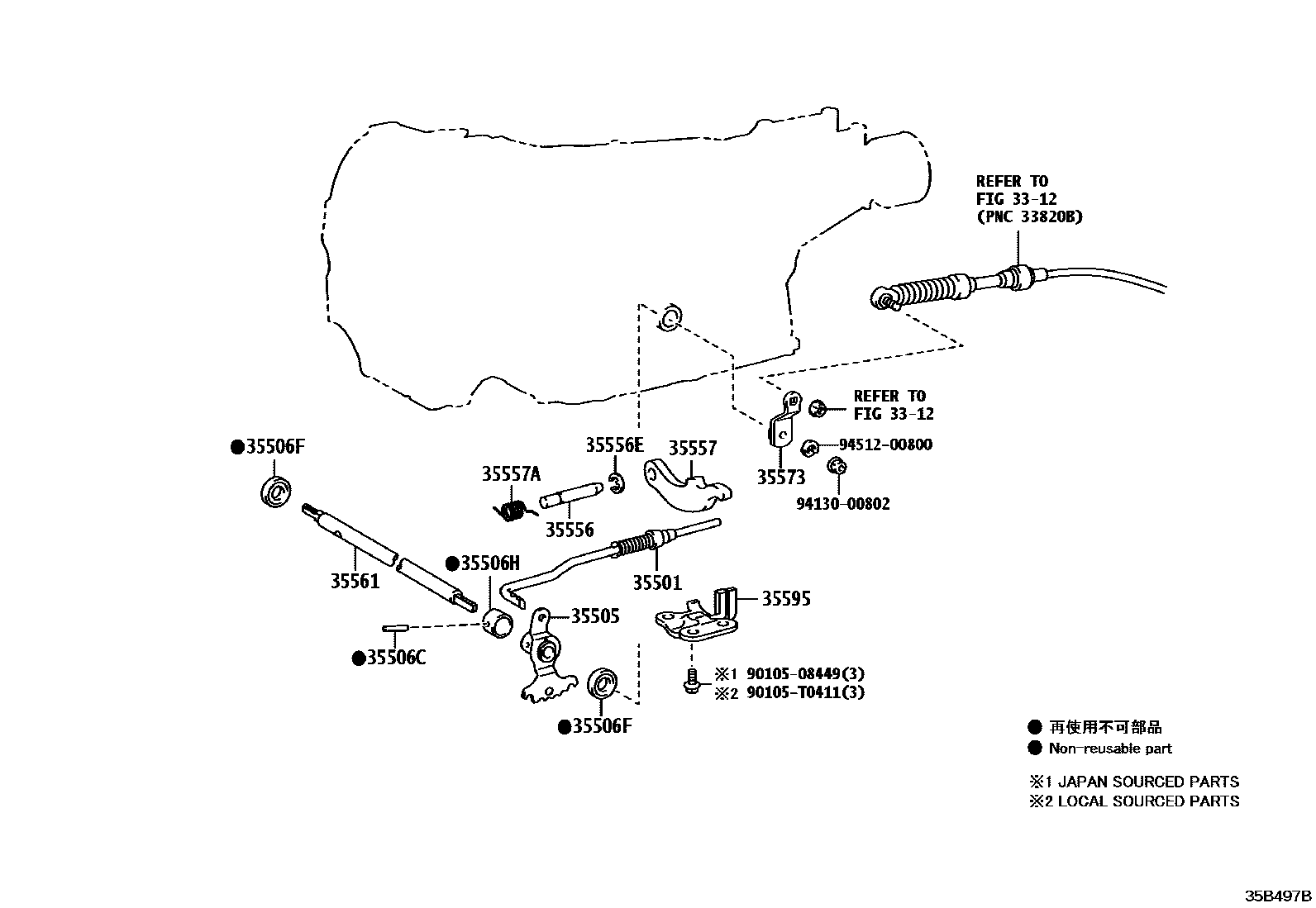

THROTTLE LINK & VALVE LEVER (ATM)

3312

35501ROD SUB-ASSY, PARKING LOCK

main35501-71020iGUN120,135..THP..6FC202308-202407

TOYOTA STOP & START SYSTEM-WITH,TYPE B:REFER 35-01

main35501-71020iGUN120,135..THP..6FC202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

main35501-71020iGUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202412

TYPE A:REFER 35-01

main35501-71020iGUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202409

TYPE B:REFER 35-01

main35501-71020iGUN126..6FC..PKN202308

TYPE B:REFER 35-01,TYPE A:REFER 35-01

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-71020iGUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202409

TYPE B:REFER 35-01

main35505-71020iGUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202412

TYPE A:REFER 35-01

main35505-71020iGUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

main35505-71020iGUN126..6FC..PKN202308

TYPE B:REFER 35-01,TYPE A:REFER 35-01

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202409

TYPE B:REFER 35-01

main90254-04011iGUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

main90254-04011iGUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,L202308-202412

TYPE A:REFER 35-01

main90254-04011iGUN126..6FC..PKN202308

TYPE B:REFER 35-01,TYPE A:REFER 35-01

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iGUN126..6FC..TH202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

main90311-12002iGUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202412

TYPE A:REFER 35-01

main90311-12002iGUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407

TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01

main90311-T0093iGUN135..6FC..TH202308-202407

TOYOTA STOP & START SYSTEM-WITH,TYPE B:REFER 35-01

main90311-T0093iGGN125,GUN120,135..THP..6FC202308-202409

TYPE B:REFER 35-01

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iGUN126..6FC..PKN202308

TYPE B:REFER 35-01,TYPE A:REFER 35-01

main90560-20025iGUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202412

TYPE A:REFER 35-01

main90560-20025iGUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202409

TYPE B:REFER 35-01

main90560-20025iGUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

35556SHAFT, PARKING LOCK PAWL

main35556-60020iGUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202409

TYPE B:REFER 35-01

main35556-60020iGUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

main35556-60020iGUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,L202308-202412

TYPE A:REFER 35-01

main35556-60020iGUN126..6FC..PKN202308

TYPE B:REFER 35-01,TYPE A:REFER 35-01

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202412

TYPE A:REFER 35-01

main90523-08021iGUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202409

TYPE B:REFER 35-01

main90523-08021iGUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

main90523-08021iGUN126..6FC..PKN202308

TYPE B:REFER 35-01,TYPE A:REFER 35-01

35557PAWL, PARKING LOCK

main35557-71010iGUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202412

TYPE A:REFER 35-01

main35557-71010iGUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202409

TYPE B:REFER 35-01

main35557-71010iGUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

main35557-71010iGUN126..6FC..PKN202308

TYPE B:REFER 35-01,TYPE A:REFER 35-01

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03123iGUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,L202308-202409

TYPE B:REFER 35-01

main90949-03123iGUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202412

TYPE A:REFER 35-01

main90949-03123iGUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

main90949-03123iGUN126..6FC..PKN202308

TYPE B:REFER 35-01,TYPE A:REFER 35-01

35561SHAFT, MANUAL VALVE LEVER

main35561-60030iGUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202412

TYPE A:REFER 35-01

main35561-60030iGUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,L202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

main35561-60030iGUN126..6FC..TH202308-202409

TYPE B:REFER 35-01

main35561-60030iGUN126..6FC..PKN202308

TYPE B:REFER 35-01,TYPE A:REFER 35-01

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-0K010iGUN125,126..(CAMP,MAP)..6FC202308-202409

(L),TYPE B:REF.35-01

main35573-71010iGUN126..6FC..IND202308-202409

(J),TYPE B:REF.35-01

main35573-71010iGUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202412

TYPE A:REFER 35-01

main35573-71010iGUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

main35573-71010iGUN126..6FC..PKN202308

(J),TYPE B:REF.35-01,TYPE A:REFER 35-01

35595BRACKET, PARKING LOCK PAWL

main35595-71010iGUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202412

TYPE A:REFER 35-01

main35595-71010iGUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202409

TYPE B:REFER 35-01

main35595-71010iGUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

main35595-71010iGUN126..6FC..PKN202308

TYPE B:REFER 35-01,TYPE A:REFER 35-01

9010508449

main90105-08449

90105T0411

main90105-T0411

9413000802

main94130-00802

9451200800

main94512-00800

17 parts on this diagram · 1 diagram in section
