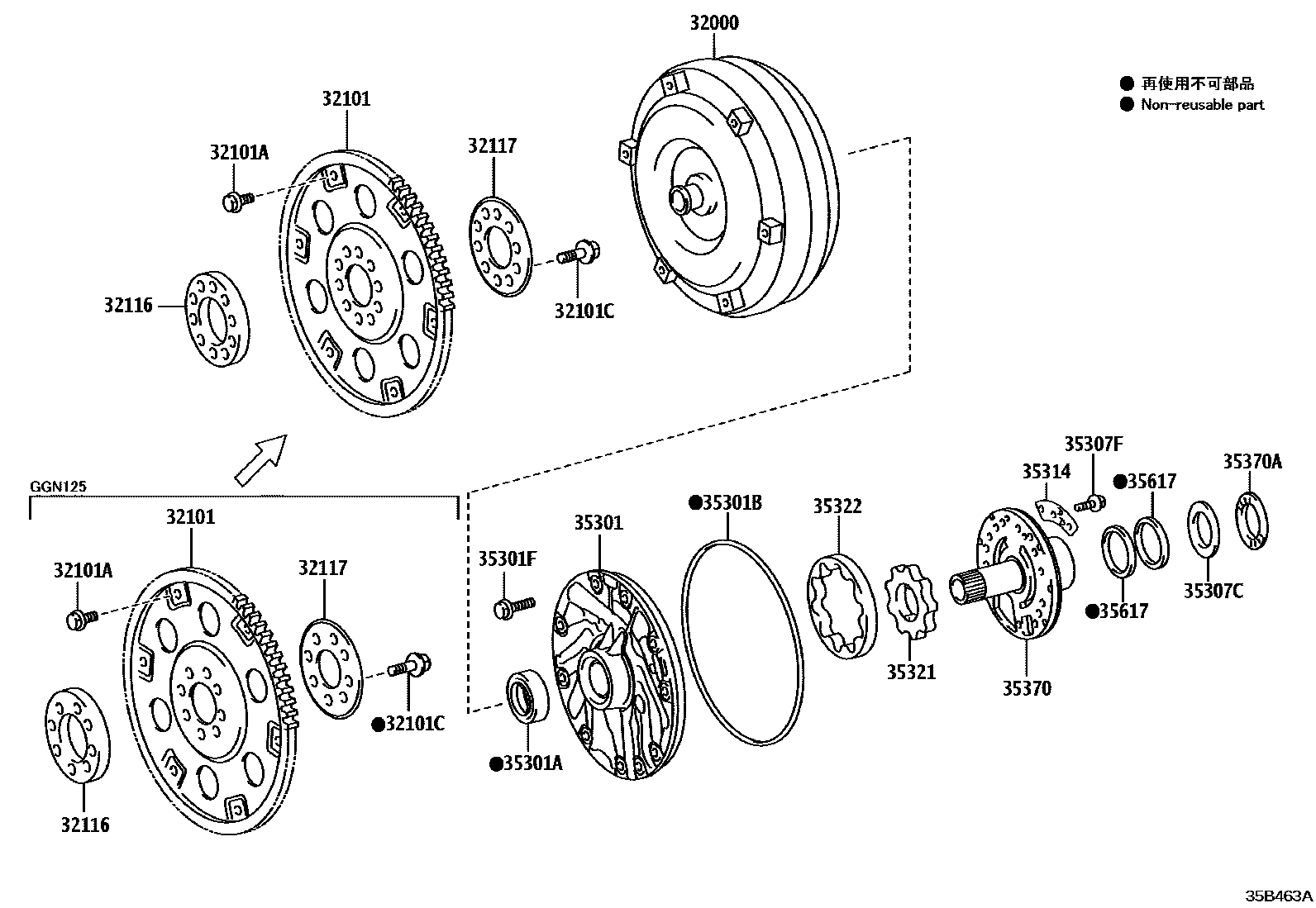

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1AC60E,AC60F 0002 1AC60E,AC60F

32000CONVERTER ASSY, TORQUE

main32000-0K020iGUN125..6FC..MA202308-202408

(L)

main32000-0K030iTGN121,126..6FC..(ARL,GCC,GEN)202308-202407

(L)

main32000-0K040iGGN125..GCC202308-202407

(L)

main32000-0K060iGUN126..CAMP,MAP202308-202408

(L)

main32000-71040iGUN125,135..(AGTP,SAP)..6FC202308-202410

main32000-71050iTGN121,126..6FC..(ARL,GCC,GEN)202308-202407

(J)

main32000-71060iGGN125..GCC202308-202407

(J)

main32000-71100iGUN121..6FC202312-202407

(J)

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-26010iTGN121,126..6FC..(ARL,GCC,GEN)202308-202407

main32101-60060iGGN125..LA,SA202308-202410

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-10413×5iGUN126..6FC..(GHA,KEN)202308-202412

*10-1.5PX11-8,(J),SILVER WHITE

main90105-10546iGUN126..6FC..(IND,MMR)202308-202409

*10-1.5PX11-8,BLACK

main90105-T0237×5iGUN126..THP..6FC..S;GUN120,121,125,13#..THP..6FC;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN)202308-202407

*10-1.5PX11-8,(L),SILVER WHITE

main90119-09026iGGN125,TGN126..(AGTP,SAP)..6FC202308-202410

*9-1.25PX12.8-9,BLACK

main90119-09027×5iGGN125,TGN121,126..6FC..(ARL,GCC,GEN)202308-202407

*9-1.25PX12.8-8.8,SILVER WHITE

main90119-09028iGGN125..LA,SA202402-202410

*9-1.25PX12.4-7.3,BLACK

main90119-09029×5iGGN125..LA,SA202402-202410

*9-1.25PX12.4-8.8,SILVER WHITE

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10276×10iTGN121,126..6FC..(ARL,GCC,GEN)202308-202407

*10-1.25PX30-17.5

main90105-10543×8iGGN125..LA,SA202308-202410

*10-1.25PX22-15

main90105-13015×8iGUN126..MMR202308-202409

*13-1.5PX43.5-23.5

main90105-T0203×8iGUN126..THP..6FC..S;GUN120,121,125,13#..THP..6FC;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN)202308-202407

*13-1.5PX43.5-23.5

32116SPACER, DRIVE PLATE, FRONT

main32116-26010iTGN126..(AGTP,SAP)..6FC202308-202410

main32116-60050iGGN125..LA,SA202308-202410

32117SPACER, DRIVE PLATE, REAR

main32117-26010iTGN126..(AGTP,SAP)..6FC202308-202410

main32117-60050iGUN126..6FC..IND;GUN125,135..6FC..(MA,SA);GUN126..6FC..(L,S)..BZAG202308-202408

main32117-60060iGGN125..LA,SA202308-202410

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-0K010iGUN125,126..(CAMP,MAP)..6FC202308-202408

(L),TYPE B:REF.35-01

main35301-71010iGUN126..6FC..TH202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38101iGUN126..6FC..TH202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35697-60010iGUN126..6FC..TH202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091×10iGUN126..MMR202308-202409

*8-1.25PX35-35,TYPE B:REFER 35-01

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-71070iGUN126..6FC..TH202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

35307FBOLT (FOR STATOR SHAFT)

main90148-60079×10iGUN126..6FC..TH202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

main90148-T0024×10iGUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,L202308-202407

(L),TYPE B:REF.35-01

35314PLATE, FRONT OIL PUMP

main35314-0K020iGUN126..6FC..PKN202308

(L),TYPE B:REF.35-01

main35314-71020iGUN126..6FC..TH202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

35321GEAR, FRONT OIL PUMP DRIVE

main35321-0K010iGUN125,126..(CAMP,MAP)..6FC202308-202408

(L),TYPE B:REF.35-01

main35321-71010iGUN126..6FC..TH202308-202407

T=9.977-9.983,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-0K010iGUN126..MMR202308-202409

T=9.977-9.983,(L),TYPE B:REF.35-01

main35322-71010iGUN126..MMR202308-202409

T=9.977-9.983,(J),TYPE B:REF.35-01

35370SHAFT ASSY, STATOR

main35370-0K010iGUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,L202308-202407

(L),TYPE B:REF.35-01

main35370-71010iGUN126..6FC..TH202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

35370ABEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)

main90374-71002iGUN126..6FC..TH202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

35617RING, CLUTCH DRUM OIL SEAL

main35617-50030×2iGUN126..6FC..TH202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

18 parts on this diagram · 2 diagrams in section
