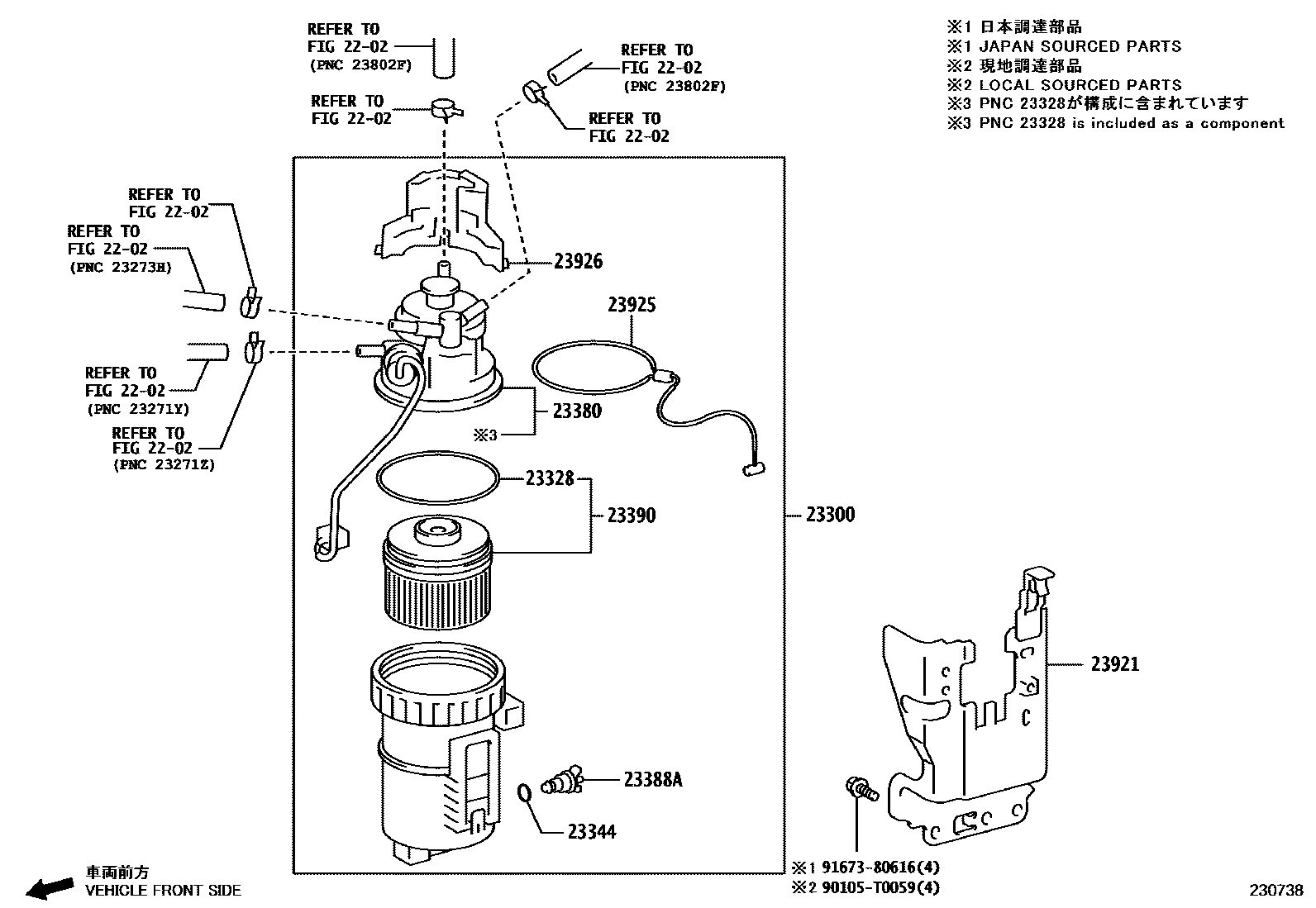

FUEL FILTER
2202
23300FILTER ASSY, FUEL
ASIA COLD COUNTRY SPEC
main23300-0L101i1GDFTV..GUN126..SA;1GDFTV..GUN126..H..BZAG;1GDFTV..GUN126..6F..S..BZAG;1GDFTV,2GDFTV..GUN122,125,13#..(AGTP,SAP)..(BZAG,SA)202308-202410
23328GASKET(FOR FUEL FILTER)
main23344-0L070i1GDFTV..GUN126..MHV..(ARL,GCC,LA);1GDFTV,2GDFTV..GUN12#,13#..THP..DCRL¥270202308-202412
23344GASKET, CLAMPING NUT(FOR FUEL FILTER)
23380CAP ASSY, FUEL FILTER
main23380-0L091i1GDFTV..GUN126..SA;1GDFTV..GUN126..H..BZAG;1GDFTV..GUN126..6F..S..BZAG;1GDFTV,2GDFTV..GUN122,125,13#..(AGTP,SAP)..(BZAG,SA)¥4,560202308-202410
ASIA COLD COUNTRY SPEC
23388APLUG, FUEL FILTER DRAIN
main23388-0L041i1GDFTV..GUN126..MHV..(ARL,GCC,LA);1GDFTV,2GDFTV..GUN12#,13#..THP..DCRL¥390202308-202412
23390ELEMENT ASSY, FUEL FILTER
main23390-0L070i1GDFTV..GUN126..SA;1GDFTV..GUN126..H..BZAG;1GDFTV..GUN126..6F..S..BZAG;1GDFTV,2GDFTV..GUN122,125,13#..(AGTP,SAP)..(BZAG,SA)¥5,700202308-202410
ASIA COLD COUNTRY SPEC
23921SUPPORT, FUEL FILTER
BHUTAN SPEC
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
main23921-0L130i1GDFTV,2GDFTV..GUN12#,13#..(AGTP,MMRP,THP)..DCRL..(ARL,BZAG,GCC,GEN,IDN,LA,MMR,PH,TH,VN)202308-202412
BHUTAN SPEC
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
23925STAY, FUEL FILTER SUPPORT
23926STAY, FUEL FILTER SUPPORT, NO.2
main23926-0L020i1GDFTV..GUN126..MHV..(ARL,GCC,LA);1GDFTV,2GDFTV..GUN12#,13#..THP..DCRL¥1,680202308-202412
90105T0059
main90105-T0059
9167380616
12 parts on this diagram · 3 diagrams in section
