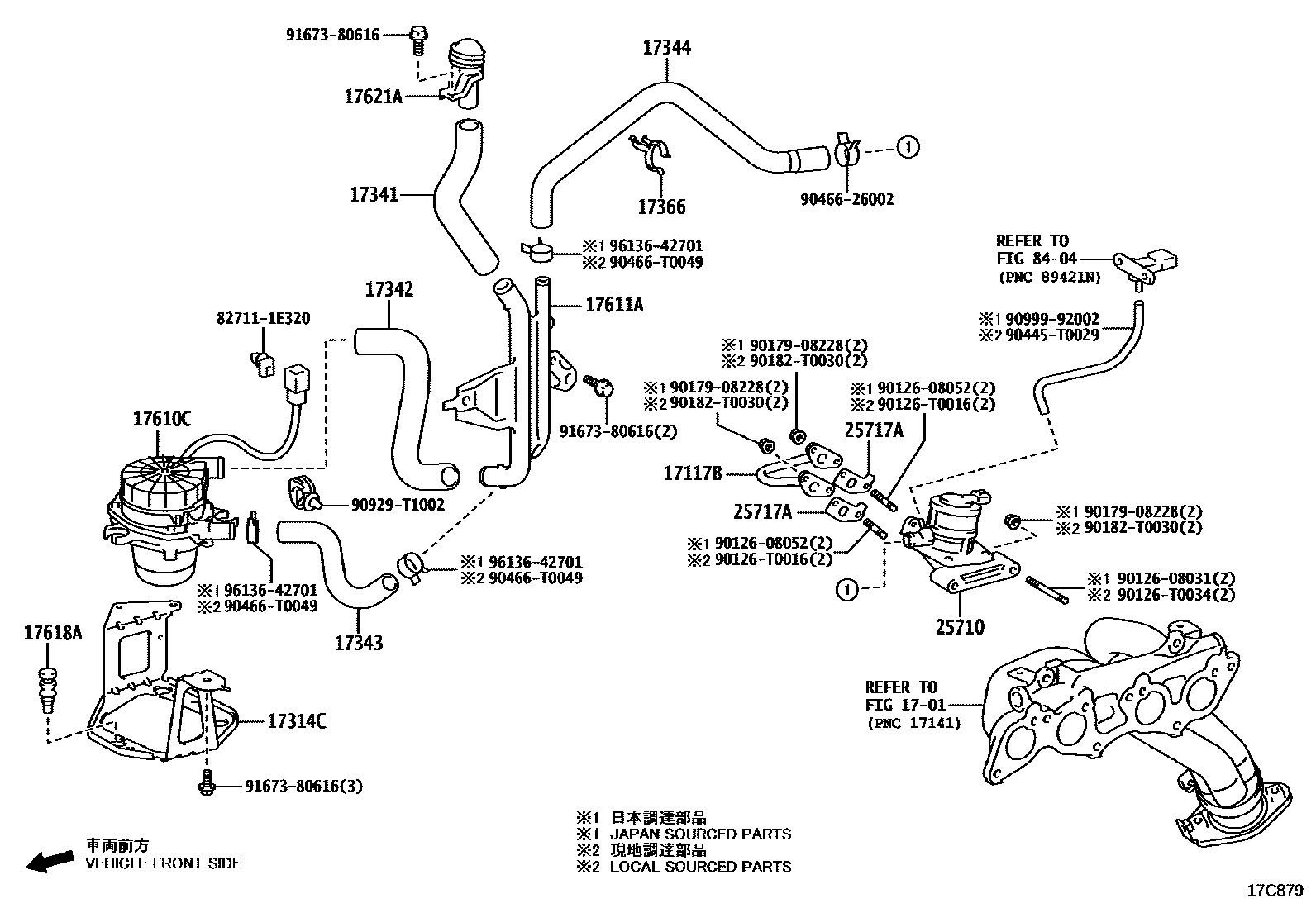

MANIFOLD AIR INJECTION SYSTEM

1701

17117BPIPE, INTAKE, NO.4

main17117-0C020i2TRFE..TGN126..H..GEN202308-202407

SYRIA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)

main17117-0C020i2TRFE..TGN136..AGTP;2TRFE..TGN126..AGTP..5F..H202308-202410

17314CBRACKET, AIR PUMP

main17314-0C011i2TRFE..TGN126..H..GEN202308-202407

SYRIA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)

main17314-0C011i2TRFE..TGN136..AGTP;2TRFE..TGN126..AGTP..5F..H202308-202410

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-0C130i2TRFE..TGN121..5F..H;2TRFE..TGN126..5F..GCC202308-202407

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

main17341-0C130i2TRFE..TGN136..AGTP;2TRFE..TGN126..AGTP..5F..H202308-202410

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-0C130i2TRFE..TGN121..5F..H;2TRFE..TGN126..5F..GCC202308-202407

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

main17342-0C130i2TRFE..TGN136..AGTP;2TRFE..TGN126..AGTP..5F..H202308-202410

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main17343-0C090i2TRFE..TGN121..5F..H;2TRFE..TGN126..5F..GCC202308-202407

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

main17343-0C090i2TRFE..TGN136..AGTP;2TRFE..TGN126..AGTP..5F..H202308-202410

17344HOSE, NO.4(FOR AIR INJECTION SYSTEM)

main17344-0C090i2TRFE..TGN121..5F..H;2TRFE..TGN126..5F..GCC202308-202407

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

main17344-0C090i2TRFE..TGN136..AGTP;2TRFE..TGN126..AGTP..5F..H202308-202410

17366CLAMP, AIR INJECTION HOSE, NO.1

main17366-0C010i2TRFE..TGN121..5F..H;2TRFE..TGN126..5F..GCC202308-202407

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

main17366-0C010i2TRFE..TGN136..AGTP;2TRFE..TGN126..AGTP..5F..H202308-202410

17610CPUMP ASSY, AIR

main17610-0C040i2TRFE..TGN126..H..GEN202308-202407

SYRIA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)

main17610-0C040i2TRFE..TGN136..AGTP;2TRFE..TGN126..AGTP..5F..H202308-202410

17611APIPE, AIR PUMP INLET

main17611-0C060i2TRFE..TGN136..AGTP;2TRFE..TGN126..AGTP..5F..H202308-202410

main17611-0C060i2TRFE..TGN121..5F..H;2TRFE..TGN126..5F..GCC202308-202407

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

17618AINSULATOR, AIR PUMP

main17618-0C010i2TRFE..TGN136..GEN;2TRFE..TGN121..6FC;2TRFE..TGN121..5F..ARL;2TRFE..TGN126..S..(GCC,GEN);2TRFE..TGN126..THP..6FC..(H,L)202308-202407

SYRIA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)

main17618-0C010i2TRFE..TGN136..AGTP;2TRFE..TGN126..AGTP..5F..H202308-202410

17621AINLET, AIR PUMP

main17621-0C080i2TRFE..TGN121..5F..H;2TRFE..TGN126..5F..GCC202308-202407

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

main17621-0C080i2TRFE..TGN136..AGTP;2TRFE..TGN126..AGTP..5F..H202308-202410

25710VALVE ASSY, AIR SWITCHING

main25710-75015i2TRFE..TGN126..H..GEN202308-202407

SYRIA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)

main25710-75015i2TRFE..TGN136..AGTP;2TRFE..TGN126..AGTP..5F..H202308-202410

25717AGASKET, AIR SWITCHING VALVE

main25717-0C010i2TRFE..TGN126..H..GEN202308-202407

EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),(L)

main25717-0C010i2TRFE..TGN136..AGTP;2TRFE..TGN126..AGTP..5F..H202308-202410

(L)

main25717-75010i2TRFE..TGN136..GEN;2TRFE..TGN121..6FC;2TRFE..TGN121..5F..ARL;2TRFE..TGN126..S..(GCC,GEN);2TRFE..TGN126..THP..6FC..(H,L)202308-202410

(J)

8404

827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E320

9012608031

main90126-08031

9012608052

main90126-08052

90126T0016

main90126-T0016

90126T0034

main90126-T0034

9017908228

main90179-08228

90182T0030

main90182-T0030

90445T0029

main90445-T0029

9046626002

main90466-26002

90466T0049

main90466-T0049

90929T1002

main90929-T1002

9099992002

main90999-92002

9167380616

main91673-80616

9613642701

main96136-42701

29 parts on this diagram · 1 diagram in section
