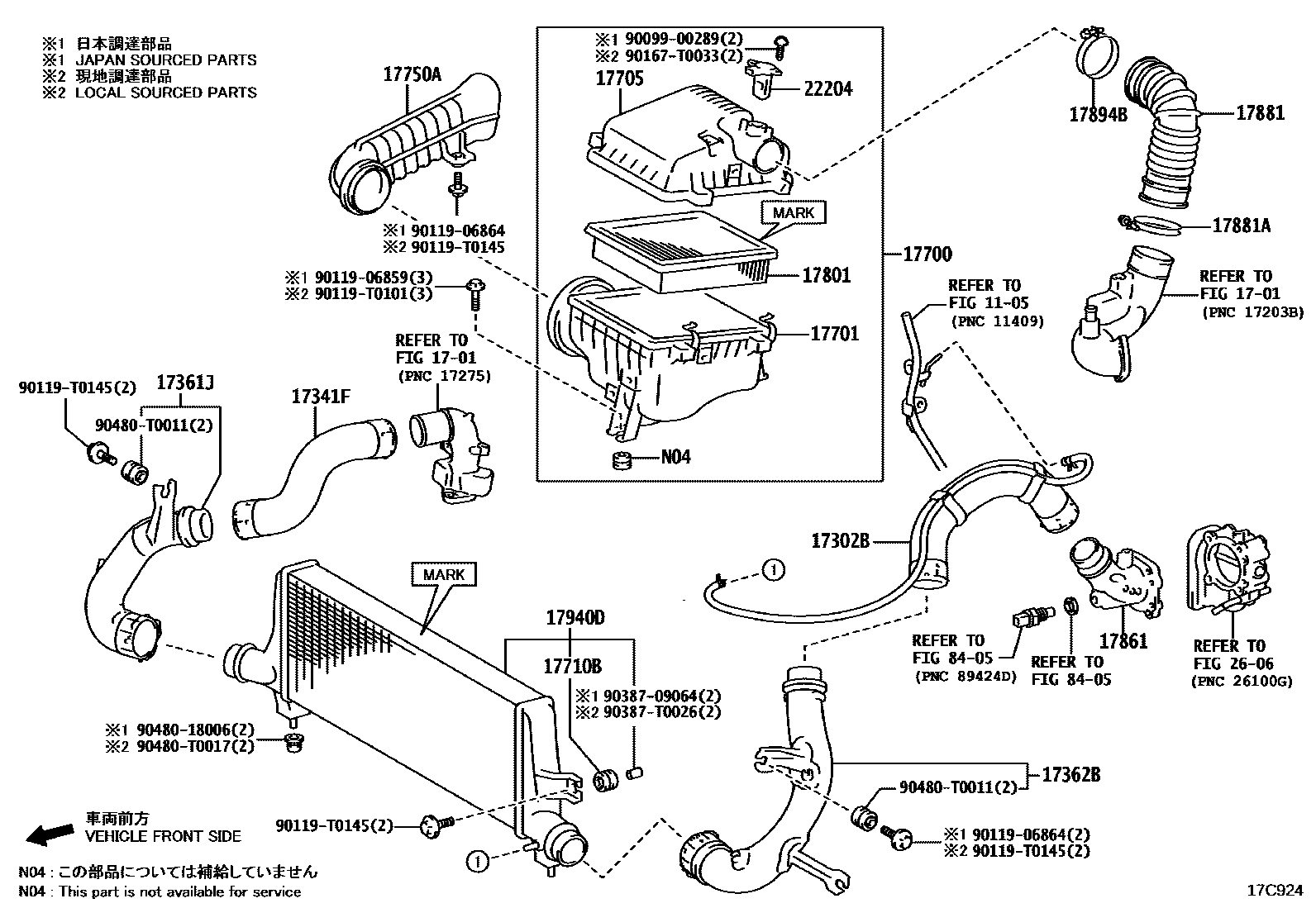

AIR CLEANER
1105
1701
17302BHOSE SUB-ASSY, AIR
17341FHOSE, AIR, NO.1
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
17361JTUBE, AIR, NO.1
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
17362BTUBE, AIR, NO.2
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
17700CLEANER ASSY, AIR
17701CASE SUB-ASSY, AIR CLEANER
17705CAP SUB-ASSY, AIR CLEANER
17710BGROMMET
17750AINLET ASSY, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17861CONNECTOR, INTAKE AIR
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
THA SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
main17861-0E010i2GDFTV..GUN125,135;1GDFTV..GUN126..MHV..SA;1GDFTV..GUN136..BZAG,LA,SA;2GDFTV..GUN120,122..(5F,6FC)..(SA,TH);1GDFTV..GUN126..DCRL..(BZAG,GEN,GHA,KEN,LA,MA,MMR,SA)202308-202406
#,THA SOURCED PARTS
IND SOURCED PARTS
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
17881HOSE, AIR CLEANER, NO.1
THA SOURCED PARTS
THA SOURCED PARTS
ZAF SOURCED PARTS
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
main90460-T0005i1GDFTV..GUN126..MHV..(ARL,GCC,LA);1G#,2GDFTV..GGN125,GUN12#,13#..THP..(DCRL,HTWC)202308-202407
17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
17940DINTERCOOLER ASSY
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
22204METER SUB-ASSY, INTAKE AIR FLOW
2606
8405
9009900289
main90099-00289
9011906859
main90119-06859
9011906864
main90119-06864
90119T0101
main90119-T0101
90119T0145
main90119-T0145
90167T0033
main90167-T0033
9038709064
main90387-09064
90387T0026
main90387-T0026
9048018006
main90480-18006
90480T0011
main90480-T0011
90480T0017
main90480-T0017
31 parts on this diagram · 5 diagrams in section
