MANIFOLD
15407PIPE SUB-ASSY, TURBO OIL INLET
15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),THASOURCED PARTS
CAMBODIA SPEC,JAPAN SOURCED PARTS
15407BGASKET(FOR TURBO OIL INLET PIPE)
(L)
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
15407FCLAMP OR CLIP, OIL HOSE
main96137-42501×2i1GDFTV..GUN126..MHV..(ARL,GCC,LA);1GDFTV,2GDFTV..GUN12#,13#..THP..DCRL202308-202407
15471GASKET, TURBO OIL INLET
THA SOURCED PARTS
main15471-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..DCRL..ARL202308-202407
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
CAMBODIA SPEC,JAPAN SOURCED PARTS
15472GASKET, TURBO OIL OUTLET, NO.1
THA SOURCED PARTS
main15472-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..DCRL..ARL202308-202407
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
CAMBODIA SPEC,JAPAN SOURCED PARTS
15474PIPE, TURBO OIL OUTLET
THA SOURCED PARTS
main15474-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..DCRL..ARL202308-202407
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
15474AHOSE, TURBO OIL OUTLET
THA SOURCED PARTS
main15491-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..DCRL..ARL202308-202407
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
CAMBODIA SPEC,JAPAN SOURCED PARTS
1703
17203BELBOW SUB-ASSY, COMPRESSOR INLET
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
THA SOURCED PARTS
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),THASOURCED PARTS
BRAZIL SPEC
IND SOURCED PARTS
CAMBODIA SPEC,JAPAN SOURCED PARTS
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),THASOURCED PARTS
17275ELBOW, COMPRESSOR OUTLET
main17275-0E040i1GDFTV..GUN126..MHV..(ARL,GCC,LA);1GDFTV,2GDFTV..GUN12#,13#..THP..DCRL..(ARL,GCC,GEN,IDN,LA,PH,SA,TH,VN)202308-202407
THA SOURCED PARTS
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),THASOURCED PARTS
IND SOURCED PARTS
CAMBODIA SPEC,JAPAN SOURCED PARTS
17276GASKET, COMPRESSOR INLET
THA SOURCED PARTS
CAMBODIA SPEC,JAPAN SOURCED PARTS
17277GASKET, COMPRESSOR OUTLET
THA SOURCED PARTS
IND SOURCED PARTS
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),THASOURCED PARTS
CAMBODIA SPEC,JAPAN SOURCED PARTS
17293STAY, TURBOCHARGER
THA SOURCED PARTS
main17293-0E050i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..DCRL..ARL202308-202407
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
BRAZIL SPEC,ARG SOURCED PARTS
CAMBODIA SPEC,JAPAN SOURCED PARTS
17293BBOLT(FOR TURBOCHARGER STAY)
17293CNUT(FOR TURBOCHARGER STAY)
(L)
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
17298STAY, COMPRESSOR ELBOW
THA SOURCED PARTS
main17298-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..DCRL..ARL202308-202407
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
CAMBODIA SPEC,JAPAN SOURCED PARTS
9010508359
main90105-08359
90105T0120
main90105-T0120
90119T0260
main90119-T0260
9012608052
main90126-08052
90126T0016
main90126-T0016
90178T0018
main90178-T0018
90178T0019
main90178-T0019
9155180820
main91551-80820
9167180616
main91671-80616
9415180600
main94151-80600
9415180800
main94151-80800

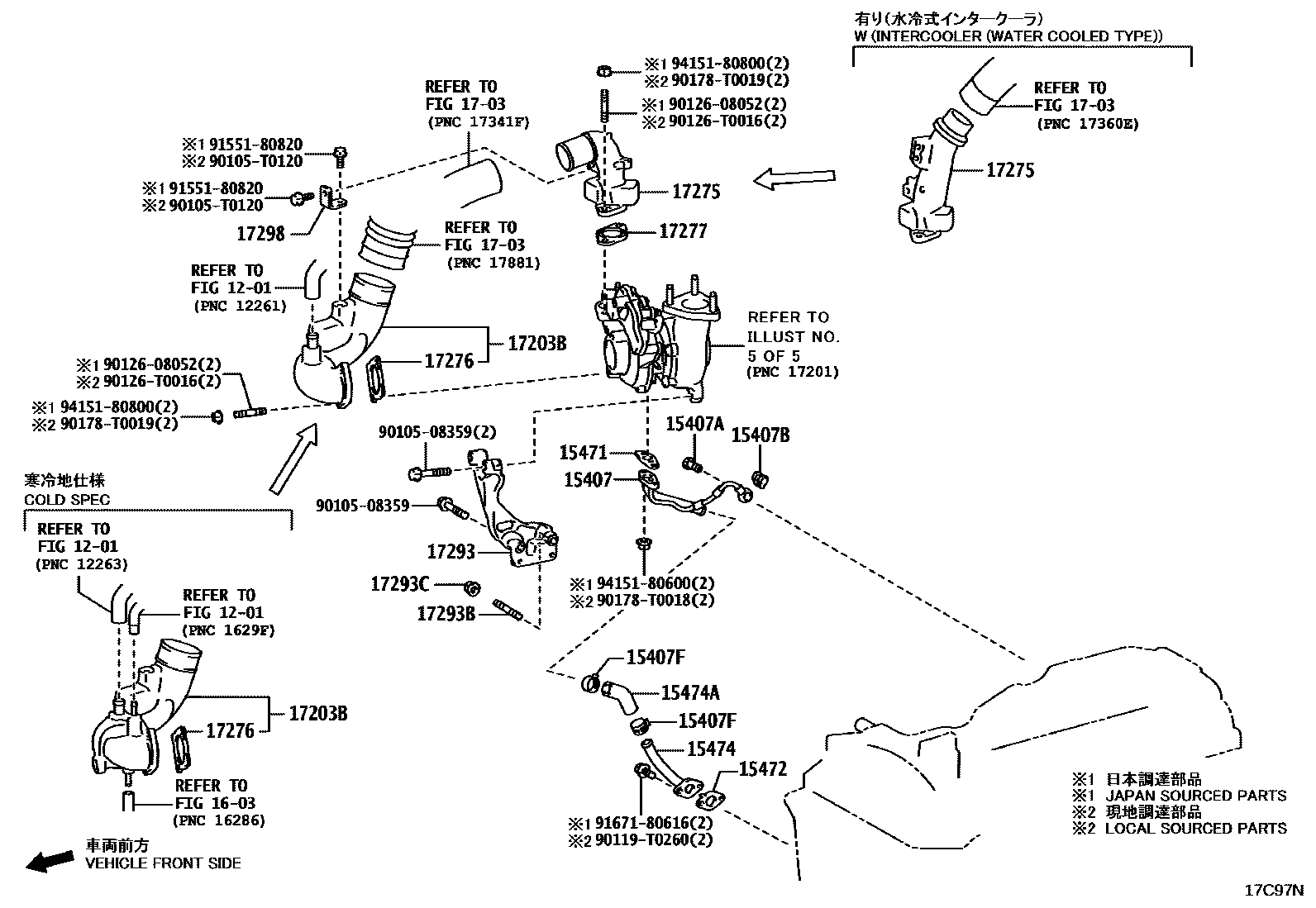

28 parts on this diagram · 9 diagrams in section
