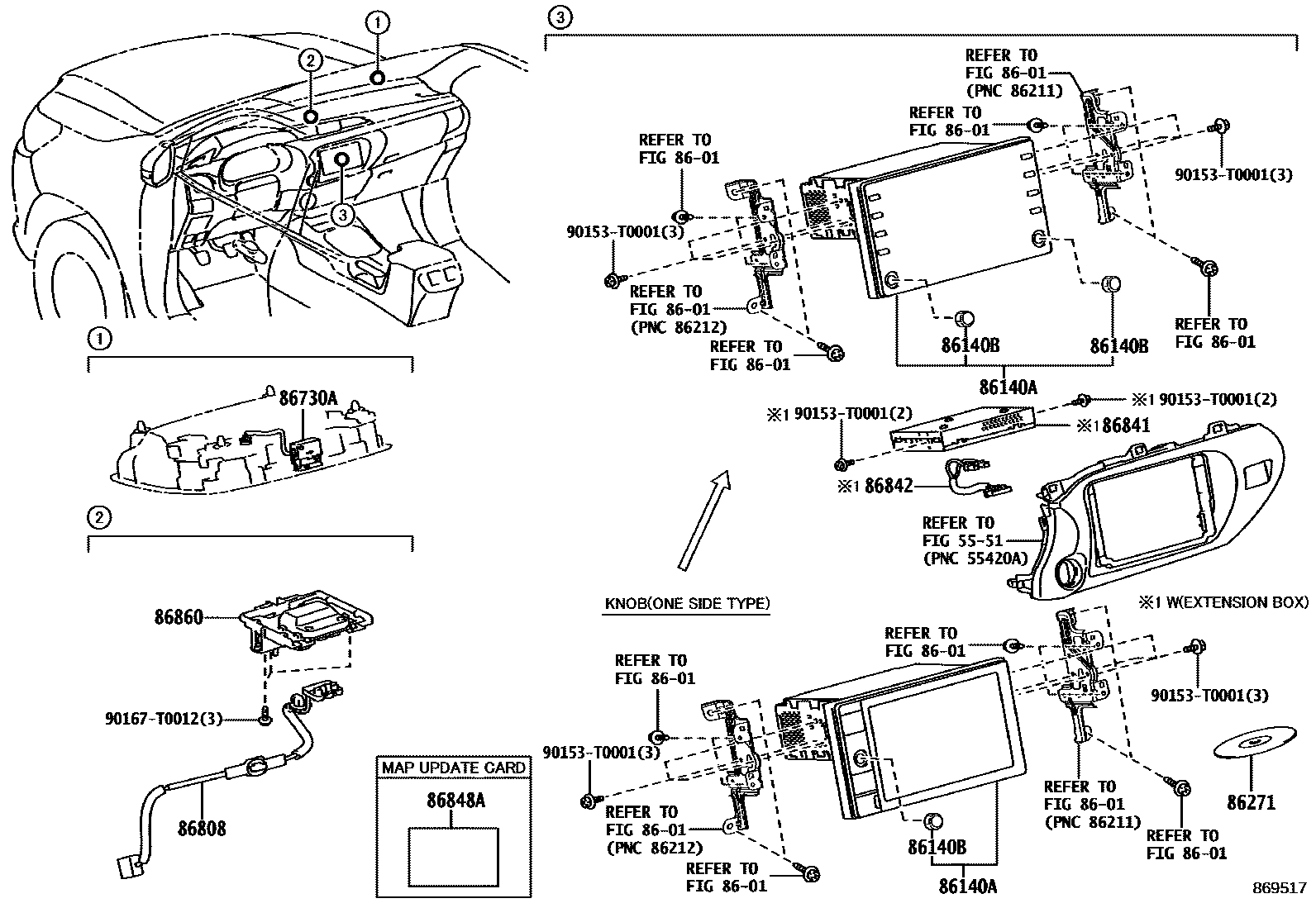

NAVIGATION & FRONT MONITOR DISPLAY
5551
8601
86140ARECEIVER ASSY, RADIO & DISPLAY
PANASONIC
PANASONIC
DENSO TEN
PIONEER
DENSO TEN,AUDIO-*DA(8INCH) & *BT & DAB&BACK MONITOR-WITH
PIONEER
PIONEER,AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
DENSO TEN,NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4WITH(ON BOARD DIAGNOSIS)&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EME
sub86140-0KU51
DENSO TEN,CENTRAL AND SOUTH AMERICA SPEC&AUDIO-*DA(FOR EMERGING MARKET)
sub86140-0KU81
main86140-0KY31iGUN125..L..GHA;GUN125..LHD..S..GEN;GUN135,TGN136..L..SA;GUN125..RHD..L..(KEN,SA);GUN126,LAN125,TGN126..(L,S)..SA;GUN125,126..LHD..(H,S)..(GHA,SA)202208-202401
DENSO TEN
PIONEER,ARGENTINA SPEC&AUDIO-*DA(8INCH DISPLAY)
DENSO TEN,OCEANIA GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT&REAR BUMPER-STEP TYPE(PAINTED)
sub86140-0KN51
DENSO TEN,AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH
sub86140-0KN63
DENSO TEN,AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH
sub86140-0KN63
PIONEER,CENTRAL AND SOUTH AMERICA SPEC&AUDIO-*DA(8INCH) & *BT
DENSO TEN,UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB
PIONEER,AUDIO-*DA(8INCH) & *BT&SPEAKER-9SPEAKER & JBL
DENSO TEN,SPEAKER-9SPEAKER & JBL
PIONEER,SPEAKER-9SPEAKER & JBL
PIONEER,SPEAKER-9SPEAKER & JBL
PIONEER,BRAZIL SPEC&SPEAKER-9SPEAKER & JBL
main86140-0KY80iGUN122..S..GCC;GUN122..L..IV3;TGN121..6FC..S;GGN125,TGN126..GCC;GUN125,TGN121..MTM..L..GCC202208-202307
DENSO TEN,UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
sub86140-0KY81
DENSO TEN,EXPORT FROM SA&SPEAKER-9SPEAKER & JBL
sub86140-F0041
DENSO TEN,EXPORT FROM SA&AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH
DENSO TEN,EXPORT FROM SA&AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH
sub86140-F0093
DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH(*PVM)
sub86140-F0101
DENSO TEN,CENTRAL AND SOUTH AMERICA SPEC&AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH
sub86140-F0121
DENSO TEN,MEXICO SPEC&AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH(*PVM)
sub86140-F0132
DENSO TEN,SPEAKER-9SPEAKER & JBL
DENSO TEN,OCEANIA GENERAL SPEC&SPEAKER-9SPEAKER & JBL
PANASONIC,CAMBODIA SPEC&SPEAKER-9SPEAKER & JBL
DENSO TEN,BACK MONITOR-WITH(*PVM)
sub86140-F0261
main86140-F0280iTGN120;TGN126..H..GCC;GUN122..S..GCC..CBU;GUN125,TGN121..(6F,6FC)..H..GCC202208-202307
DENSO TEN,SUDAN SPEC&AUDIO-*DA(FOR EMERGING MARKET)
sub86140-F0281
DENSO TEN,SUDAN SPEC&AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH
sub86140-F0291
HARMAN,AUDIO- ILA
HARMAN,SPEAKER-9SPEAKER & JBL&AUDIO- ILA
HARMAN,GR SPORT WIDE TREAD&AUDIO- ILA
HARMAN,GR SPORT WIDE TREAD&SPEAKER-9SPEAKER & JBL&AUDIO- ILA
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
AUDIO-*DA(8INCH) & *BT&SPEAKER-9SPEAKER & JBL
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-WITHOUT&REAR BUMPER-STEP TYPE(PLATED)&AUDIO-*DA(8INCH) & *BT
REAR BUMPER-STEP TYPE(PAINTED)&AUDIO-*DA(8INCH) & *BT
AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH(*PVM)
86271DISC, DISC PLAYER
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
86730AMICROPHONE ASSY, TELEPHONE
main86730-20060iGUN125,126..RHD..6F..H..GEN;GUN126..RHD..(H,S)..(ARL,IND,KEN,PKN,SA,TH);GGN125,GUN120,121,122,125,13#,TGN121,136..RHD..(ARL,KEN,SA,TH)202208
main86730-60050iTGN126..L..SA;TGN126..6FC..L;GUN122..S..IV3;GUN125..L..(BZAG,GHA);TGN126..(H,S)..(GEN,SA);GUN126..AGTP..6F..H..LA;GUN126..THP..6FC..S..LA;GGN125,GUN136,LAN125..LHD;202208-202403
86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1
UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB
main86808-0K181iGUN126..AGTP..6FC..LA;GUN125,135,TGN136..AGTP..LA;GUN126,TGN126..AGTP..MTM..S..LA202211-202310
AUDIO- ILA
DATA COMMUNICATION MODULE-WITH(G-DCM)
DATA COMMUNICATION MODULE-WITH(G-DCM)
86841COMPUTER, NAVIGATION
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
86842WIRE, NAVIGATION, NO.1
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
86848ACARD, SERIAL NUMBER MAP UPDATE
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
AUDIO-AVN(8INCH) & *BT
86860ANTENNA ASSY, NAVIGATION
UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB
DATA COMMUNICATION MODULE-WITH(G-DCM)
90153T0001
main90153-T0001
90167T0012
main90167-T0012
13 parts on this diagram · 1 diagram in section
