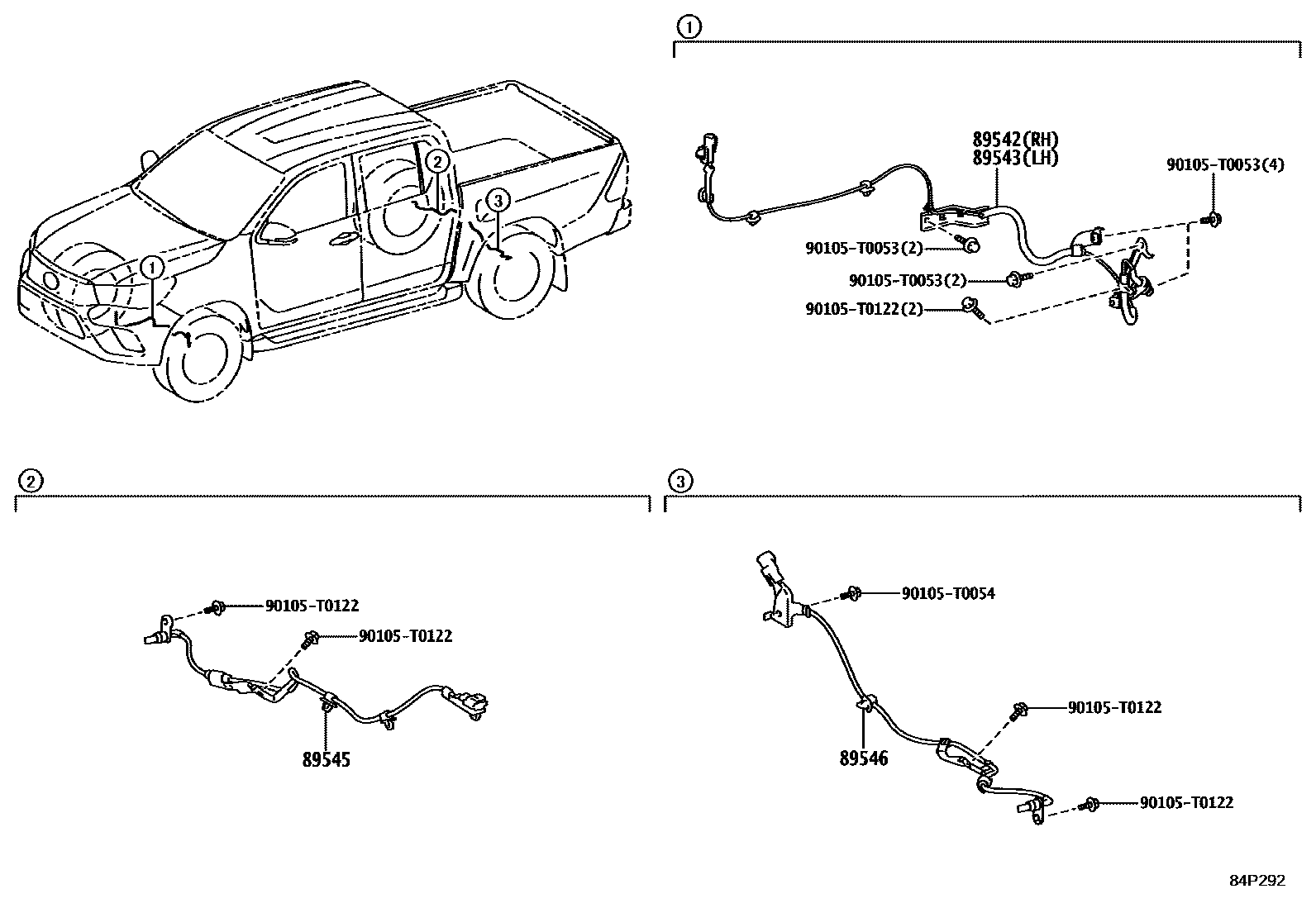

ABS & VSC

0001 1 0002 1

89542SENSOR, SPEED, FRONT RH

main89542-0K050iGUN120,121,122,TGN120,121..THP202208-202401

main89542-0K060iGUN126..PKN202208-202310

main89542-0K070iGUN126..IND202210-202309

main89542-0K080iGGN125,GUN125,126,13#,LAN125,TGN126,136..SA202209-202403

main89542-0K090iGUN126..6FC..H..ARL..CBU202301-202307

GR SPORT WIDE TREAD

89543SENSOR, SPEED, FRONT LH

main89543-0K050iGUN122,TGN121..SA202208-202401

main89543-0K061iGUN126..PKN202208-202310

main89543-0K071iGUN126..IND202210-202309

main89543-0K081iGUN125,126..GHA,KEN202209-202403

main89543-0K090iGUN126..6FC..H..ARL..CBU202301-202307

GR SPORT WIDE TREAD

89545SENSOR, SPEED, REAR RH

main89545-0K220iGUN120,121,122,TGN120,121..THP202208-202307

main89545-0K240iGGN125,GUN125,126,13#,TGN126,136..AGTP202208-202310

main89545-0K280iGUN122,TGN121..SA202301-202401

main89545-0K290iGUN125,126..GHA,KEN202209-202403

main89545-0K110iGUN126..6FC..H..ARL..CBU202301-202307

GR SPORT WIDE TREAD

89546SENSOR, SPEED, REAR LH

main89546-0K220iGUN120,121,122,TGN120,121..THP202208-202307

main89546-0K240iGUN126..PKN202208-202310

main89546-0K280iGUN122,TGN121..SA202301-202401

main89546-0K290iGGN125,GUN125,126,13#,LAN125,TGN126,136..SA202209-202403

main89546-0K110iGUN126..6FC..H..ARL..CBU202208-202307

MLM ADVENTURE WIDE TREAD

90105T0053

main90105-T0053

90105T0054

main90105-T0054

90105T0122

main90105-T0122

7 parts on this diagram · 2 diagrams in section
