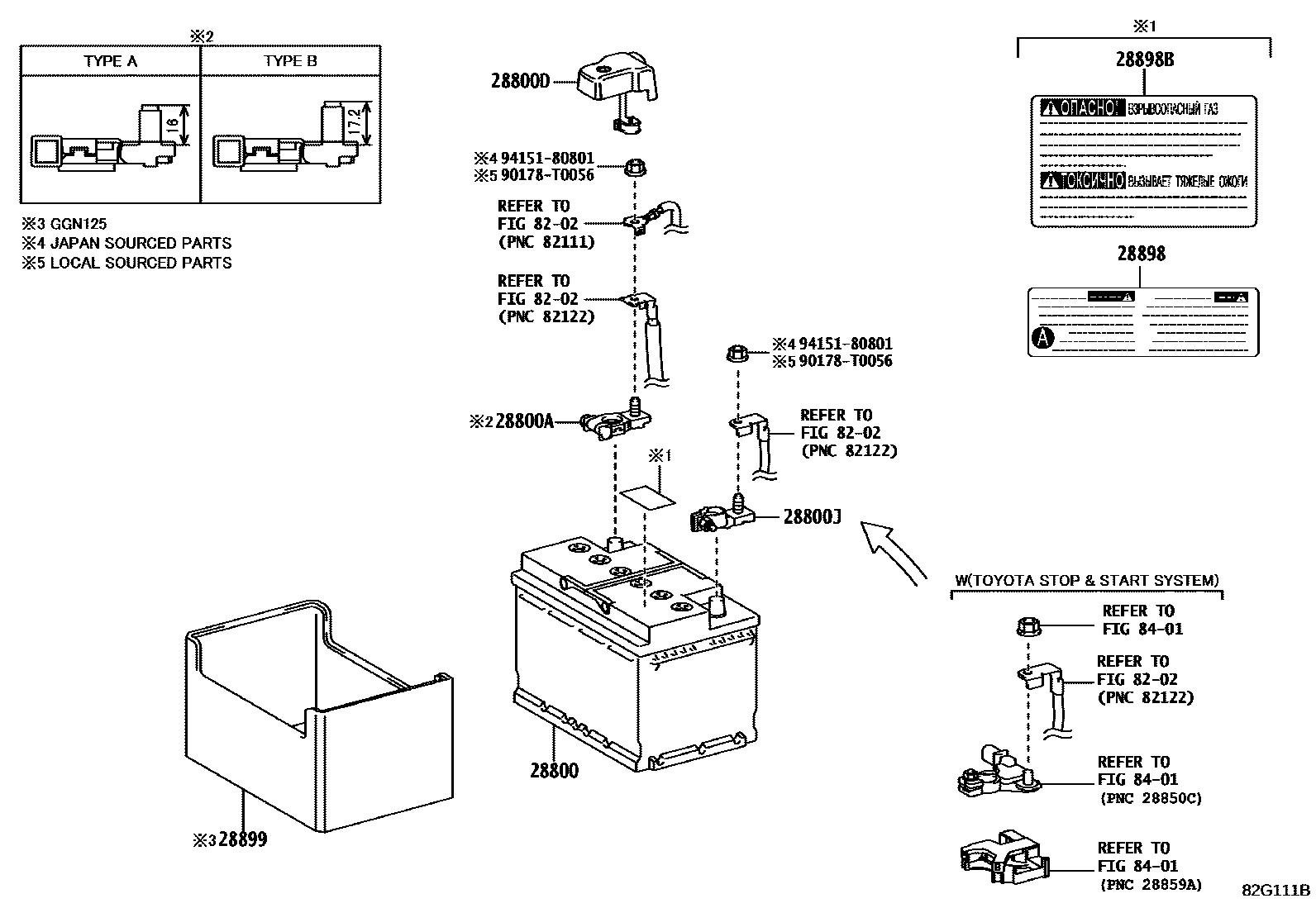

BATTERY & BATTERY CABLE

28800BATTERY

main28800-0C240i2TRFE..TGN126..LA;2TRFE..TGN121,126,136..L..(ARL,GEN)202208-202211

LN2,GS

sub28800-0C241

main28800-0C241i2TRFE..TGN126..THP..LA;2TRFE..TGN121,126,136..L..(ARL,GEN)202212-202307

LN2,GS

main28800-0C251i2TRFE..TGN126,136..AGTP202306-202310

LN2

main28800-0C251i2TRFE..TGN126,136..AGTP202211-202306

LN2,JOHNSON CONTROLS

main28800-0C261i2TRFE..TGN121,126,136..SA202301-202401

LN2

main28800-0C273i2TRFE..TGN126..LA;2TRFE..TGN121,126,136..L..(ARL,GEN)202208-202211

LN2,FURUKAWA

sub28800-0C274

main28800-0C274i2TRFE..TGN126..THP..LA;2TRFE..TGN121,126,136..L..(ARL,GEN)202212-202307

LN2,FURUKAWA

main28800-0C281i2TRFE..TGN126,136..AGTP202211-202306

LN2,UNION BATTERY

main28800-0C361i1TRFE,2TRFE..TGN12#..5F..GCC202208-202307

LN0

main28800-0E011i1GDFTV,2GDFTV..GUN125,126..H..GCC202208-202307

LN4,TOYOTA STOP & START SYSTEM-WITH,MADE IN THAILAND

main28800-0E031i1GDFTV,2GDFTV..GUN125,126..H..GCC202208-202307

LN4,TOYOTA STOP & START SYSTEM-WITH,MADE IN INDONESIA

main28800-0L461i1GDFTV..GUN126..6FC..H..BZAG202306-202310

LN3,ARGENTINA SPEC

main28800-0L461i1GDFTV..GUN126..6FC..H..BZAG202306-202310

LN3,BRAZIL SPEC,JOHNSON CONTROLS

main28800-0L461i1GDFTV..GUN126..6FC..S..BZAG202306-202310

LN3

main28800-0L461i1GDFTV..GUN126..L..BZAG;1GDFTV..GUN126..6FC..S..BZAG202211-202310

LN3,JOHNSON CONTROLS

main28800-0L481i1G#,2GDFTV..GGN125,GUN122,125,126,13#..SA202301-202403

LN3

main28800-0L490i5LE..LAN125202301-202401

LN4

sub28800-0L491

main28800-0L503i2TRFE..TGN126..(H,S)..GEN;1GDFTV..GUN126..6F..(ARL,GEN,LA,PH,TH);1GDFTV..GUN126..6FC..(ARL,GEN,LA,PH,TWN,VN);1GDFTV,2GDFTV..GUN120,121,122,125,13#..ARL,GEN,IDN,LA,P202208-202211

LN3,FURUKAWA

sub28800-0L504

main28800-0L503i2TRFE..TGN126..(H,S)..GEN;1GDFTV..GUN126..6F..(ARL,GEN,LA,PH,TH);1GDFTV..GUN126..6FC..(ARL,GEN,LA,PH,TWN,VN);1GDFTV,2GDFTV..GUN120,121,122,125,13#..ARL,GEN,IDN,LA,P202208-202211

LN3,ASIA COLD COUNTRY SPEC,FURUKAWA

sub28800-0L504

main28800-0L503i2TRFE..TGN126..(H,S)..GEN;1GDFTV..GUN126..6F..(ARL,GEN,LA,PH,TH);1GDFTV..GUN126..6FC..(ARL,GEN,LA,PH,TWN,VN);1GDFTV,2GDFTV..GUN120,121,122,125,13#..ARL,GEN,IDN,LA,P202208-202211

LN3,TOYOTA STOP & START SYSTEM-WITHOUT,FURUKAWA

sub28800-0L504

main28800-0L504i2TRFE..TGN126..L..GEN202212-202307

LN3,ASIA COLD COUNTRY SPEC,FURUKAWA

main28800-0L504i1GDFTV..GUN126..6FC..TH202212-202307

LN3,FURUKAWA

main28800-0L504i1GDFTV..GUN126..6FC..TH202212-202307

LN3,TOYOTA STOP & START SYSTEM-WITHOUT,FURUKAWA

main28800-0L510i2GDFTV..GUN125..LHD..GEN202208-202211

LN4,ASIA COLD COUNTRY SPEC

sub28800-0L511

main28800-0L510i2GDFTV..GUN125..LHD..L..GEN202208-202211

LN4,MOROCCO SPEC

sub28800-0L511

main28800-0L511i2GDFTV..GUN125..LHD..L..GEN202212-202307

LN4,MOROCCO SPEC

main28800-0L511i2GDFTV..GUN125..LHD..GEN202212-202307

LN4,ASIA COLD COUNTRY SPEC

main28800-0L520i1GDFTV..GUN126..6FC..TH202208-202211

LN4

sub28800-0L521

main28800-0L520i1GDFTV..GUN126..6FC..TH202208-202211

LN4,TOYOTA STOP & START SYSTEM-WITH

sub28800-0L521

main28800-0L521i1GDFTV..GUN126..6FC..TH202212-202307

LN4

main28800-0L521i1GDFTV..GUN126..6FC..TH202212-202307

LN4,TOYOTA STOP & START SYSTEM-WITH

main28800-0L570i1GDFTV..GUN126..6FC..TH202208-202211

LN3,ASIA COLD COUNTRY SPEC,YUASA

sub28800-0L571

main28800-0L570i1GDFTV..GUN126..6FC..TH202208-202211

LN3,TOYOTA STOP & START SYSTEM-WITHOUT,YUASA

sub28800-0L571

main28800-0L570i2TRFE..TGN126..(H,S)..GEN;1GDFTV..GUN126..6F..(ARL,GEN,LA,PH,TH);1GDFTV..GUN126..6FC..(ARL,GEN,LA,PH,TWN,VN);1GDFTV,2GDFTV..GUN120,121,122,125,13#..ARL,GEN,IDN,LA,P202208-202211

LN3,YUASA

sub28800-0L571

main28800-0L571i1GDFTV..GUN126..6FC..TH202212-202307

LN3,ASIA COLD COUNTRY SPEC,YUASA

sub28800-0L572

main28800-0L571i2TRFE..TGN126..(H,S)..GEN;1GDFTV..GUN126..THP..6F..(ARL,GEN,LA,PH,TH);1GDFTV..GUN126..(MMRP,THP)..6FC..(ARL,GEN,LA,MMR,PH,TWN,VN);1GDFTV,2GDFTV..GUN120,121,122,125,202212-202307

LN3,YUASA

sub28800-0L572

main28800-0L571i2TRFE..TGN126..(H,S)..GEN;1GDFTV..GUN126..THP..6F..(ARL,GEN,LA,PH,TH);1GDFTV..GUN126..(MMRP,THP)..6FC..(ARL,GEN,LA,MMR,PH,TWN,VN);1GDFTV,2GDFTV..GUN120,121,122,125,202212-202307

LN3,TOYOTA STOP & START SYSTEM-WITHOUT,YUASA

sub28800-0L572

main28800-0L600i1GDFTV..GUN126..6FC..S..BZAG202211-202212

LN3,UNION BATTERY

sub28800-0L601

main28800-0L600i1GDFTV..GUN126..H..BZAG;1GDFTV..GUN126..AGTP..LA;1GDFTV..GUN126..6F..S..BZAG;1G#,2GDFTV..GGN125,GUN125,13#..AGTP202211-202212

LN3,ARGENTINA SPEC,UNION BATTERY

sub28800-0L601

main28800-0L601i1GDFTV..GUN126..6FC..S..BZAG202212-202306

LN3,ARGENTINA SPEC,UNION BATTERY

main28800-0L601i1GDFTV..GUN126..6FC..S..BZAG202212-202306

LN3,UNION BATTERY

main28800-0L721i1G#,2GDFTV..GGN125,GUN122,125,126..GCC202208-202209

LN3

sub28800-0L722

main28800-0L722i1G#,2GDFTV..GGN125,GUN122,125,126..GCC202209-202307

LN3

main28800-0L731i2TRFE..TGN121,126..6FC..GCC202208-202209

LN2

sub28800-0L732

main28800-0L732i2TRFE..TGN121,126..6FC..GCC202209-202307

LN2

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i1GDFTV,2GDFTV..GUN125,126..MA202208-202403

TYPE A:REFER ILLUST.

main90982-05061i1G#,2GDFTV,1TRFE,2TRFE..GGN125,GUN12#,13#,TGN12#,136..THP202208-202403

TYPE B:REFER ILLUST.

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33350i1G#,2GDFTV,1TRFE,2TRFE..GGN125,GUN12#,13#,TGN12#,136..THP202208-202403

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i1GDFTV..GUN126..THP..6F;1GDFTV..GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN);1G#,2GDFTV,1TRFE,2TRFE..GGN125,GUN120,121,122,125,13#,TGN12#,136..THP202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT

main90982-06059i1GDFTV,2GDFTV..GUN125,126..MA202208-202403

28898PLATE, BATTERY

main28897-36030i1G#,2GDFTV,1TRFE,2TRFE..GGN125,GUN122,125,126,TGN12#..GCC202208-202307

28898BPLATE, BATTERY

main28897-31040i2TRFE..TGN126..H..GEN202208-202307

28899INSULATOR, BATTERY

main28899-27020i1GRFE..GGN125..GCC202208-202401

8202

8401

90178T0056

main90178-T0056

9415180801

main94151-80801

11 parts on this diagram · 1 diagram in section
