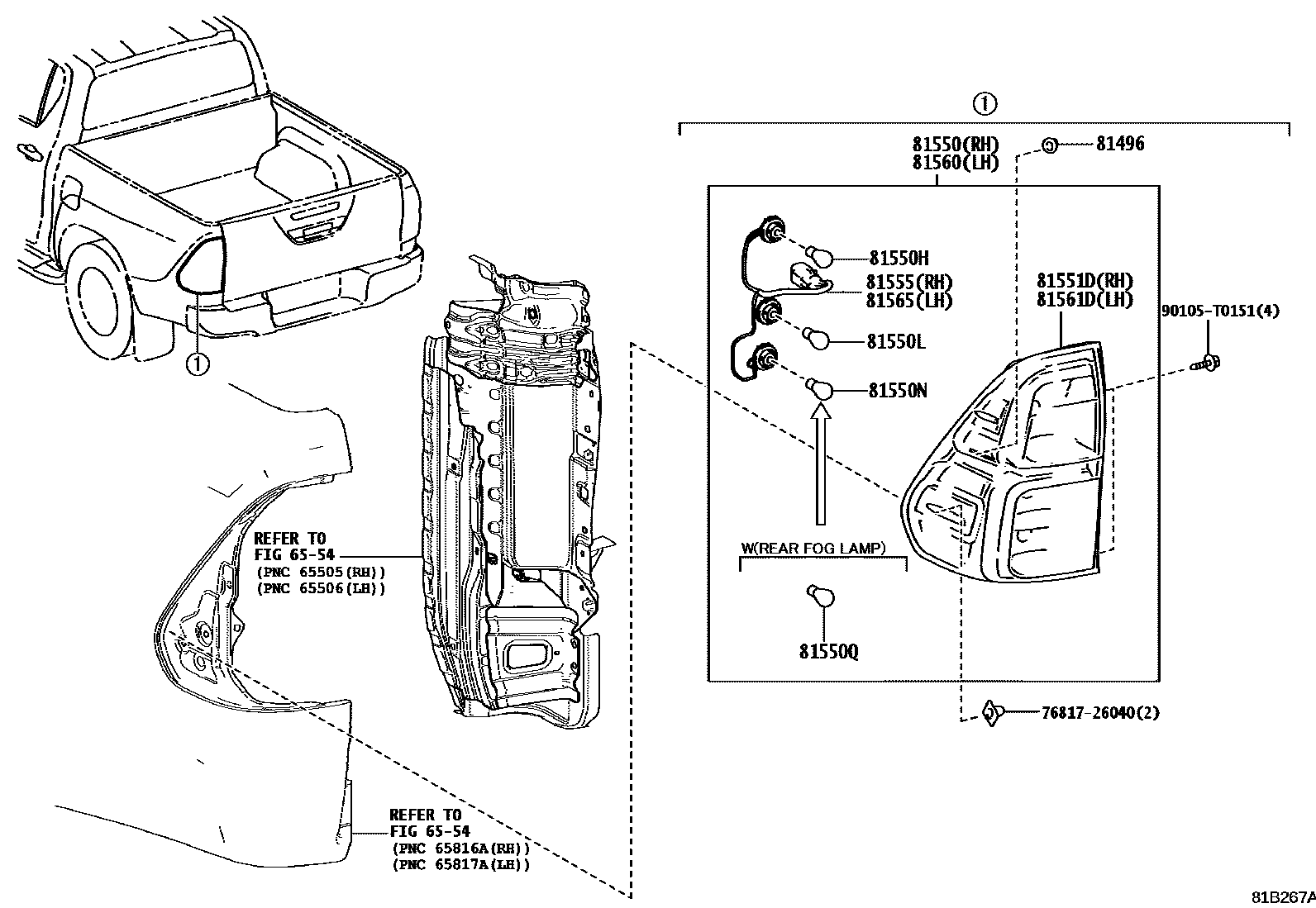

REAR COMBINATION LAMP

0001 1REAR TAIL & STOP LAMP = BULB 0002 1REAR TAIL & STOP LAMP = LED T0003 1REAR TAIL & STOP LAMP = LED T0004 1

6554

81496GUIDE, REAR COMBINATION LAMP

main81496-0D040iGUN126..IND,MMR202208-202403

(L)

main81496-52020iGUN125,126..MA¥70202208-202403

(J)

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0K261iGUN125,126,135,TGN126,136..AGTP..(L,S)¥20,200202211-202310

KOITO

main81550-0K261iGUN126..(L,S)..PKN¥20,200202208

main81550-0K261iGUN126..RHD..S..GEN;GUN126..THP..(L,S)..LA;GUN120,121,122,TGN120,121,136..(GCC,GEN,PH,TH)..CBU;GUN125,135,TGN126..THP..(L,S)..(GCC,GEN,IDN,LA,PH,VN)¥20,200202208-202307

ASIA COLD COUNTRY SPEC&HEADLAMP-4-BULB HALOGEN MULTI

main81550-0K261iGUN126..RHD..S..GEN;GUN126..THP..(L,S)..LA;GUN120,121,122,TGN120,121,136..(GCC,GEN,PH,TH)..CBU;GUN125,135,TGN126..THP..(L,S)..(GCC,GEN,IDN,LA,PH,VN)¥20,200202208-202307

HEADLAMP-4-BULB HALOGEN MULTI

main81550-0K261iGUN126,136..H..BZAG¥20,200202211-202310

HEADLAMP-4-BULB HALOGEN MULTI,KOITO

main81550-0K271iGUN126..S..IND¥26,400202209-202309

main81550-0K281iGUN125..GHA,KEN202301-202403

main81550-0K300iGUN126,136..H..BZAG202211-202310

VALEO

main81550-0K300iGUN125,126,135,TGN126,136..AGTP..(L,S)202211-202310

HEADLAMP-4-BULB HALOGEN MULTI,VALEO

main81550-0K360iGUN122,125,126..IV3202208-202307

main81550-0K660iGUN125,126,13#,TGN121..(L,S)..ARL..CBU202208-202307

main81550-0K690iGUN126..H..PKN202208-202309

main81550-0K690iGUN125,135..S..TH;GUN126..LHD..S..GEN;GUN135..(H,L)..(GEN,PH,TH);GGN125,GUN125,126,136,TGN126..THP..H..CBU202208-202307

HEADLAMP-LED

main81550-0K700iGUN126..H..IND¥57,700202209-202309

main81550-0K730iGUN126..GHA,KEN202301-202403

81550HBULB, TAIL & STOP LAMP

main90981-13094iTGN126..H..GEN¥400202208-202403

12V 21/5W

main90981-13094iTGN126..H..GEN¥400202208-202307

12V 21/5W,ASIA COLD COUNTRY SPEC&HEADLAMP-4-BULB HALOGEN MULTI

main90981-13094iTGN126..H..GEN¥400202208-202307

12V 21/5W,HEADLAMP-4-BULB HALOGEN MULTI

main90981-13094iGUN125,126,135,TGN126,136..AGTP..(L,S)¥400202211-202310

12V 21/5W,PNC 81560 = KOITO

main90981-13094iGUN125,126,135,TGN126,136..AGTP..(L,S)¥400202211-202310

12V 21/5W,HEADLAMP-4-BULB HALOGEN MULTI,PNC 81560 = KOITO

main90981-13096iGUN126,136..H..BZAG202211-202310

12V 21/5W,PNC 81560 = VALEO

main90981-13096iGUN126,136..H..BZAG202211-202310

12V 21/5W,HEADLAMP-4-BULB HALOGEN MULTI,PNC 81560 = VALEO

main90981-TD004iGUN122,125,126..IV3202208-202307

12V 21/5W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15020iGUN125,126,135,TGN126,136..AGTP..(L,S)¥350202211-202310

12V 21W,AMBER,HEADLAMP-4-BULB HALOGEN MULTI,PNC 81560 = VALEO

main90981-15020iGUN125,126,135,TGN126,136..AGTP..(L,S)¥350202211-202310

12V 21W,AMBER,PNC 81560 = VALEO

main90981-15028iGUN126,136..H..BZAG¥350202211-202310

12V 21W,AMBER,HEADLAMP-4-BULB HALOGEN MULTI,PNC 81560 = KOITO

main90981-15028iGGN125,GUN12#,13#,TGN12#,136..THP..CBU¥350202208-202403

12V 21W,AMBER

main90981-15028iGUN125,126,135,TGN126,136..AGTP..(L,S)¥350202211-202310

12V 21W,AMBER,PNC 81560 = KOITO

main90981-15028iGUN125,126,135,TGN126,136..AGTP..(L,S)¥350202211-202310

12V 21W,AMBER,HEADLAMP-LED

main90981-TD003iGUN122,125,126..IV3202208-202307

12V 21W

81550NBULB, BACK UP LAMP

main90981-13093iGUN126..THP..(L,S)..LA;GUN122,TGN121..THP..CBU;GUN126..RHD..THP..S..CBU;GUN120,121,136,TGN120,126,136..THP..(L,S);GUN125,135..THP..(L,S)..(ARL,GCC,GEN,IDN,LA,PH,VN)¥160202208-202307

12V 21W,HEADLAMP-4-BULB HALOGEN MULTI

main90981-13093iTGN126..H..GEN¥160202208-202403

12V 21W

main90981-13093iTGN126..H..GEN¥160202208-202307

12V 21W,ASIA COLD COUNTRY SPEC&HEADLAMP-4-BULB HALOGEN MULTI

main90981-13093iGUN125,126,135,TGN126,136..AGTP..(L,S)¥160202211-202310

12V 21W,PNC 81560 = KOITO

main90981-13093iGUN125,126,135,TGN126,136..AGTP..(L,S)¥160202211-202310

12V 21W,HEADLAMP-4-BULB HALOGEN MULTI,PNC 81560 = KOITO

main90981-13095iGUN125,126,135,TGN136..(L,S)..BZAG¥160202211-202310

12V 21W,PNC 81560 = VALEO

main90981-13095iGUN125,126,135,TGN136..(L,S)..BZAG¥160202211-202310

12V 21W,PNC 81550 = VALEO

main90981-13095iGUN125,126,135,TGN136..(L,S)..BZAG¥160202211-202310

12V 21W,HEADLAMP-4-BULB HALOGEN MULTI,PNC 81550 = VALEO

main90981-TD003iGUN122,125,126..IV3202208-202307

12V 21W

81550QBULB, REAR FOG LAMP, NO.1

main90981-13095iGUN125,126,135,TGN136..(L,S)..BZAG¥160202211-202310

12V 21W,PNC 81560 = VALEO

main90981-13095iGUN125,126,135,TGN136..(L,S)..BZAG¥160202211-202310

12V 21W,HEADLAMP-4-BULB HALOGEN MULTI,PNC 81560 = VALEO

81551LENS, REAR COMBINATION LAMP, RH

main81551-0K360iGUN122,125,126..IV3202208-202307

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0K261iGUN126,136..H..BZAG¥11,700202211-202310

HEADLAMP-4-BULB HALOGEN MULTI,KOITO

main81551-0K261iGUN125,126,135,TGN126,136..AGTP..(L,S)¥11,700202211-202310

KOITO

main81551-0K261iGUN126..THP..(L,S)..LA;GUN126..RHD..(L,S)..(GEN,PKN);GUN120,121,122,TGN120,121,136..(GCC,GEN,PH,TH)..CBU;GUN125,135,TGN126..THP..(L,S)..(GCC,GEN,IDN,LA,PH,VN)¥11,700202208

main81551-0K271iGUN125,126..S..(IND,MA)¥24,400202209-202309

main81551-0K281iGUN126..S..SA;GUN122,125,135,LAN125,TGN121,126,136..GHA,KEN,SA202301-202403

main81551-0K300iGUN125,126,135,TGN126,136..AGTP..(L,S)202211-202310

VALEO

main81551-0K300iGUN125,126,135,TGN126,136..AGTP..(L,S)202211-202310

HEADLAMP-4-BULB HALOGEN MULTI,VALEO

main81551-0K460iGGN125,GUN126,136,TGN126..AGTP..H202211-202310

HEADLAMP-LED

main81551-0K660iGUN125,126,13#,TGN121..(L,S)..ARL..CBU202208-202307

main81551-0K690iGUN125,135..S..TH;GUN126..LHD..S..GEN;GUN135..(H,L)..(GEN,PH,TH);GGN125,GUN125,126,136,TGN126..(MMRP,PKNP,THP)..H..CBU¥48,000202208

main81551-0K700iGUN125,126..H..(IND,MA)¥48,000202209-202309

main81551-0K730iGGN125,GUN126,136..H..(GHA,KEN,SA)202301-202403

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0K260iGUN126..THP..(L,S)..LA;GUN122,TGN121..THP..CBU;GUN126..RHD..(PKNP,THP)..(L,S)..CBU;GUN120,121,136,TGN120,126,136..THP..(L,S);GUN125,135..THP..(L,S)..(ARL,GCC,GEN,ID¥1,540202208

main81555-0K260iGUN125,126,135,TGN126,136..AGTP..(L,S)¥1,540202211-202310

KOITO

main81555-0K260iGUN125,126,135,TGN126,136..AGTP..(L,S)¥1,540202211-202310

HEADLAMP-4-BULB HALOGEN MULTI,KOITO

main81555-0K270iGUN125,126..S..(IND,MA)¥1,540202209-202309

main81555-0K281iGUN126..S..SA;GUN122,125,135,LAN125,TGN121,126,136..GHA,KEN,SA202301-202403

main81555-0K300iGUN126,136..H..BZAG202211-202310

VALEO

main81555-0K300iGUN126,136..H..BZAG202211-202310

HEADLAMP-4-BULB HALOGEN MULTI,VALEO

main81555-0K430iGUN125,135..S..TH;GUN126..LHD..S..GEN;GUN135..(H,L)..(GEN,PH,TH);GGN125,GUN125,126,136,TGN126..(INDP,MAP,MMRP,PKNP,THP)..H..CBU¥1,940202208

main81555-0K480iGGN125,GUN126,136..H..(GHA,KEN,SA)202301-202403

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0K261iGUN125..LHD..S..GEN¥21,100202208-202307

ASIA COLD COUNTRY SPEC

main81560-0K261iGUN126..RHD..S..GEN;GUN125,TGN126..LHD..L..GEN;GUN125..THP..6FC..(GEN,LA);GUN125..RHD..6F..(L,S)..(GEN,IDN);GUN126,135..THP..(L,S)..(LA,PH,VN);GUN120,121,122,TGN121¥21,100202208-202307

ASIA COLD COUNTRY SPEC&HEADLAMP-4-BULB HALOGEN MULTI

main81560-0K261iGUN126..RHD..S..GEN;GUN125,TGN126..LHD..L..GEN;GUN125..THP..6FC..(GEN,LA);GUN125..RHD..6F..(L,S)..(GEN,IDN);GUN126,135..THP..(L,S)..(LA,PH,VN);GUN120,121,122,TGN121¥21,100202208-202307

AZERBAIJAN SPEC

main81560-0K261iGUN126..RHD..S..GEN;GUN125,TGN126..LHD..L..GEN;GUN125..THP..6FC..(GEN,LA);GUN125..RHD..6F..(L,S)..(GEN,IDN);GUN126,135..THP..(L,S)..(LA,PH,VN);GUN120,121,122,TGN121¥21,100202208-202307

ASEAN GENERAL SPEC

main81560-0K261iGUN126..RHD..S..GEN;GUN125,TGN126..LHD..L..GEN;GUN125..THP..6FC..(GEN,LA);GUN125..RHD..6F..(L,S)..(GEN,IDN);GUN126,135..THP..(L,S)..(LA,PH,VN);GUN120,121,122,TGN121¥21,100202208-202307

OCEANIA GENERAL SPEC

main81560-0K261iGUN126..RHD..S..GEN;GUN125,TGN126..LHD..L..GEN;GUN125..THP..6FC..(GEN,LA);GUN125..RHD..6F..(L,S)..(GEN,IDN);GUN126,135..THP..(L,S)..(LA,PH,VN);GUN120,121,122,TGN121¥21,100202208-202307

CAMBODIA SPEC

main81560-0K261iGUN126..RHD..S..GEN;GUN125,TGN126..LHD..L..GEN;GUN125..THP..6FC..(GEN,LA);GUN125..RHD..6F..(L,S)..(GEN,IDN);GUN126,135..THP..(L,S)..(LA,PH,VN);GUN120,121,122,TGN121¥21,100202208-202307

HEADLAMP-4-BULB HALOGEN MULTI

main81560-0K261iGUN125..S..MA¥21,100202208-202309

main81560-0K261iGUN125,126,135,TGN126,136..AGTP..(L,S)..LA¥21,100202211-202310

KOITO

main81560-0K271iGUN125..LHD..L..GEN202208-202307

MOROCCO SPEC

main81560-0K271iTGN126..L..GCC;GUN125..(L,S)..GCC;GUN125..LHD..S..GEN;TGN126..S..(GCC,GEN);GUN122,TGN120,121..GCC..CBU202208-202307

HEADLAMP-4-BULB HALOGEN MULTI

main81560-0K271iGUN125,126,135,TGN136..(L,S)..BZAG202211-202310

KOITO

main81560-0K271iGUN125,126,135,TGN136..(L,S)..BZAG202211-202310

HEADLAMP-4-BULB HALOGEN MULTI,KOITO

main81560-0K281iTGN121..SA202301-202401

NIGERIA SPEC

main81560-0K281iGUN125..RHD..SA;GUN125..LHD..S..SA;GUN126,135,LAN125,TGN126,136..(L,S)..SA202301-202401

REAR FOG LAMP-WITHOUT

main81560-0K281iGUN125..RHD..SA;GUN125..LHD..S..SA;GUN126,135,LAN125,TGN126,136..(L,S)..SA202301-202401

EXPORT FROM SA

main81560-0K281iGUN125..KEN202301-202403

main81560-0K291iTGN126..L..SA202301-202401

REAR FOG LAMP-WITH

main81560-0K291iGUN122,125,TGN121..LHD..(H,L)..SA202301-202401

ALGERIA SPEC (EURO 3 REGULATION)

main81560-0K291iGUN125..GHA202301-202403

main81560-0K300iGUN125,126,135,TGN126,136..AGTP..(L,S)..LA202211-202310

VALEO

main81560-0K310iGUN125,126,135,TGN136..(L,S)..BZAG202211-202310

VALEO

main81560-0K310iGUN125,126,135,TGN136..(L,S)..BZAG202211-202310

HEADLAMP-4-BULB HALOGEN MULTI,VALEO

main81560-0K400iGUN122,125,126..IV3202208-202307

main81560-0K570iGUN125,126,13#,TGN121..(L,S)..ARL..CBU¥21,100202208-202307

main81560-0K690iGUN125,135..S..TH;TGN126..THP..H..LA;GUN126..LHD..S..GEN;GUN135..(H,L)..(GEN,PH,TH);GUN125,126,136..THP..H..(ARL,GEN,IDN,LA,PH,TH,VN)..CBU¥57,700202208-202307

ASIA COLD COUNTRY SPEC

main81560-0K690iGUN125,126..H..MA¥57,700202208-202309

main81560-0K690iGUN120,121,122..S..TH;GUN126..RHD..6F..S..GEN;GUN125,135..6FC..S..(GEN,VN)¥57,700202208-202307

HEADLAMP-LED

main81560-0K700iTGN126..H..(GCC,GEN);GGN125,GUN125,126..H..(GCC,TWN)202208-202307

main81560-0K730iGUN126..KEN202301-202403

main81560-0K740iGUN126..GHA202303-202403

81561LENS, REAR COMBINATION LAMP, LH

main81561-0K400iGUN122,125,126..IV3202208-202307

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0K261iGUN125,126,135,TGN126,136..AGTP..(L,S)..LA¥19,000202211-202310

KOITO

main81561-0K261iGUN125,TGN126..LHD..L..GEN;GUN120,121,122,TGN121,136..GEN,PH,TH;GUN125,126..RHD..(L,S)..(GEN,IND,PKN);GUN125,126,135,TGN126..(MAP,THP)..(L,S)..(IDN,LA,MA,PH,VN)¥19,000202208

main81561-0K271iTGN126..L..GCC;GUN125..(L,S)..GCC;GUN125..LHD..S..GEN;TGN126..S..(GCC,GEN);GUN122,TGN120,121..GCC..CBU202208-202307

HEADLAMP-4-BULB HALOGEN MULTI

main81561-0K271iTGN126..L..GCC;GUN125..(L,S)..GCC;GUN125..LHD..S..GEN;TGN126..S..(GCC,GEN);GUN122,TGN120,121..GCC..CBU202208-202307

MOROCCO SPEC

main81561-0K271iGUN125,126,135,TGN136..(L,S)..BZAG202211-202310

KOITO

main81561-0K271iGUN125,126,135,TGN136..(L,S)..BZAG202211-202310

HEADLAMP-4-BULB HALOGEN MULTI,KOITO

main81561-0K281iGUN125..LHD..S..SA;GUN125..RHD..(KEN,SA);GUN126,135,LAN125,TGN126,136..(L,S)..SA202301-202403

main81561-0K291iGUN125..S..GHA;GUN122,125,TGN121..LHD..(H,L)..(GHA,SA)202301-202403

main81561-0K300iGUN125,126,135,TGN126,136..AGTP..(L,S)..LA202211-202310

VALEO

main81561-0K310iGUN125,126,135,TGN136..(L,S)..BZAG202211-202310

VALEO

main81561-0K310iGUN126,136..H..BZAG202211-202310

HEADLAMP-4-BULB HALOGEN MULTI,VALEO

main81561-0K460iGUN125,TGN136..AGTP..(5F,6FC)..LA202211-202310

HEADLAMP-LED

main81561-0K470iGGN125..LA;GUN126,136..H..BZAG202211-202310

main81561-0K570iGUN125,126,13#,TGN121..(L,S)..ARL..CBU¥19,000202208-202307

main81561-0K690iGUN125,135..S..TH;TGN126..THP..H..LA;GUN126..LHD..S..GEN;GUN135..(H,L)..(GEN,PH,TH);GUN125,126,136..(INDP,MAP,MMRP,PKNP,THP)..H..(ARL,GEN,IDN,IND,LA,MA,MMR,PH,PKN,T¥48,000202208

main81561-0K700iTGN126..H..(GCC,GEN);GGN125,GUN125,126..H..(GCC,TWN)202208-202307

main81561-0K730iGGN125,GUN126,136..H..(KEN,SA)202301-202403

main81561-0K740iGUN126..GHA202303-202403

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0K260iGUN126..THP..(L,S)..LA;GUN125..RHD..(L,S)..GEN;GUN125,TGN126..LHD..L..GEN;GUN126..RHD..(INDP,PKNP,THP)..(L,S)..CBU;GUN120,121,122,136,TGN121,136..(L,S)..(ARL,GEN,PH¥1,540202208

main81555-0K260iGUN125,126,135,TGN126,136..AGTP..(L,S)..LA¥1,540202211-202310

KOITO

main81555-0K270iGUN125,126,135,TGN136..(L,S)..BZAG¥1,540202211-202310

KOITO

main81555-0K270iTGN126..L..GCC;GUN125..(L,S)..GCC;GUN125..LHD..S..GEN;TGN126..S..(GCC,GEN);GUN122,TGN120,121..GCC..CBU¥1,540202208-202307

MOROCCO SPEC

main81555-0K270iTGN126..L..GCC;GUN125..(L,S)..GCC;GUN125..LHD..S..GEN;TGN126..S..(GCC,GEN);GUN122,TGN120,121..GCC..CBU¥1,540202208-202307

HEADLAMP-4-BULB HALOGEN MULTI

main81555-0K270iGUN125,126,135,TGN136..(L,S)..BZAG¥1,540202211-202310

HEADLAMP-4-BULB HALOGEN MULTI,KOITO

main81555-0K281iGUN125..LHD..S..SA;GUN125..RHD..(KEN,SA);GUN126,135,LAN125,TGN126,136..(L,S)..SA202301-202403

main81555-0K291iGUN125..S..GHA;GUN122,125,TGN121..LHD..(H,L)..(GHA,SA)202301-202403

main81555-0K300iGUN125,126,135,TGN126,136..AGTP..(L,S)..LA202211-202310

VALEO

main81555-0K430iGUN125,135..S..TH;TGN126..THP..H..LA;GUN126..LHD..S..GEN;GUN135..(H,L)..(GEN,PH,TH);GUN125,126,136..(MMRP,PKNP,THP)..H..(ARL,GEN,IDN,LA,MMR,PH,PKN,TH,VN)..CBU¥1,940202208

main81555-0K440iTGN126..H..(GCC,GEN);GGN125,GUN125,126..H..(GCC,IND,MA,TWN)¥1,940202208-202309

main81555-0K480iGGN125,GUN126,136..H..(KEN,SA)202301-202403

main81555-0K500iGUN126..GHA202303-202403

main81565-0K310iGUN125,126,135,TGN136..(L,S)..BZAG202211-202310

VALEO

main81565-0K310iGUN125,126,135,TGN136..(L,S)..BZAG202211-202310

HEADLAMP-4-BULB HALOGEN MULTI,VALEO

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040¥110

90105T0151

main90105-T0151¥60

16 parts on this diagram · 4 diagrams in section
