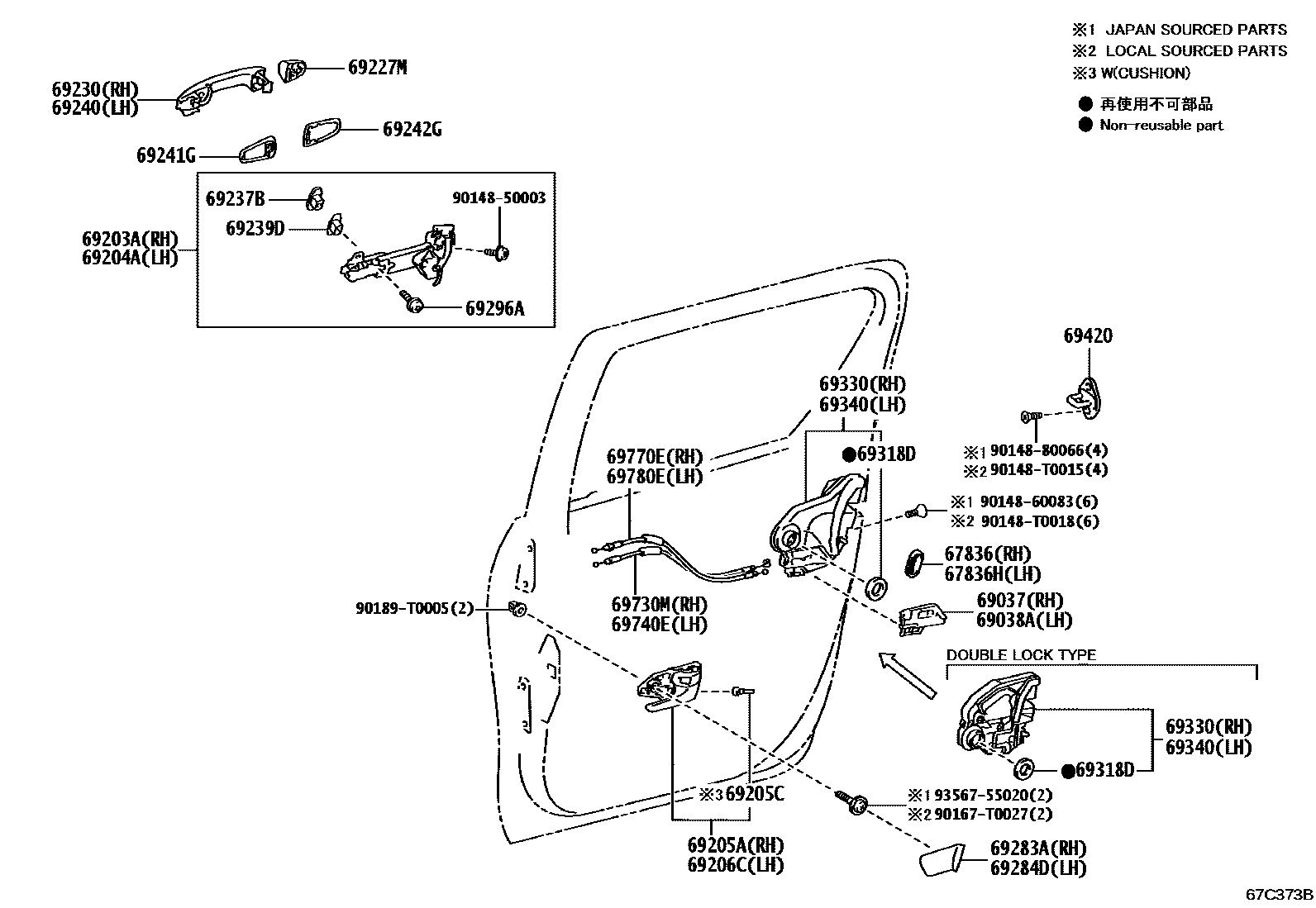

REAR DOOR LOCK & HANDLE
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
main67836-02030iGUN122,TGN121;TGN126..L..SA;GUN125..LHD..H..GEN;GUN125..S..(GEN,IDN);GUN125..THP..(GCC,LA,PH,TH,VN);GUN125..RHD..(KENP,SAP,THP)..(H,L);GUN125,135,LAN125..LHD..L..(G202208-202403
(J)
main67836-0K030iGUN126..GHA,KEN;GUN126..LHD..SA;GUN125..6F..L..GCC;TGN121,126..L..(GCC,SA);GUN126,LAN125..(L,S)..SA;GUN125,TGN126..LHD..S..(GHA,SA);GUN122,126,135..LHD..(SAP,THP)..202208-202403
(L)
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
main67836-02030iGUN122,TGN121;TGN126..L..SA;GUN125..LHD..H..GEN;GUN125..S..(GEN,IDN);GUN125..THP..(GCC,LA,PH,TH,VN);GUN125..RHD..(KENP,SAP,THP)..(H,L);GUN125,135,LAN125..LHD..L..(G202208-202403
(J)
EXPORT FROM SA&POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED)),(L)
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
main69037-02040iGUN126..LHD..SA;GUN125..LHD..S..SA;GUN125,135,TGN136..(H,L)..SA;GUN122,126,LAN125,TGN121,126..(L,S)..SA202208-202401
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
main69203-0K092iGUN126..H..BZAG;TGN126..AGTP..H;GUN126..AGTP..LA;GGN125,GUN125,136,TGN136..AGTP..(H,S)202208-202310
main69203-0K110iGUN125,TGN136..AGTP..S;GUN126..AGTP..6F..S..LA;GUN126..AGTP..6FC..H..LA202211-202310
GR SPORT&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
main69204-0K110iGUN125,TGN136..AGTP..S;GUN126..AGTP..6F..S..LA;GUN126..AGTP..6FC..H..LA202211-202310
GR SPORT&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#
main69205-0K100-C1iGUN135..ARL,VN;GUN135..THP..L..LA;GUN125..LHD..S..GEN;GUN126..RHD..THP..6FC..S;GUN122,TGN126..THP..L..(LA,TH);GUN125,126..6F..S..(ARL,IDN,VN);GUN122,136,TGN126..(L,202208-202307
BLACK,TRIM2#
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
main69206-0K090-C1iGUN135..ARL,VN;GUN135..THP..L..LA;GUN125..LHD..S..GEN;GUN126..RHD..THP..6FC..S;GUN122,TGN126..THP..L..(LA,TH);GUN125,126..6F..S..(ARL,IDN,VN);GUN122,136,TGN126..(L,202208-202307
BLACK,TRIM2#
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69227MCOVER, REAR DOOR OUTSIDE HANDLE
*CR
main69227-0K200×2supersedes 69227-0K300iGUN135..(L,S)..TH;GUN125..RHD..THP..6F..S;GUN125..RHD..THP..6FC..(H,S);GUN120,122,126..RHD..S..(GEN,TH)202305-202307
*CR
main69227-0K210×2iGUN125..(L,S)..(ARL,MA,PH);GUN125..THP..L..(GEN,IDN,LA);GUN121,TGN126..(L,S)..(GEN,TH);GUN135,TGN126..THP..L..(ARL,LA,VN);GUN120,122,126,TGN121,136..L..(ARL,GEN,LA,202208
BLACK MATERIAL
main69227-0K230×2iGUN125..L..GHA;GUN122,125,126,135,LAN125,TGN121,126,136..(L,S)..(KEN,SA)202301-202403
BLACK MATERIAL
BLACK MATERIAL
PLATED
LESS COLOR,GR SPORT&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SUPER WHITE 2,040
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SILVER ME.,1D6
GR SPORT WIDE TREAD&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY,ATTITUDEBLACK MC.
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,DK. BLUE MC.,8X8
GR SPORT&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY,ATTITUDE BLACK MC.
LESS COLOR,EXPORT FROM SA&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,PLANT ASSB
MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PLATED
main69210-0K200supersedes 69210-0K300iGUN135..L..TH;TGN120,121..GCC;TGN126..AGTP..H;GUN135..THP..(H,S);GUN126..S..(GEN,LA);GUN122,125,TGN126..L..GCC;TGN126..THP..(H,S)..(GCC,LA);GUN126,136..(AGTP,MMRP,P202208
PLATED
NO PAINT REQ.
PLATED
main69210-0K250iGUN125..L..GHA;GUN122,125,126,135,LAN125,TGN121,126,136..(L,S)..(KEN,SA)202301-202403
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
PAINT REQ.
PAINT REQ.
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SUPER WHITE 2,040
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SILVER ME.,1D6
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,ATTITUDE BLACK MC.,218
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,DK. BLUE MC.,8X8
GR SPORT&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY,ATTITUDE BLACK MC.
PAINT REQ.,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDEHANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
PAINT REQ.,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,PLANT ASSB
main69210-YP030iGUN13#..THP..6FC..H;GUN126..THP..6FC..H..LA;GUN126..6FC..H..(BZAG,GEN,MMR,TWN);GUN125,126,135..6F..H..(ARL,GCC,GEN,LA,PH)202208-202310
NO PAINT REQ.,MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
NO PAINT REQ.,EXPORT FROM SA&MLM ADVENTURE PACKAGE
69237BNUT, REAR DOOR HANDLE
main69237-0K070×2iGUN125,TGN136..AGTP..S;GUN126..AGTP..6F..S..LA;GUN126..AGTP..6FC..H..LA202211-202310
GR SPORT&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
69239DBUSH, REAR DOOR HANDLE
main69239-0K070×2iGUN125,TGN136..AGTP..S;GUN126..AGTP..6F..S..LA;GUN126..AGTP..6FC..H..LA202211-202310
GR SPORT&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PLATED
main69210-0K200supersedes 69210-0K300iGUN135..L..TH;TGN120,121..GCC;TGN126..AGTP..H;GUN135..THP..(H,S);GUN126..S..(GEN,LA);GUN122,125,TGN126..L..GCC;TGN126..THP..(H,S)..(GCC,LA);GUN126,136..(AGTP,MMRP,P202208
PLATED
NO PAINT REQ.
PLATED
main69210-0K250iGUN125..L..GHA;GUN122,125,126,135,LAN125,TGN121,126,136..(L,S)..(KEN,SA)202301-202403
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
PAINT REQ.
PAINT REQ.
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SUPER WHITE 2,040
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SILVER ME.,1D6
GR SPORT WIDE TREAD&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY,ATTITUDEBLACK MC.
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,DK. BLUE MC.,8X8
GR SPORT&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY,ATTITUDE BLACK MC.
PAINT REQ.,EXPORT FROM SA&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
PAINT REQ.,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,PLANT ASSB
NO PAINT REQ.,RUGGED X PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
NO PAINT REQ.,EXPORT FROM SA&MLM ADVENTURE PACKAGE
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69296ASCREW, DOOR INSIDE HANDLE
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)
WIRELESS DOOR LOCK-WITH
69340LOCK ASSY, REAR DOOR, LH
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)
main69060-0K120iGUN125..H..GEN;TGN126..L..GCC;GUN125,TGN121..THP..MTM..L..(GCC,LA);GUN122,126,135..LHD..THP..L..(GCC,GEN,LA)..CBU202208-202307
WIRELESS DOOR LOCK-WITH
main69060-0K130supersedes 69340-0K080iTGN126..AGTP..(L,S);GUN125,135,TGN136..L..BZAG;GUN125,126,135..AGTP..(H,S)..LA202211-202310
WIRELESS DOOR LOCK-WITH
main69340-0K070iTGN126..L..GCC;GUN125,TGN121..THP..MTM..L..(GCC,IDN,LA,PH);GUN122,126,135..LHD..THP..L..(GCC,GEN,LA,PH)202208-202307
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
90148T0015
main90148-T0015
90148T0018
main90148-T0018
90167T0027
main90167-T0027
90189T0005
main90189-T0005
9356755020
main93567-55020
35 parts on this diagram · 1 diagram in section
