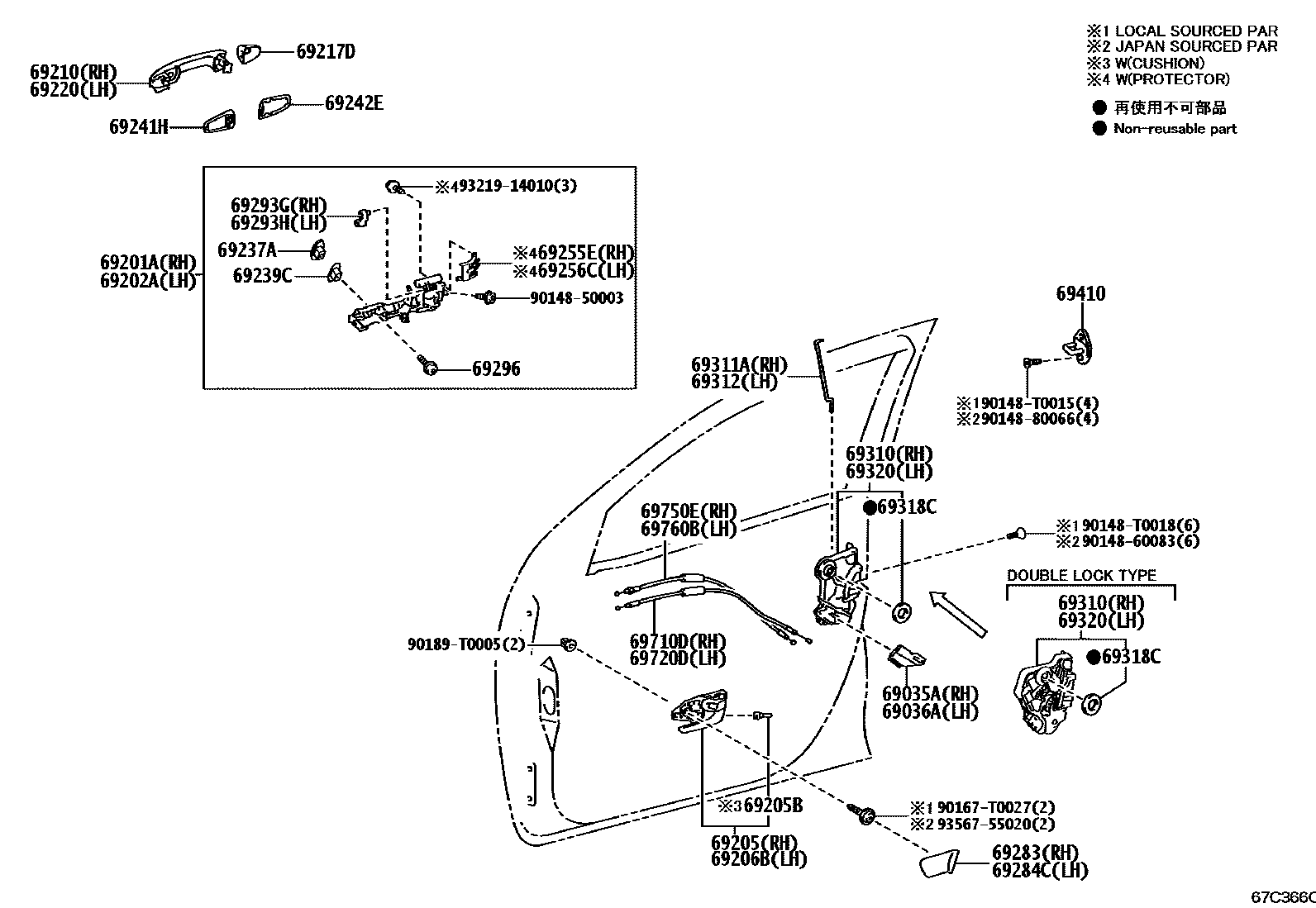

FRONT DOOR LOCK & HANDLE
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
main69036-02040iGUN126..LHD..SA;GUN125..LHD..S..SA;GUN125,135,TGN136..(H,L)..SA;GUN122,126,LAN125,TGN121,126..(L,S)..SA202208-202401
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
MLM ADVENTURE PACKAGE
GR SPORT&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
main69201-0K160iGUN12#,13#..RHD..THP;TGN121,126..L..(ARL,GCC);GUN125..THP..6F..L..(GCC,LA,PH);GUN122,126,135..LHD..THP..L..(GCC,GEN,LA,PH)202305-202307
EXPORT FROM SA&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
EXPORT FROM SA&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
GR SPORT&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
sub69202-0K161
WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-*MB
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
BLACK,TRIM2#
DOOR TRIM-LEATHER & PAINT(SILVER)&SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
BLACK,TRIM2#
DOOR TRIM-LEATHER & PAINT(SILVER)&SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
PLATED
main69210-0K200supersedes 69210-0K300iTGN126..(H,L)..GCC;GUN122,125..MTM..L..GCC;GUN126..THP..H..(GCC,LA);TGN126..THP..S..(GCC,LA);GUN126..THP..S..(GEN,LA);GUN125..S..(GEN,IDN,TH,VN);GUN135..6F..(L,S)..202208-202307
PLATED,WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY
main69210-0K210iTGN126..5F..GEN;GUN125..LHD..L..GEN;GUN125,TGN126..THP..L..(IDN,LA,PH);GUN122,126,135,TGN121,136..LHD..THP..L..(GEN,LA,PH,VN)202208-202307
NO PAINT REQ.
PLATED
NO PAINT REQ.
NO PAINT REQ.
PAINT REQ.
PAINT REQ.
EXPORT FROM SA&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SUPER WHITE 2,040
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,PLATINUM WHITE PEARL MC.,089 ,2PS
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,CKD COLOR,000
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SILVER ME.,1D4
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,MEDIUM SILVER ME.,1F8
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,GRAY ME.,1G3
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),SILVER ME.,1D6
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),ATTITUDE BLACK MC.,218
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,CRIMSON SPARK RED ME.,3T6
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,EMOTIONAL RED 2,2SC ,3U5
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,ORANGE ME.,4R8
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,BRONZE M.M.,4T3
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,PHANTOM BROWN ME.,4W9
EXPORT FROM SA&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,OXIDE BRONZE ME.,6X1
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,NEBULA BLUE ME.,8X2
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,DK. BLUE MC.,8X8
GR SPORT&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY,ATTITUDE BLACK MC.
PAINT REQ.,EXPORT FROM SA&GR SPORT&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
NO PAINT REQ.,MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
NO PAINT REQ.,MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
NO PAINT REQ.,MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
*CR,DRIVER SIDE
*CR,PASSENGER SIDE
*CR,WIRELESS DOOR LOCK-WITH,DRIVER SIDE
main69217-0K380supersedes 69217-0K580iGUN135..L..TH;GUN135..THP..(H,S);GUN136,TGN120..H,L;GUN125..6FC..L..GCC;GUN126..S..(GEN,LA);GUN125,TGN126..(AGTP,SAP)..H;TGN126..THP..(H,S)..(GCC,LA);GGN125,GUN120,202208
*CR,PASSENGER SIDE
BLACK MATERIAL,DOOR OUTSIDE HANDLE-*MB,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE
BLACK MATERIAL,DOOR OUTSIDE HANDLE-*MB,KEY CYLINDER DRIVER SIDE ONLY,PASSENGER SIDE
BLACK MATERIAL,ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),DRIVER SIDE
BLACK MATERIAL,PASSENGER SIDE
BLACK MATERIAL,DRIVER & PASSENGER
BLACK MATERIAL,WIRELESS DOOR LOCK-WITH,PASSENGER SIDE
PLATED,PASSENGER SIDE
PLATED,DRIVER SIDE
LESS COLOR,DRIVER SIDE
LESS COLOR,GR SPORT&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),PASSENGER SIDE
LESS COLOR,DRIVER SIDE
main69217-0K920iGGN125,GUN121..THP;GUN125,135..THP..S..LA;GUN126..6FC..H..(ARL,GCC,PH,PKN,TH,VN)..CBU202208
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,PASSENGER SIDE
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SUPER WHITE 2,040,DRIVERSIDE
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SILVER ME.,1D6,DRIVER SIDE
GR SPORT WIDE TREAD&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY,ATTITUDEBLACK MC.,DRIVER SIDE
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,DK. BLUE MC.,8X8,DRIVERSIDE
GR SPORT&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY,ATTITUDE BLACK MC.,DRIVER SIDE
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SUPER WHITE 2,040,PASSENGER SIDE
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SILVER ME.,1D6,PASSENGERSIDE
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,ATTITUDE BLACK MC.,218,PASSENGER SIDE
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,DK. BLUE MC.,8X8,PASSENGER SIDE
GR SPORT&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY,ATTITUDE BLACK MC.,PASSENGER SIDE
LESS COLOR,GR SPORT&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE
LESS COLOR,EXPORT FROM SA&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,PASSENGER SIDE
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,*DRS,PLANT ASSB
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,*PAS,PLANT ASSB
MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE
EXPORT FROM SA&MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK &PANIC BUTTON)&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY,PASSENGER SIDE
MLM ADVENTURE PACKAGE,DRIVER SIDE
MLM ADVENTURE PACKAGE,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
PLATED
main69210-0K200supersedes 69210-0K300iTGN126..(H,L)..GCC;GUN122,125..MTM..L..GCC;GUN126..THP..H..(GCC,LA);TGN126..THP..S..(GCC,LA);GUN126..THP..S..(GEN,LA);GUN125..S..(GEN,IDN,TH,VN);GUN135..6F..(L,S)..202208-202307
PLATED,WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY
main69210-0K210iTGN126..5F..GEN;GUN125..LHD..L..GEN;GUN125,TGN126..THP..L..(IDN,LA,PH);GUN122,126,135,TGN121,136..LHD..THP..L..(GEN,LA,PH,VN)202208-202307
NO PAINT REQ.
PLATED,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL)
NO PAINT REQ.
NO PAINT REQ.
PAINT REQ.
PAINT REQ.
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),SUPER WHITE 2,040
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),PLATINUM WHITE PEARL MC.,089
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,CKD COLOR,000
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SILVER ME.,1D4
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,MEDIUM SILVER ME.,1F8
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,GRAY ME.,1G3
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SILVER ME.,1D6
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),ATTITUDE BLACK MC.,218
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,CRIMSON SPARK RED ME.,3T6
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,EMOTIONAL RED 2,3U5
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,ORANGE ME.,4R8
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,BRONZE M.M.,4T3
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,PHANTOM BROWN ME.,4W9
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,OXIDE BRONZE ME.,6X1
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,NEBULA BLUE ME.,8X2
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,DK. BLUE MC.,8X8
GR SPORT&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY,ATTITUDE BLACK MC.
PAINT REQ.,GR SPORT&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
NO PAINT REQ.,MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
NO PAINT REQ.,MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
NO PAINT REQ.,EXPORT FROM SA&MLM ADVENTURE PACKAGE
69237ANUT, FRONT DOOR HANDLE
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
69239CBUSH, FRONT DOOR HANDLE
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69255EPROTECTOR, DOOR OUTSIDE HANDLE, RH
EXPORT FROM SA&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITHOUT
69256CPROTECTOR, DOOR OUTSIDE HANDLE, LH
WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-*MB
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
GR SPORT&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
GR SPORT&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
69296SCREW, DOOR INSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)
WIRELESS DOOR LOCK-WITH
main69310-0K100iTGN126..L..GCC;GUN125,TGN121..THP..MTM..L..(GCC,LA,PH);GUN122,126,135..LHD..THP..L..(GCC,GEN,LA,PH)202208-202307
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
main69320-0K090iTGN126..L..GCC;GUN125,TGN121..THP..MTM..L..(GCC,LA,PH);GUN122,126,135..LHD..THP..L..(GCC,GEN,LA,PH)202208-202307
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
90148T0015
main90148-T0015
90148T0018
main90148-T0018
90167T0027
main90167-T0027
90189T0005
main90189-T0005
9321914010
main93219-14010
9356755020
main93567-55020
40 parts on this diagram · 1 diagram in section
