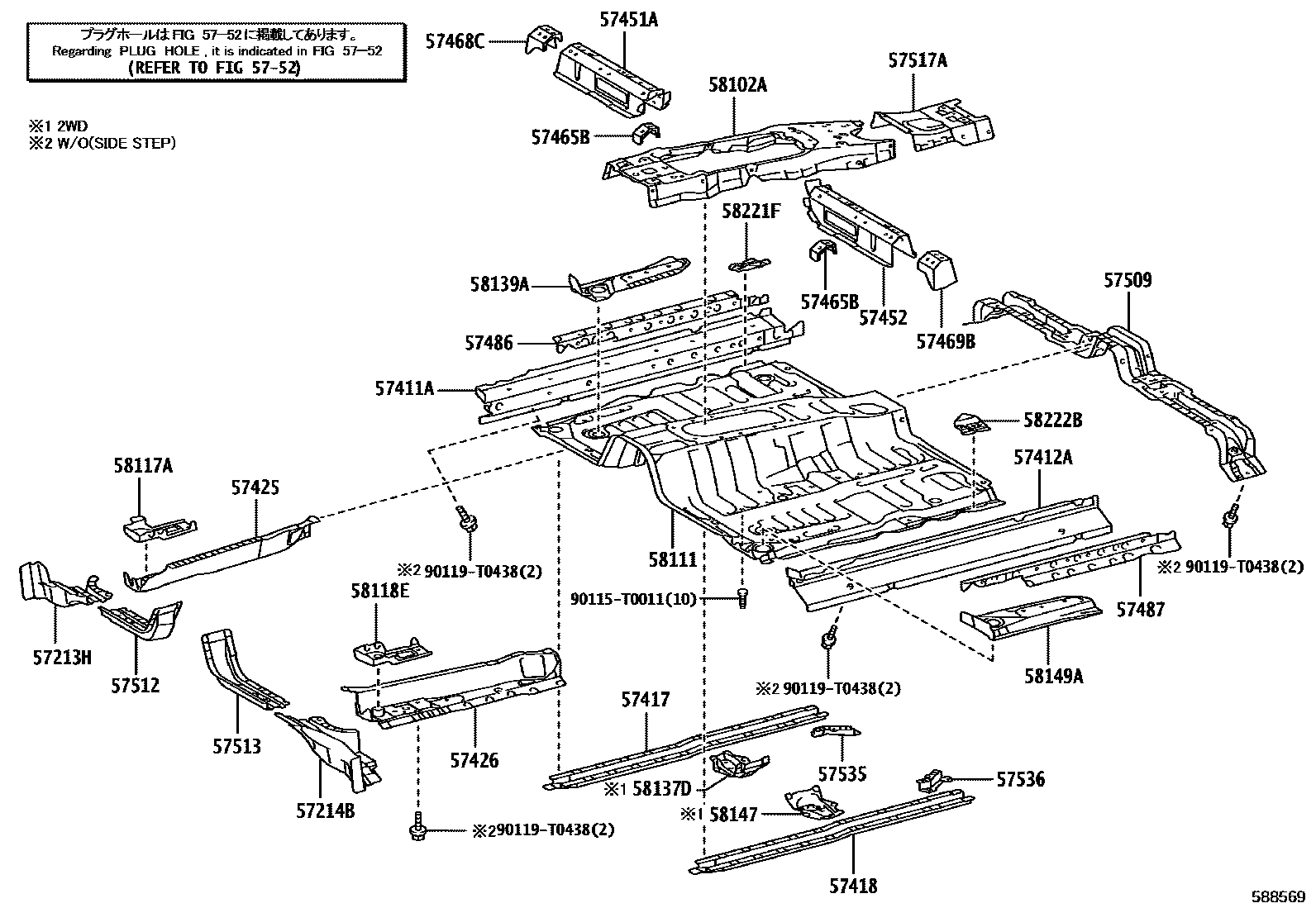

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1FLOOR PANEL 0002 1SHIFT LEVER BOOT 0003 1SIDE STEP 0004 1SIDE STEP 0005 1SIDE STEP

57213HBRACKET, BODY MOUNTING, NO.2 RH

main57213-KK010iGGN125,GUN12#,13#,LAN125,TGN12#,136202208

57214BBRACKET, BODY MOUNTING, NO.2 LH

main57214-KK010iGGN125,GUN12#,13#,LAN125,TGN12#,136202208

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-KK010iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

main57411-KK020iGGN125,GUN12#,13#,LAN125,TGN12#,136..GHAP,INDP,KENP,MAP,MMRP,PKNP,SAP,THP202208

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-KK010iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

main57412-KK020iGGN125,GUN12#,13#,LAN125,TGN12#,136..GHAP,INDP,KENP,MAP,MMRP,PKNP,SAP,THP202208

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-0K010iGGN125,GUN12#,13#,TGN12#,136..THP202208-202307

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-0K011iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..SA202208-202401

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-KK010iGGN125,GUN12#,13#,LAN125,TGN12#,136202208-202410

main57425-KK020iGUN126202411

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-KK010iGGN125,GUN12#,13#,LAN125,TGN12#,136202208-202410

main57426-KK020iGUN126202411

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-KK010iTGN121..5F..ARL;GUN136..6FC..BZAG;GUN125,126,136..ARL,IND,MA;GUN135,TGN121..6FC..(ARL,BZAG,GCC,GEN,PH,VN)202208-202310

EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)

main57451-KK030iGUN126..TWN202208-202307

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-KK010iTGN121..5F..ARL;GUN136..6FC..BZAG;GUN125,126,136..ARL,IND,MA;GUN135,TGN121..6FC..(ARL,BZAG,GCC,GEN,PH,VN)202208-202310

EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)

main57452-KK020iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..KEN,SA202301-202403

57465BBRACKET, FRONT SEAT, INNER

main57465-KK010×2iGUN125,126..MA202208-202308

57468CBRACKET, FRONT SEAT, OUTSIDE, RH

main57468-KK010iGGN125,GUN12#,13#,TGN12#,136..THP202208-202307

sub57468-KK020

57469BBRACKET, FRONT SEAT, OUTSIDE LH

main57469-KK010iGGN125,GUN125,126,13#,TGN126,136..AGTP202208-202310

sub57469-KK020

57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH

main57486-KK010iGGN125,GUN125,126,13#,TGN126,136..AGTP202208-202310

57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH

main57487-KK010iGUN126..IND,MMR202208-202309

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-KK010iGUN122,13#,TGN121,136..SA202208-202401

main57509-KK020iGGN125,GUN125,126,TGN126..THP202208-202307

57512REINFORCEMENT, FRONT FLOOR, RH

main57512-0K030iGUN126..PKN202208

57513REINFORCEMENT, FRONT FLOOR, LH

main57513-0K010iGUN126..IND,MMR202208-202309

57517ARETAINER, FRONT FLOOR REINFORCEMENT, REAR

main57517-KK010iGUN122,125,126,13#,TGN121..RHD..THP..MTM202208-202307

main57517-KK020iGUN125,126,13#,TGN126,136..AGTP..MTM202208-202310

main57517-KK030iGUN126..6FC..PKN202208

main57517-KK040iGGN125,GUN125,126,13#..AGTP..6FC202208-202310

5752

57535BRACE, FRONT FLOOR, RH

main57535-KK010iGUN126..IND,MMR202208-202309

57536BRACE, FRONT FLOOR, LH

main57536-KK010iGUN126..IND,MMR202208-202309

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-KK010iGUN122,125,126,13#,TGN121..RHD..THP..MTM202208-202307

main58102-KK020iGUN125,126,13#,TGN126,136..AGTP..MTM202208-202310

main58102-KK030iGUN126..6FC..KEN202208-202403

main58102-KK040iGGN125,GUN125,126,13#..AGTP..6FC202208-202310

58111PAN, FRONT FLOOR

main58111-KK010iGUN125..6F..MA202209-202308

main58111-KK030iGUN125,126..6FC..MA202209-202308

main58111-KK090iGUN126..6FC..KEN202208-202403

main58111-KK110iGUN125,126..6F..KEN202208-202403

main58111-KK120iGUN125..GHA202208-202403

main58111-KK130iGGN125,GUN125,126,13#..AGTP..6FC202208-202310

main58111-KK140iGUN126..6F..IND202210-202309

main58111-KK160iGUN126..6FC..IND202210-202309

main58111-KK170iGUN126..TWN202208-202307

EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)

main58111-KK150iGUN125,126..AGTP..6F..(L,S)..LA202211-202310

COLOMBIA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-KK010iTGN121..5F..ARL;GUN136..6FC..BZAG;GUN125,126,136..ARL,IND,MA;GUN135,TGN121..6FC..(ARL,BZAG,GCC,GEN,PH,VN)202208-202310

EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)

main58117-KK020iGUN126..TWN202208-202307

58118EBRACKET, JACK SET

main58118-KK010iTGN121..5F..ARL;GUN136..6FC..BZAG;GUN125,126,136..ARL,IND,MA;GUN135,TGN121..6FC..(ARL,BZAG,GCC,GEN,PH,VN)202208-202310

EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)

main58118-KK020iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..KEN,SA202301

58137DBRACKET, FRONT FLOOR HOUSING, FRONT RH

main58137-KK010iGUN13#,TGN136..AGTP202208-202310

58139APLATE, FRONT FLOOR SIDE, REAR RH

main58139-KK010iGGN125,GUN12#,13#,TGN12#,136..THP202208-202307

58147BRACKET, FRONT FLOOR HOUSING, FRONT LH

main58147-KK010iGUN13#,TGN136..AGTP202208-202310

58149APLATE, FRONT FLOOR SIDE, REAR LH

main58149-KK010iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..SA202208-202401

58221FREINFORCEMENT, FLOOR PANEL, FRONT RH

main58221-KK010iGUN125,126,13#,TGN121..ARL,TWN202208-202307

main58221-KK020iGGN125,GUN12#,13#,TGN12#,136..THP..(GCC,GEN,IDN,LA,PH,TH,VN)202208-202307

58222BREINFORCEMENT, FLOOR PANEL, FRONT LH

main58222-KK010iGUN125,126,13#,TGN121..ARL,TWN202208-202307

main58222-KK020iGGN125,GUN12#,13#,TGN12#,136..THP..(GCC,GEN,IDN,LA,PH,TH,VN)202208-202307

90115T0011

main90115-T0011

90119T0438

main90119-T0438

34 parts on this diagram · 5 diagrams in section
