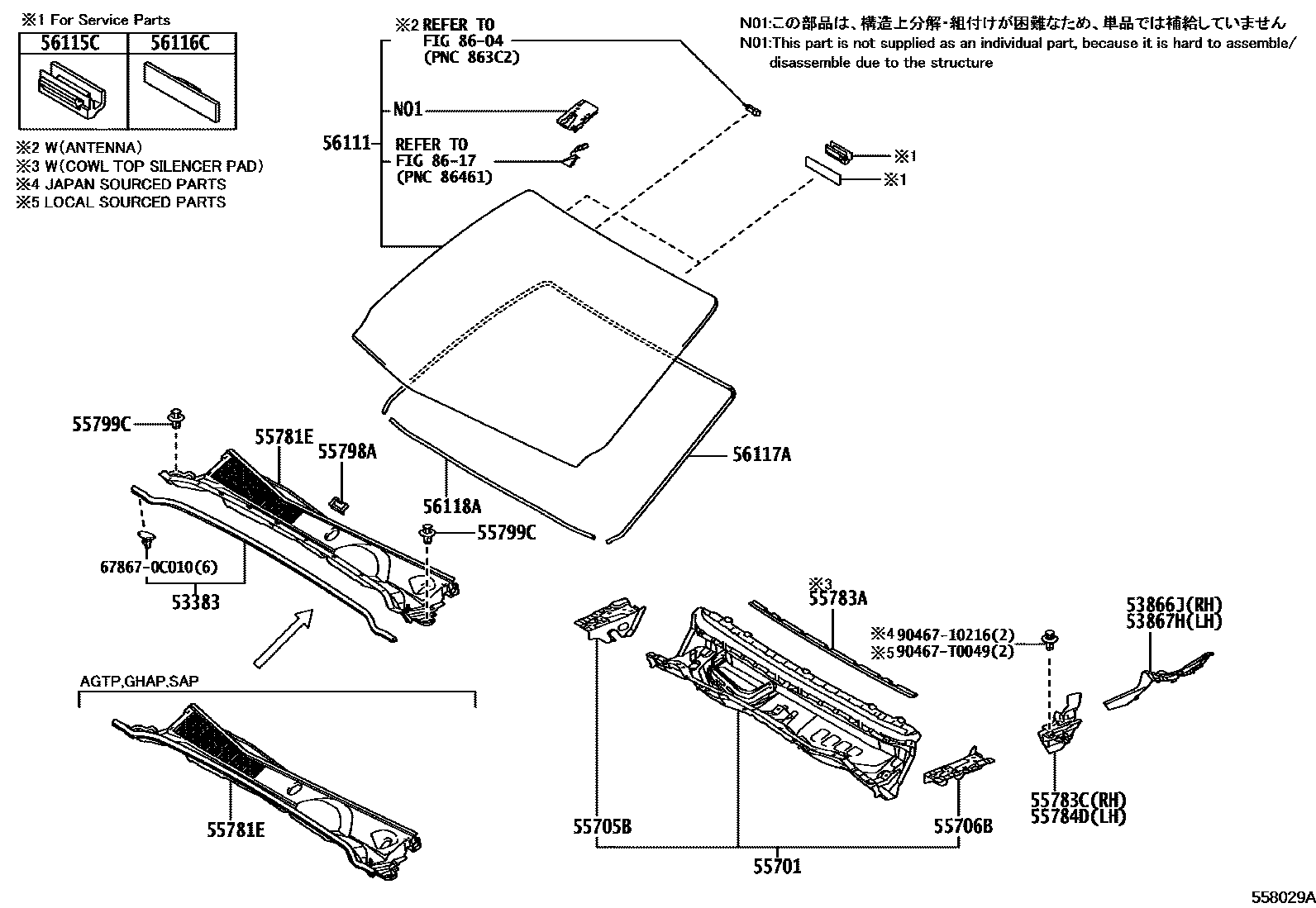

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55701PANEL SUB-ASSY, COWL
REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL
MEXICO SPEC
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55783APAD, COWL TOP SILENCER
55783CBRACKET, COWL TOP VENTILATOR LOUVER, RH
55784DBRACKET, COWL TOP VENTILATOR LOUVER, LH
55798ASUPPORT, COWL WATER EXTRACT SEAL
55799CCLIP, COWL TOP VENTILATOR LOUVER
(J)
(L)
56111GLASS, WINDSHIELD
main56101-0K342iGUN135..S..PH;GUN126..LHD..GEN;TGN126..THP..(H,L)..LA;GUN135..(H,S)..(GEN,VN);GUN122,125,TGN121,126..LHD..MTM..(GEN,VN)202208-202307
ASIA COLD COUNTRY SPEC
main56101-0K342iGUN135..S..PH;GUN126..LHD..GEN;TGN126..THP..(H,L)..LA;GUN135..(H,S)..(GEN,VN);GUN122,125,TGN121,126..LHD..MTM..(GEN,VN)202208-202307
REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL
ACTIVE SAFETY PACKAGE-WITHOUT
main56101-0K361iGUN122..(L,S)..GCC;TGN126..(H,L)..GCC;GUN126,TGN136..THP..L;TGN126..THP..S..(GCC,LA);GGN125,GUN125,TGN120,121..GCC202208-202307
MEXICO SPEC&ACTIVE SAFETY PACKAGE-WITHOUT
ACTIVE SAFETY PACKAGE-WITHOUT
ACTIVE SAFETY PACKAGE-WITHOUT
BACK GLASS-SLIDING TYPE(GREEN,*HSEA)
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-*DA(FOR EMERGING MARKET)
AUDIO-*DA(8INCH) & *BT
EXPORT FROM SA
56115CSTOPPER, WINDSHIELD GLASS
WINDSHIELD DEICER-WITH
ASIA COLD COUNTRY SPEC&WINDSHIELD DEICER-WITH
ASIA COLD COUNTRY SPEC
56116CSTOPPER, WINDSHIELD GLASS, NO.2
main56116-22050iGUN135..THP..(H,S);GUN135..THP..L..(LA,TH);GUN126..THP..S..(GEN,LA);TGN126..THP..H..(GCC,LA);GUN122,TGN126..THP..(L,S)..(GCC,GEN,LA,TH);GUN126,136..THP..(H,L)..(ARL202208-202307
ASIA COLD COUNTRY SPEC
ASIA COLD COUNTRY SPEC&WINDSHIELD DEICER-WITH
WINDSHIELD DEICER-WITH
56117ADAM, WINDOW GLASS ADHESIVE
main56117-KK060iGUN135..6FC..H;GUN125..6FC..L..GEN;GUN126,135..6F..H..PH;GUN126..LHD..6FC..H..GEN;GUN126..6FC..(GCC,PH,TH,VN)202208-202307
L=2620,WINDSHIELD DEICER-WITH
main56117-KK060iGUN135..6FC..H;GUN125..6FC..L..GEN;GUN126,135..6F..H..PH;GUN126..LHD..6FC..H..GEN;GUN126..6FC..(GCC,PH,TH,VN)202208-202401
L=2620,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
main56117-KK060iGUN135..6FC..H;GUN125..6FC..L..GEN;GUN126,135..6F..H..PH;GUN126..LHD..6FC..H..GEN;GUN126..6FC..(GCC,PH,TH,VN)202208-202307
L=2620,AUDIO-*DA(8INCH) & *BT & DAB
main56117-KK060iGUN135..6FC..H;GUN125..6FC..L..GEN;GUN126,135..6F..H..PH;GUN126..LHD..6FC..H..GEN;GUN126..6FC..(GCC,PH,TH,VN)202208-202307
L=2620,AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
main56117-KK060iGUN135..6FC..H;GUN125..6FC..L..GEN;GUN126,135..6F..H..PH;GUN126..LHD..6FC..H..GEN;GUN126..6FC..(GCC,PH,TH,VN)202208-202307
L=2620,AUDIO-*DA(FOR EMERGING MARKET) & DAB
main56117-KK060iGUN135..6FC..H;GUN125..6FC..L..GEN;GUN126,135..6F..H..PH;GUN126..LHD..6FC..H..GEN;GUN126..6FC..(GCC,PH,TH,VN)202208-202307
L=2620,MEXICO SPEC&ACTIVE SAFETY PACKAGE-WITHOUT
L=2620
L=2620,REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL
L=2620,ASIA COLD COUNTRY SPEC
L=2620,ASIA COLD COUNTRY SPEC&WINDSHIELD DEICER-WITH
L=2620,UAE SPEC&BACK GLASS-SLIDING TYPE(GREEN,*HSEA)&AUDIO-*DA(8INCH) & *BT & DAB
L=2620,UAE SPEC&BACK GLASS-SLIDING TYPE(GREEN,*HSEA)&AUDIO-*DA(FOR EMERGING MARKET) & DAB
L=2620,UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB
L=2620,UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
L=2620,MEXICO SPEC
L=2620,ACTIVE SAFETY PACKAGE-WITH
L=2620,ACTIVE SAFETY PACKAGE-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
L=2620,ACTIVE SAFETY PACKAGE-WITHOUT
L=2620,BACK GLASS-SLIDING TYPE(GREEN,*HSEA)
L=2620,BACK GLASS-SLIDING TYPE(GREEN,*HSEA)&AUDIO-*DA(8INCH) & *BT & DAB
L=2620,BACK GLASS-SLIDING TYPE(GREEN,*HSEA)&AUDIO-*DA(FOR EMERGING MARKET) & DAB
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
L=1248
L=1248,REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL
L=1248,ASIA COLD COUNTRY SPEC
L=1248,ASIA COLD COUNTRY SPEC&WINDSHIELD DEICER-WITH
L=1248,UAE SPEC&BACK GLASS-SLIDING TYPE(GREEN,*HSEA)&AUDIO-*DA(8INCH) & *BT & DAB
L=1248,UAE SPEC&BACK GLASS-SLIDING TYPE(GREEN,*HSEA)&AUDIO-*DA(FOR EMERGING MARKET) & DAB
L=1248,UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB
L=1248,UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
L=1248,MEXICO SPEC
L=1248,ACTIVE SAFETY PACKAGE-WITH
L=1248,ACTIVE SAFETY PACKAGE-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
L=1248,ACTIVE SAFETY PACKAGE-WITHOUT
L=1248,BACK GLASS-SLIDING TYPE(GREEN,*HSEA)
L=1248,BACK GLASS-SLIDING TYPE(GREEN,*HSEA)&AUDIO-*DA(8INCH) & *BT & DAB
L=1248,BACK GLASS-SLIDING TYPE(GREEN,*HSEA)&AUDIO-*DA(FOR EMERGING MARKET) & DAB
L=1248,WINDSHIELD DEICER-WITH
L=1248,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
L=1248,AUDIO-*DA(8INCH) & *BT & DAB
L=1248,AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
L=1248,AUDIO-*DA(FOR EMERGING MARKET) & DAB
L=1248,MEXICO SPEC&ACTIVE SAFETY PACKAGE-WITHOUT
8604
8617
678670C010CLIP, DOOR WEATHERSTRIP
main67867-0C010
9046710216
main90467-10216
90467T0049
main90467-T0049
22 parts on this diagram · 2 diagrams in section
