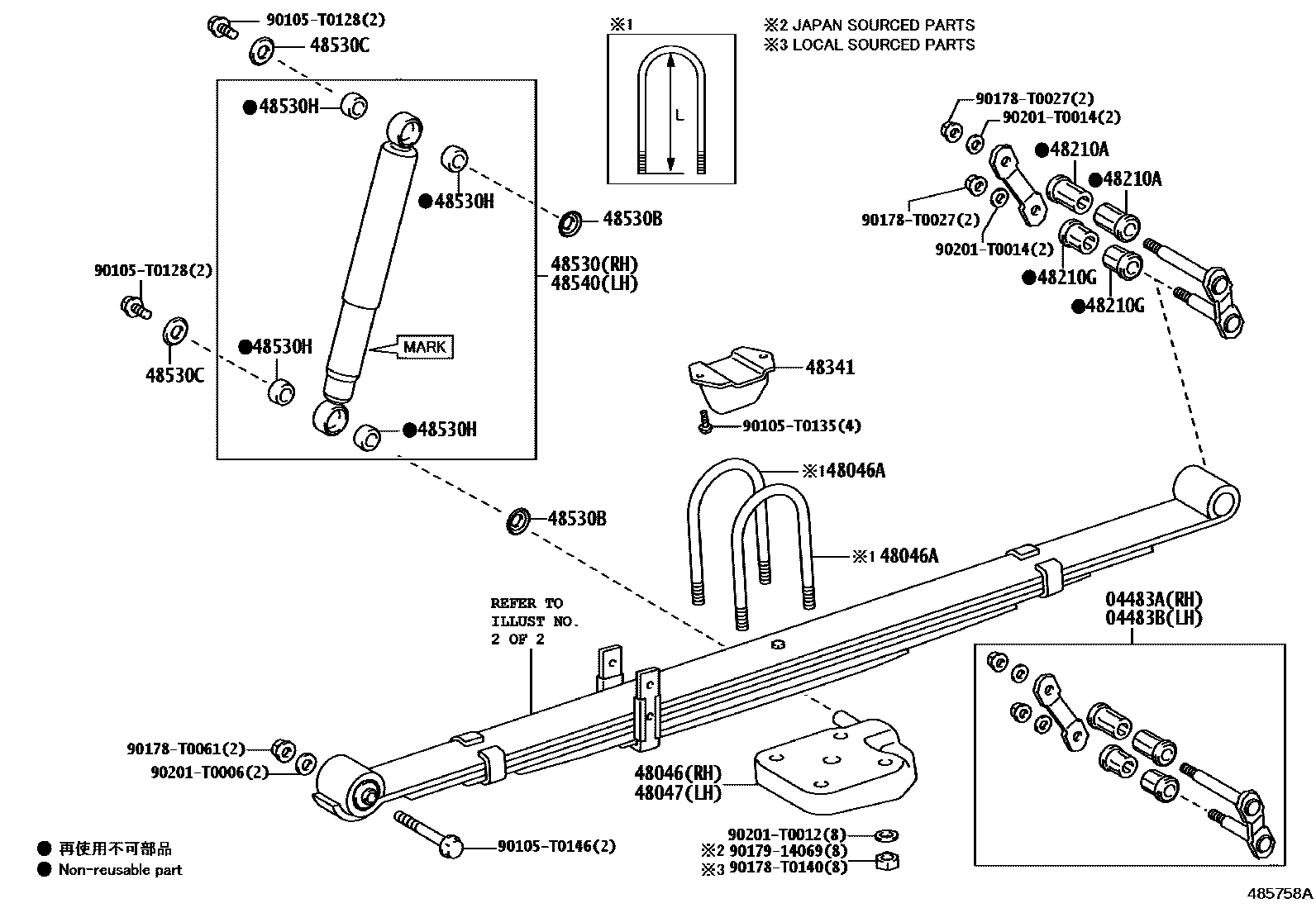

REAR SPRING & SHOCK ABSORBER
04483ASHACKLE KIT, REAR SPRING, RH
GR SPORT WIDE TREAD
MLM ADVENTURE WIDE TREAD
GR SPORT WIDE TREAD
04483BSHACKLE KIT, REAR SPRING, LH
GR SPORT WIDE TREAD
GR SPORT WIDE TREAD
MLM ADVENTURE WIDE TREAD
48046SEAT SUB-ASSY, SPRING U BOLT, RH
GR SPORT WIDE TREAD
MLM ADVENTURE WIDE TREAD
48046ABOLT, U(FOR REAR SPRING)
L=180
L=180
L=175
L=180
L=225,GR SPORT WIDE TREAD
L=225,MLM ADVENTURE WIDE TREAD
48047SEAT SUB-ASSY, SPRING U BOLT, LH
GR SPORT WIDE TREAD
MLM ADVENTURE WIDE TREAD
48210SPRING ASSY, REAR RH
5-LEAF
5-LEAF,TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&HEADLAMP LEVELING DEVICE-WITH(MANUAL)
5-LEAF,TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
5-LEAF,GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&HEADLAMP-LED
5-LEAF,TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&HEADLAMP-LED
5-LEAF
5-LEAF
5-LEAF
5-LEAF
5-LEAF,MLM ADVENTURE WIDE TREAD
5-LEAF,GR SPORT WIDE TREAD
5-LEAF,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
5-LEAF,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
5-LEAF,1 TON PAY LOAD PACKAGE
5-LEAF,ASIA COLD COUNTRY SPEC&1 TON PAY LOAD PACKAGE
5-LEAF,HEADLAMP-LED
main48210-0KC20iGUN126..LHD..S..GEN;TGN126..THP..H..(GCC,LA);GGN125,GUN125,126,13#..(INDP,MMRP,THP)..H..(ARL,GCC,GEN,IDN,IND,LA,MMR,PH,TWN,VN)202208-202309
5-LEAF
5-LEAF,GR SPORT
5-LEAF,HEADLAMP LEVELING DEVICE-WITH(AUTO)
5-LEAF
5-LEAF,HEADLAMP LEVELING DEVICE-WITH(AUTO)
5-LEAF
5-LEAF
5-LEAF,ASIA COLD COUNTRY SPEC
5-LEAF
main48210-0KC80iTGN126..L..GEN;GUN126..RHD..(INDP,THP)..S;GUN126,TGN126..THP..(L,S)..(GCC,LA);GUN125,13#,TGN136..THP..(L,S)..(ARL,GCC,GEN,IDN,LA,PH,VN)202208-202309
5-LEAF
5-LEAF,HEADLAMP-4-BULB HALOGEN MULTI
5-LEAF
5-LEAF,HEADLAMP-4-BULB HALOGEN MULTI
5-LEAF
5-LEAF
5-LEAF,ASIA COLD COUNTRY SPEC
5-LEAF
5-LEAF,ASIA COLD COUNTRY SPEC&HEADLAMP-4-BULB HALOGEN MULTI
5-LEAF,HEADLAMP-4-BULB HALOGEN MULTI
3-LEAF
5-LEAF,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
5-LEAF,GR SPORT WIDE TREAD
48210ABUSH(FOR REAR SPRING SHACKLE UPPER)
48210GBUSH(FOR REAR SPRING SHACKLE LOWER)
48341BUMPER, REAR SPRING
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-0K240,MLM ADVENTURE WIDE TREAD
MARK 48530-YY150,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
MARK 48530-YY160,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
MARK 48531-0K510
MARK 48531-0K530,TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
MARK 48531-0K530,GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
MARK 48531-0K530
MARK 48531-0K550
MARK 48531-0K640,1 TON PAY LOAD PACKAGE
MARK 48531-0K580
MARK 48531-0K590
MARK 48531-0K860
MARK 48531-0KA40
MARK 48531-0KC40,LIGHT DUTY PACKAGE
MARK 48531-0KC30
MARK 48531-0K570
MARK 48531-0K740
main48531-8Z031iGGN125,GUN125,126,TGN126..(INDP,MMRP,THP)..(ARL,GCC,GEN,IDN,IND,LA,MMR,PH,VN)202208-202308
MARK 48531-0K780
MARK 48531-0KA50
MARK 48531-0KA60
MARK 48531-YY010,GR SPORT&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
MARK 48531-YY080,GR SPORT
MARK 48531-YY080,GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
GR SPORT&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
GR SPORT&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
48530HBUSH, REAR SHOCK ABSORBER
GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48531-0K510
MARK 48531-0K530,TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
MARK 48531-0K530,GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)
MARK 48531-0K530
MARK 48531-0K550
MARK 48531-YY010,GR SPORT&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
MARK 48531-YY080,GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
MARK 48531-YY080,GR SPORT
MARK 48540-0K020,MLM ADVENTURE WIDE TREAD
MARK 48540-YY030,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
MARK 48540-YY040,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
MARK 48541-0K170,1 TON PAY LOAD PACKAGE
MARK 48541-0K330
MARK 48541-0K390
MARK 48541-0K450
MARK 48541-0K460
MARK 48541-0K550,LIGHT DUTY PACKAGE
MARK 48541-0K490
MARK 48541-0K320
MARK 48541-0K420
main48541-09500iGGN125,GUN125,126,TGN126..(INDP,MMRP,THP)..(ARL,GCC,GEN,IDN,IND,LA,MMR,PH,VN)202208-202308
MARK 48541-0K430
MARK 48541-0K470
MARK 48541-0K480
90105T0128
main90105-T0128
90105T0135
main90105-T0135
90105T0146
main90105-T0146
90178T0027
main90178-T0027
90178T0061
main90178-T0061
90178T0140
main90178-T0140
9017914069
main90179-14069
90201T0006
main90201-T0006
90201T0012
main90201-T0012
90201T0014
main90201-T0014
24 parts on this diagram · 11 diagrams in section
