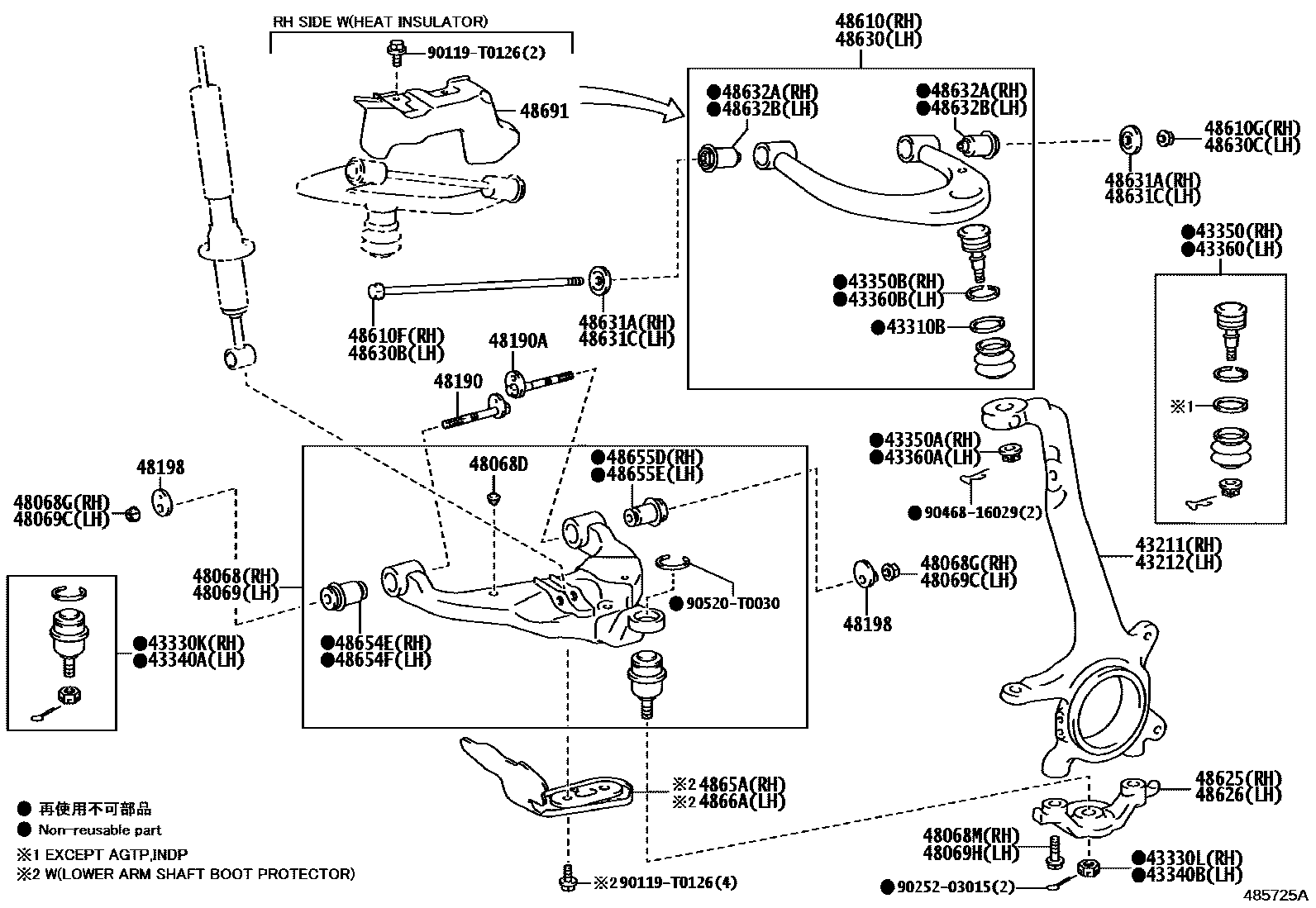

FRONT AXLE ARM & STEERING KNUCKLE

0001 1EXCEPT WIDE TREAD 0002 1WIDE TREAD 0003 1

43211KNUCKLE, STEERING, RH

main43211-KK010iGGN125,GUN125,126,13#,LAN125,TGN126,136202208

main43211-KK030iGUN120,121,122,TGN120,121202208-202401

43212KNUCKLE, STEERING, LH

main43212-KK010iGGN125,GUN125,126,13#,LAN125,TGN126,136202208

main43212-KK030iGUN120,121,122,TGN120,121202208-202401

43310BRING, SET (FOR DUST COVER)

main90580-10001iGGN125,GUN125,126,13#,TGN126,136..AGTP202208-202403

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09500iGUN126..IND202210-202309

main43330-09510iGUN125,126..MA202208-202403

main43330-09A20iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-T0003iGUN126..PKN202208-202403

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09500iGUN126..IND202210-202309

main43330-09510iGUN125,126..MA202208-202403

main43330-09A20iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-T0003iGGN125,GUN12#,13#,TGN12#,136..THP202208-202403

43350JOINT ASSY, FRONT UPPER BALL, RH

main43310-09017iGUN126..MMR202208-202403

main43310-09030iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

main43310-09040iGUN126..IND202210-202309

43350ANUT (FOR FRONT UPPER BALL JOINT RH)

main90171-T0001iGUN126..IND,MMR202208-202403

43350BRING, SNAP (FOR FRONT UPPER BALL JOINT RH)

main90520-T0029iGUN126..PKN202208-202403

43360JOINT ASSY, FRONT UPPER BALL, LH

main43310-09017iGGN125,GUN12#,13#,TGN12#,136..THP202208-202403

main43310-09030iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

main43310-09040iGUN126..IND202210-202309

43360ANUT (FOR FRONT UPPER BALL JOINT LH)

main90171-T0001iGGN125,GUN12#,13#,TGN12#,136..THP202208-202403

43360BRING, SNAP (FOR FRONT UPPER BALL JOINT LH)

main90520-T0029iGUN126..PKN202208-202403

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-0K010iGUN122,TGN121..SA202208-202401

main48068-0K090iGUN125,126..MA202208-202403

main48068-0K112iGUN126..IND202210-202309

main48068-0K121iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

48068DPLUG, HOLE(FOR FRONT SUSPENSION LOWER ARM)

main90950-T1018iGUN125,126..MA202208-202403

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90178-T0073iGGN125,GUN12#,13#,TGN12#,136..THP202208-202403

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90105-T0305iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..SA202208-202403

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-0K010iGUN120,121,122,TGN120,121..THP202208-202401

main48069-0K090iGUN125,126..MA202208-202403

main48069-0K112iGUN126..IND202210-202309

main48069-0K121iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90178-T0073iGGN125,GUN12#,13#,TGN12#,136..THP202208-202403

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90105-T0305iGUN125,126..MA202208-202403

48190CAM ASSY, CAMBER ADJUST

main48190-0K020iGUN122,TGN121..SA202208-202401

main48190-0K040iGUN126..IND,MMR202208-202403

48190ACAM ASSY, CAMBER ADJUST, NO.2

main48190-0K050iGGN125,GUN125,126,13#,TGN126,136..THP202208-202403

48198CAM, CAMBER ADJUST, NO.2

main48198-0K020iGUN120,121,122,TGN120,121..THP202208-202401

main48198-0K030iGGN125,GUN125,126,13#,TGN126,136..THP202208-202403

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-0K010iGUN122,TGN121..SA202208-202401

main48610-0K040iGUN126..6FC..TH202208-202307

GR SPORT

main48610-0K040iGUN125,126..GHA,KEN202208-202403

main48610-0K051iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

main48610-0K070iGUN125,126,135..TH202208-202307

main48610-0K090iGUN126..IND202210-202309

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main90105-T0114iGUN126..PKN202208-202403

main90119-T0348iGUN120,121,122,TGN120,121..THP202208-202401

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main90178-T0027iGGN125,GUN125,126,13#,TGN126,136..THP202208-202403

main90178-T0047iGUN122,TGN121..SA202208-202401

48625ATTACHMENT, FRONT LOWER BALL JOINT, RH

main48625-0K011iGUN120,121,122,TGN120,121202208-202212

sub48625-0K050

main48625-0K030iGUN122,TGN121..SA202301-202401

main48625-0K050iGUN120,121,122,TGN120,121..THP202301-202307

main48625-KK010iGGN125,GUN125,126,13#,LAN125,TGN126,136..SA202208-202403

sub48625-KK040

main48625-KK040iGUN126..PKN202301-202309

48626ATTACHMENT, FRONT LOWER BALL JOINT, LH

main48626-0K011iGUN120,121,122,TGN120,121202208-202212

sub48626-0K050

main48626-0K030iGUN122,TGN121..SA202301-202401

main48626-0K050iGUN120,121,122,TGN120,121..THP202301-202307

main48626-KK010iGUN125,126..GHA,KEN202208-202403

sub48626-KK040

main48626-KK040iGGN125,GUN125,126,13#,TGN126,136..THP202301-202309

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-0K010iGUN120,121,122,TGN120,121..THP202208-202401

main48630-0K040iGUN126..PKN202208-202403

main48630-0K040iGGN125,GUN125,126,13#,TGN126,136..THP..(ARL,GCC,GEN,IDN,LA,PH,TWN,VN)202208-202307

GR SPORT

main48630-0K051iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

main48630-0K070iGUN125,126,135..TH202208-202307

main48630-0K090iGUN126..IND202210-202309

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main90105-T0114iGGN125,GUN125,126,13#,TGN126,136..THP202208-202403

main90119-T0348iGUN122,TGN121..SA202208-202401

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main90178-T0027iGUN125,126..MA202208-202403

main90178-T0047iGUN120,121,122,TGN120,121..THP202208-202401

48631ARETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH)

main90948-S2001iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

main90948-T2007iGUN125,126..MA202208-202403

48631CRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH)

main90948-S2001iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

main90948-T2007iGUN126..IND,MMR202208-202403

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-0K010iGUN122,TGN121..SA202208-202401

main48632-0K040iGUN126..6FC..TH202208-202307

GR SPORT

main48632-0K040iGUN125,126..MA202208-202403

main48632-0K070iGUN125,126,135..TH202208-202307

main48632-0K090iGUN126..IND202210-202309

main48632-0K110iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-0K010iGUN120,121,122,TGN120,121..THP202208-202401

main48632-0K040iGUN126..6FC..TH202208-202307

GR SPORT

main48632-0K040iGUN126..MMR202208-202403

main48632-0K070iGUN125,126,135..TH202208-202307

main48632-0K090iGUN126..IND202210-202309

main48632-0K110iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48654-0K010iGUN120,121,122,TGN120,121..THP202208-202401

main48654-0K080iGUN125,126..GHA,KEN202208-202403

main48654-0K102iGUN126..IND202210-202309

main48654-0K150iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48654-0K010iGUN122,TGN121..SA202208-202401

main48654-0K080iGUN126..MMR202208-202403

main48654-0K102iGUN126..IND202210-202309

main48654-0K150iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

48655DBUSH, FRONT LOWER ARM, NO.2 RH

main48655-0K010iGUN120,121,122,TGN120,121..THP202208-202401

main48655-0K080iGGN125,GUN125,126,13#,TGN126,136..THP202208-202403

main48655-0K100iGUN126..IND202210-202309

main48655-0K130iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

48655EBUSH, FRONT LOWER ARM, NO.2 LH

main48655-0K010iGUN120,121,122,TGN120,121..THP202208-202401

main48655-0K080iGUN125,126..MA202208-202403

main48655-0K100iGUN126..IND202210-202309

main48655-0K130iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

4865APROTECTOR, FRONT LOWER ARM SHAFT BOOT, RH

main4865A-KK010iGUN125,126..ARL202208-202403

4866APROTECTOR, FRONT LOWER ARM SHAFT BOOT, LH

main4866A-KK010iGUN125,126..ARL202208-202403

48691INSULATOR, UPPER ARM BUSH, HEAT

main48691-KK010iGUN126..IND202208-202401

90119T0126

main90119-T0126

9025203015

main90252-03015

9046816029

main90468-16029

90520T0030

main90520-T0030

46 parts on this diagram · 3 diagrams in section
