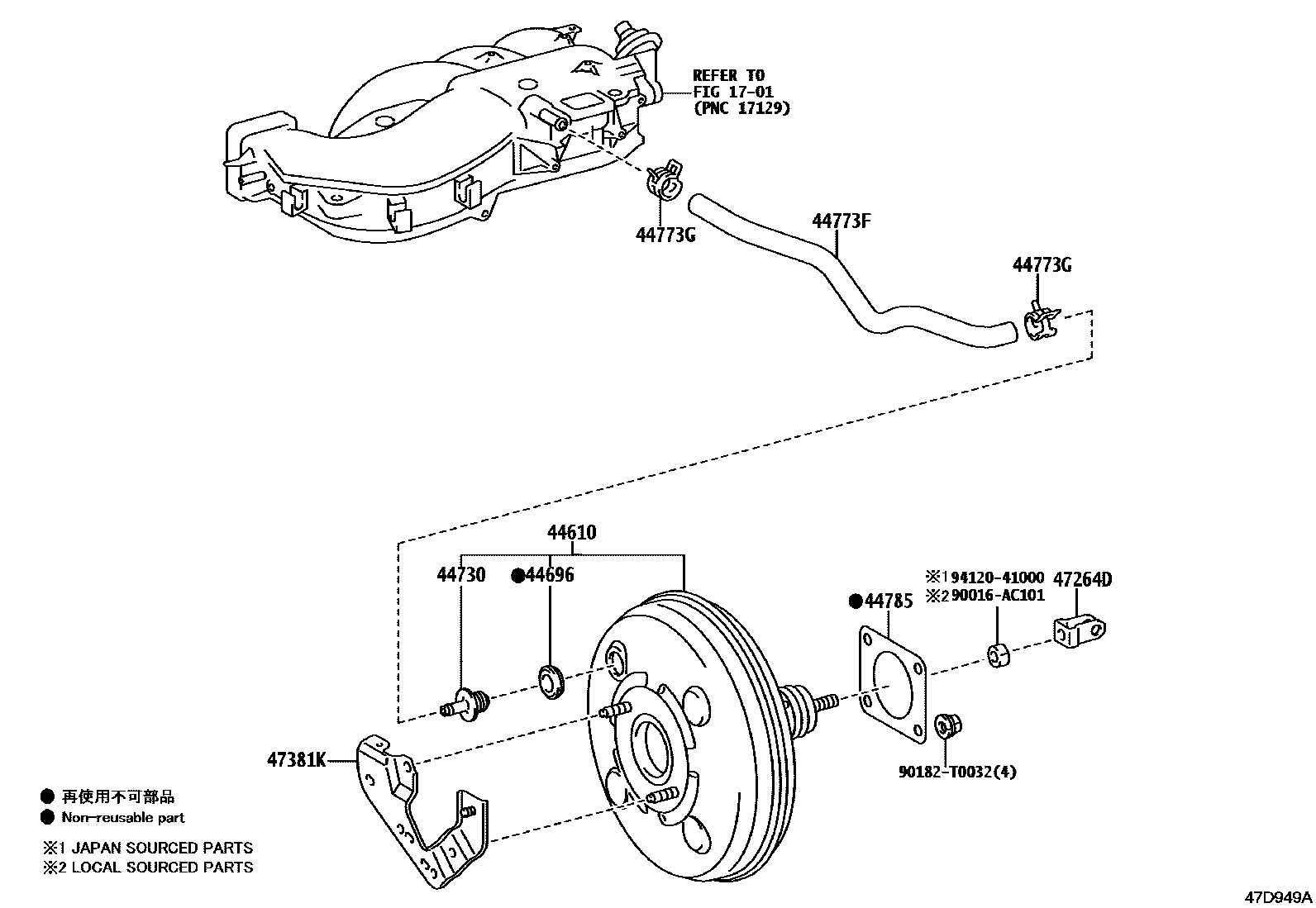

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1701

44610BOOSTER ASSY, BRAKE

main44610-0K550iGUN126..IND202210-202309

main44610-0K560iTGN12#,136..THP202208-202401

main44610-0K570iGGN125..SA202301-202401

main44610-0K580iGUN126..PKN202208-202403

main44610-0K580iGUN126..6FC..TH202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT

main44610-0K600iGUN125,126..GHA202208-202403

main44610-0K650iTGN121..SA202301-202401

VSC-WITHOUT

main44610-0K810iGGN125..GCC202208-202307

main44610-0K880iGUN135..L..TH202208-202307

TOYOTA STOP & START SYSTEM-WITH

main44610-0K880iGUN135..(H,S)..TH;GUN125,126..6F..TH202208-202307

TOYOTA STOP & START SYSTEM-WITH&VSC-WITH(*HSAC & *TSC)

main44610-71010iTGN126,136..AGTP202211-202310

main44610-71020iGGN125..LA202211-202310

main44610-71030iGUN125,126,13#..AGTP202211-202310

44696GROMMET, CHECK VALVE

main90016-AT003iTGN121,126,136..SA202208-202403

main90480-24439iTGN126,136..AGTP202210-202310

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60070iTGN12#,136..THP202208-202403

44773FHOSE, UNION TO CHECK VALVE

main44773-0K020iLAN125202301-202401

main44773-KK020iGGN125..GCC202208-202310

main44773-KK030iGUN126..IND,MMR202208-202403

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90466-T0019iGUN126..PKN202208-202403

NO.1:REFER ILLUST.

main90467-16014iGUN126..IND,MMR202208-202403

NO.2:REFER ILLUST.

44785GASKET, BRAKE BOOSTER

main44785-17010iGUN125,126..MA202208-202403

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-04010iGUN126..PKN202208-202403

main47264-0K080iGUN126..IND202210-202309

main47264-26030iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

47381KBRACKET, BRAKE BOOSTER TUBE CLAMP

main47381-0K060iGUN126..IND202210-202309

main47381-0K071iGUN126..MMR202208-202403

90016AC101

main90016-AC101

90182T0032

main90182-T0032

9412041000

main94120-41000

12 parts on this diagram · 7 diagrams in section
