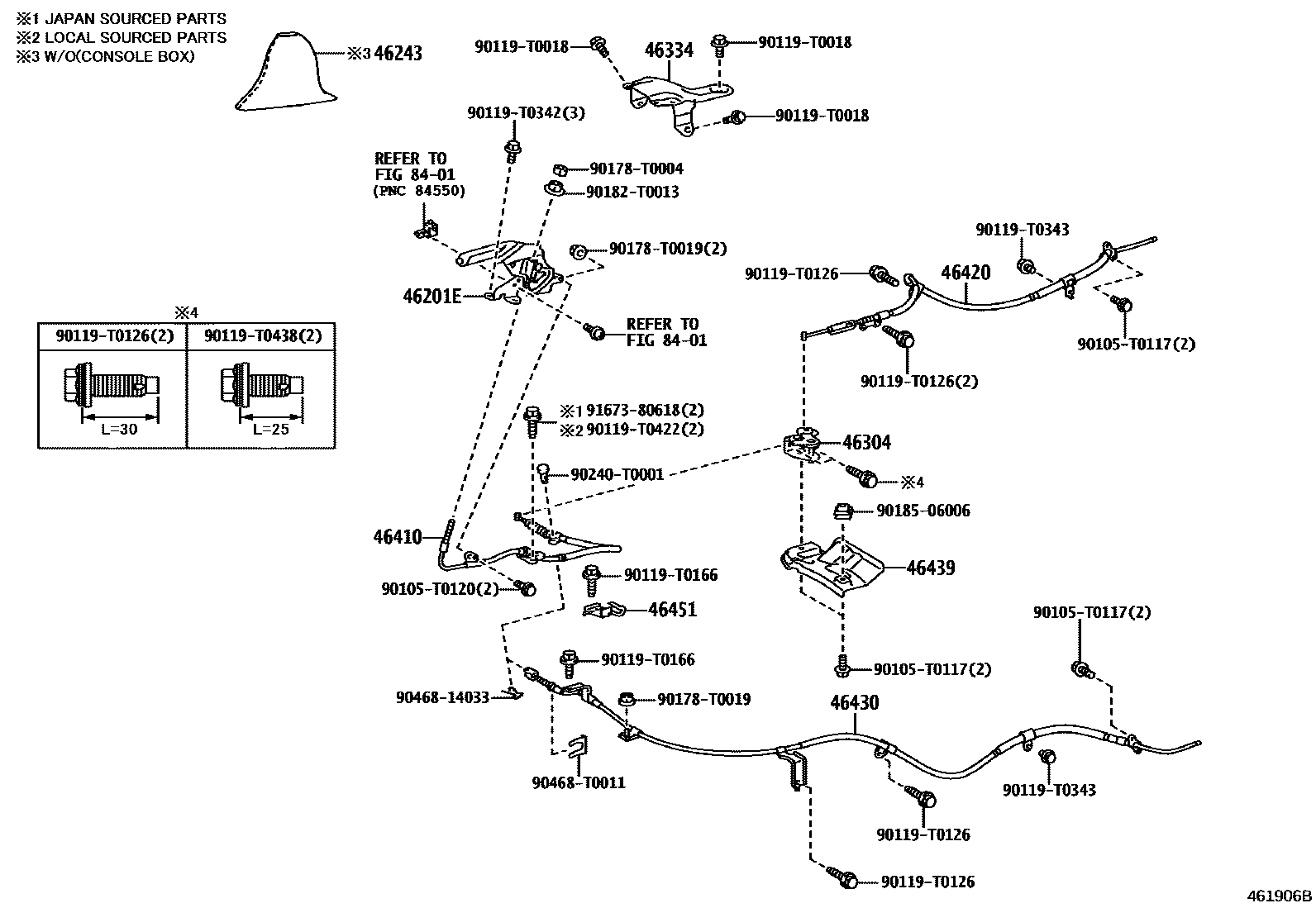

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0K140-C0iGUN126..H..IND202210-202309

BLACK,TRIM2#

main46201-0K150-C0iGUN126..S..IND202210-202309

BLACK,TRIM2#,TYPE A:REFER ILLUST.

main46201-0K190-C0iGGN125,GUN125,126,13#,TGN126,136..AGTP..(H,S)202211-202310

BLACK,TRIM2#

main46201-0K210-C0iGUN126..S..SA202301-202401

SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#

main46201-0K210-C0iGUN126..S..SA202301-202403

BLACK,TRIM2#

main46201-0K230-C0iGUN135..GEN,PH,TH;GUN126,135..LHD..THP..S..(GEN,LA);GUN120,121,122,125,TGN126..THP..(H,S)..(LA,TH);GUN125,126,136,TGN126..THP..(6F,6FC)..H..(ARL,GEN,IDN,LA,PH,TH,TW202208-202309

BLACK,TRIM2#

main46201-0K250-C0iGUN126..L..PKN202208-202308

BLACK,TRIM2#

main46201-0K250-C0iGUN126..S..IND202210-202309

BLACK,TRIM2#,TYPE B:REFER ILLUST.

main46201-0K250-C0iGGN125,GUN122,125,126,TGN12#..GCC202208-202307

BLACK,TRIM2#,3#

main46201-0K260-C0iGUN125,126,135,TGN126,136..AGTP..L202211-202310

BLACK,TRIM2#

main46201-0K280-C0iGUN125..GHA,KEN202301-202403

BLACK,TRIM2#

46243COVER, PARKING BRAKE LEVER

main46243-0K020-C0iGUN122..RHD..GEN202208-202307

BLACK,TRIM2#

main46243-0K020-C0iGUN122..RHD..GEN202208-202307

BLACK,TRIM2#,3#

main46243-0K030-C0iGUN125,135,LAN125,TGN121,126,136..L..SA202301-202403

BLACK,TRIM2#

main46243-0K030-C0iGUN125,135,LAN125,TGN121,126,136..L..SA202301-202403

FRONT SEAT-BENCH TYPE(FOR TWO PERSONS),BLACK,TRIM2#

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-0K050iGGN125,GUN125,126,13#,TGN126,136..AGTP202208-202310

main46304-0K090iGUN125,126..GHA,KEN202301-202403

46334PROTECTOR, INTERMEDIATE LEVER

main46334-0K010iGUN126..IND202209-202310

main46334-KK010iGUN126..MMR202208-202403

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0K070iGUN126..IND202210-202309

main46410-0K120iGUN126..PKN202208-202403

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0K160iGUN120,121,122,TGN120,121..THP202208-202401

main46420-0K210iGUN125,126,13#,TGN126,136..AGTP202208-202310

main46420-0K220iGUN125,126..GHA,KEN202301-202403

main46420-0K280iGGN125..LA202208-202310

main46420-0K290iTGN126..(H,S)..GEN202208-202307

ASIA COLD COUNTRY SPEC

main46420-0K300iGGN125..SA202301-202401

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0K120iGUN125..LHD..GEN;GUN125,TGN126..(5F,6FC)..L..GEN202208-202307

ASIA COLD COUNTRY SPEC

main46430-0K160iGUN120,121,122,TGN120,121..THP202208-202401

main46430-0K210iGUN125,126..MA202208-202310

main46430-0K220iGUN125,126..GHA,KEN202301-202403

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-0K060iGGN125,GUN12#,13#,TGN12#,136..THP202208-202403

46451BRACKET, CABLE SUPPORT

main46451-0K040iGGN125,GUN12#,13#,TGN12#,136..THP202208-202403

8401

90105T0117

main90105-T0117

90105T0120

main90105-T0120

90119T0018

main90119-T0018

90119T0126

main90119-T0126

90119T0166

main90119-T0166

90119T0342

main90119-T0342

90119T0343

main90119-T0343

90119T0422

main90119-T0422

90119T0438

main90119-T0438

90178T0004

main90178-T0004

90178T0019

main90178-T0019

90182T0013

main90182-T0013

9018506006

main90185-06006

90240T0001

main90240-T0001

9046814033

main90468-14033

90468T0011

main90468-T0011

9167380618

main91673-80618

27 parts on this diagram · 3 diagrams in section
