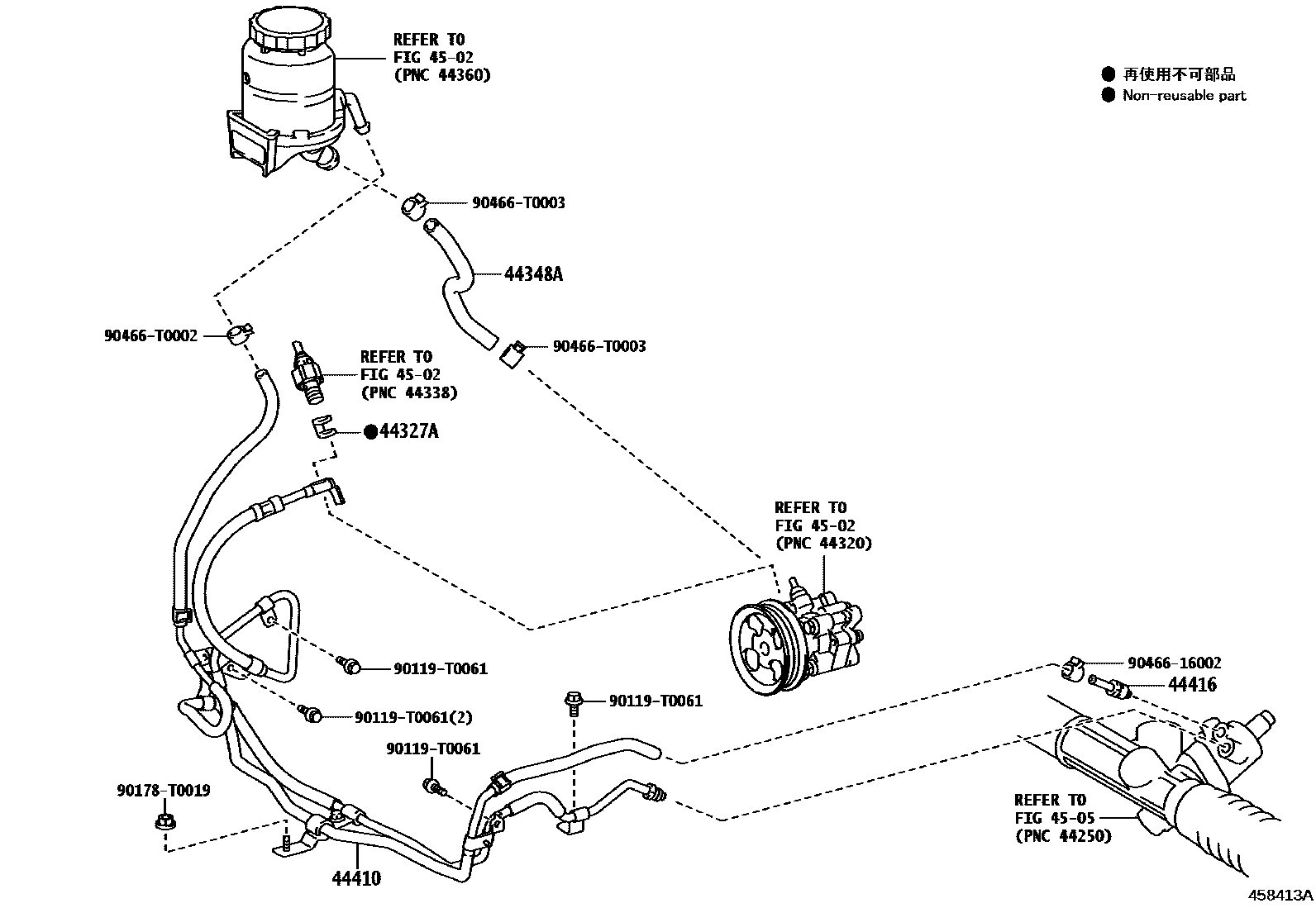

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iGUN125,126..MA¥160202208-202403

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-0K070iLAN125202301-202401

main44348-0K080iGGN125..GCC202208-202401

main44348-0K110iGUN125,126..MA¥1,400202208-202403

44410TUBE ASSY, PRESSURE FEED

main44410-0K180iTGN121..ARL202208-202307

main44410-0K200iGUN120,121,122..RHD202208-202307

main44410-0K210iTGN136..S..SA202301-202401

main44410-0K240iGGN125..GCC202208-202307

main44410-0K250iGGN125..LA202211-202310

main44410-0K271iGUN125,135..L..(IDN,TH)202208-202307

VSC-WITHOUT

main44410-0K271iGUN126..L..PKN202208

main44410-0K290iGUN126..IND202208-202403

main44410-0K290iGUN135..ARL;GUN135..(H,S)..TH;GUN125..(H,S)..IDN;GUN125,126,136..RHD..(ARL,GEN,TH)202208-202307

VSC-WITH(*HSAC & *TSC)

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-0K040iGGN125,GUN12#,13#,TGN12#,136..THP202208-202403

4502

4505

90119T0061

main90119-T0061¥80

90178T0019

main90178-T0019

9046616002

main90466-16002¥220

90466T0002

main90466-T0002¥180

90466T0003

main90466-T0003¥220

11 parts on this diagram · 9 diagrams in section
