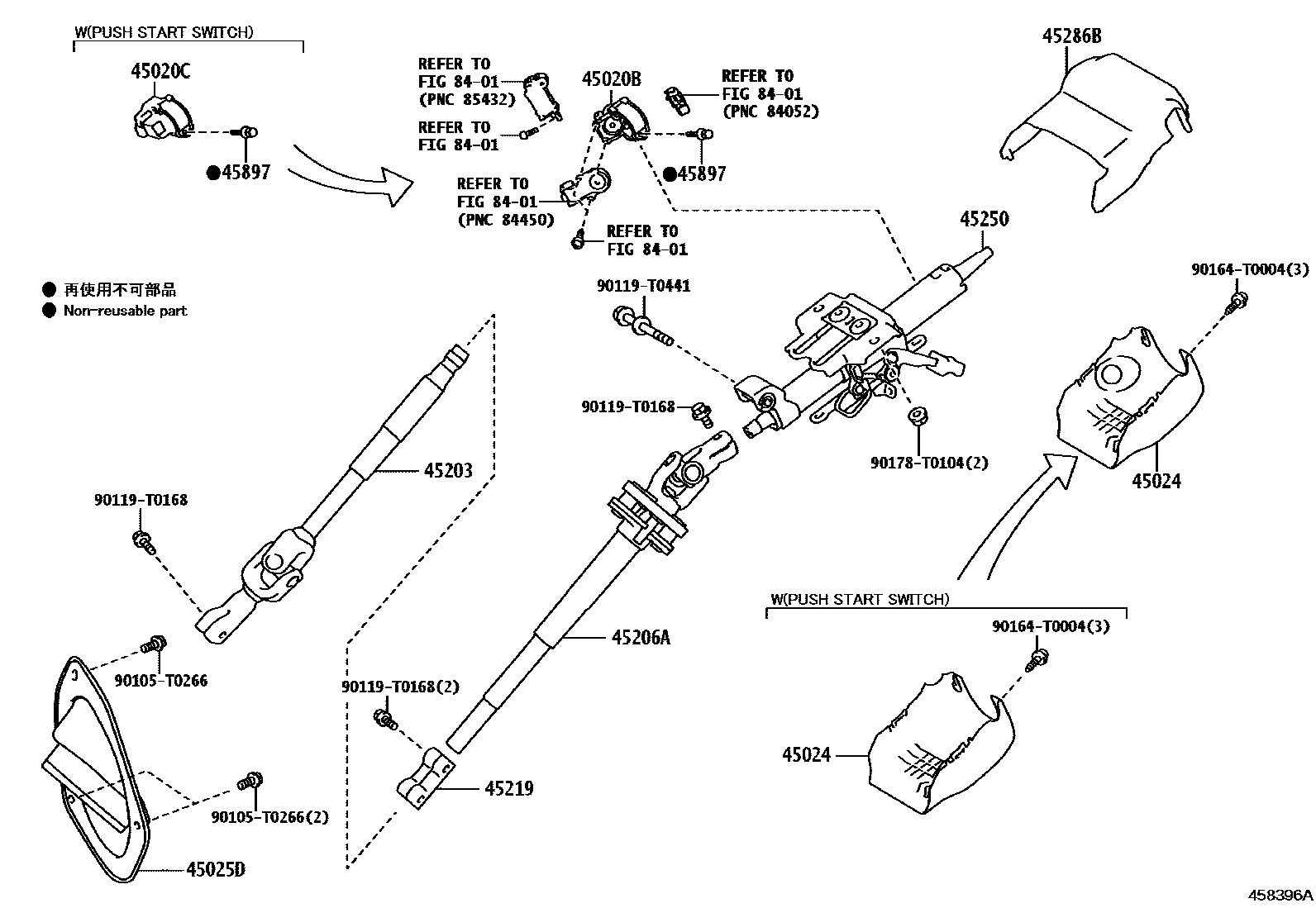

STEERING COLUMN & SHAFT
45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
main45280-0K120iGUN126,13#..THP..6FC..(L,S);GUN126..THP..6FC..H..(GCC,LA);GUN120,121,125,TGN121,126..THP..6FC202208-202307
WIRELESS DOOR LOCK-WITH
main45280-0K180iGUN126..6F..(L,S)..BZAG;GUN126,136..AGTP..6F..LA;GUN125,135,TGN126,136..AGTP..MTM..(L,S)202208-202403
main45280-0K180iTGN126..5F..H..GCC;GUN125,126..THP..6F..H..(GCC,LA);GUN122,136,TGN120,121,136..THP..MTM;GUN125,126,135,TGN126..THP..MTM..(L,S)202208-202307
WIRELESS DOOR LOCK-WITH
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
45024COVER SUB-ASSY, STEERING COLUMN, LOWER
WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
sub45024-0K011
BLACK,TRIM2#
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK),BLACK,TRIM2#
sub45024-0K031
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),BLACK,TRIM2#
sub45024-0K031
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),BLACK,TRIM2#,3#
sub45024-0K031
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM2#
sub45024-0K031
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK),BLACK,TRIM2#,3#
sub45024-0K031
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
WIRELESS DOOR LOCK-WITH(PANIC BUTTON),BLACK,TRIM2#
main45024-0K070-C0iGUN126..GHA,SA;GUN136..6FC..SA;GUN122,125,135,LAN125,TGN121,126,136..GHA,KEN,SA202301-202401
BLACK,TRIM2#
sub45024-0K071
BLACK,TRIM2#
BLACK,TRIM2#
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM2#
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM2#
sub45024-0K101
EXPORT FROM SA&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM2#
sub45024-0K101
BLACK,TRIM2#
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2
45206AYOKE SUB-ASSY, STEERING SLIDING W/COUPLING
45219YOKE, STEERING SLIDING
45250COLUMN ASSY, STEERING
main45250-0K060iGUN122..RHD..GEN;GUN125,135..GCC,VN;GUN122,126,TGN12#..GCC;GUN125,TGN126..MTM..L..(GEN,IDN)202208-202307
STEERING COLUMN-WITH(TILT)
main45250-0K070iTGN126..H..GEN;TGN126..THP..L..LA;GUN126..THP..H..LA;GUN122..LHD..L..GEN;GUN125..6F..S..(GEN,IDN);GUN125..THP..6F..(ARL,LA,PH,TH);GUN122,136..THP..(H,L)..(LA,PH,TH)202208-202307
STEERING COLUMN-WITH(TILT & TELESCOPIC,WITHOUT(*SES))
main45250-0K070iTGN126..H..GEN;TGN126..THP..L..LA;GUN126..THP..H..LA;GUN122..LHD..L..GEN;GUN125..6F..S..(GEN,IDN);GUN125..THP..6F..(ARL,LA,PH,TH);GUN122,136..THP..(H,L)..(LA,PH,TH)202208-202307
WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
45897BOLT, STEERING LOCK SET
main45897-12020iGUN126..THP..6F;GUN13#..THP..(L,S);GUN13#..THP..6F..H;GUN126..THP..6FC..S;GUN126..THP..6FC..H..(GCC,LA);GUN120,121,122,125,TGN12#,136..THP202208-202307
WIRELESS DOOR LOCK-WITH
8401
90105T0266
main90105-T0266
90119T0168
main90119-T0168
90119T0441
main90119-T0441
90164T0004
main90164-T0004
90178T0104
main90178-T0104
16 parts on this diagram · 1 diagram in section
