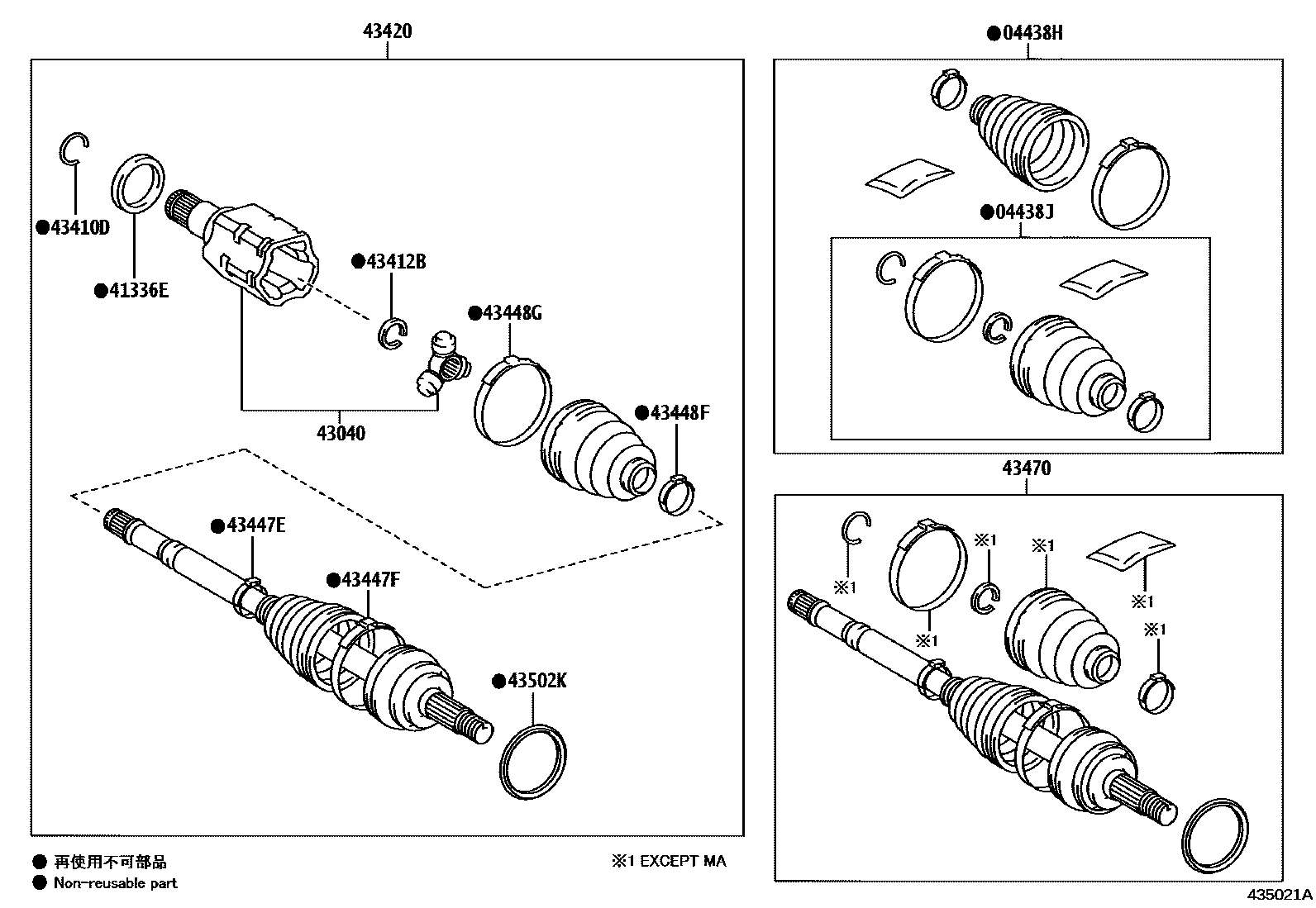

FRONT DRIVE SHAFT

0001 1LH 0002 1RH

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04427-0D581iGUN125,126..MA202209-202308

main04427-0K050iGGN125,GUN125,126,TGN126..AGTP202211-202310

main04427-0K063iGGN125,GUN125,126,TGN126..INDP,MMRP,PKNP,THP202208-202404

sub04427-0K090

main04427-0K072iGGN125,GUN125,126,LAN125,TGN126..GHA,KEN,SA202301-202403

main04427-0K090iGUN126202404

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-0D420iGUN125,126..MA202209-202308

main04437-0K050iGGN125,GUN125,126,TGN126..AGTP202211-202310

main04437-0K061iGGN125,GUN125,126,TGN126..INDP,MMRP,PKNP,THP202208

main04437-0K071iGGN125,GUN125,126,LAN125,TGN126..GHA,KEN,SA202301-202403

41336ECOVER, FRONT DRIVE SHAFT DUST, LH

main41336-0K051iGGN125,GUN125,126,TGN126..AGTP202211-202310

main41336-0K071iGGN125,GUN125,126,LAN125,TGN126..SA202301-202403

main41336-0K080iGGN125,GUN125,126,TGN126..THP202208-202309

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-0K050iGGN125,GUN125,126,TGN126..AGTP202211-202310

main43040-0K060iGUN126..PKN202208-202309

main43040-0K070iGGN125,GUN125,126,LAN125,TGN126..SA202301-202403

main43040-0K080iGUN125,126..MA202209-202308

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-0K060iGGN125,GUN125,126,TGN126..AGTP202211-202310

main43430-0K070iGUN126..PKN202208-202309

main43430-0K080iGGN125,GUN125,126,LAN125,TGN126..SA202301-202403

main43430-0K120iGUN126..AGTP..6FC..H202302-202310

GR SPORT WIDE TREAD

main43430-0K130iGUN125,126..MA202209-202308

main43430-0K160iGUN126..6FC..H..ARL..CBU202208-202307

MLM ADVENTURE WIDE TREAD

main43430-0K160iGUN126..6FC..H..ARL..CBU202301-202307

GR SPORT WIDE TREAD

43410DRING, SHAFT SNAP (FOR FRONT DRIVE SHAFT)

main43425-0K040iGGN125,GUN125,126,TGN126..THP202208-202309

main43425-0K080iGGN125,GUN125,126,TGN126..AGTP202211-202310

main43425-0K110iGUN125,126..GHA,KEN202301-202403

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-0K130iGGN125,GUN125,126,TGN126..AGTP202211-202310

main43425-0K140iGUN126..PKN202208-202309

main43425-0K150iGUN125,126..GHA,KEN202301-202403

43420SHAFT ASSY, FRONT DRIVE, LH

main43430-0K060iGGN125,GUN125,126,TGN126..AGTP202211-202310

main43430-0K070iGUN126..IND,MMR202208-202309

main43430-0K080iGGN125,GUN125,126,LAN125,TGN126..SA202301-202403

main43430-0K120iGUN126..AGTP..6FC..H202302-202310

GR SPORT WIDE TREAD

main43430-0K130iGUN125,126..MA202209-202308

main43430-0K160iGUN126..6FC..H..ARL..CBU202301-202307

GR SPORT WIDE TREAD

main43430-0K160iGUN126..6FC..H..ARL..CBU202208-202307

MLM ADVENTURE WIDE TREAD

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-0K070iGGN125,GUN125,126,TGN126..THP202208-202309

main42345-0K090iGGN125,GUN125,126,TGN126..AGTP202211-202310

main42345-0K150iGGN125,GUN125,126,LAN125,TGN126..SA202301-202403

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-0K100iGUN126..PKN202208-202309

main42345-0K120iGGN125,GUN125,126,TGN126..AGTP202211-202310

main42345-0K160iGGN125,GUN125,126,LAN125,TGN126..SA202301-202403

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-0K040iGUN126..PKN202208-202309

main42345-0K060iGGN125,GUN125,126,TGN126..AGTP202211-202310

main42345-0K140iGUN125,126..GHA,KEN202301-202403

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-0K010iGUN125,126..MA202208-202309

main42345-0K030iGGN125,GUN125,126,TGN126..AGTP202211-202310

main42345-0K130iGUN125,126..GHA,KEN202301-202403

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43460-09Y50iGGN125,GUN125,126,TGN126..AGTP202211-202310

main43460-09Y63iGGN125,GUN125,126,TGN126..INDP,MMRP,PKNP,THP202208

main43460-09Y70iGGN125,GUN125,126,LAN125,TGN126..GHA,KEN,SA202301-202403

main43460-8Z019iGUN126..AGTP..6FC..H202302-202310

GR SPORT WIDE TREAD

43502KSEAL, DUST (FOR FRONT AXLE HUB LH)

main90304-T0001iGGN125,GUN125,126,TGN126..THP202208-202403

14 parts on this diagram · 2 diagrams in section
