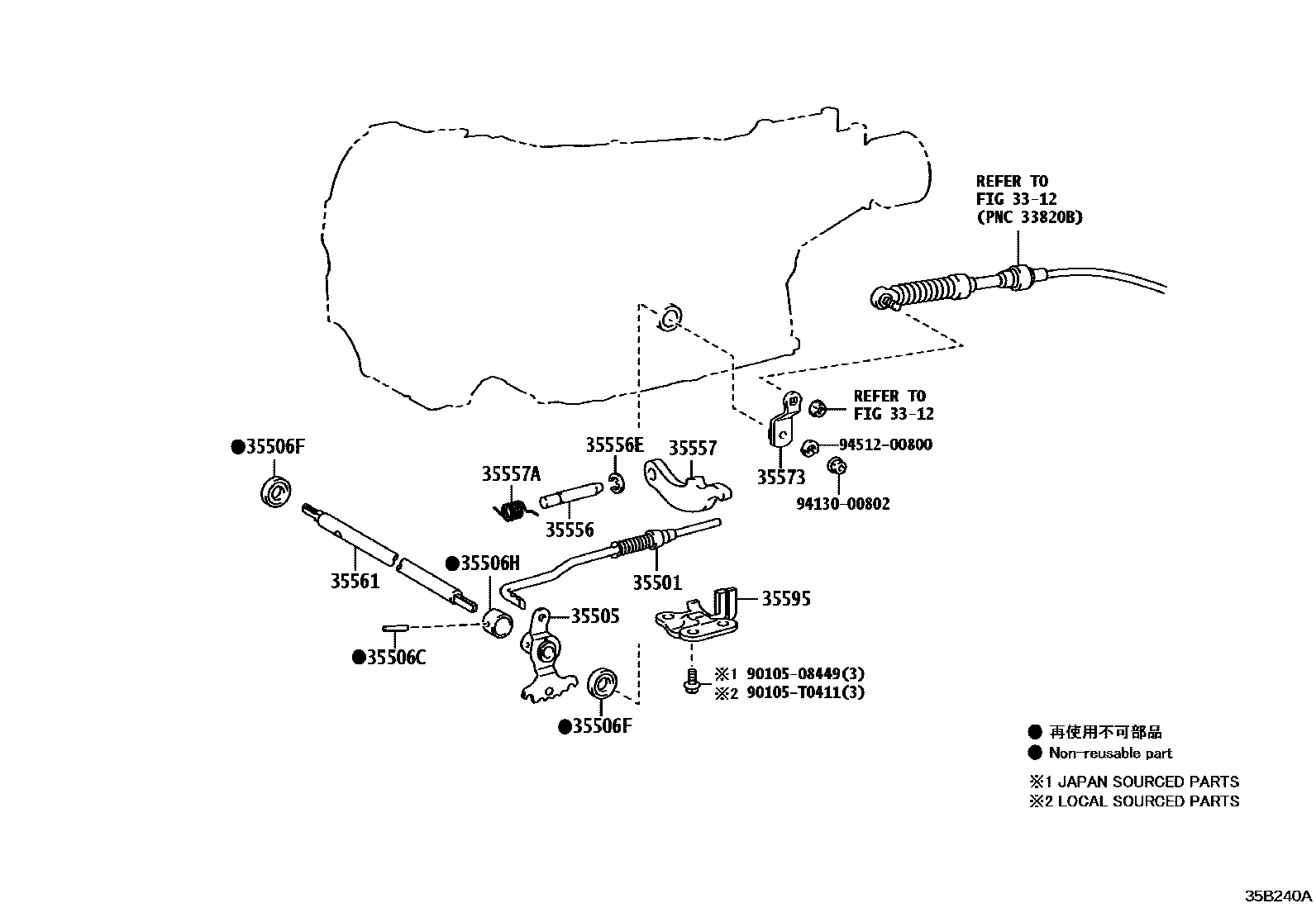

THROTTLE LINK & VALVE LEVER (ATM)

3312

35501ROD SUB-ASSY, PARKING LOCK

main35501-71020iGUN126..6FC..(IND,MMR)¥1,610202208-202403

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-71020iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC¥1,430202208-202403

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC¥160202208-202403

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iGUN126..6FC..TH¥270202208-202403

(J)

main90311-12002iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)¥270202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT,(J)

main90311-T0093iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC¥190202208-202309

(L)

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iGGN125,GUN125,126,13#..AGTP..6FC¥210202208-202403

35556SHAFT, PARKING LOCK PAWL

main35556-60020iGGN125,GUN125,126,13#..AGTP..6FC¥380202208-202403

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGUN126..6FC..PKN¥110202208-202403

35557PAWL, PARKING LOCK

main35557-71010iGGN125,GUN125,126,13#..AGTP..6FC¥2,810202208-202403

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03123iGGN125,GUN125,126,13#..AGTP..6FC¥120202208-202403

35561SHAFT, MANUAL VALVE LEVER

main35561-60030iGUN126..6FC..PKN¥1,860202208-202403

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-0K010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202208-202309

(L)

main35573-71010iGUN126..6FC..TH¥510202208-202309

(J)

main35573-71010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC¥510202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT

main35573-71010iGGN125,GUN125,126,13#..AGTP..6FC¥510202208-202403

35595BRACKET, PARKING LOCK PAWL

main35595-71010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC¥800202208-202403

9010508449

main90105-08449¥80

90105T0411

main90105-T0411

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

17 parts on this diagram · 1 diagram in section
