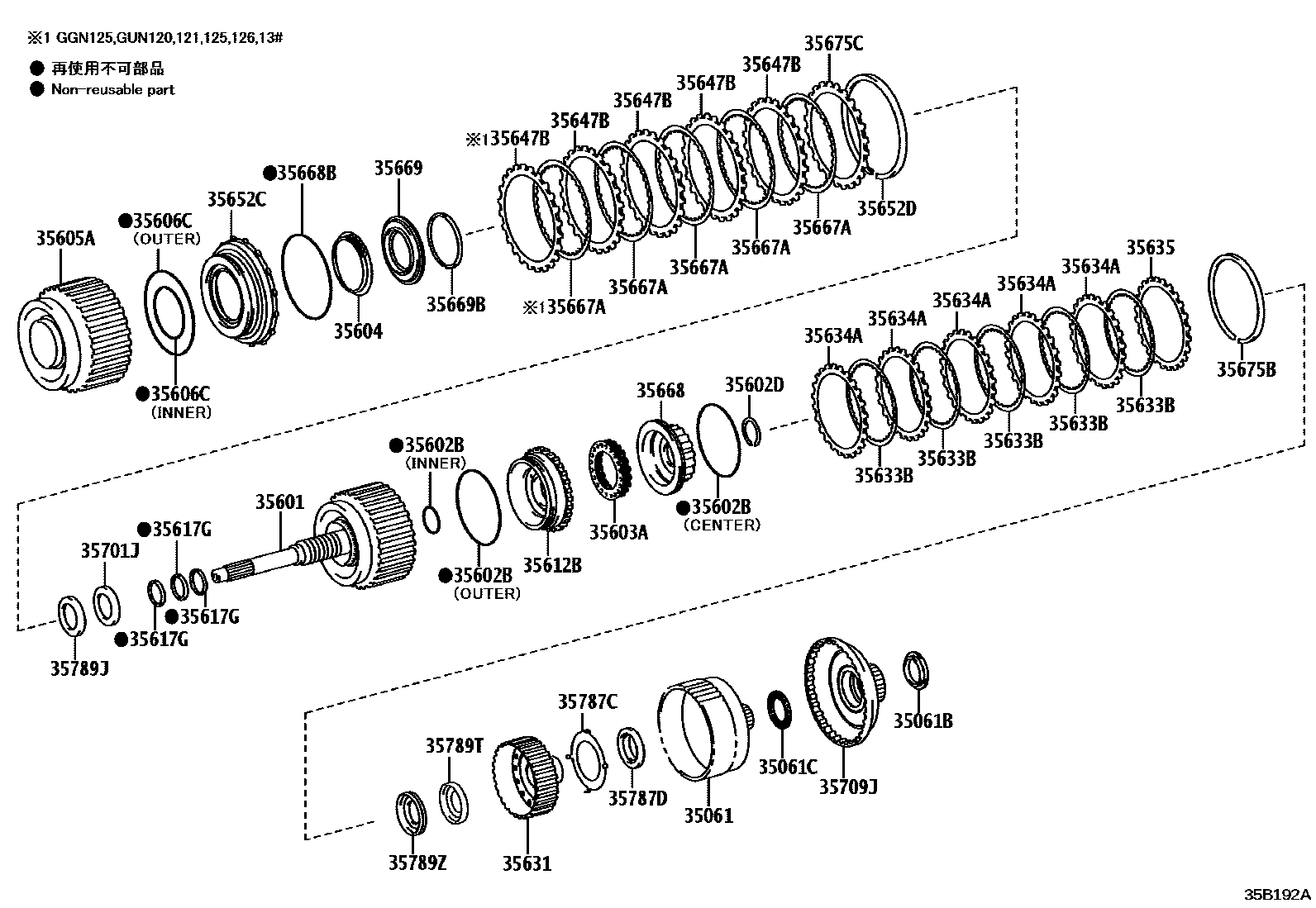

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

35061HUB SUB-ASSY, FORWARD CLUTCH

main35061-71010iGGN125,GUN125,126,13#..AGTP..6FC202208-202403

35061BRACE, THRUST BEARING(FOR FORWARD CLUTCH HOB)

main35789-71020iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202208-202403

35061CBEARING, THRUST NEEDLE ROLLER(FOR FORWARD CLUTCH HUB)

main90374-39008iGUN125,126..6FC..MA202208-202403

35601DRUM SUB-ASSY, CLUTCH

main35601-0K010iGGN125,GUN120,125,135..THP..6FC202208-202308

(L)

main35601-0K020iTGN121,126..THP..6FC202208-202307

(L)

main35601-0K030iGUN121,126,136..THP..6FC202208-202309

(L)

main35601-26020iGUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202208-202309

(J)

main35601-26020iGUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT

main35601-26020iGUN126,136..AGTP..6FC202208-202403

main35601-71030iGGN125,GUN125,135..6FC..SA202208-202401

main35601-71030iGGN125,GUN120,125,135..THP..6FC202208-202308

(J)

main35601-71040iTGN121,126..THP..6FC202208-202307

(J)

main35601-71040iTGN126..6FC..SA202301-202401

35602BRING, O (FOR FORWARD CLUTCH PISTON)

main90301-33017iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202208-202403

INNER

main90301-99096iGGN125,GUN125,126,13#,TGN126..6FC..SA202208-202403

CENTER

main90301-99145iGGN125,GUN125,126,13#,TGN126..6FC..SA202208-202403

OUTER

main90301-T0087iGUN126..MMR202208-202309

(L),OUTER

main90301-T0088iGUN125,126..6FC..MA202208-202309

(L),INNER

main90301-T0091iGUN126..MMR202208-202309

(L),CENTER

35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)

main90520-35003iGUN126..6FC..(IND,MMR)202208-202403

35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN

main35603-0K010iGUN125,126..6FC..MA202208-202309

(L)

main35603-60020iGUN126..MMR202208-202309

(J)

main35603-60020iGGN125,GUN125,126,13#..AGTP..6FC202208-202403

main35603-60020iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT

35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN

main35604-0K010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202208-202309

(L)

main35604-71010iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202208-202309

(J)

main35604-71010iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT

main35604-71010iGUN126..6FC..PKN202208-202403

35605ADRUM SUB-ASSY, DIRECT CLUTCH

main35605-0K010iGUN126..MMR202208-202309

(L)

main35605-71010iGUN126..6FC..PKN202208-202403

main35605-71010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202208-202309

(J)

main35605-71010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT

35606CRING, O (FOR DIRECT CLUTCH PISTON)

main90301-74004iGUN126..6FC..TH202208-202403

INNER

main90301-74004iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT,INNER

main90301-74004iGUN126..6FC..TH202208-202309

(J),INNER

main90301-99205iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202208-202309

(J),OUTER

main90301-99205iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT,OUTER

main90301-99205iGUN126..6FC..TH202208-202403

OUTER

main90301-T0092iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202208-202309

(L),INNER

main90301-T0093iGUN126..MMR202208-202309

(L),OUTER

35612BPISTON, FORWARD CLUTCH

main35612-0K010iGUN126..MMR202208-202309

(L)

main35612-71010iGUN125,126..6FC..MA202208-202309

(J)

main35612-71010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT

main35612-71010iGGN125,GUN125,126,13#..AGTP..6FC202208-202403

35617GRING, CLUTCH DRUM OIL SEAL

main35617-71010iGUN125,126..6FC..MA202208-202403

35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)

main35631-0K010iGUN126..MMR202208-202309

(L)

main35631-71010iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT

main35631-71010iGUN126..6FC..TH202208-202309

(J)

main35631-71010iGGN125,GUN125,126,13#..AGTP..6FC202208-202403

35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35633-71010iGUN126..6FC..(GHA,KEN)202208-202403

35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35634-71010iGGN125,GUN125,126,13#..AGTP..6FC202208-202403

T=3.0

35635FLANGE, FORWARD CLUTCH

main35635-71010iGUN125,126..6FC..MA202208-202403

T=3.0

main35635-71020iGUN126..6FC..(IND,MMR)202208-202403

T=3.1

main35635-71030iGUN126..6FC..PKN202208-202403

T=3.2

main35635-71040iGUN126..6FC..(GHA,KEN)202208-202403

T=3.3

main35635-71050iGGN125,GUN125,126,13#..AGTP..6FC202208-202403

T=3.4

main35635-71060iGUN126..6FC..(IND,MMR)202208-202403

T=3.5

main35635-71070iGGN125,GUN125,126,13#..AGTP..6FC202208-202403

T=3.6

main35635-71080iGUN125,126..6FC..MA202208-202403

T=3.7

main35635-71090iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202208-202403

T=3.8

main35635-71100iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202208-202403

T=3.9

main35635-71110iGUN126..6FC..PKN202208-202403

T=4.0

main35635-71120iGUN126..6FC..(GHA,KEN)202208-202403

T=4.1

main35635-71130iGUN126..6FC..(GHA,KEN)202208-202403

T=4.2

35647BPLATE, CLUTCH, NO.2

main35647-71010iGUN126..6FC..PKN202208-202403

35652CPISTON, DIRECT CLUTCH

main35652-0K010iGUN126..MMR202208-202309

(L)

main35652-0K020iTGN121,126..THP..6FC202208-202307

(L)

main35652-71010iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT

main35652-71010iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202208-202309

(J)

main35652-71010iGGN125,GUN125,126,13#..AGTP..6FC202208-202403

main35652-71020iTGN121,126..THP..6FC202208-202307

(J)

main35652-71020iTGN126..6FC..SA202301-202401

35652DRING, SNAP (FOR DIRECT CLUTCH PISTON)

main90520-99159iGUN126..6FC..PKN202208-202403

main90520-99159iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT

main90520-99159iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202208-202309

(J)

main90520-T0289iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202208-202309

(L)

35667ADISK, DIRECT CLUTCH

main35667-71010iTGN121,126..THP..6FC202208-202403

35668BALANCER, CLUTCH, NO.1

main35668-0K010iGUN125,126..6FC..MA202208-202309

(L)

main35668-71010iGUN126..MMR202208-202309

(J)

main35668-71010iGGN125,GUN125,126,13#..AGTP..6FC202208-202403

main35668-71010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT

35668BRING, O(FOR CLUTCH BALANCER)

main90301-99204iGGN125,GUN125,126,13#..AGTP..6FC202208-202403

main90301-99204iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202208-202309

(J)

main90301-99204iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT

main90301-T0094iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202208-202309

(L)

35669BALANCER, CLUTCH, NO.2

main35669-0K010iGUN125,126..6FC..MA202208-202309

(L)

main35669-71010iGUN126..6FC..TH202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT

main35669-71010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202208-202309

(J)

main35669-71010iGGN125,GUN125,126,13#..AGTP..6FC202208-202403

35669BRING, SNAP (FOR CLUTCH BALANCER)

main90520-68006iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT

main90520-68006iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202208-202309

(J)

main90520-68006iGGN125,GUN125,126,13#..AGTP..6FC202208-202403

main90520-T0287iGUN125,126..6FC..MA202208-202309

(L)

35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)

main90520-99158iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202208-202309

(J)

main90520-99158iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202208-202307

TOYOTA STOP & START SYSTEM-WITHOUT

main90520-99158iGGN125,GUN125,126,13#..AGTP..6FC202208-202403

main90520-T0286iGUN125,126..6FC..MA202208-202309

(L)

35675CFLANGE, DIRECT CLUTCH

main35675-71010iGUN126..6FC..(GHA,KEN)202208-202403

T=3.0

main35675-71020iGGN125,GUN125,126,13#,TGN126..6FC..SA202208-202403

T=3.1

main35675-71030iGUN126..6FC..(GHA,KEN)202208-202403

T=3.2

main35675-71040iGUN126..6FC..(GHA,KEN)202208-202403

T=3.3

main35675-71050iGGN125,GUN125,126,13#..AGTP..6FC202208-202403

T=3.4

main35675-71060iGUN126..6FC..PKN202208-202403

T=3.5

main35675-71070iGGN125,GUN125,126,13#..AGTP..6FC202208-202403

T=3.6

35701JBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)

main90374-34015iGUN126..6FC..(GHA,KEN)202208-202403

35709JDRUM SUB-ASSY, SUN GEAR INPUT

main35709-71010iGUN125,126..6FC..MA202208-202403

35787CRACE, THRUST BEARING, NO.2

main35787-60010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202208-202403

35787DBEARING, THRUST NEEDLE ROLLER

main90374-38005iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202208-202403

35789JRACE, THRUST BEARING (FOR INPUT SHAFT FRONT)

main35789-71010iGUN126..6FC..(IND,MMR)202208-202403

35789TRACE, THRUST BEARING (INPUT SHAFT REAR)

main35789-50050iGUN125,126..6FC..MA202208-202403

35789ZBEARING, THRUST NEEDLE ROLLER

main90374-21004iGUN125..6FC..MA202208-202401

main90374-21014iGUN126,136..AGTP..6FC202208-202403

33 parts on this diagram · 1 diagram in section
