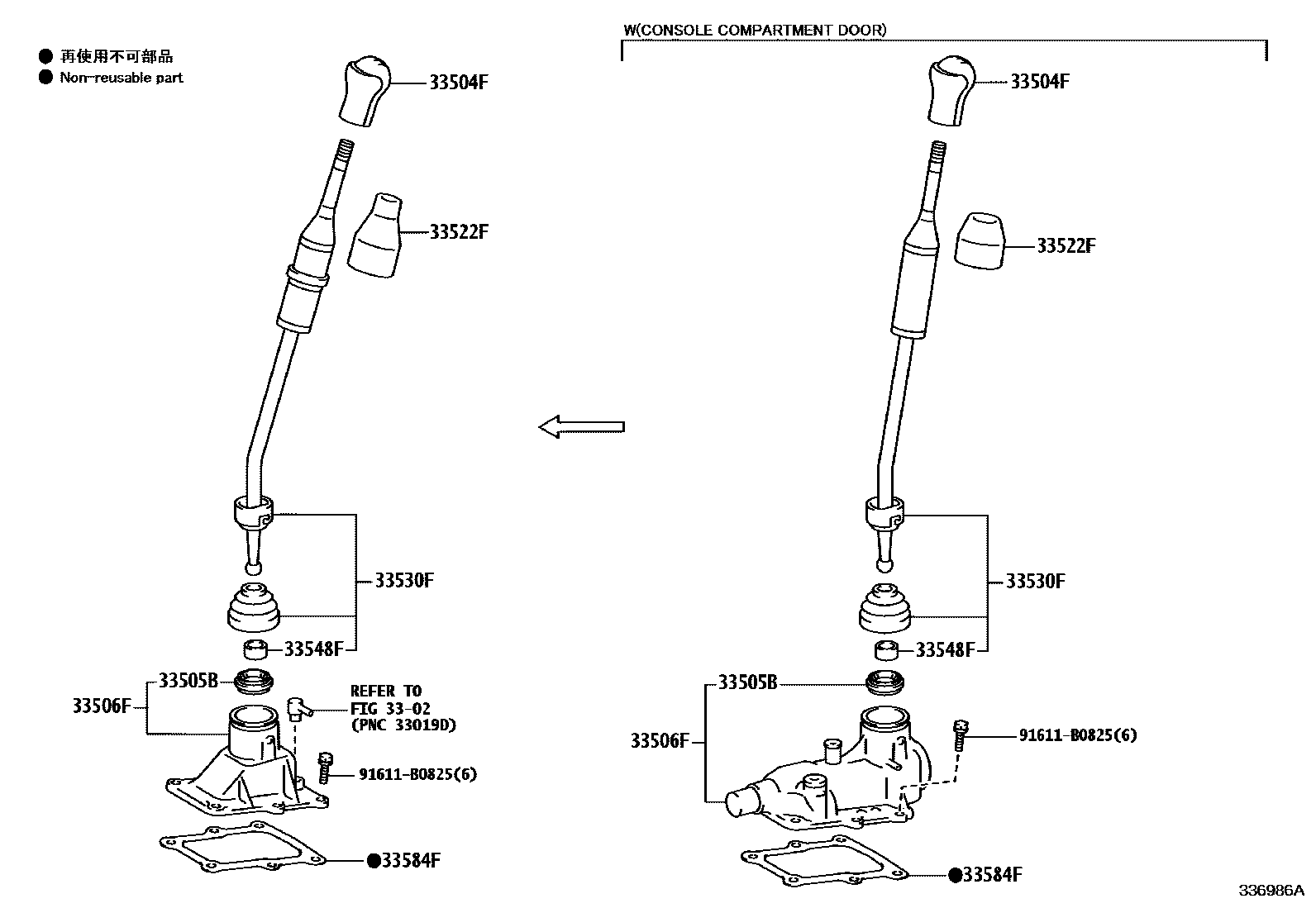

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

3302

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0K050iGUN122,TGN121,126..THP..5F..H¥5,000202208-202310

main33504-0K060-C0iTGN126..L..GEN202208-202310

BLACK,TRIM2#

main33504-0K060-C0iTGN121..5F..ARL;GUN122,TGN126..THP..S..(GEN,LA)202208-202307

ASIA COLD COUNTRY SPEC,BLACK,TRIM2#

main33504-0K090-C0iGUN125..LHD..L..GEN202208-202307

BLACK,TRIM2#,3#

main33504-0K090-C0iGUN125..LHD..L..GEN202208-202310

BLACK,TRIM2#

main33504-0K090-C0iGUN125..LHD..L..GEN202208-202307

MOROCCO SPEC,BLACK,TRIM2#

main33504-0K090-C0iGUN125..LHD..L..GEN202208-202307

ASIA COLD COUNTRY SPEC,BLACK,TRIM2#

main33504-0K101-C0iGUN122,125..S..TH;GUN126..LHD..6F..S..GEN;GUN135..6F..(H,S)..(GEN,PH,TH);GUN125,126,136..THP..6F..H..(ARL,GEN,LA,PH,TH)202208-202403

BLACK,TRIM2#

main33504-0K101-C0iGUN122,125..S..TH;GUN126..LHD..6F..S..GEN;GUN135..6F..(H,S)..(GEN,PH,TH);GUN125,126,136..THP..6F..H..(ARL,GEN,LA,PH,TH)202208-202307

STEERING WHEEL-LEATHER,BLACK,TRIM2#

main33504-0K101-C0iGUN125..LHD..S..GEN202208-202307

BLACK,TRIM2#,3#

main33504-0K121-C0iGUN126..H..PKN202208

GR SPORT,BLACK,TRIM2#

main33504-0K121-C0iGGN125,GUN125,126,TGN121,126..6FC..H..GCC202208-202307

BLACK,TRIM2#,3#

main33504-0K121-C0iGGN125,GUN125,126,TGN121,126..6FC..H..GCC202208-202403

BLACK,TRIM2#

main33504-0K121-C0iGUN126..6FC..IND202210-202309

BLACK,TRIM2#,THA SOURCED PARTS

main33504-0K131-C0iGUN125,TGN121,126..6FC..(L,S)..GCC202208-202401

BLACK,TRIM2#

main33504-0K131-C0iGUN120,135..6FC..L..TH;GUN126..THP..6FC..S..LA;GUN126..RHD..THP..6FC..S;GUN125,13#,TGN121..THP..6FC..(L,S)..(ARL,GEN,LA,VN)202208-202307

BLACK,TRIM2#,3#

main33504-0K160-C0iLAN125,TGN126,136..5F..S..SA202301-202401

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

main33504-0K160-C0iLAN125..L202301-202401

BLACK,TRIM2#

main33504-0K220-C0iGUN125..6F..MA202209-202309

BLACK,TRIM2#

main33504-0K230-C0iGUN125..KEN202301-202403

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

main33504-0K230-C0iGUN125,126,135..6F..S..SA202301-202403

BLACK,TRIM2#

main33504-0K261-C0iGUN126..6F..H..IND202210-202309

BLACK,TRIM2#

main33504-0K270-C0iGUN122,TGN12#..5F..(L,S)..GCC202208-202307

BLACK,TRIM2#,3#

main33504-0K270-C0iGUN122,TGN12#..5F..(L,S)..GCC202208-202310

BLACK,TRIM2#

main33504-0K280-C0iGUN122,LAN125,TGN121,126,136..L..SA202301-202401

BLACK,TRIM2#

main33504-0K290-C0iGUN125..6F..L..GCC202208-202307

BLACK,TRIM2#,3#

main33504-0K290-C0iGUN125,126,135..THP..6F..L..(GEN,IDN,LA)202208-202310

BLACK,TRIM2#

main33504-0K300-C0iGUN125..L..(GHA,KEN)202301-202403

BLACK,TRIM2#

main33504-0K350-C0iGUN126..6FC..IND202210-202309

BLACK,TRIM2#,IND SOURCED PARTS

33505BSEAT SUB-ASSY, SHIFT LEVER

main33505-0K010iTGN126..L..GEN202208-202401

TYPE A:REFER 33-01

main33505-0K010iTGN126..THP..5F..(H,S);GUN135..6F..(GEN,PH,TH,VN);GUN122,125,126,TGN120,121,136..THP..MTM202208-202401

TYPE B:REFER 33-01

main33505-0K010iTGN126..THP..5F..(H,S);GUN135..6F..(GEN,PH,TH,VN);GUN122,125,126,TGN120,121,136..THP..MTM202208-202307

ASIA COLD COUNTRY SPEC,TYPE B:REFER 33-01

main33505-0K010iTGN126..THP..5F..(H,S);GUN135..6F..(GEN,PH,TH,VN);GUN122,125,126,TGN120,121,136..THP..MTM202208-202310

ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01

main33505-0K010iGUN125..6F..MA202208-202403

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main33505-35030iTGN126..5F..(H,S)¥1,380202208-202305

TYPE A:REFER 33-01

main33505-35030iLAN125,TGN126..L..SA¥1,380202208-202401

TYPE B:REFER 33-01

main33505-35030iTGN126..5F..(H,S)¥1,380202302-202304

ASIA COLD COUNTRY SPEC,TYPE A:REFER 33-01

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-0K011iTGN126..5F..L202208-202305

TYPE A:REFER 33-01

main33506-0K070iGUN122,13#..THP..6F202208-202401

TYPE A:REFER 33-01

main33506-0K090iGUN136..AGTP..LA202208-202310

ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01

main33506-0K090iGUN135..AGTP..6F202208-202401

TYPE B:REFER 33-01

main33506-60061iTGN126..AGTP..L¥3,460202208-202401

TYPE B:REFER 33-01

main33570-0K030iGUN122,TGN121,136..L..SA202208-202401

TYPE B:REFER 33-01

main33570-0K040iGUN122..L..GEN;GUN122..(L,S)..(GCC,PH,SA);TGN120,121,136..LHD..5F..(L,S)..(BZAG,GCC,GEN,SA)202208-202305

TYPE A:REFER 33-01

main33570-0K051iTGN126..L..GEN202208-202305

ASIA COLD COUNTRY SPEC,TYPE A:REFER 33-01

main33570-0K051iTGN126..L..GEN202208-202305

TYPE A:REFER 33-01

main33570-0K071iTGN126..L..GEN202208-202307

ASIA COLD COUNTRY SPEC,TYPE B:REFER 33-01

main33570-0K071iLAN125,TGN126..5F..S..SA202208-202401

TYPE B:REFER 33-01

main33570-0K080iTGN121..5F..ARL;GUN122,TGN121..5F..H;GUN122,TGN136..S..(GEN,LA,SA)202208-202305

TYPE A:REFER 33-01

main33570-0K100iGUN122..S..GEN;TGN121..5F..ARL;GUN122,TGN121..5F..H202208-202401

TYPE B:REFER 33-01

main33570-0K111iGUN125..6F..MA202208-202403

TYPE A:REFER 33-01

main33570-0K121iGUN126..6F..PKN202208-202403

TYPE B:REFER 33-01

33522FSEAT, SHIFT LEVER PLATE (FOR FLOOR SHIFT)

main33522-0K010-C0iGUN122..H;TGN120,121..5F..GCC202208-202401

BLACK,TRIM2#

main33522-0K010-C0iGUN122..H;TGN120,121..5F..GCC202208-202307

BLACK,TRIM2#,3#

main33522-0K020-C0iGUN122..L..(GEN,PH)202208-202401

BLACK,TRIM2#

main33522-0K020-C0iGUN122..L..(GEN,PH)202208-202307

BLACK,TRIM2#,3#

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-0K621iTGN121..5F..H;TGN121..5F..ARL202208-202401

main33530-0K631iTGN126..AGTP..(H,S)202208-202401

main33530-0K631iTGN126..L..GEN202208-202307

ASIA COLD COUNTRY SPEC

main33530-0K641iGUN122..H;GUN122..S..GEN202208-202307

main33530-0K651iGUN122..SA202208-202401

main33530-0K671iTGN136..BZAG202208-202401

main33530-0K681iGUN122,13#..THP..6F202208-202401

main33530-0K691iGUN125,126..6F..SA202208-202403

main33530-0K731iGUN126..6F..IND202210-202309

main33530-0K741iTGN126..L..SA202208-202401

main33530-0K761iLAN125..L202301-202401

main33530-0K781iLAN125..L202301-202401

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-04010iGUN122,TGN12#,136..THP..5F202208-202401

main33548-22020iGUN126..6F..PKN¥170202208-202403

main33548-60040iGUN13#..AGTP..6F¥340202208-202401

33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)

main33584-0K010iGUN126..6F..IND202208-202403

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main33584-0K020iGUN135..AGTP..6F202208-202401

TYPE A:REFER 33-01

main33584-0K020iGUN122,135..6F..(GEN,PH,TH,VN)202208-202401

TYPE B:REFER 33-01

main33584-0K020iGUN122,135..6F..(GEN,PH,TH,VN)202208-202310

ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01

main33584-60070iTGN126..5F..(H,S)202208-202305

ASIA COLD COUNTRY SPEC,TYPE A:REFER 33-01

main33584-60070iTGN126..5F..(H,S)202208-202305

TYPE A:REFER 33-01

main33584-60070iLAN125,TGN126..5F..S..SA202208-202401

TYPE B:REFER 33-01

main33584-60070iTGN126..L..GEN202208-202307

ASIA COLD COUNTRY SPEC,TYPE B:REFER 33-01

main33584-71010iGUN122,TGN121,136..SA¥540202208-202401

TYPE B:REFER 33-01

main33584-71010iGUN122,TGN120,121,136..5F¥540202208-202305

TYPE A:REFER 33-01

91611B0825

main91611-B0825¥160

9 parts on this diagram · 8 diagrams in section
