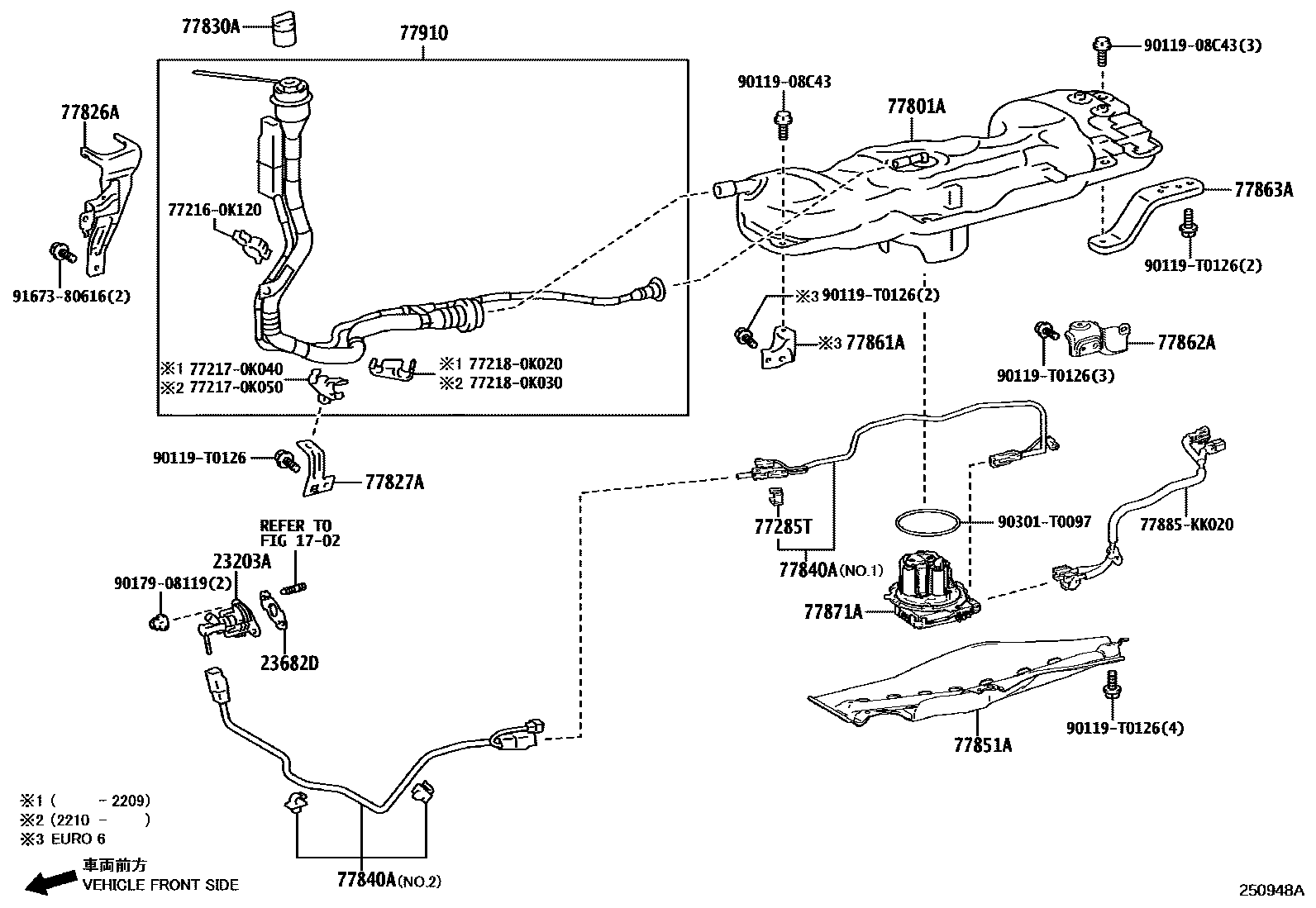

UREA TANK & TUBE
1702
23203AINJECTOR SET, UREA
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
23682DGASKET, NOZZLE HOLDER
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
77285TCLAMP, UREA TUBE, NO.1
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
77801ATANK SUB-ASSY, UREA
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
77826ASUPPORT, UREA TANK FILLER PIPE, NO.1
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
77827ASUPPORT, UREA TANK FILLER PIPE, NO.2
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
77830ACAP ASSY, UREA TANK
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
77840ATUBE ASSY, UREA W/HEATER
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),NO.2
NO.2
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),NO.1
NO.1
77851APROTECTOR, UREA TANK
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
77861ABRACKET, UREA TANK, NO.1
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
77862ABRACKET, UREA TANK, NO.2
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
77863ABRACKET, UREA TANK, NO.3
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
77871APUMP, UREA
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
sub77870-0K011
sub77870-0K011
77910PIPE ASSY, UREA TANK FILLER
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
sub77910-0K061
sub77910-0K061
772160K120COVER, FUEL PIPE
main77216-0K120
772170K040CONNECTOR, FUEL TANK INLET PIPE (FOR LPG)
main77217-0K040
772170K050CONNECTOR, FUEL TANK INLET PIPE (FOR LPG)
main77217-0K050
772180K020PLATE, FUEL INLET PIPE SET
main77218-0K020
772180K030PLATE, FUEL INLET PIPE SET
main77218-0K030
77885KK020HARNESS, UREA TANK
main77885-KK020
9011908C43
main90119-08C43
90119T0126
main90119-T0126
9017908119
main90179-08119
90301T0097
main90301-T0097
9167380616
main91673-80616
26 parts on this diagram · 1 diagram in section
