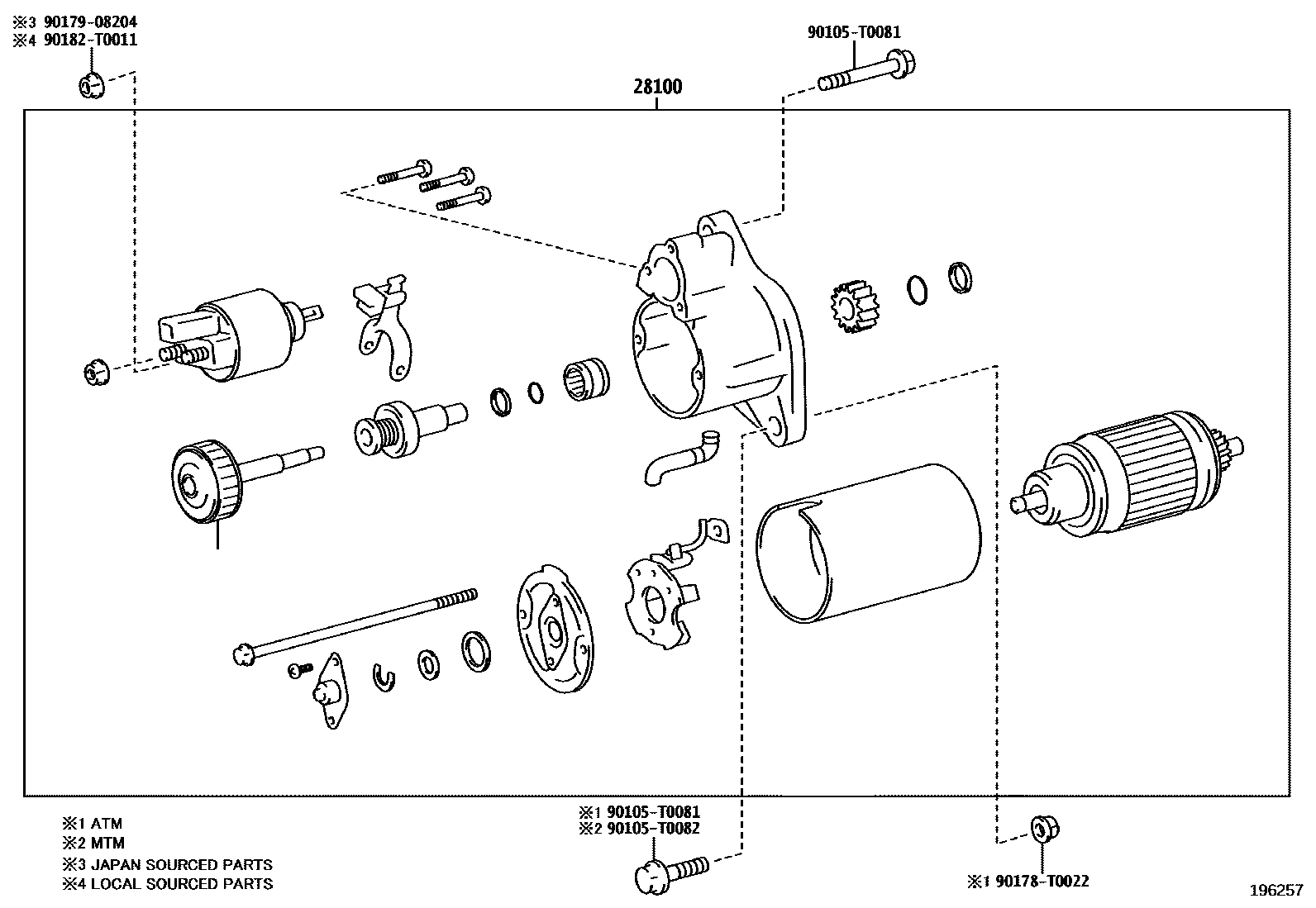

STARTER
28100STARTER ASSY
main28100-0C090i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..THP202208-202307
12V 1.6KW
12V 1.4KW
12V 1.4KW
12V 2.7KW,ASIA COLD COUNTRY SPEC&WIRELESS DOOR LOCK-WITH
12V 2.7KW,MOROCCO SPEC
12V 2.7KW,ASIA COLD COUNTRY SPEC
main28100-0L100i2GDFTV..GUN125,135..TH;2GDFTV..GUN125..H..GCC;1GDFTV..GUN126..6FC..GCC;1GDFTV..GUN126..6F..(GCC,TH)202208-202307
12V 2.4KW,TOYOTA STOP & START SYSTEM-WITH
main28100-0L100i2GDFTV..GUN125,135..TH;2GDFTV..GUN125..H..GCC;1GDFTV..GUN126..6FC..GCC;1GDFTV..GUN126..6F..(GCC,TH)202208-202307
12V 2.4KW
12V 2.4KW,TOYOTA STOP & START SYSTEM-WITH&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
12V 2.4KW,TOYOTA STOP & START SYSTEM-WITH&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
12V 2.0KW,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK),DENSO
12V 2.0KW
12V 2.0KW,DENSO
12V 2.0KW,TOYOTA STOP & START SYSTEM-WITHOUT,DENSO
12V 2.0KW,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),DENSO
12V 2.0KW,WIRELESS DOOR LOCK-WITH
12V 2.0KW
12V 1.9KW,BOSCH
12V 1.9KW,SEG
12V 1.9KW
main28100-0L262i1GDFTV..GUN126..6F..H..(ARL,GEN,PH,TH);1GDFTV,2GDFTV..GUN125,13#..H..(ARL,GEN,PH,TH);1GDFTV..GUN126..6FC..H..(ARL,GEN,MMR,PH,TWN,VN)202208-202307
12V 2.2KW,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),VALEO
main28100-0L262i1GDFTV..GUN126..6F..H..(ARL,GEN,PH,TH);1GDFTV,2GDFTV..GUN125,13#..H..(ARL,GEN,PH,TH);1GDFTV..GUN126..6FC..H..(ARL,GEN,MMR,PH,TWN,VN)202208-202307
12V 2.2KW,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK),VALEO
main28100-0L262i1GDFTV..GUN126..6F..H..(ARL,GEN,PH,TH);1GDFTV,2GDFTV..GUN125,13#..H..(ARL,GEN,PH,TH);1GDFTV..GUN126..6FC..H..(ARL,GEN,MMR,PH,TWN,VN)202208-202307
12V 2.2KW,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),VALEO
12V 2.2KW,VALEO
12V 2.2KW,TOYOTA STOP & START SYSTEM-WITHOUT,VALEO
12V 1.4KW
12V 2.2KW
12V 2.0KW
12V 2.0KW,ASIA COLD COUNTRY SPEC
90105T0081
main90105-T0081
90105T0082
main90105-T0082
90178T0022
main90178-T0022
9017908204
main90179-08204
90182T0011
main90182-T0011
6 parts on this diagram · 11 diagrams in section
