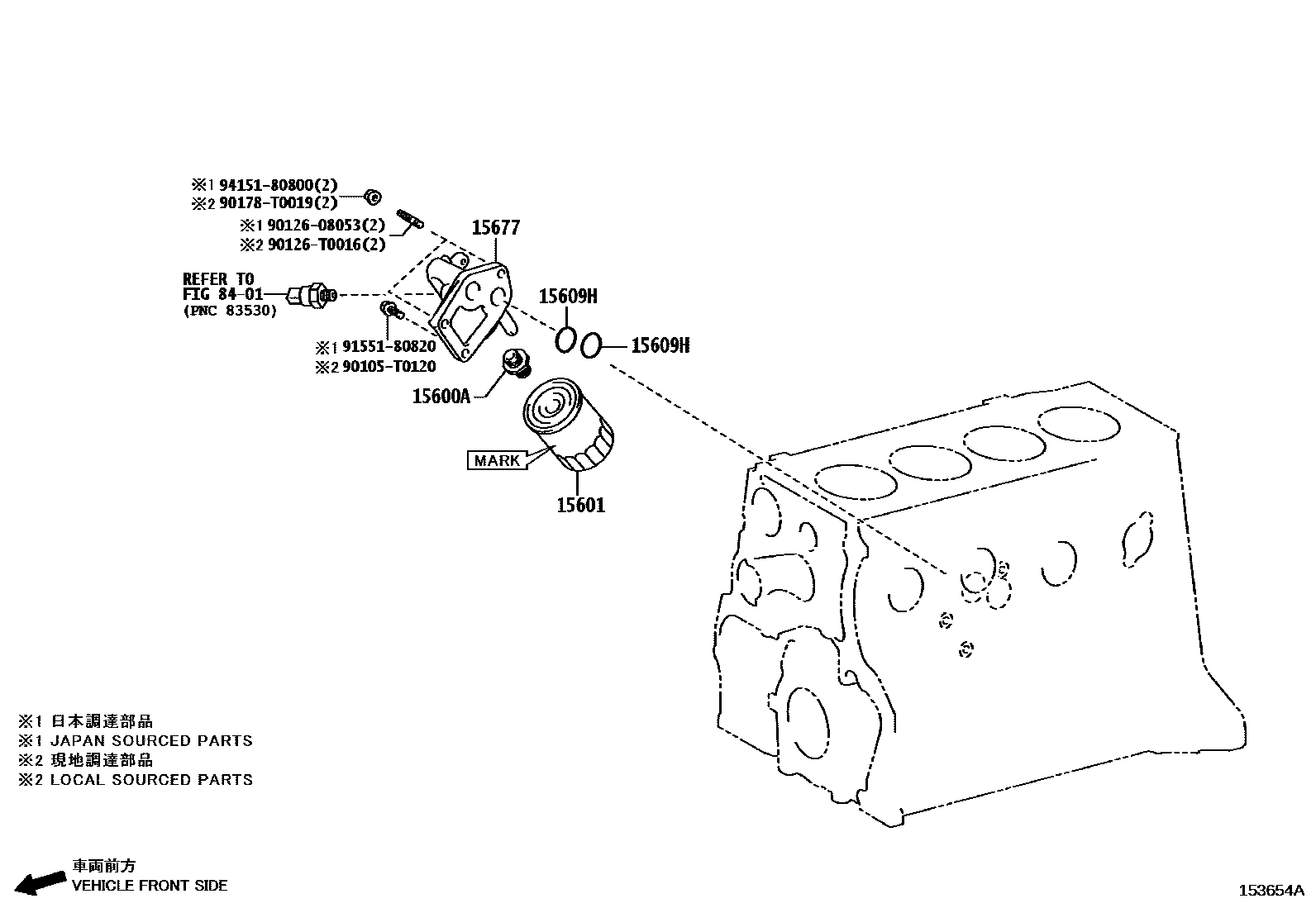

OIL FILTER
15600AUNION(FOR OIL FILTER)
(J)
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
(L)
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
ASIA COLD COUNTRY SPEC
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(L)
15601FILTER SUB-ASSY, OIL
MARK 90915-20005
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 90915-20005
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
ASIA COLD COUNTRY SPEC
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK 90915-TB001
MARK 90915-TB001
15609BRACKET SUB-ASSY, OIL FILTER
MARK = 15609-0C010
ASIA COLD COUNTRY SPEC,MARK = 15609-0C020
main15609-0C020i2TRFE..TGN126..L..GEN;2TRFE..TGN121..5F..ARL;2TRFE..TGN121,136..LHD..THP;2TRFE..TGN126..THP..(GCC,LA)202208-202307
MARK = 15609-0C020
MARK = 15609-0C070
NO MARK
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),NO MARK
15609HRING, O(FOR OIL FILTER BRACKET)
JAPAN SOURCED PARTS
ASIA COLD COUNTRY SPEC,(J)
(J)
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(J)
(J)
(L)
(L)
THA SOURCED PARTS
THA SOURCED PARTS
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA SOURCED PARTS
main90301-T0062i2GDFTV..GUN125..6FC..S..GEN;2GDFTV..GUN125..RHD..6F..L..GEN;1GDFTV..GUN126..RHD..6FC..H..GEN202208-202307
OCEANIA(EURO 5),IND SOURCED PARTS
main90301-T0062i2GDFTV..GUN125..6FC..S..GEN;2GDFTV..GUN125..RHD..6F..L..GEN;1GDFTV..GUN126..RHD..6FC..H..GEN202208-202307
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main90301-T0062i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL,IND202208-202309
IND SOURCED PARTS
IDN SOURCED PARTS
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
15677BRACKET, OIL FILTER
THA SOURCED PARTS
OCEANIA(EURO 5),IND SOURCED PARTS
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main15677-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL,IND202208-202309
IND SOURCED PARTS
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,ARG SOURCED PARTS
main15677-0E030i2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA202211-202310
ARG SOURCED PARTS
main15677-0E030i2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA202211-202310
BOLIVIA URUGUAY SPEC,ARG SOURCED PARTS
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
8401
90105T0120
main90105-T0120
9012608053
main90126-08053
90126T0016
main90126-T0016
90178T0019
main90178-T0019
9155180820
main91551-80820
9415180800
main94151-80800
12 parts on this diagram · 6 diagrams in section
