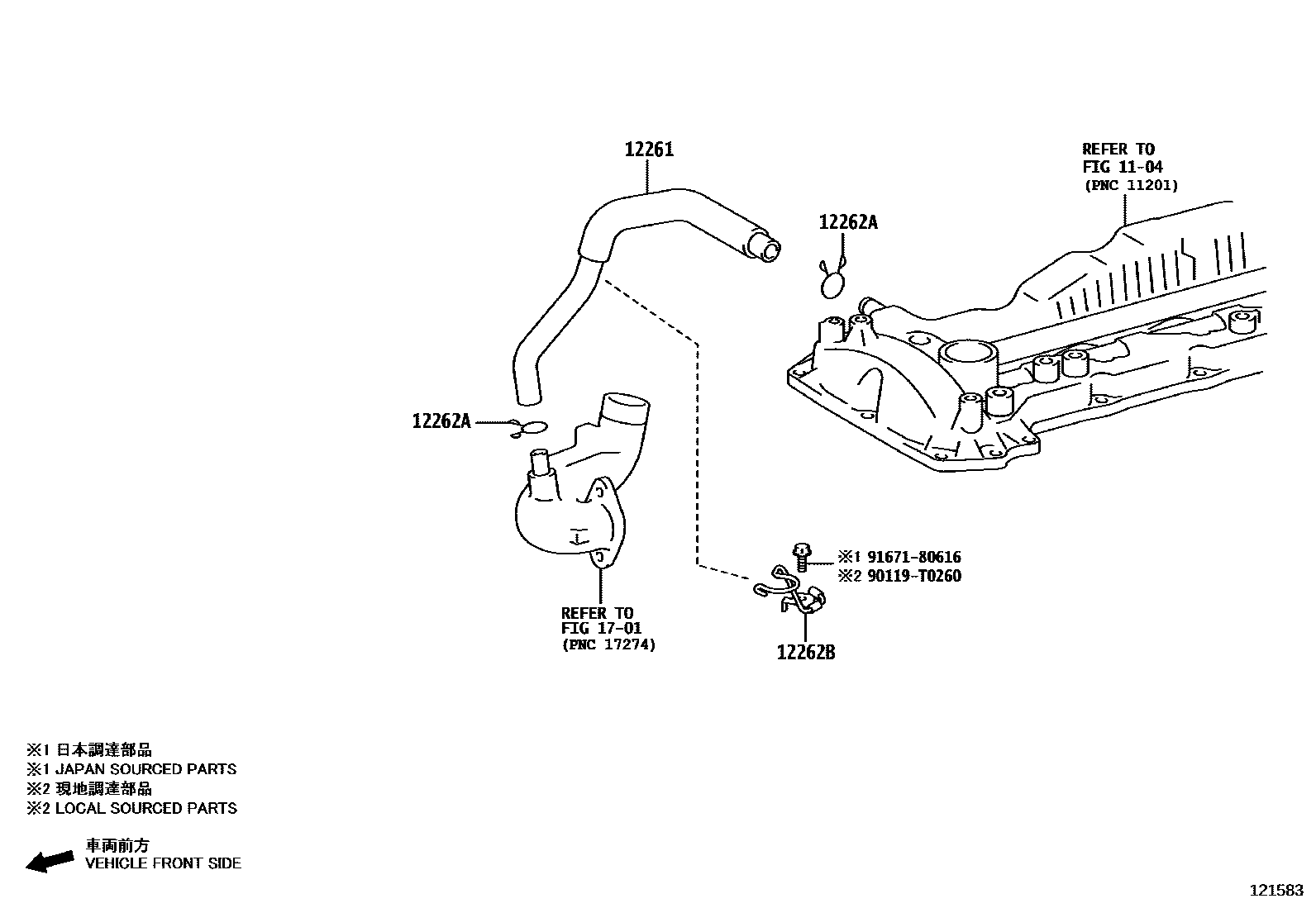

VENTILATION HOSE
1104
12261HOSE, VENTILATION
IDN SOURCED PARTS
main12261-0C040i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..THP202208-202307
THA SOURCED PARTS
THA SOURCED PARTS
main12261-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL202208-202307
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main12261-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL202208-202309
IND SOURCED PARTS
main12261-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL202208-202307
OCEANIA(EURO 5),IND SOURCED PARTS
JAPAN SOURCED PARTS
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
ASIA COLD COUNTRY SPEC
12262HOSE, VENTILATION, NO.2
main12262-0C060i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..THP202208-202307
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
ASIA COLD COUNTRY SPEC
12262ACLIP(FOR VENTILATION HOSE NO.2)
(L),NO.1
(L),NO.2
(J),NO.1
(J),NO.2
12262BCLAMP(FOR VENTILATION HOSE)
1701
90119T0260
main90119-T0260
9167180616
8 parts on this diagram · 6 diagrams in section
