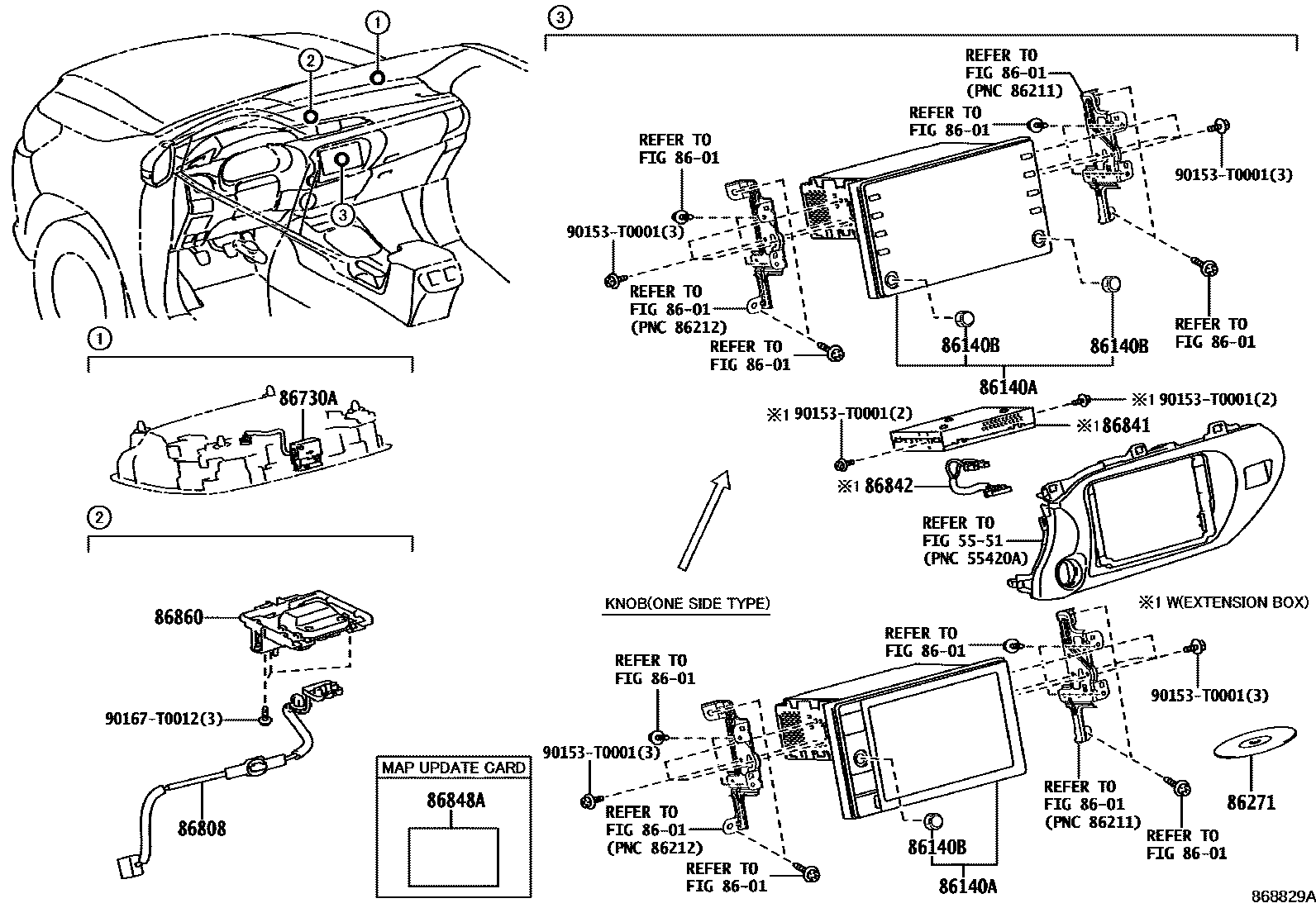

NAVIGATION & FRONT MONITOR DISPLAY
5551
8601
86140ARECEIVER ASSY, RADIO & DISPLAY
PANASONIC,ASEAN GENERAL SPEC
PANASONIC
PANASONIC,AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH(*PVM)
PIONEER,AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH
PIONEER,ARGENTINA SPEC
PIONEER
PIONEER
PIONEER,BRAZIL SPEC
DENSO TEN,STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET)
sub86140-0KU51
DENSO TEN,STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-*DA(FOR EMERGING MARKET)
sub86140-0KU81
PIONEER,BRAZIL SPEC&AUDIO-*DA(8INCH) & *BT
DENSO TEN,OCEANIA GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT&REAR BUMPER-STEP TYPE(PAINTED)&AUDIO-*DA(8INCH) & *BT
sub86140-0KY12
main86140-0KY30iGUN135..L..SA;TGN136..LHD..SA;GUN125..LHD..S..GEN;GUN125..RHD..L..(KEN,SA);GUN125,126..LHD..(H,S)..SA;GUN126,136,LAN125,TGN126..(L,S)..SA202108-202112
DENSO TEN,CAMBODIA SPEC&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
main86140-0KY31supersedes 86140-0KY31iGUN135..L..SA;GUN125..L..GHA;TGN136..LHD..SA;GUN125..RHD..L..(KEN,SA);GUN125,126..LHD..(H,S)..(GHA,SA);GUN126,136,LAN125,TGN126..(L,S)..SA202201-202303
DENSO TEN
sub86140-0KY32
DENSO TEN,OCEANIA GENERAL (EURO 4 REGULATION)&AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH
sub86140-0KZ91
DENSO TEN,REAR BUMPER-STEP TYPE(PLATED)
sub86140-0KN51
DENSO TEN,SUDAN SPEC&AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH
DENSO TEN,SUDAN SPEC&AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH
sub86140-0KN63
DENSO TEN,AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH
main86140-0KP11iTGN121..5F..H;GUN122..S..IV3;TGN126..5F..S..GCC;GGN125,GUN122,126..H..GCC202206-202207
DENSO TEN,AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH
PIONEER,CENTRAL AND SOUTH AMERICA SPEC&AUDIO-*DA(8INCH) & *BT
DENSO TEN,UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB&BACK MONITOR-WITH
PIONEER,AUDIO-AVN(8INCH) & *BT & DAB
PIONEER,UAE SPEC&AUDIO-AVN(8INCH) & *BT & DAB&BACK MONITOR-WITH
PIONEER,AUDIO-*DA(8INCH) & *BT&SPEAKER-9SPEAKER & JBL&BACK MONITOR-WITH(*PVM)
PIONEER,AUDIO-*DA(8INCH) & *BT&SPEAKER-9SPEAKER & JBL
sub86140-0KS21
DENSO TEN,SPEAKER-9SPEAKER & JBL
DENSO TEN,AUDIO-*DA(8INCH) & *BT & ENTUNE&SPEAKER-9SPEAKER & JBL
PIONEER,SPEAKER-9SPEAKER & JBL
PIONEER,SPEAKER-9SPEAKER & JBL
PIONEER,BRAZIL SPEC&SPEAKER-9SPEAKER & JBL
PIONEER,AUDIO-AVN(8INCH) & *BT & DAB&SPEAKER-9SPEAKER & JBL
PIONEER,SPEAKER-9SPEAKER & JBL
PIONEER,BRAZIL SPEC&AUDIO-*DA(8INCH) & *BT&SPEAKER-9SPEAKER & JBL
DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET)
sub86140-0KY61
DENSO TEN,UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
sub86140-0KY81
DENSO TEN,EXPORT FROM SA&AUDIO-*DA(8INCH) & *BT&SPEAKER-9SPEAKER & JBL
sub86140-F0041
DENSO TEN,BACK MONITOR-WITH
DENSO TEN,EXPORT FROM SA&AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH
sub86140-F0092
main86140-F0100iTGN126..6FC..H..GCC;TGN126..5F..(H,S)..GCC;GGN125,GUN125,126,TGN121..H..GCC202108-202207
DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH(*PVM)
sub86140-F0101
DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH(*PVM)
sub86140-F0121
DENSO TEN,MEXICO SPEC&AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH(*PVM)
sub86140-F0132
DENSO TEN,MEXICO SPEC&AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH(*PVM)
sub86140-F0132
DENSO TEN,SPEAKER-9SPEAKER & JBL
DENSO TEN,OCEANIA GENERAL SPEC&SPEAKER-9SPEAKER & JBL
PANASONIC,CAMBODIA SPEC&SPEAKER-9SPEAKER & JBL
DENSO TEN,AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH(*PVM)
sub86140-F0261
DENSO TEN,SUDAN SPEC&AUDIO-*DA(FOR EMERGING MARKET)
sub86140-F0281
DENSO TEN,SUDAN SPEC&AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH
sub86140-F0291
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH(*PVM)
AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH(*PVM)
AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH(*PVM)
MEXICO SPEC&AUDIO-*DA(FOR EMERGING MARKET)&BACK MONITOR-WITH(*PVM)
AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH
86271DISC, DISC PLAYER
sub86807-11015
BRAZIL SPEC
BRAZIL SPEC&AUDIO-*DA(8INCH) & *BT
AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT & DAB
sub86807-11067
86730AMICROPHONE ASSY, TELEPHONE
AUDIO-*DA(8INCH) & *BT
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1
UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB
main86808-0K181iTGN126..AGTP..H;GUN135..AGTP..6FC;GUN135..6F..S..BZAG;GUN125,126..(H,S)..BZAG;GGN125,GUN136,TGN128,138..AGTP202111-202210
AUDIO-*DA(8INCH) & *BT
DATA COMMUNICATION MODULE-WITH(G-DCM)
86842WIRE, NAVIGATION, NO.1
86848ACARD, SERIAL NUMBER MAP UPDATE
BRAZIL SPEC&AUDIO-*DA(8INCH) & *BT
BRAZIL SPEC
AUDIO-AVN(8INCH) & *BT & DAB
86860ANTENNA ASSY, NAVIGATION
DATA COMMUNICATION MODULE-WITH(G-DCM)
90153T0001
main90153-T0001
90167T0012
main90167-T0012
13 parts on this diagram · 1 diagram in section
