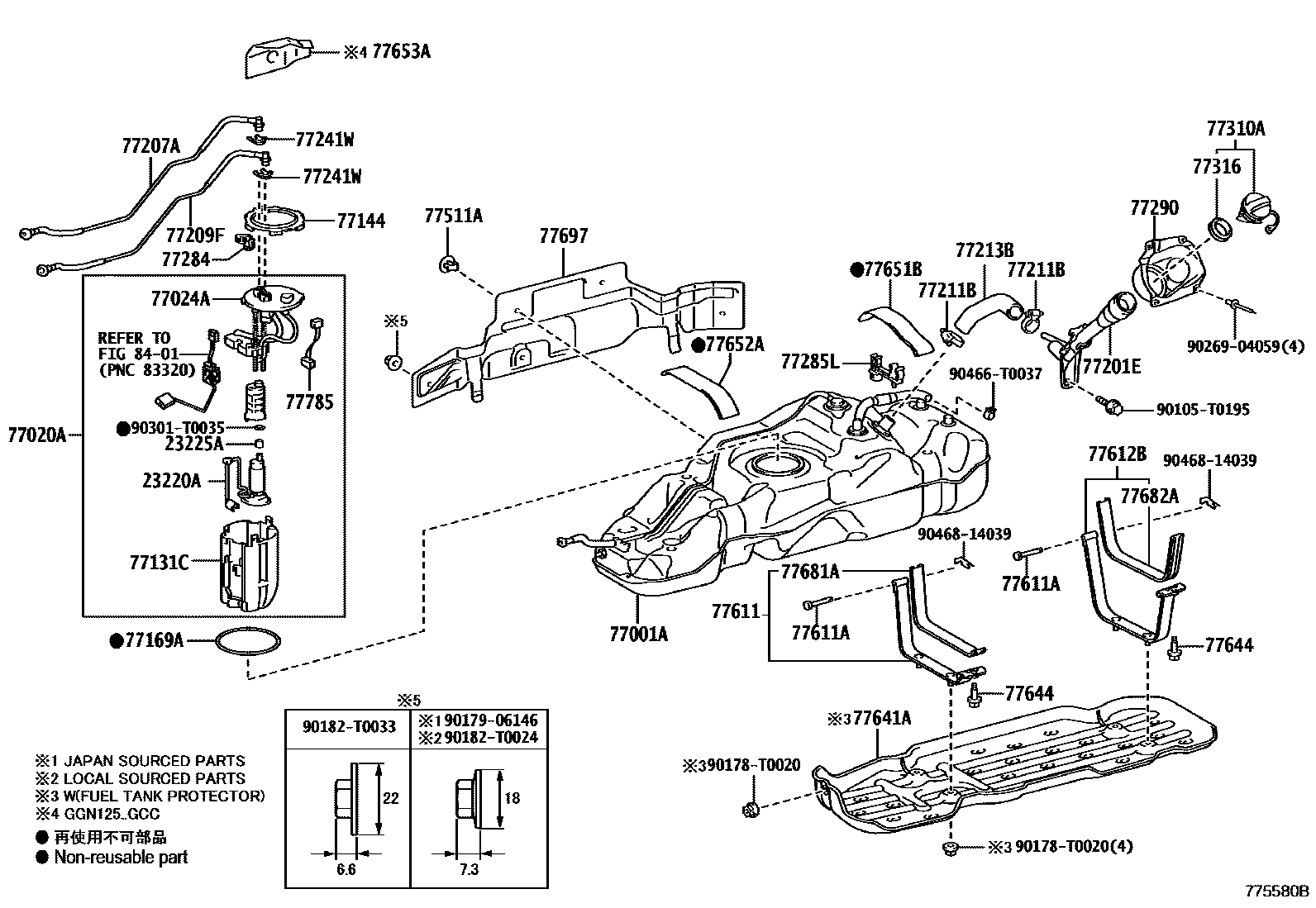

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL TUBE(EURO 6) 0008 1FUEL TUBE 0009 1FUEL TUBE 0010 1FUEL LID OPENER

23220APUMP ASSY, FUEL W/FILTER

main23220-0C201i2TRFE..TGN121,126,136..SA202108-202301

main23220-0P200i1GRFE..GGN125..AGTP202108-202301

23225ASPACER, FUEL PUMP

main23225-0V030i1GRFE,1TRFE,2TRFE..GGN125,TGN120,121,126,136..THP202108-202301

77001ATANK SUB-ASSY, FUEL

main77001-0K400iGGN125,TGN120,121,126,136..THP202108-202207

main77001-0K420iGGN125,TGN121,126,136..SA202109-202301

main77001-0K440iGGN125,TGN126,128,13#..AGTP202111-202210

main77001-0K470iGUN126..IND202108-202301

main77001-0K490iGUN125,126,13#..AGTP202111-202210

main77001-0K660iGUN122,125,126,13#,LAN125..GHA,KEN,SA202109-202303

main77001-0K680iGUN122,125,126..IV3202108-202207

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-0K381iGGN125..GCC202108-202301

main77020-0K391iTGN121,126,136..SA202108-202301

main77020-0K400iTGN128,138202111-202210

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-0K170iGGN125,TGN121,126,136..SA202108-202301

main77024-0K190iGUN126..IND202108-202303

77131CSUB-TANK, FUEL, NO.1

main77131-0K190iGGN125,TGN126,136..AGTP202108-202301

main77131-0K200iGUN122,125,126,13#,LAN125..GHA,KEN,MMR,SA202108-202303

77144RETAINER, FUEL PUMP GAUGE

main77144-0K040iGUN126..IND202108-202303

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0K030iGGN125,TGN126,128,13#..AGTP202108-202301

main77169-0K040iGUN126..IND202108-202303

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-71060iTGN126..L..GEN202108-202207

ASIA COLD COUNTRY SPEC

main77201-KK060iTGN126..L..GEN;TGN126..THP..(GCC,LA);GGN125,TGN120,121,136..THP202108-202301

main77201-KK070iGUN122,125,126,13#,LAN125..GHA,KEN,SA202108-202303

main77201-KK090iGUN12#,135..IDN,PH,TH,TWN,VN202108-202210

main77201-KK120iGUN122,125,126..IV3202108-202207

main77201-KK240iGGN125,TGN126,136..AGTP202111-202210

main77201-KK250iTGN128,138202111-202210

BRAZIL SPEC

main77201-KK270iGUN125,126,13#..AGTP202111-202210

main77201-71020iGUN125..LHD..(H,S)..GEN202108-202207

ASIA COLD COUNTRY SPEC

77207ATUBE SUB-ASSY, FUEL RETURN

main77204-0K130iGGN125,TGN121,126,136..SA202108-202301

main77204-0K140iGUN122,125,126,13#,LAN125..GHA,KEN,MMR,SA202108-202303

main77204-0K240iGUN126..TWN;GUN135..L..GEN202108-202207

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

main77204-0K240iGUN126..IND202108-202209

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0K190iGGN125,TGN126,128,13#..AGTP202108-202301

main77209-0K200iGUN125,126,13#..AGTP202108-202303

main77209-0K300iGUN126..IND202108-202209

main77209-0K300iGUN126..TWN;GUN135..L..GEN202108-202207

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

77211BCLAMP (FOR FUEL FILLER PIPE)

main90460-46005iGUN125,126..MA202108-202303

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-KK010iGUN125..LHD..(H,S)..GEN202108-202207

ASIA COLD COUNTRY SPEC

main77213-KK010iGUN125,126..MA202108-202303

77241WCLIP, TUBE JOINT

main77241-0K010iGUN126..PKN202108-202303

77284CLAMP, FUEL TUBE

main77289-0K050iGUN125,126..MA202108-202303

77285LCLAMP, FUEL TUBE, NO.1

main77285-0K250iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202303

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-0K040iGUN125,126..MA202108-202301

main77290-0K040iGUN126,135..THP..6F..L..LA;GUN125,TGN126,136..MTM..L..GEN202108-202207

TIRE & DISC WHEEL-265/65R17 STEEL

main77290-0K050iGUN126..L..PKN202108-202301

main77290-0K070iGUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..SA;GGN125,GUN126,136,TGN126,136..(H,S)..(GHA,KEN,SA)202109-202303

main77290-0K080iGUN125..L..GHA;TGN126,136..L..SA;GUN122,125,135,LAN125,TGN121..MTM..(L,S)..(KEN,SA)202109-202303

main77290-0K090iGUN125,135..AGTP..L..LA202111-202210

TIRE & DISC WHEEL-265/65R17 STEEL

main77290-0K100iGUN125,135..L..BZAG202111-202210

TIRE & DISC WHEEL-225/70R17C STEEL

77310ACAP ASSY, FUEL TANK

main77300-0K010iGGN125,TGN121,126,136..SA202108-202301

main77300-0K020iGUN126..PKN202108-202303

77316GASKET, FUEL TANK CAP

main77316-0K020iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202108-202303

77511ABRACKET, FUEL TANK

main77512-0K010iGGN125,TGN120,121,126,136..THP202108-202207

main77644-0K010iGUN125,126..MA202108-202303

77611BAND, FUEL TANK

main77601-71010iGUN125..LHD..GEN;GUN125,TGN126..(5F,6FC)..L..GEN202108-202207

ASIA COLD COUNTRY SPEC,(J)

main77601-KK040iGUN120,121,122,TGN121..ARL,GEN,PH,TH202108-202301

main77601-KK050iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHA,KEN,MMR,SA202108-202303

main77601-KK100iGUN125..LHD..GEN;GUN125,TGN126..(5F,6FC)..L..GEN202108-202207

ASIA COLD COUNTRY SPEC,(L)

77611APIN (FOR FUEL TANK BAND)

main77653-0K041iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202303

77612BBAND, FUEL TANK, NO.2

main77602-71010iGUN125..LHD..GEN;GUN125,TGN126..(5F,6FC)..L..GEN202108-202207

ASIA COLD COUNTRY SPEC,(J)

main77602-KK020iGUN120,121,122,TGN121..ARL,GEN,PH,TH202108-202301

main77602-KK030iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHA,KEN,MMR,SA202108-202303

main77602-KK080iGUN125..LHD..GEN;GUN125,TGN126..(5F,6FC)..L..GEN202108-202207

ASIA COLD COUNTRY SPEC,(L)

77641APROTECTOR, FUEL TANK, NO.1

main77641-KK010iGUN126..IND202108-202301

main77641-KK030iGUN125,126..MA202109-202303

77644BOLT, FUEL TANK

main77644-35030iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,MMR,SA202108-202303

77651BCUSHION, FUEL TANK

main77651-0K070iGGN125,TGN120,121,126,136..THP202108-202207

main77651-0K080iGUN125,126..MA202108-202301

main77651-0K110iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,SA202109-202303

77652ACUSHION, FUEL TANK, NO.2

main77652-0K130iGGN125,TGN120,121,126,136..THP202108-202207

main77652-0K140iGUN12#,13#..THP202108-202303

77653ACUSHION, FUEL TANK, NO.3

main77653-0K130iGGN125..GCC202108-202207

77681ASEAT, FUEL TANK BAND

main77681-71010iGUN125..LHD..GEN;GUN125,TGN126..(5F,6FC)..L..GEN202108-202207

ASIA COLD COUNTRY SPEC,(J)

main77681-KK020iTGN126..L..GEN;TGN126..THP..(GCC,LA);GGN125,GUN12#,13#,TGN120,121,136..THP202108-202303

main77681-KK060iGUN125..LHD..GEN;GUN125,TGN126..(5F,6FC)..L..GEN202108-202207

ASIA COLD COUNTRY SPEC,(L)

77682ASEAT, FUEL TANK BAND, NO.2

main77682-71010iGUN125..LHD..GEN;GUN125,TGN126..(5F,6FC)..L..GEN202108-202207

ASIA COLD COUNTRY SPEC,(J)

main77682-KK010iTGN126..L..GEN;TGN126..THP..(GCC,LA);GGN125,GUN12#,13#,TGN120,121,136..THP202108-202303

main77682-KK060iGUN125..LHD..GEN;GUN125,TGN126..(5F,6FC)..L..GEN202108-202207

ASIA COLD COUNTRY SPEC,(L)

77697INSULATOR, FUEL TANK HEAT, NO.1

main77697-0K080iGGN125,TGN120,121,126,136..THP202108-202207

main77697-0K130iGUN125,126..MA202108-202301

main77697-0K140iGUN125..RHD..6F..L..GEN;GUN126..RHD..6F..H..GEN202108-202207

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

main77697-0K140iGUN126..IND202108-202209

main77697-0K250iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202109-202303

77785HARNESS, FUEL PUMP

main77785-02110iGGN125,TGN120,121,126,136..THP202108-202301

8401

90105T0195

main90105-T0195

90178T0020

main90178-T0020

9017906146

main90179-06146

90182T0024

main90182-T0024

90182T0033

main90182-T0033

9026904059

main90269-04059

90301T0035

main90301-T0035

90466T0037

main90466-T0037

9046814039

main90468-14039

42 parts on this diagram · 10 diagrams in section
