REAR BODY SIDE PANEL
61783EPAD, REAR WHEEL OPENING EXTENSION, NO.1
65501APANEL SUB-ASSY, REAR BODY SIDE, RH
65503APOST SUB-ASSY, SIDE PANEL FRONT END, RH
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&BACK DOOR OR TAIL GATEOUTSIDE HANDLE-FOR MLM
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR DECK-A DECK,WITH(ROPE HOOK)
GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)&REAR DECK-A DECK,WITH(ROPE HOOK)
REAR DECK-A DECK,WITH(ROPE HOOK)
BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED
TIRE & DISC WHEEL-265/60R18 ALUMINUM&REAR DECK-WITH(SIDE PANEL TOP RAIL)
REAR DECK-WITH(SIDE PANEL TOP RAIL)
TIRE & DISC WHEEL-265/65R17 STEEL&REAR DECK-WITH(SIDE PANEL TOP RAIL)
TIRE & DISC WHEEL-265/65R17 ALUMINUM&REAR DECK-WITH(SIDE PANEL TOP RAIL)
main65551-KK060iGUN125..L..(GHA,KEN);GUN125,135,TGN136..RHD..S..SA;GUN126,136,TGN126..6FC..S..SA202108-202303
65505POST SUB-ASSY, SIDE PANEL REAR END, RH
EXCEPT PLANT TSAM
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR DECK-A DECK,WITH(ROPE HOOK)
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM
RUGGED X PACKAGE&TIRE & DISC WHEEL-265/65R17(RUGGED),ALUMINUM
GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)&REAR DECK-A DECK,WITH(ROPE HOOK)
REAR DECK-A DECK,WITH(ROPE HOOK),EXCEPT PLANT TSAM
BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED,EXCEPT PLANT TSAM
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&BACK DOOR OR TAIL GATEOUTSIDE HANDLE-FOR MLM
REAR DECK-WITH(SIDE PANEL TOP RAIL),EXCEPT PLANT TSAM
EXCEPT PLANT TSAM
TIRE & DISC WHEEL-265/65R17 STEEL&REAR DECK-WITH(SIDE PANEL TOP RAIL),EXCEPT PLANTTSAM
TIRE & DISC WHEEL-265/65R17 ALUMINUM&REAR DECK-WITH(SIDE PANEL TOP RAIL),EXCEPT PLANT TSAM
TIRE & DISC WHEEL-265/60R18 ALUMINUM&REAR DECK-WITH(SIDE PANEL TOP RAIL),EXCEPT PLANT TSAM
main65505-KK040iGUN125..KEN;GUN125,135,TGN136..RHD..S..SA;GUN126,136,TGN126..6FC..S..SA202108-202303
PLANT TSAM
main65505-KK040iTGN136..LHD..SA;GUN125,13#..(H,L)..SA;GUN125..LHD..S..(GHA,SA);GUN126..H..(GHA,KEN,MMR,SA);GGN125,GUN122,LAN125,TGN121..SA;GUN126,136,TGN126..MTM..(L,S)..SA202108-202303
REAR DECK-A DECK,WITH(ROPE HOOK),PLANT TSAM
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM,PLANT TSAM
main65505-KK040iGUN126..THP..S..(GEN,LA);GUN122,125,TGN126..THP..(GEN,IDN,LA,PH,TH,VN);GUN126,136..THP..(H,L)..(ARL,GEN,LA,PH,TH,TWN,VN)..CBU;GGN125,GUN120,121,135,TGN136..THP..(GC202108-202207
BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED,PLANT TSAM
main65505-KK050iGUN125..L..(GHA,KEN);GUN125,135,TGN136..RHD..S..SA;GUN126,136,TGN126..6FC..S..SA202109-202303
PLANT TSAM
65593APLATE, SIDE PANEL REAR END POST INSIDE, RH
BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&BACK DOOR OR TAIL GATEOUTSIDE HANDLE-FOR MLM
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
main65593-KK010iTGN136..LHD..SA;GUN125,13#..(H,L)..SA;GUN125..LHD..S..(GHA,SA);GUN126..H..(GHA,KEN,MMR,SA);GGN125,GUN122,LAN125,TGN121..SA;GUN126,136,TGN126..MTM..(L,S)..SA202108-202303
REAR DECK-A DECK,WITH(ROPE HOOK)
main65593-KK010iGUN126..THP..S..(GEN,LA);GUN122,125,TGN126..THP..(GEN,IDN,LA,PH,TH,VN);GUN126,136..THP..(H,L)..(ARL,GEN,LA,PH,TH,TWN,VN)..CBU;GGN125,GUN120,121,135,TGN136..THP..(GC202108-202207
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR DECK-A DECK,WITH(ROPE HOOK)
main65593-KK010iGUN126..THP..S..(GEN,LA);GUN122,125,TGN126..THP..(GEN,IDN,LA,PH,TH,VN);GUN126,136..THP..(H,L)..(ARL,GEN,LA,PH,TH,TWN,VN)..CBU;GGN125,GUN120,121,135,TGN136..THP..(GC202108-202207
GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)&REAR DECK-A DECK,WITH(ROPE HOOK)
REAR DECK-WITH(SIDE PANEL TOP RAIL)
main65593-KK020iTGN121..THP;GUN126..GCC;GUN126,136..S..ARL..CBU;GUN122,125,135,TGN120,126..(ARL,GCC)..CBU202108-202207
TIRE & DISC WHEEL-265/65R17 STEEL&REAR DECK-WITH(SIDE PANEL TOP RAIL)
main65593-KK020iTGN121..THP;GUN126..GCC;GUN126,136..S..ARL..CBU;GUN122,125,135,TGN120,126..(ARL,GCC)..CBU202108-202207
TIRE & DISC WHEEL-265/65R17 ALUMINUM&REAR DECK-WITH(SIDE PANEL TOP RAIL)
main65593-KK020iTGN121..THP;GUN126..GCC;GUN126,136..S..ARL..CBU;GUN122,125,135,TGN120,126..(ARL,GCC)..CBU202108-202207
TIRE & DISC WHEEL-265/60R18 ALUMINUM&REAR DECK-WITH(SIDE PANEL TOP RAIL)
main65593-KK020iGUN125..L..(GHA,KEN);GUN125,135,TGN136..RHD..S..SA;GUN126,136,TGN126..6FC..S..SA202108-202303
65635APANEL, WHEEL HOUSE, REAR RH
GR SPORT
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
TIRE & DISC WHEEL-265/65R17 STEEL
TIRE & DISC WHEEL-265/65R17 STEEL&REAR DECK-WITH(SIDE PANEL TOP RAIL)
TIRE & DISC WHEEL-265/65R17 ALUMINUM&REAR DECK-WITH(SIDE PANEL TOP RAIL)
TIRE & DISC WHEEL-265/60R18 ALUMINUM
TIRE & DISC WHEEL-265/60R18 ALUMINUM&REAR DECK-WITH(SIDE PANEL TOP RAIL)
TIRE & DISC WHEEL-265/65R17 ALUMINUM
65637LINER, REAR WHEEL HOUSE, RH
main65637-0K070iGUN126,135..THP..L..LA;GUN125..THP..6F..L..(GCC,GEN,LA,PH);GUN125,TGN126..LHD..THP..(5F,6FC)..L;GUN120,121,122,TGN120,121,136..THP..CBU202108-202301
main65637-0K080iGUN125..RHD..6FC..L..CBU;GUN125..6F..L..(ARL,IDN);GUN135..L..(ARL,GEN,TH,VN);GGN125,GUN125,126,13#,TGN126..THP..(H,S)..CBU202108-202207
TIRE & DISC WHEEL-265/65R17 STEEL
main65637-0K080iGUN125..RHD..6FC..L..CBU;GUN125..6F..L..(ARL,IDN);GUN135..L..(ARL,GEN,TH,VN);GGN125,GUN125,126,13#,TGN126..THP..(H,S)..CBU202108-202207
GR SPORT
main65637-0K080iGUN125..RHD..6FC..L..CBU;GUN125..6F..L..(ARL,IDN);GUN135..L..(ARL,GEN,TH,VN);GGN125,GUN125,126,13#,TGN126..THP..(H,S)..CBU202108-202207
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
main65637-0K080iGUN125..RHD..6FC..L..CBU;GUN125..6F..L..(ARL,IDN);GUN135..L..(ARL,GEN,TH,VN);GGN125,GUN125,126,13#,TGN126..THP..(H,S)..CBU202108-202207
TIRE & DISC WHEEL-265/65R17 ALUMINUM
main65637-0K080iGUN125..RHD..6FC..L..CBU;GUN125..6F..L..(ARL,IDN);GUN135..L..(ARL,GEN,TH,VN);GGN125,GUN125,126,13#,TGN126..THP..(H,S)..CBU202108-202207
TIRE & DISC WHEEL-265/60R18 ALUMINUM
main65637-0K090iGUN125..L..GHA;TGN126,136..L..SA;GUN122,125,135,LAN125,TGN121..MTM..(L,S)..(KEN,SA)202109-202303
main65637-0K100iGUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..SA;GGN125,GUN126,136,TGN126,136..(H,S)..(GHA,KEN,SA)202109-202303
TIRE & DISC WHEEL-225/70R17C STEEL
TIRE & DISC WHEEL-265/65R17 ALUMINUM
TIRE & DISC WHEEL-265/65R17 STEEL
65671DBRACE, SIDE PANEL SKIRT, FRONT RH
65816APANEL, REAR BODY SIDE, RH
main65816-KK010iGUN126,135..THP..L..LA;GUN125,TGN126..THP..MTM..L..(GEN,LA,PH);GUN120,121,122,TGN136..THP..(GEN,LA,PH,TH)202108-202207
REAR DECK-A DECK,WITH(ROPE HOOK)
REAR DECK-WITH(SIDE PANEL TOP RAIL)
TIRE & DISC WHEEL-265/65R17 STEEL
main65816-KK030iGUN125..L..IDN;GUN125..6FC..L..GEN;GUN135..L..(GEN,TH,VN);GUN126..THP..S..(GEN,LA);GGN125,GUN135..THP..(H,S);GUN125,TGN126..THP..(H,S)..(GEN,IDN,LA,TH,VN);GUN126,13202108-202207
GR SPORT
main65816-KK030iGUN125..L..IDN;GUN125..6FC..L..GEN;GUN135..L..(GEN,TH,VN);GUN126..THP..S..(GEN,LA);GGN125,GUN135..THP..(H,S);GUN125,TGN126..THP..(H,S)..(GEN,IDN,LA,TH,VN);GUN126,13202108-202207
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
main65816-KK030iGUN125..L..IDN;GUN125..6FC..L..GEN;GUN135..L..(GEN,TH,VN);GUN126..THP..S..(GEN,LA);GGN125,GUN135..THP..(H,S);GUN125,TGN126..THP..(H,S)..(GEN,IDN,LA,TH,VN);GUN126,13202108-202301
TIRE & DISC WHEEL-265/65R17 ALUMINUM
main65816-KK030iGUN125..L..IDN;GUN125..6FC..L..GEN;GUN135..L..(GEN,TH,VN);GUN126..THP..S..(GEN,LA);GGN125,GUN135..THP..(H,S);GUN125,TGN126..THP..(H,S)..(GEN,IDN,LA,TH,VN);GUN126,13202108-202207
TIRE & DISC WHEEL-265/60R18 ALUMINUM
main65816-KK030iGUN125..L..IDN;GUN125..6FC..L..GEN;GUN135..L..(GEN,TH,VN);GUN126..THP..S..(GEN,LA);GGN125,GUN135..THP..(H,S);GUN125,TGN126..THP..(H,S)..(GEN,IDN,LA,TH,VN);GUN126,13202108-202301
REAR DECK-A DECK,WITH(ROPE HOOK)
main65816-KK030iGUN125..L..IDN;GUN125..6FC..L..GEN;GUN135..L..(GEN,TH,VN);GUN126..THP..S..(GEN,LA);GGN125,GUN135..THP..(H,S);GUN125,TGN126..THP..(H,S)..(GEN,IDN,LA,TH,VN);GUN126,13202108-202207
BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)
main65816-KK030iGUN125..S..GHA;GUN126,136,TGN126..MTM..S..SA;GUN125,TGN136..LHD..(5F,6FC)..S..SA;GGN125,GUN125,126,136..H..(GHA,KEN,MMR,SA)202108-202303
TIRE & DISC WHEEL-265/65R17 STEEL&REAR DECK-WITH(SIDE PANEL TOP RAIL)
TIRE & DISC WHEEL-265/65R17 ALUMINUM&REAR DECK-WITH(SIDE PANEL TOP RAIL)
TIRE & DISC WHEEL-265/60R18 ALUMINUM&REAR DECK-WITH(SIDE PANEL TOP RAIL)
REAR DECK-WITH(SIDE PANEL TOP RAIL)
65826PANEL, REAR BODY SIDE, INNER RH
GR SPORT&TIRE & DISC WHEEL-265/60R18,ALUMINUM(FOR GR SPORT)&REAR DECK-A DECK,WITH(ROPE HOOK)
REAR DECK-A DECK,WITH(ROPE HOOK)
BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&BACK DOOR OR TAIL GATEOUTSIDE HANDLE-FOR MLM
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR DECK-A DECK,WITH(ROPE HOOK)
TIRE & DISC WHEEL-265/65R17 STEEL&REAR DECK-WITH(SIDE PANEL TOP RAIL)
main65826-KK903iTGN121..THP;GUN126..GCC;GUN126,136..S..ARL..CBU;GUN122,125,135,TGN120,126..(ARL,GCC)..CBU202108-202207
TIRE & DISC WHEEL-265/65R17 ALUMINUM&REAR DECK-WITH(SIDE PANEL TOP RAIL)
main65826-KK903iTGN121..THP;GUN126..GCC;GUN126,136..S..ARL..CBU;GUN122,125,135,TGN120,126..(ARL,GCC)..CBU202108-202207
TIRE & DISC WHEEL-265/60R18 ALUMINUM&REAR DECK-WITH(SIDE PANEL TOP RAIL)
main65826-KK903iTGN121..THP;GUN126..GCC;GUN126,136..S..ARL..CBU;GUN122,125,135,TGN120,126..(ARL,GCC)..CBU202108-202207
REAR DECK-WITH(SIDE PANEL TOP RAIL)
main65826-KK903iGUN125..L..(GHA,KEN);GUN125,135,TGN136..RHD..S..SA;GUN126,136,TGN126..6FC..S..SA202108-202303
66248BPROTECTOR, REAR BODY SIDE PANEL, RH
main58745-0K050iGUN135..6FC..SA;GUN125,126..LHD..H..SA;GUN126,136,TGN136..S..SA;GUN125,TGN126..LHD..(5F,6FC)..S..SA202109-202301
TIRE & DISC WHEEL-265/65R17 STEEL
STEP & STEP COVER-WITHOUT
TIRE & DISC WHEEL-265/65R17 ALUMINUM&STEP & STEP COVER-WITHOUT
TIRE & DISC WHEEL-265/65R17 ALUMINUM
TIRE & DISC WHEEL-265/65R17 STEEL&STEP & STEP COVER-WITHOUT
main58745-0K110iGUN125..LHD..6F..S..SA;GUN125,TGN126..L..(GHA,KEN,SA);GUN122,135,LAN125,TGN121..MTM..SA202109-202303
main58745-0K130iGUN135..6FC..ARL;GUN125,126..(ARL,TWN)..CBU;GUN136,TGN126..H..(ARL,GEN)202108-202207
STEP & STEP COVER-WITHOUT
IRAQ SPEC&STEP & STEP COVER-WITHOUT
ASIA COLD COUNTRY SPEC&TIRE & DISC WHEEL-265/65R17 STEEL&STEP & STEP COVER-WITHOUT
ASIA COLD COUNTRY SPEC&TIRE & DISC WHEEL-265/65R17 ALUMINUM&STEP & STEP COVER-WITHOUT
ASIA COLD COUNTRY SPEC&TIRE & DISC WHEEL-265/60R18 ALUMINUM&STEP & STEP COVER-WITHOUT
ASIA COLD COUNTRY SPEC&STEP & STEP COVER-WITHOUT
66301BHOOK SUB-ASSY, ROPE
main66312-0K010iTGN121..GEN;GUN126..S..ARL..CBU;GUN122,126,TGN121,126..(5F,6FC)..H..GCC202108-202303
REAR DECK-A DECK,WITH(ROPE HOOK)
main66312-0K010iGUN126..THP..S..(GEN,LA);GUN122,125,TGN126..THP..(GEN,IDN,LA,PH,TH,VN);GUN126,136..THP..(H,L)..(ARL,GEN,LA,PH,TH,TWN,VN)..CBU;GGN125,GUN120,121,135,TGN136..THP..(GC202108-202207
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
main66312-0K010iGUN126..THP..S..(GEN,LA);GUN122,125,TGN126..THP..(GEN,IDN,LA,PH,TH,VN);GUN126,136..THP..(H,L)..(ARL,GEN,LA,PH,TH,TWN,VN)..CBU;GGN125,GUN120,121,135,TGN136..THP..(GC202108-202207
BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED
main66312-0K010iGUN126..THP..S..(GEN,LA);GUN122,125,TGN126..THP..(GEN,IDN,LA,PH,TH,VN);GUN126,136..THP..(H,L)..(ARL,GEN,LA,PH,TH,TWN,VN)..CBU;GGN125,GUN120,121,135,TGN136..THP..(GC202108-202207
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&BACK DOOR OR TAIL GATEOUTSIDE HANDLE-FOR MLM
76645EBRACKET, RR BODY MUDGUARD, RH
main76645-KK010iGUN125..L..GHA;TGN126,136..L..SA;GUN122,125,135,LAN125,TGN121..MTM..(L,S)..(KEN,SA)202108-202303
TIRE & DISC WHEEL-265/65R17 STEEL&REAR DECK-WITH(SIDE PANEL TOP RAIL)
TIRE & DISC WHEEL-265/65R17 ALUMINUM
TIRE & DISC WHEEL-265/65R17 ALUMINUM&REAR DECK-WITH(SIDE PANEL TOP RAIL)
TIRE & DISC WHEEL-265/60R18 ALUMINUM
TIRE & DISC WHEEL-265/60R18 ALUMINUM&REAR DECK-WITH(SIDE PANEL TOP RAIL)
GR SPORT
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
TIRE & DISC WHEEL-265/65R17 STEEL
76917HMUDGUARD, SIDE, REAR RH
90119T0139
main90119-T0139
90119T0318
main90119-T0318
90154T0002
main90154-T0002
90157T0004
main90157-T0004
90159T0034
main90159-T0034
90159T0036
main90159-T0036
9018906214
main90189-06214
90189T0025
main90189-T0025
9046707215
main90467-07215
90467T0050
main90467-T0050

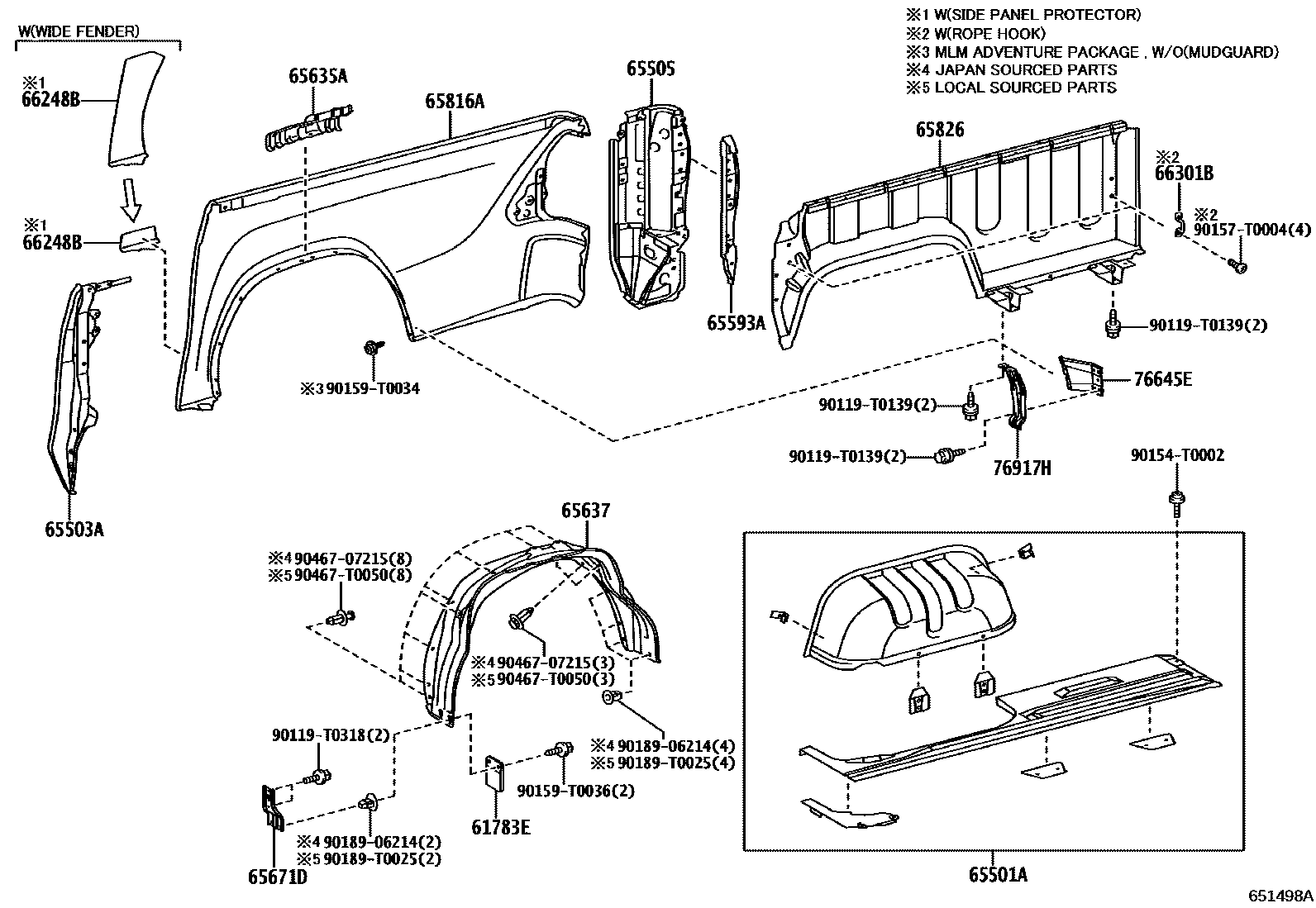

24 parts on this diagram · 4 diagrams in section
