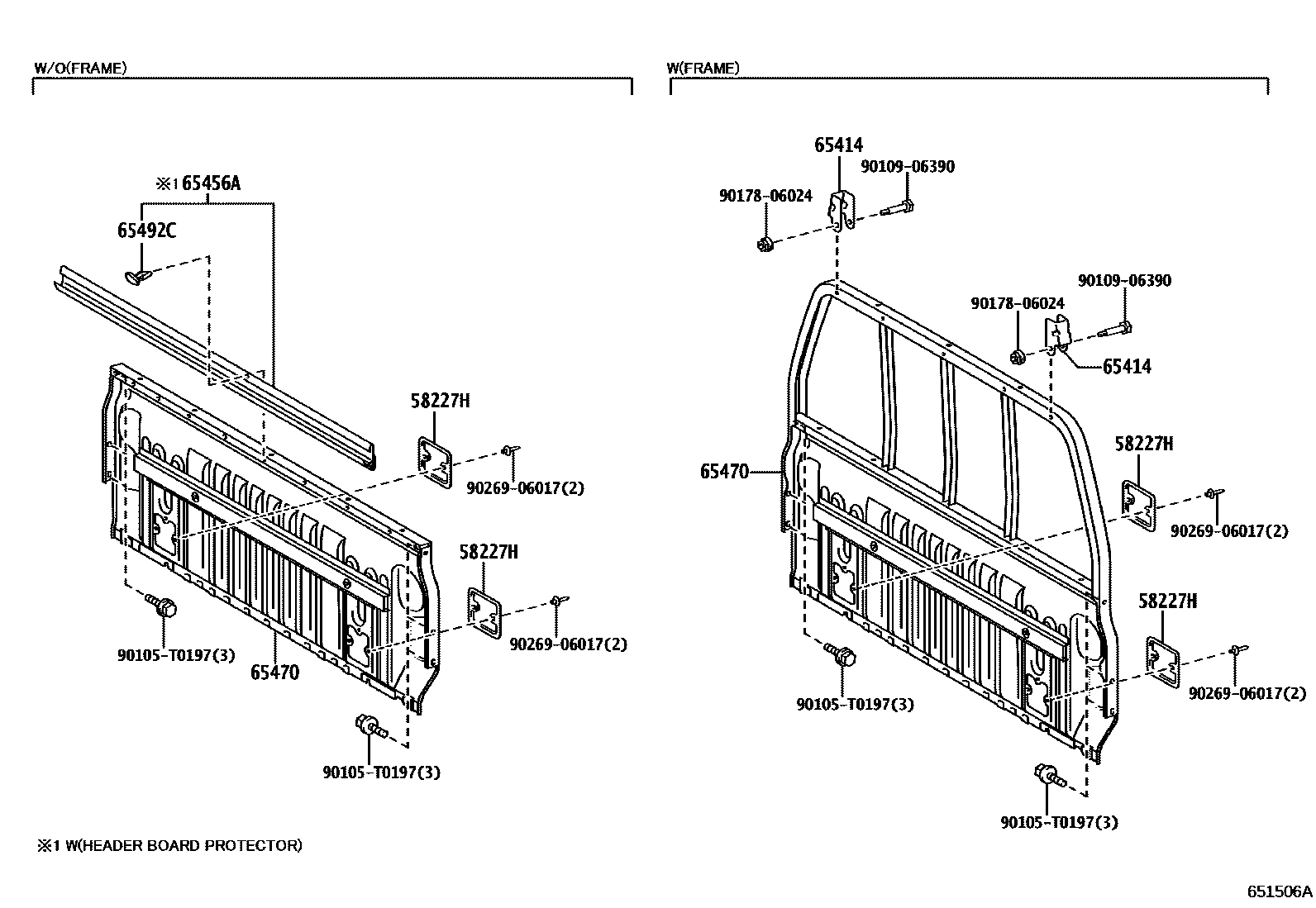

REAR BODY GUARD FRAME & TAIL GATE
58227HCOVER, HEADER PANEL, NO.1
65414STOPPER, GUARD FRAME
DECK GUARD FRAME-WITH(STOPPER)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&DECK GUARD FRAME-WITH(STOPPER)
REAR DECK-WITH(SIDE PANEL TOP RAIL)&DECK GUARD FRAME-WITH(STOPPER)
REAR DECK-A DECK,WITH(ROPE HOOK)&DECK GUARD FRAME-WITH(STOPPER)
DECK GUARD FRAME-WITH(STOPPER)
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&DECK GUARD FRAME-WITH(STOPPER)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM
65456APROTECTOR, HEADER BORD
CENTRAL AND SOUTH AMERICA SPEC
BOLIVIA URUGUAY SPEC
65470BOARD ASSY, HEADER
REAR DECK-A DECK,WITH(ROPE HOOK)
main65470-KK010iGUN126..THP..S..(GEN,LA);GUN122,125,TGN126..THP..(GEN,LA,PH,TH,VN);GUN126,136..THP..(H,L)..(ARL,GEN,LA,PH,TH,TWN,VN)..CBU;GGN125,GUN120,121,135,TGN136..THP..(GCC,GE202108-202207
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
main65470-KK010iGUN126..THP..S..(GEN,LA);GUN122,125,TGN126..THP..(GEN,LA,PH,TH,VN);GUN126,136..THP..(H,L)..(ARL,GEN,LA,PH,TH,TWN,VN)..CBU;GGN125,GUN120,121,135,TGN136..THP..(GCC,GE202108-202207
BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED
main65470-KK010iGUN126..THP..S..(GEN,LA);GUN122,125,TGN126..THP..(GEN,LA,PH,TH,VN);GUN126,136..THP..(H,L)..(ARL,GEN,LA,PH,TH,TWN,VN)..CBU;GGN125,GUN120,121,135,TGN136..THP..(GCC,GE202108-202207
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&BACK DOOR OR TAIL GATEOUTSIDE HANDLE-FOR MLM
REAR DECK-WITH(SIDE PANEL TOP RAIL)
REAR DECK-A DECK,WITH(ROPE HOOK)&DECK GUARD FRAME-WITH(STOPPER)
DECK GUARD FRAME-WITH(STOPPER)
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&DECK GUARD FRAME-WITH(STOPPER)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM
DECK GUARD FRAME-WITH(STOPPER)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-CHROME PLATED
main65470-KK050iTGN121..GEN;GUN126..S..ARL..CBU;GUN122,126,TGN121,126..(5F,6FC)..H..GCC202108-202207
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&DECK GUARD FRAME-WITH(STOPPER)
sub65470-KK120
65492CRETAINER, FRONT GUARD CUSHION
CENTRAL AND SOUTH AMERICA SPEC
BOLIVIA URUGUAY SPEC
90105T0197
main90105-T0197
9010906390
main90109-06390
9017806024
main90178-06024
9026906017
main90269-06017
9 parts on this diagram · 3 diagrams in section
