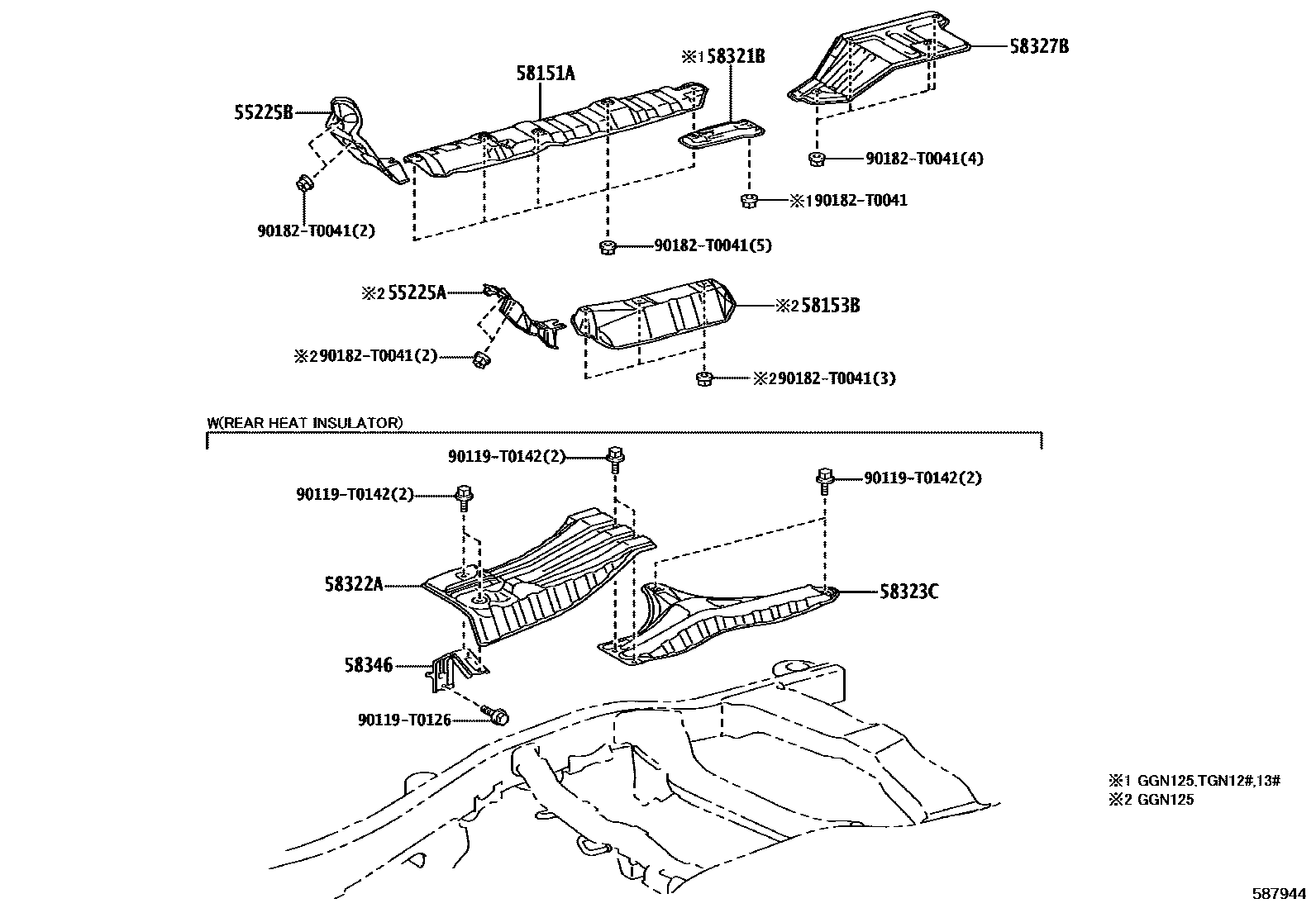

FLOOR INSULATOR

55225AINSULATOR, DASH PANEL HEAT, NO.1

main55225-0K021iGGN125..AGTP202108-202301

55225BINSULATOR, DASH PANEL HEAT

main55225-KK011iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,MMR,SA¥1,070202108-202303

58151AINSULATOR, FLOOR HEAT, NO.1

main58151-KK011iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP¥4,640202111-202210

sub58151-KK020¥2,830

main58151-KK020iGUN125,126..MA¥2,830202108-202303

58153BINSULATOR, FLOOR HEAT, NO.3

main58153-0K011iGGN125..GCC202108-202301

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-0K011iGGN125,TGN120,121,126,136..THP202108-202301

58322AINSULATOR, REAR FLOOR HEAT, REAR

main58322-KK011iGUN125,126,135..VN¥2,830202108-202207

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

main58322-KK011iGUN126..ARL,TWN;TGN126,136..THP;GUN125..6F..ARL;GUN125..RHD..6FC..L;GUN135..L..(ARL,GEN);GGN125,GUN136,TGN120,121..ARL,GCC,GEN¥2,830202108-202210

EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main58322-KK011iGUN126..IND¥2,830202108-202301

58323CINSULATOR, REAR FLOOR HEAT, NO.3

main58323-KK011iGUN126..ARL,TWN;TGN126,136..THP;GUN125..6F..ARL;GUN125..RHD..6FC..L;GUN135..L..(ARL,GEN);GGN125,GUN136,TGN120,121..ARL,GCC,GEN¥2,640202108-202210

EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main58323-KK011iGUN126..ARL,TWN;TGN126,136..THP;GUN125..6F..ARL;GUN125..RHD..6FC..L;GUN135..L..(ARL,GEN);GGN125,GUN136,TGN120,121..ARL,GCC,GEN¥2,640202108-202207

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

main58323-KK011iGUN126..IND¥2,640202108-202301

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0K011iGGN125,GUN12#,13#,TGN120,121,126,136..THP¥2,270202108-202303

58346BRACKET, REAR FLOOR HEAT INSULATOR

main58332-KK010iGUN126..ARL,TWN;TGN126,136..THP;GUN125..6F..ARL;GUN125..RHD..6FC..L;GUN135..L..(ARL,GEN);GGN125,GUN136,TGN120,121..ARL,GCC,GEN¥1,560202108-202210

EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main58332-KK010iGUN126..ARL,TWN;TGN126,136..THP;GUN125..6F..ARL;GUN125..RHD..6FC..L;GUN135..L..(ARL,GEN);GGN125,GUN136,TGN120,121..ARL,GCC,GEN¥1,560202108-202207

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

main58332-KK010iGUN126..IND¥1,560202108-202301

90119T0126

main90119-T0126

90119T0142

main90119-T0142

90182T0041

main90182-T0041

12 parts on this diagram · 1 diagram in section
