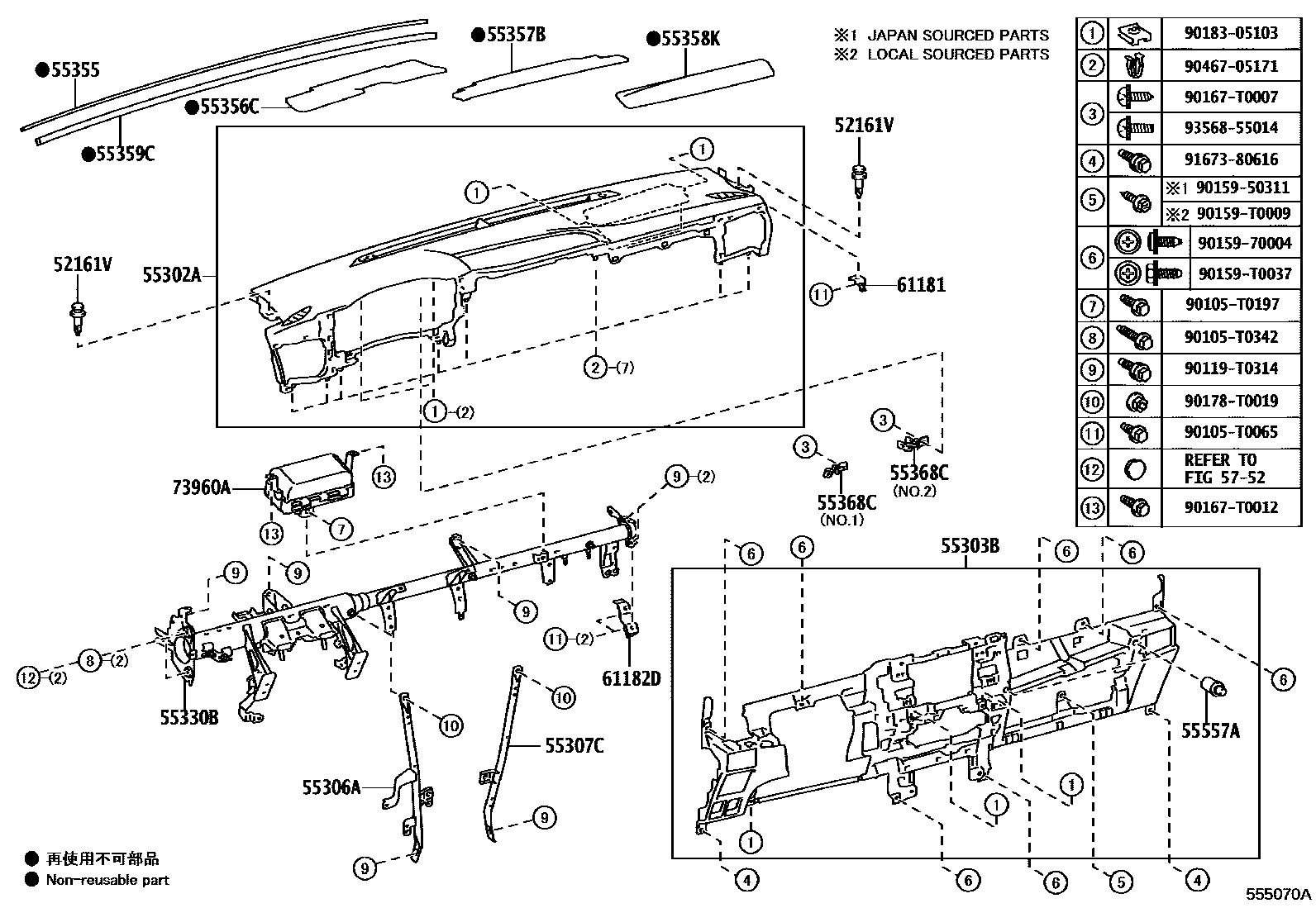

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-0K040iGUN126..PKN202108-202303

(L)

main52161-16010iGUN136..6FC..H;GUN126..RHD..H..SA202212-202301

SPEAKER-9SPEAKER & JBL,(J)

sub52161-0K040

main52161-16010iGGN125,GUN125,126,13#,TGN136..RHD..(KEN,PKN,SA)202108-202303

(J)

sub52161-0K040

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-KK041-C0iGUN126..PKN202108-202303

BLACK,TRIM2#

main55302-KK111-C0iGGN125,GUN122,125,126,TGN120,121,126..GCC202108-202207

BLACK,TRIM2#,3#

main55302-KK111-C0iGGN125,GUN122,125,126,TGN120,121,126..GCC202108-202303

BLACK,TRIM2#

main55302-KK160-C0iGUN126..RHD..H..SA;GUN136..6FC..H..SA202108-202301

SPEAKER-9SPEAKER & JBL,BLACK,TRIM2#

main55302-KK170-C0iGUN126..AGTP..H;GGN125,GUN136..H..BZAG202108-202210

SPEAKER-9SPEAKER & JBL,BLACK,TRIM2#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-KK030-C0iGUN12#,13#,TGN121..RHD..THP202108-202303

BLACK,TRIM2#

sub55303-KK050

main55303-KK040-C0iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202108-202303

BLACK,TRIM2#

main55303-KK040-C0iGUN122,125,126,13#,TGN121,126,136..LHD..THP..(GEN,LA,PH,TWN,VN)202108-202207

BLACK,TRIM2#,3#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-KK030iGUN126..IND202108-202303

main55306-KK040iGUN125..RHD..6F..L..GEN202108-202207

SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)

main55306-KK040iGUN126..L..PKN202202-202301

main55306-KK050iTGN126..(H,S)..GCC;TGN126..THP..(GEN,LA);GGN125,GUN126,13#,TGN136..LHD..THP;GUN122,125,TGN121..LHD..THP..(H,S);GUN122,125,TGN121..LHD..THP..L..(GEN,LA,PH)202108-202303

main55306-KK060iGUN135..LHD..SA202108-202301

SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-KK030iGUN126..PKN202108-202303

main55307-KK040iGUN122,125,126,135,LAN125,TGN121,126,136..LHD..(GHA,MMR,SA)202108-202303

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-KK320iGUN125..RHD..6F..L..GEN202108-202207

SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)

main55330-KK320iGUN126..L..PKN202202-202301

main55330-KK330iGUN122,125,TGN120,121,126..MTM..L..GCC202108-202301

SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)

main55330-KK370iGUN125,TGN126..6FC..L..GCC202108-202207

main55330-KK450iGUN126..6F..S..PKN202108-202303

main55330-KK460iGUN125,126,13#,TGN121..RHD..6FC..(ARL,GEN,IDN)202108-202303

main55330-KK470iGUN120,121,126,135..6FC..TH202108-202207

main55330-KK480iGUN122,125,126,135..6F..TH202108-202207

main55330-KK490iTGN126..5F..(H,S)..GCC;GUN126,135..LHD..THP..6F;TGN126..THP..5F..(GEN,LA);GUN122,125,136,TGN121..LHD..THP..MTM..(H,S);GUN122,125,TGN121,136..LHD..THP..L..(GEN,LA,PH202108-202303

main55330-KK500iGUN126..LHD..THP..6FC;GGN125,GUN125,135,TGN121,126..LHD..THP..6FC..(H,S)202108-202303

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-KK020iGUN126..PKN202108-202303

main55355-KK030iGGN125,GUN122,125,126,13#,TGN120,121,126,136..LHD..THP202108-202303

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-KK070iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP..(H,S)202108-202303

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-KK030iGUN125,126..MA202108-202303

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-KK070iGUN126..THP..(H,S);GUN125,135..L..(PH,VN);GGN125,GUN125,13#,TGN126..THP..(H,S)..(ARL,GCC,GEN,IDN,LA,PH,TH)202108-202303

55359CCOSHION, INSTRUMENT PANEL, NO.5

main55359-KK030iGGN125,GUN125,126,13#,TGN136..RHD..(H,S)..(KEN,SA)202108-202303

main55359-KK040iGUN125,135..L..(PH,VN);GUN126..LHD..THP..(H,S);GGN125,GUN125,13#,TGN126..LHD..THP..(H,S)..(GCC,GEN,LA,PH)202108-202303

55368CBRACKET, METER MOUNTING

main55368-KK010iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202108-202303

NO.1:REFER ILLUST.

main55368-KK020iGUN126..IND202108-202303

NO.2:REFER ILLUST.

main55368-KK030iGUN122,125,126,135,LAN125,TGN121,126,136..LHD..(GHA,MMR,SA)202108-202303

NO.2:REFER ILLUST.

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-0K030iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202303

5752

61181BRACKET, INSTRUMENT PANEL SIDE

main61181-KK030iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202108-202303

61182DBRACKET, INSTRUMENT PANEL SIDE

main61125-KK010iGGN125,GUN122,125,126,13#,TGN120,121,126,136..LHD..THP202108-202303

main61126-KK010iGUN126..PKN202108-202303

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0K010iGUN12#,135..RHD..(GEN,IDN,TH)202108-202301

main73960-0K060iGGN125,GUN125,126,13#,TGN136..RHD..(KEN,SA)202109-202303

main73960-0K070iGGN125,GUN122,125,126,13#,TGN120,121,126,136..LHD..THP..(GCC,GEN,LA,PH,VN)202108-202210

main73960-0K080iGUN122,125,126,135,LAN125,TGN121,126,136..LHD..(GHA,SA)202109-202303

main73960-0K130iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

main73960-0K150iGUN125,126,13#,TGN121..ARL202108-202207

main73960-0K160iGUN126..TWN202108-202207

90105T0065

main90105-T0065

90105T0197

main90105-T0197

90105T0342

main90105-T0342

90119T0314

main90119-T0314

9015950311

main90159-50311

9015970004

main90159-70004

90159T0009

main90159-T0009

90159T0037

main90159-T0037

90167T0007

main90167-T0007

90167T0012

main90167-T0012

90178T0019

main90178-T0019

9018305103

main90183-05103

9046705171

main90467-05171

9167380616

main91673-80616

9356855014

main93568-55014

32 parts on this diagram · 8 diagrams in section
