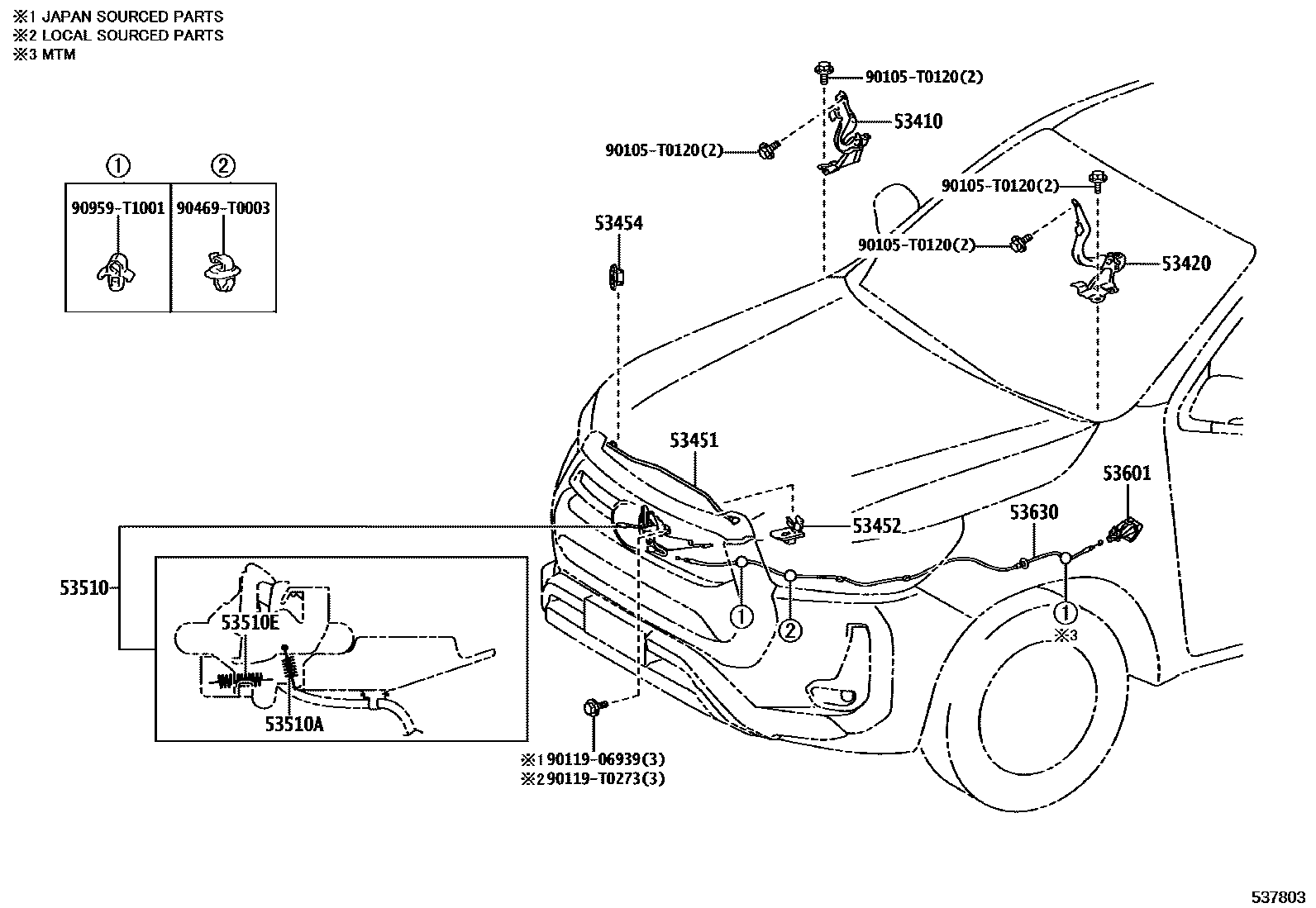

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-0K230iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,SA202109-202303

main53410-0K240iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

main53410-0K270iGUN126..PKN202202-202301

main53410-0K370iGUN126..MMR202108-202210

53420HINGE ASSY, HOOD, LH

main53420-0K230iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,SA202109-202303

main53420-0K240iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

main53420-0K270iGUN126..PKN202202-202301

main53420-0K370iGUN126..MMR202108-202210

53451ROD, HOOD SUPPORT

main53440-0K010iGUN126..MMR202108-202210

main53440-0K020iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,SA202109-202303

main53440-0K030iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

main53440-0K040iGUN125,126..MA202110-202208

main53440-0K050iGUN126..IND202203-202209

main53440-0K060iGUN126..PKN202202-202301

53452HOLDER, HOOD STAY

main53452-0K020iGUN125,126..MA202108-202303

53454CLIP, HOOD SUPPORT ROD

main53454-0D010iGUN126..MMR202108-202210

main53454-52020iGUN126..IND202109-202303

53510LOCK ASSY, HOOD

main53510-0K380iTGN126..H..GEN;GGN125,GUN122,125,126,TGN120,121,126..GCC202108-202207

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main53510-0K470iTGN126..H..GEN202108-202207

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

main53510-0K470iTGN126..S..GEN202108-202207

TOYOTA STOP & START SYSTEM-WITH

main53510-0K590iGUN126..L..PKN202209-202301

main53510-0K650iGUN135..L..(GEN,TH);GUN125..RHD..(GEN,IDN);GUN126..RHD..6FC..H..GEN;GUN120,121,122,126..RHD..(L,S)..(GEN,TH)202108-202209

main53510-0K660iGUN135..L..TH202108-202207

TOYOTA STOP & START SYSTEM-WITH

main53510-0K660iGUN126..RHD..6FC..GEN;GUN125..RHD..6F..L..GEN;GUN125..RHD..(H,S)..GEN202108-202207

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

main53510-0K660iGUN126..(H,S)..PKN202108-202209

main53510-0K670iGUN125..LHD..S..GEN202108-202207

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main53510-0K680iGUN126..MMR202108-202210

main53510-0K680iGUN135..(H,S)..(PH,VN);GUN125..LHD..S..(GEN,VN);GUN126,136,TGN126..THP..H..(LA,PH,TWN,VN)202108-202207

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

main53510-0K690iGUN135..S..SA;GUN125..RHD..6F..S..SA202109-202301

EXPORT FROM SA&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main53510-0K690iGUN125,135..RHD..L..(KEN,SA)202109-202303

main53510-0K690iGUN126,136..S..SA202109-202301

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main53510-0K700iGUN125,135..RHD..L..(KEN,SA)202109-202303

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)

main53510-0K710iGUN122,125,135,LAN125,TGN121,126..LHD..L..SA202109-202301

main53510-0K710iGUN125..L..GHA202112-202303

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main53510-0K720iGUN125..L..GHA;TGN136..LHD..SA;GUN125,126,LAN125,TGN126..LHD..(H,S)..(GHA,SA)202109-202303

main53510-0K720iGUN122,125,LAN125,TGN121,126..LHD..L..SA202109-202301

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)

main53510-0K730iGUN135..L..BZAG;GUN125,TGN136..AGTP..L;GUN125,126..AGTP..S..LA;GUN135,TGN126..AGTP..(L,S)..LA202111-202210

main53510-0K740iGUN125..AGTP..S..LA;TGN126..AGTP..(L,S);GUN126,135..AGTP..6F..S..LA202111-202210

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

main53510-0K791iGUN126..IND202203-202209

main53510-0KA50iGUN126..(H,S)..PKN202209-202301

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-T0004iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202303

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-T0005iGUN126..IND202108-202303

WD=0.9,CW=21

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D040-C0iGGN125,GUN122,125,126,TGN120,121,126..GCC202108-202301

BLACK,TRIM2#

main53601-0D040-C0iGUN12#,13#,TGN121,126,136..THP..(ARL,GEN,IDN,LA,PH,TH,TWN,VN)202108-202207

BLACK,TRIM2#,3#

main53601-0D090-C1iGUN126..IND202203-202209

BLACK,TRIM2#

main53601-0K120-C0iGUN12#,135,LAN125,TGN12#,136..LHD202109-202303

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0K210iGUN12#,13#,TGN121..RHD..THP202108-202303

main53630-0K260iGUN122,125,126,135,LAN125,TGN121,126,136..LHD..(GHA,MMR,SA)202108-202303

main53630-0K290iGUN126..IND202203-202209

main53630-0K320iGUN125,126..MA202110-202208

90105T0120

main90105-T0120

9011906939

main90119-06939

90119T0273

main90119-T0273

90469T0003

main90469-T0003

90959T1001

main90959-T1001

15 parts on this diagram · 2 diagrams in section
